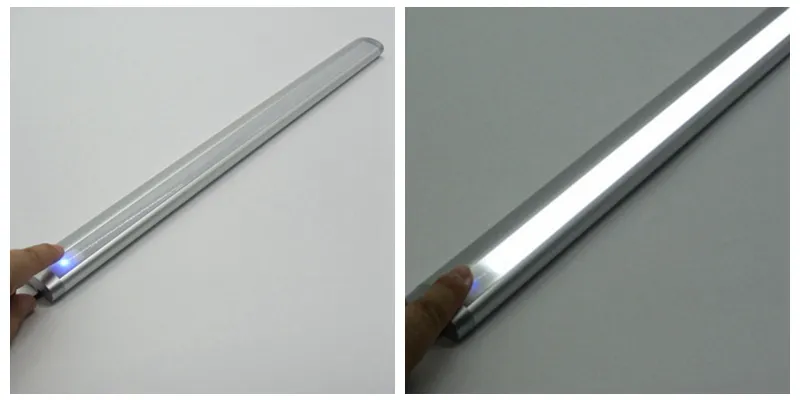

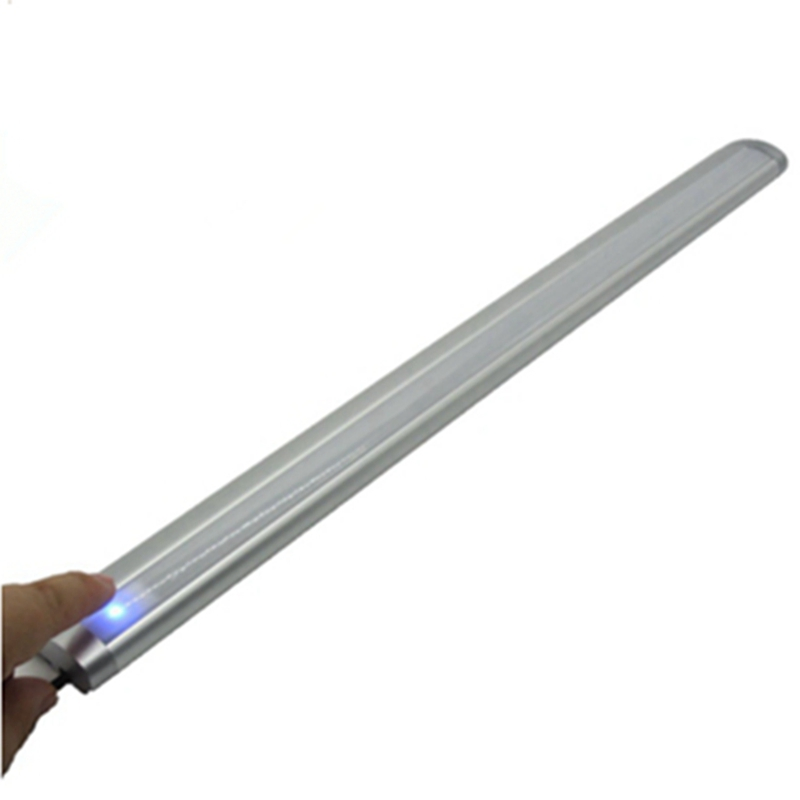

12V LED Dimmable Under Cabinet Lighting Kit

1 / 5

12V LED Dimmable Under Cabinet Lighting Kit

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

FDL037-TH

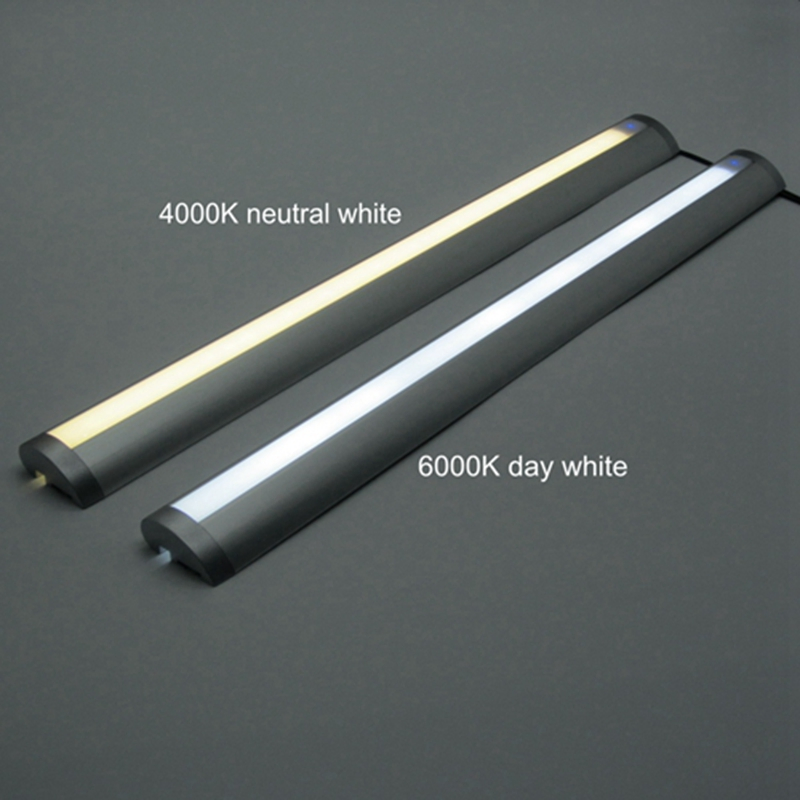

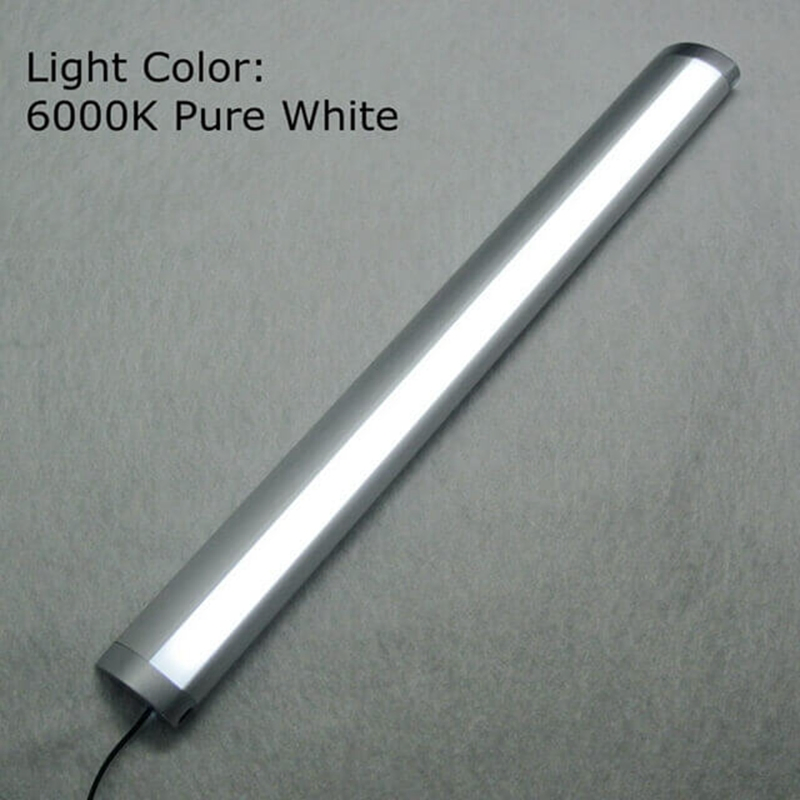

Emitting Color

Cool White

Installation

Wall Mounted

Switch Type

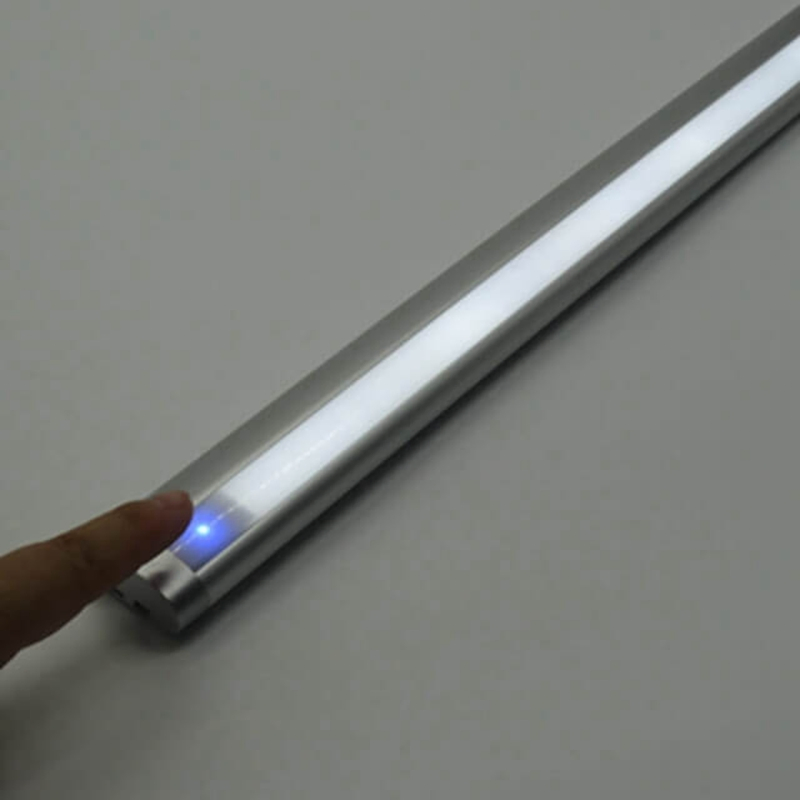

Touch On/Off Switch

IP Rating

IP33

Input Voltage

12V

Certification

FCC, RoHS, REACH, LVD, EMC, CE

CRI

Lumens

550

Size

500 X 42 X 18 mm

Warranty

3 Years

Specification

12V DC 8W

Product Description

DV 12V Touch Linear Cabinet LED Light Bar for Cupboard
Model # FDL037

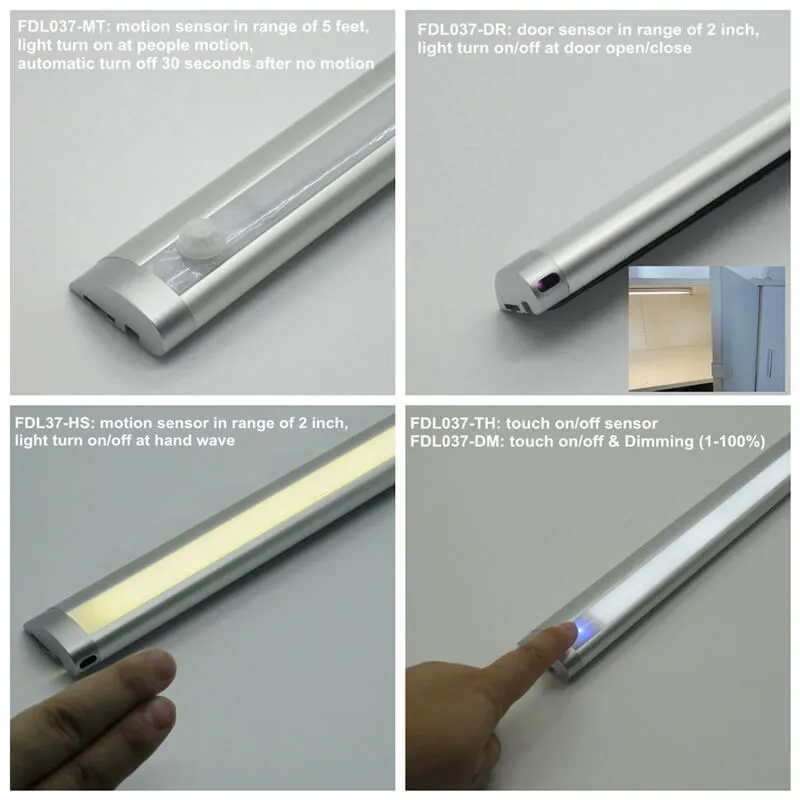

Model	Sensor	Size(mm)	Wattage	Voltage	LED color	Lumens
FDL037-TH	Touch on/off	500 X 42 X 18 mm	8W	12V	cool/warm white	550
FDL037-DM	Touch dimming	500 X 42 X 18 mm	8W	12V	cool/warm white	550
FDL037-DR	Door sensor IR	500 X 42 X 18 mm	8W	12V	cool/warm white	550
FDL037-HD	Hand Sensor IR	500 X 42 X 18 mm	8W	12V	cool/warm white	550
FDL037-MT	Motion Sensor	500 X 42 X 18 mm	8W	12V	cool/warm white	550

Key Features:
• Versatile Built-in sensors to create outstanding features and convenience
• Strong and even light - no visible LED dots (High lumen LED panel 80lm/W)
• Customizable: both profile and LED strip can be cut to length
• High Color Rendering Index: CRI 80

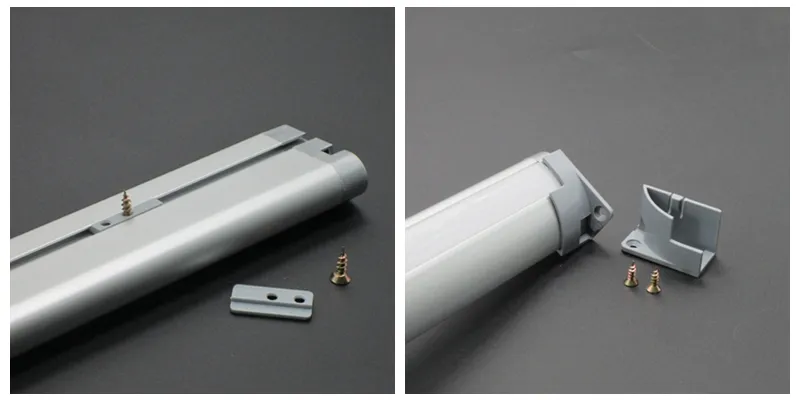

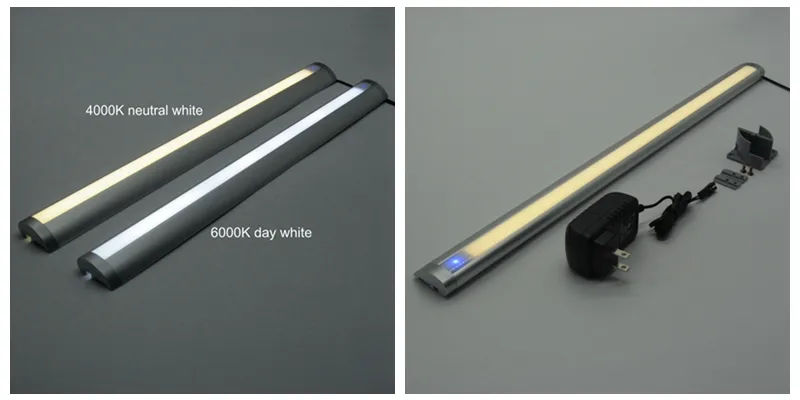

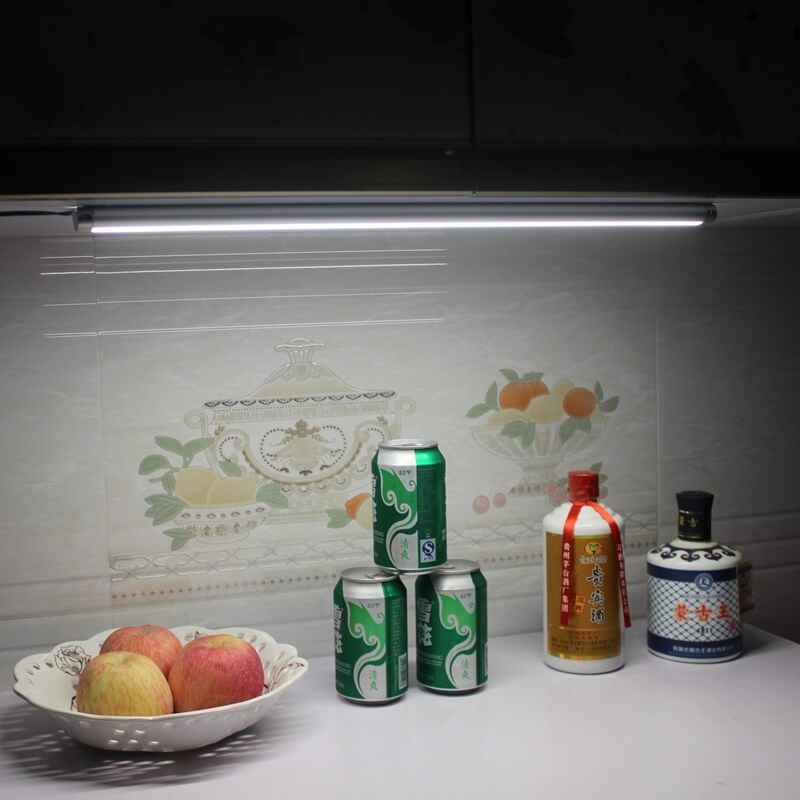

Detailed Images & Installation
