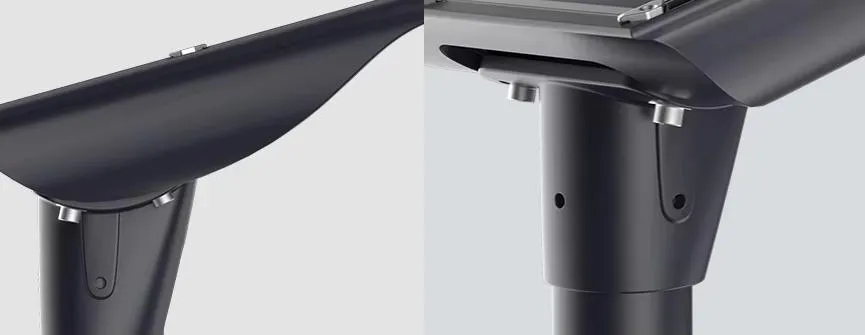

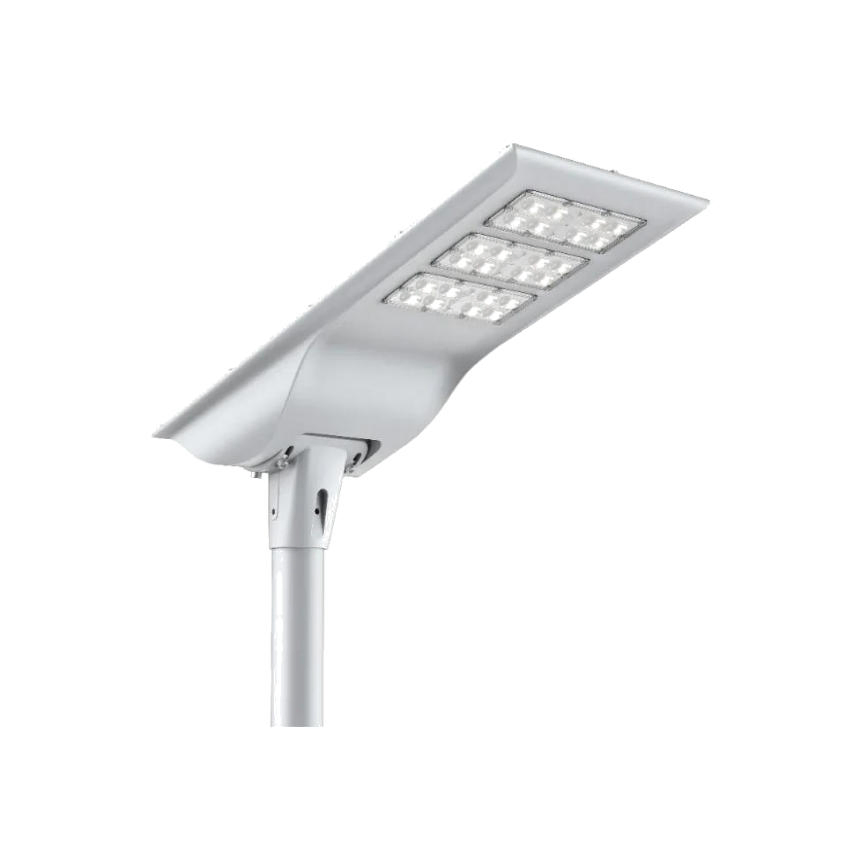

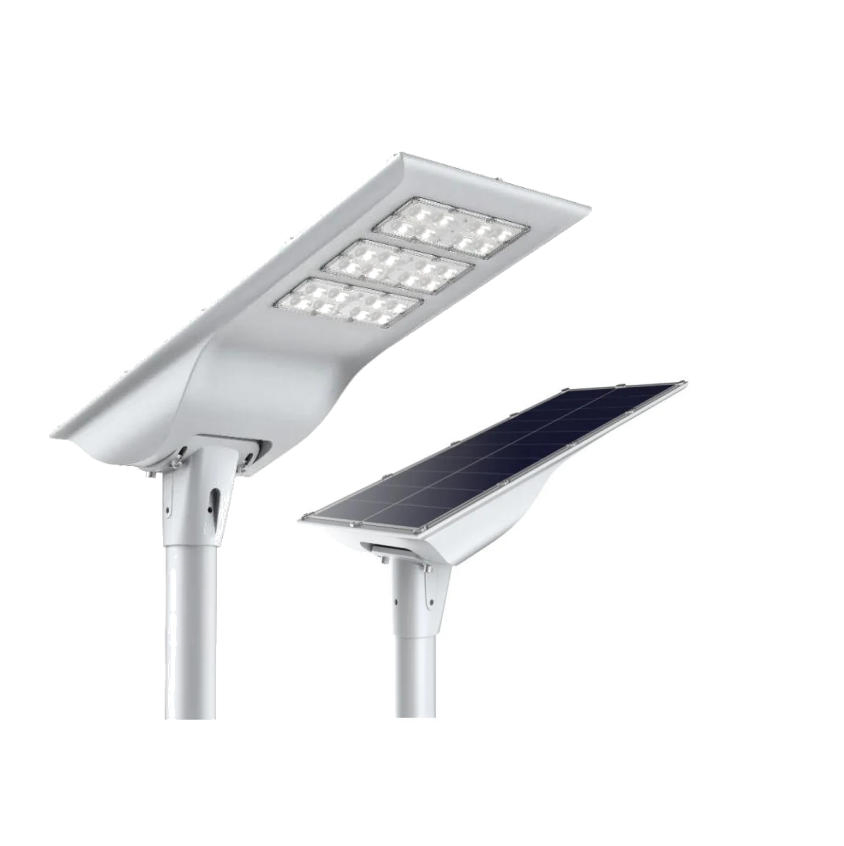

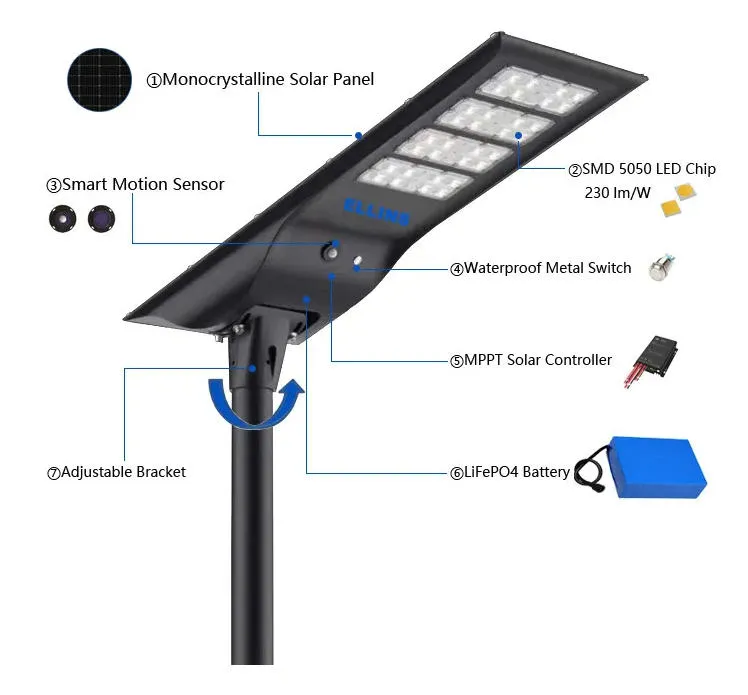

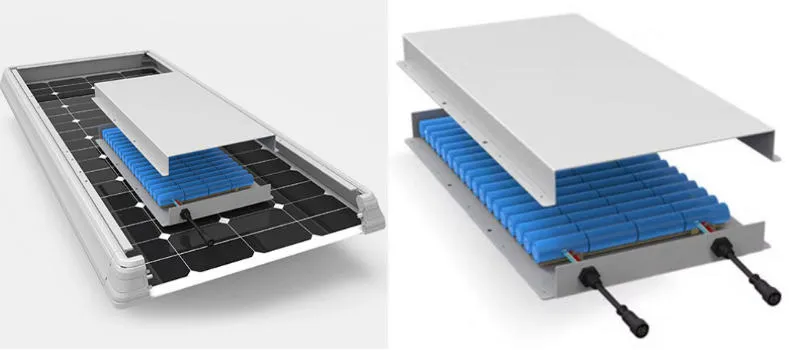

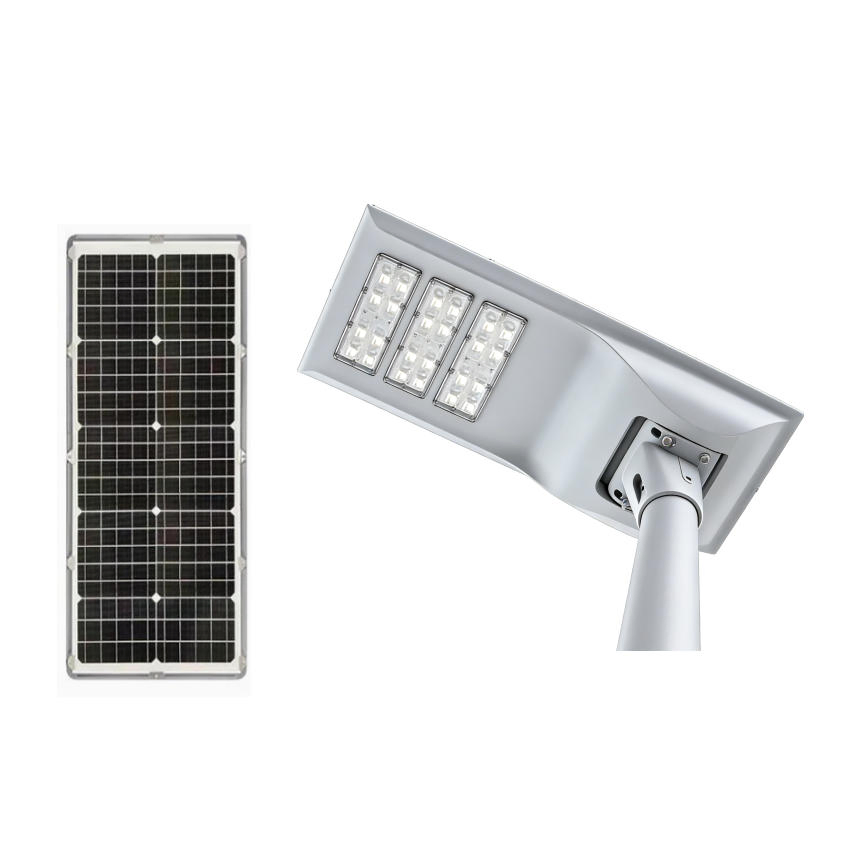

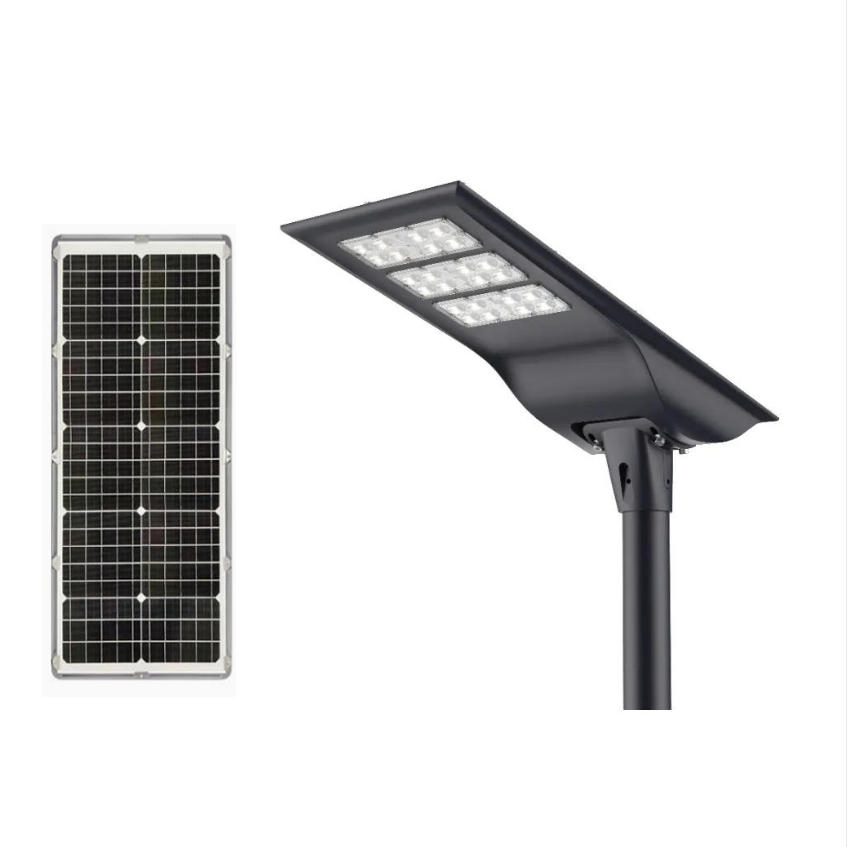

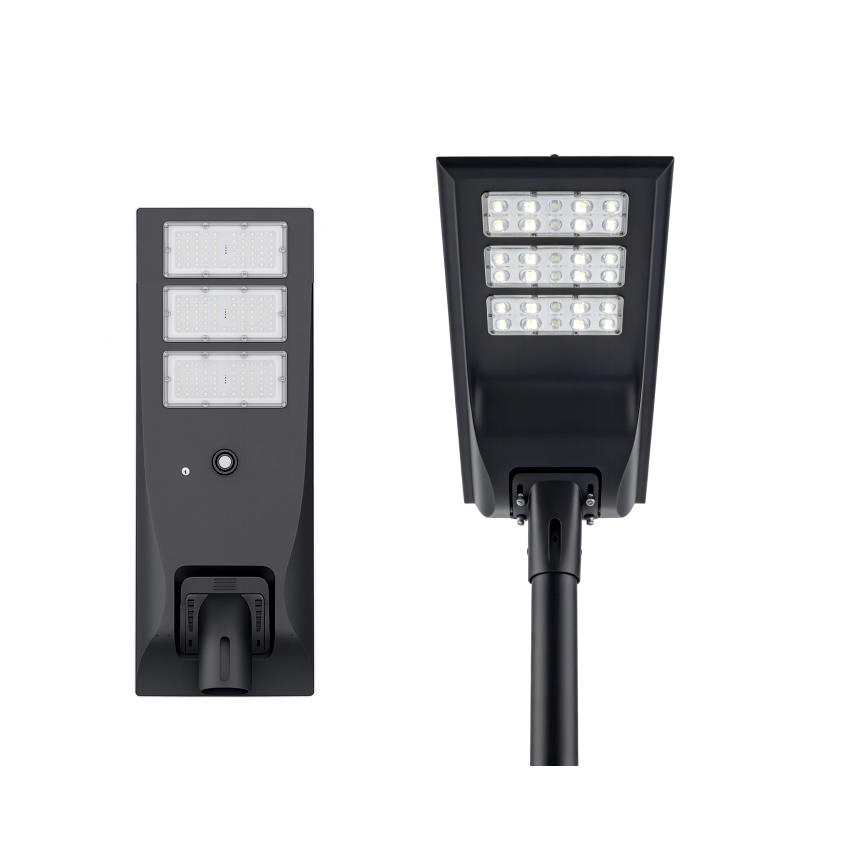

The 027 series All-in-one solar street light combines modern design with advanced photovoltaic technology. It integrates the luminaire, monocrystalline solar panel, and A1-grade LiFePO4 battery into a single, cable-free housing that simplifies installation and enhances aesthetic appeal. Crafted from die-cast aluminum with a nano-coated finish, this system provides superior corrosion resistance and dependable performance in harsh outdoor environments.

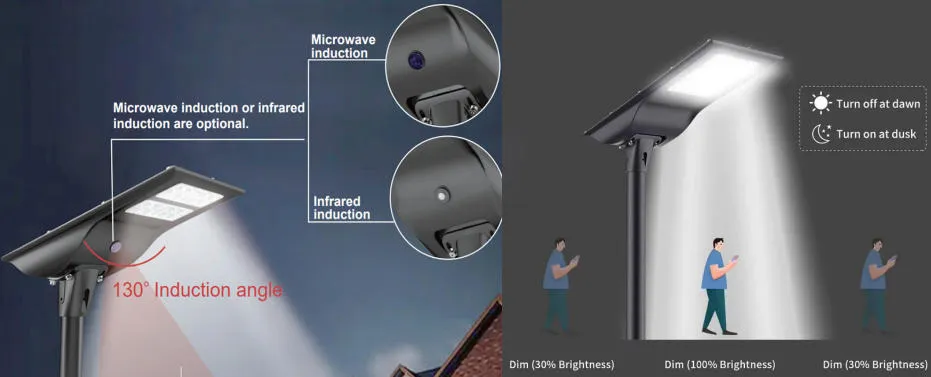

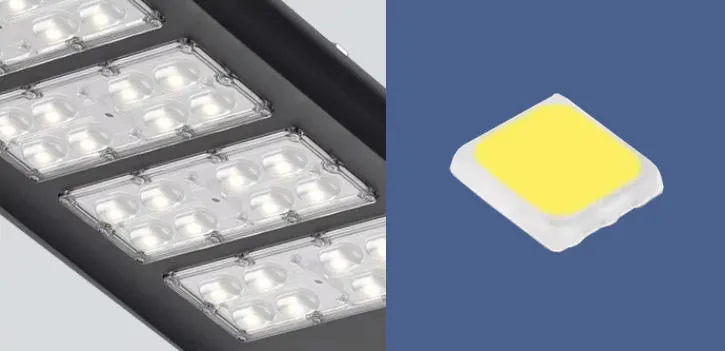

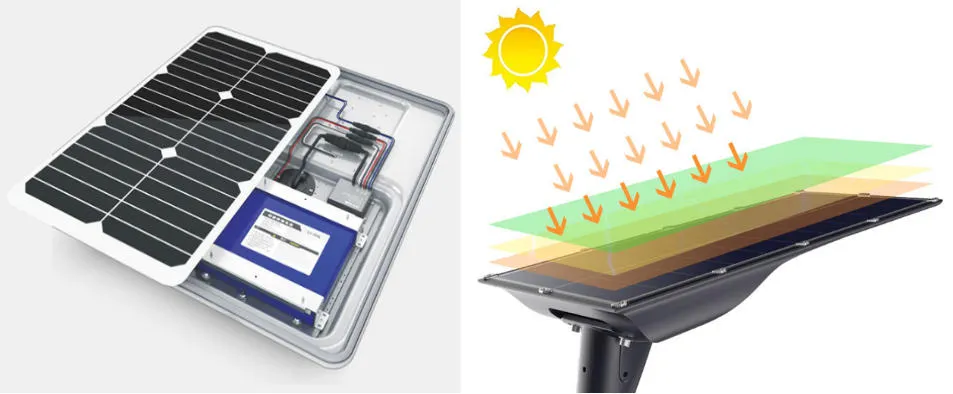

Delivering over 160 lm/W, its high-lumen LEDs project a precision bat-wing light distribution for uniform, comfortable illumination with minimal glare. The smart MPPT controller optimizes solar energy capture—even on cloudy days—while automatically adjusting brightness according to motion, ambient light, and time schedules.
| Model | ZD-SSTL-027-040 | ZD-SSTL-027-060 | ZD-SSTL-027-080 |
|---|---|---|---|
| Power | 40W | 60W | 80W |
| LED Quantity | 3030SMD×100PCS | 3030SMD×150PCS | 3030SMD×200PCS |
| Solar Panels | 40W Mono | 50W Mono | 65W Mono |
| Battery Capacity | 116WH 3.2V | 192WH 3.2V | 240WH 3.2V |
| Light Angle | 80°×150° | ||
| Working Mode | Radar Induction + Segmented Time Control + Intelligent Control | ||
| Installation Height | 5-6M | 6-7M | 7-8M |
| Product Size | 697×361×209mm | 846×361×209mm | 1096×361×209mm |
