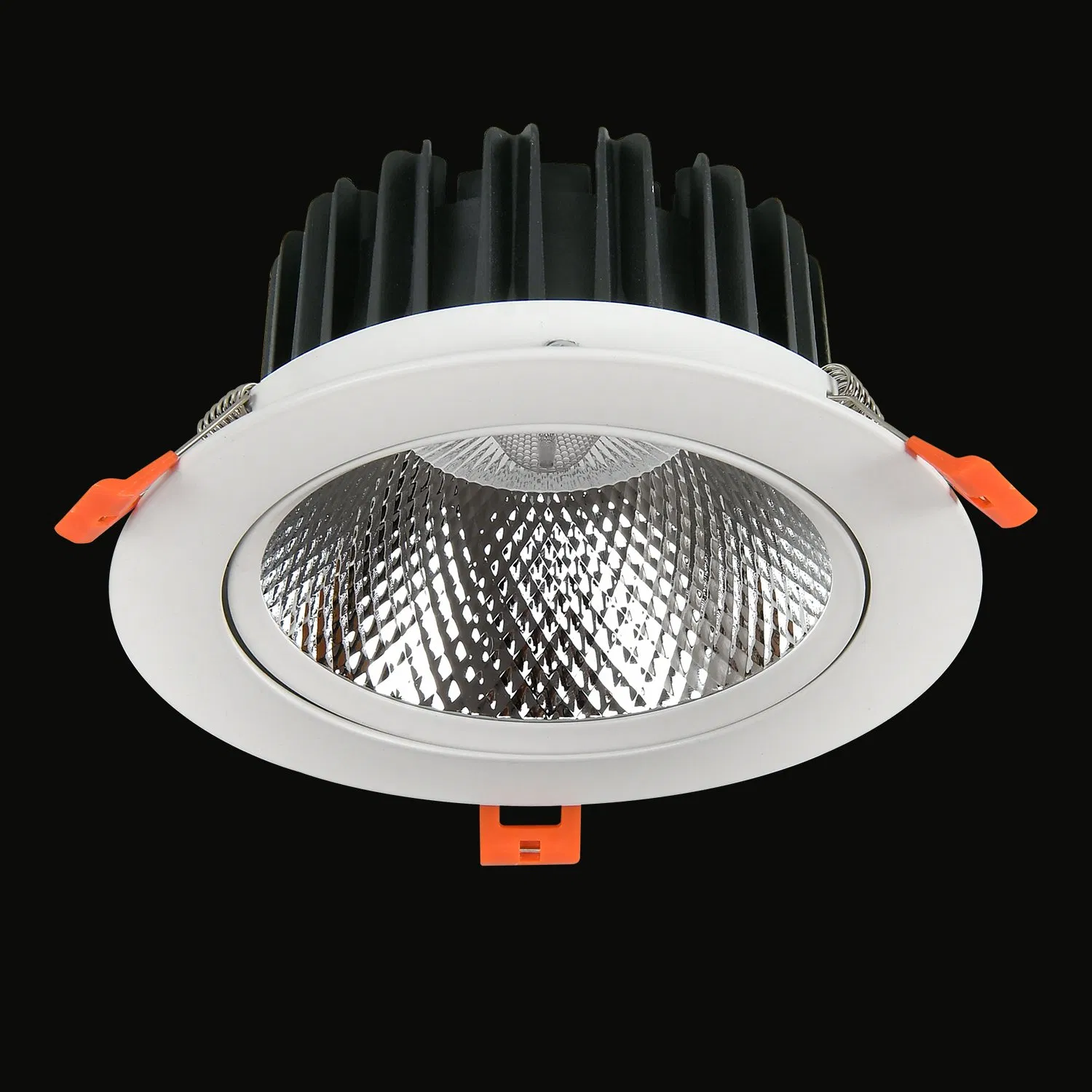

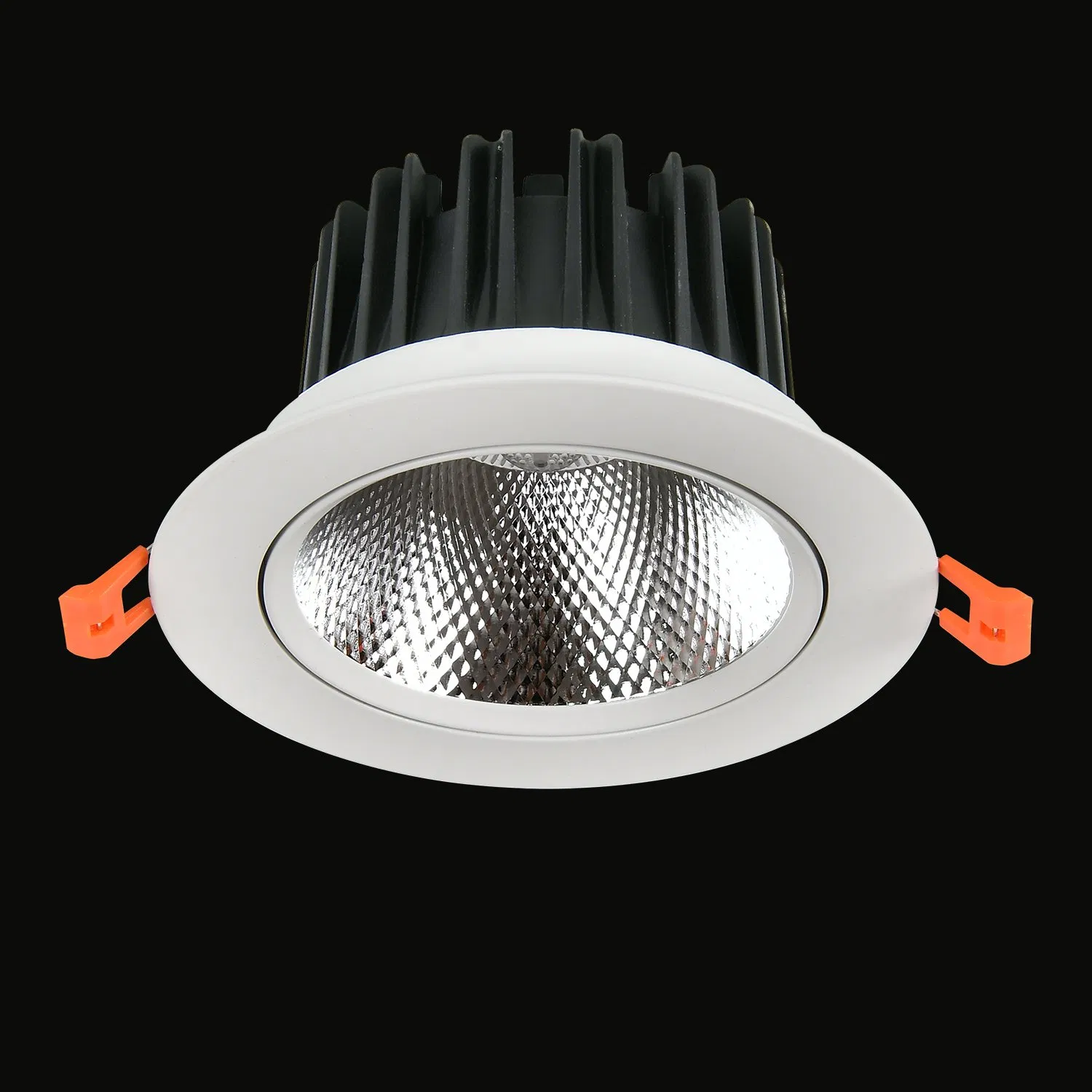

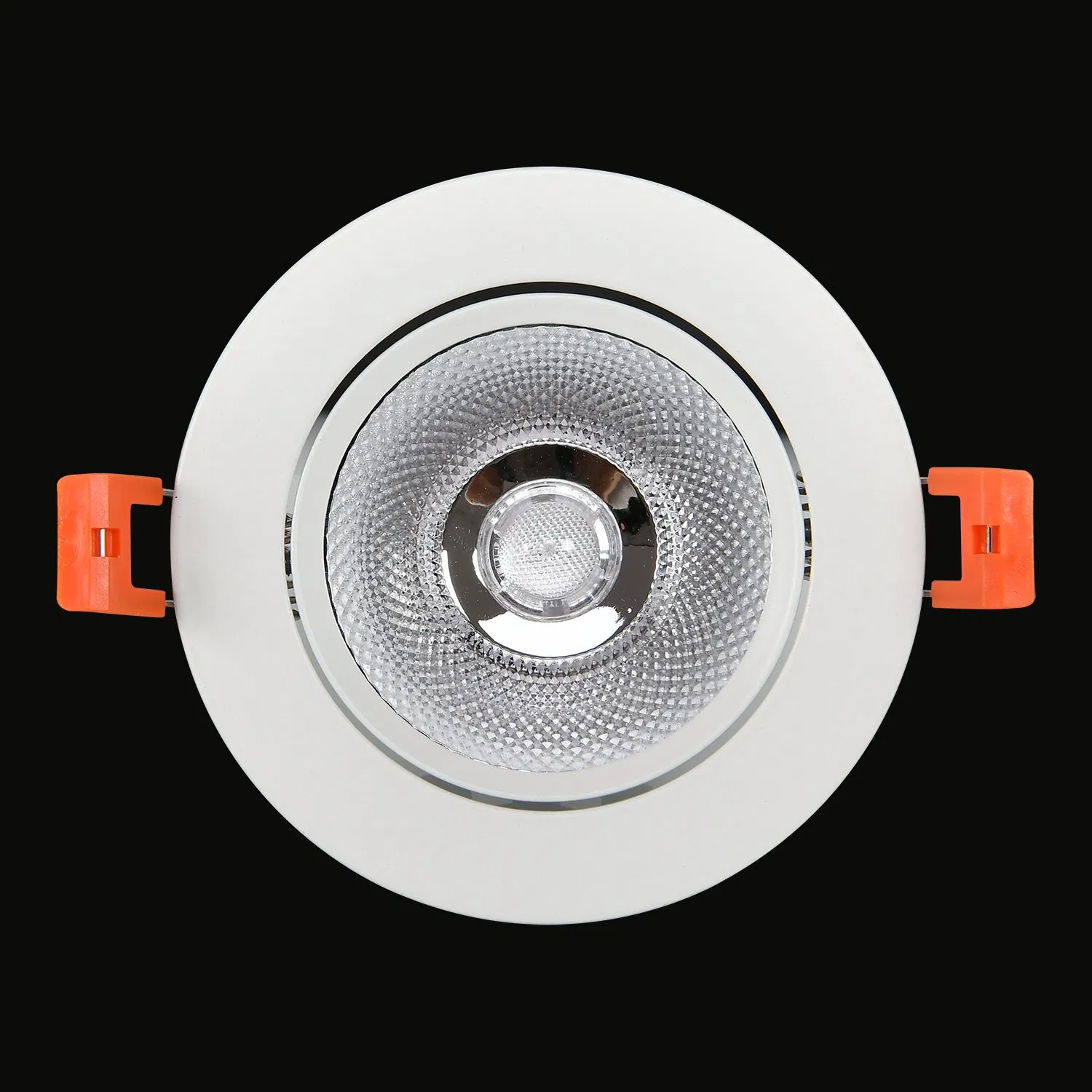

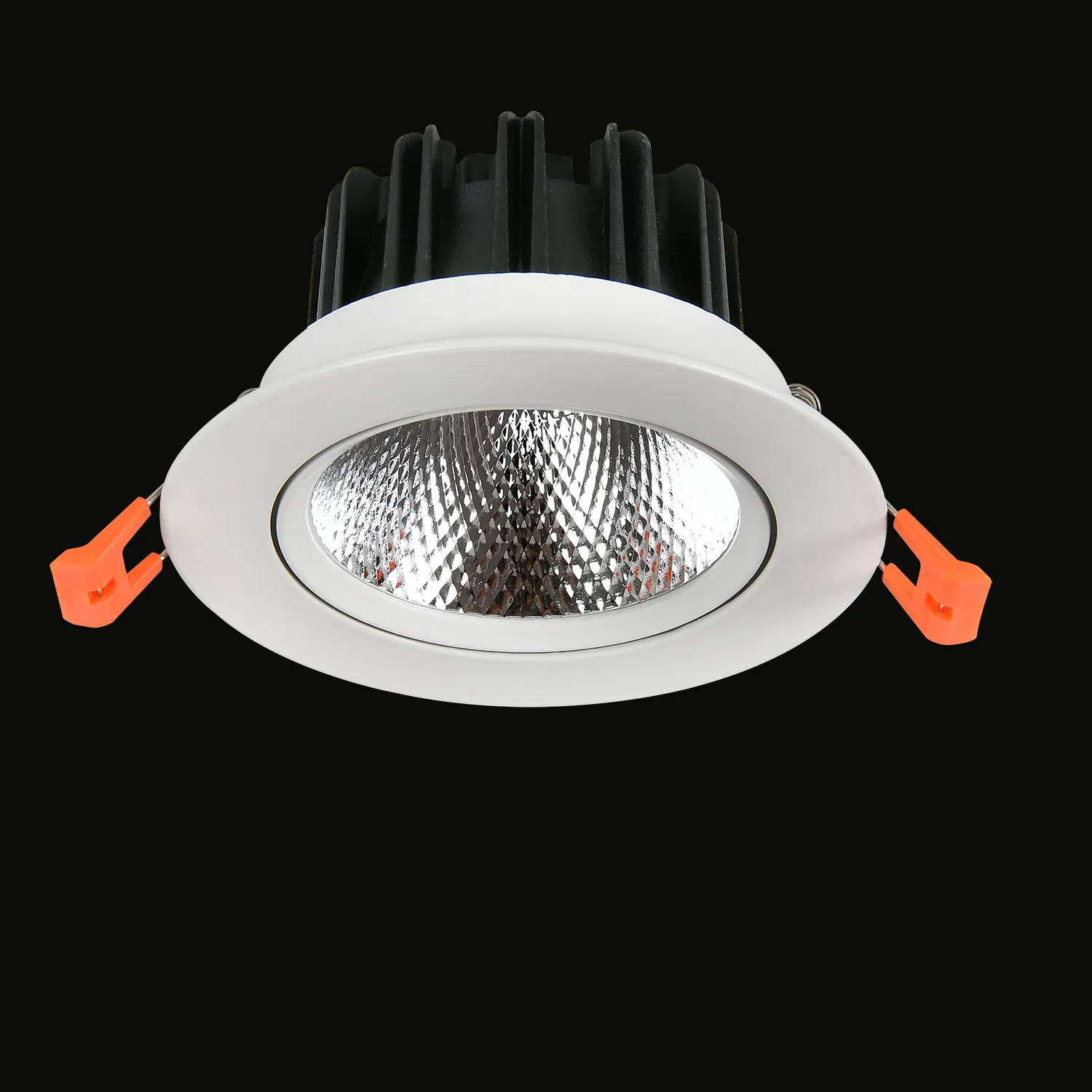

25W-30W Dimmable Ceiling Recessed Adjustable LED Spot Downlight

1 / 5

25W-30W Dimmable Ceiling Recessed Adjustable LED Spot Downlight

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

💡 Basic Information

Model NO.

TLD12A-30W

Power

30W

Color Temperature

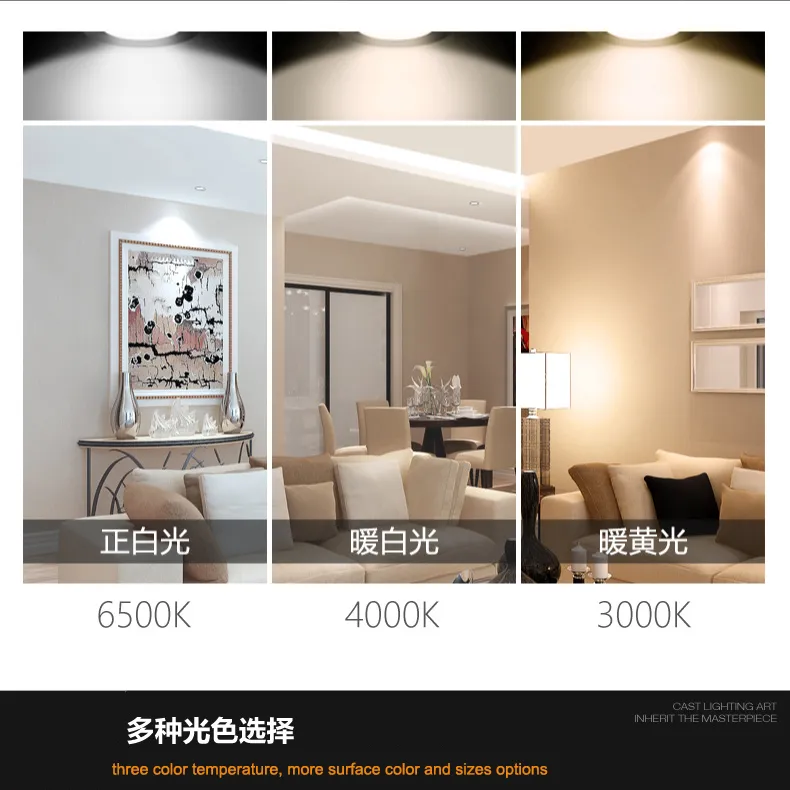

Ww/Nw/Cw

Lamp Body Material

Aluminum or PC Trim, Aluminum Casting Heat Sink

Installation

Recessed

Warranty

3 Years

CRI

Ra>90

Cut-out

140mm

IP Rating

Certification

CCC, CE, LVD, RoHS, SAA

📦 Product Description

25W-30W dimmable Ceiling Recessed Adjustable LED spot downlight for commercial project office Hotel Apartment Residential corridor Room spotlight

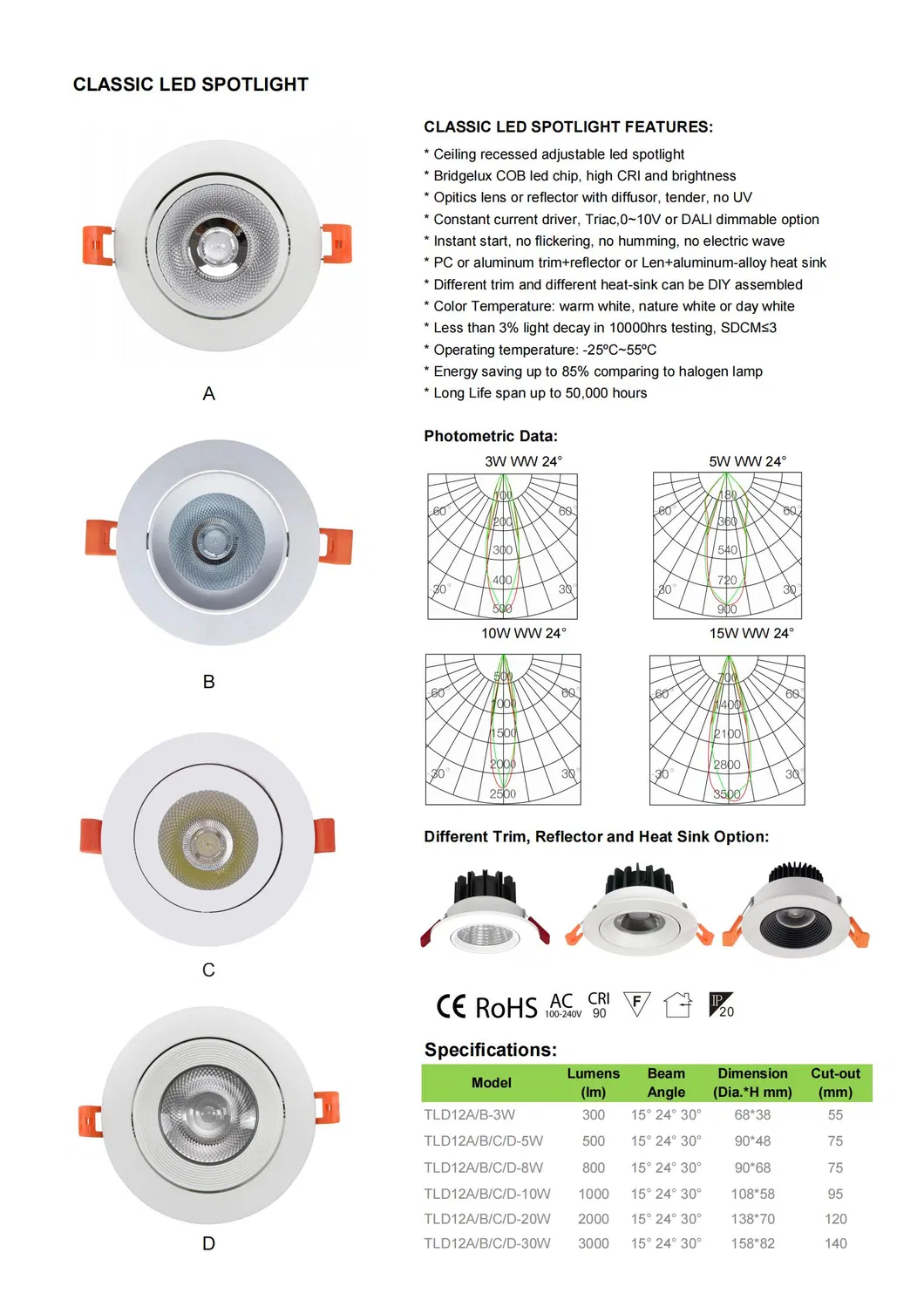

Model	Lumens (lm)	Input Voltage	CRI	CCT	Beam Angle	Dimension (mm)	Cut-out (mm)
TLD12A/B-3W	300	AC100-240V	Ra≥90	WW/NW/CW	15° 24° 30°	68*38	55
TLD12A/B/C/D-5W	500	AC100-240V	Ra≥90	WW/NW/CW	15° 24° 30°	90*48	75
TLD12A/B/C/D-7W	700	AC100-240V	Ra≥90	WW/NW/CW	15° 24° 30°	90*68	75
TLD12A/B/C/D-10W	1000	AC100-240V	Ra≥90	WW/NW/CW	15° 24° 30°	108*58	95
TLD12A/B/C/D-20W	2000	AC100-240V	Ra≥90	WW/NW/CW	15° 24° 30°	138*70	120
TLD12A/B/C/D-30W	3000	AC100-240V	Ra≥90	WW/NW/CW	15° 24° 30°	158*82	140

⭐ Key Features

Ceiling recessed adjustable led spotlight

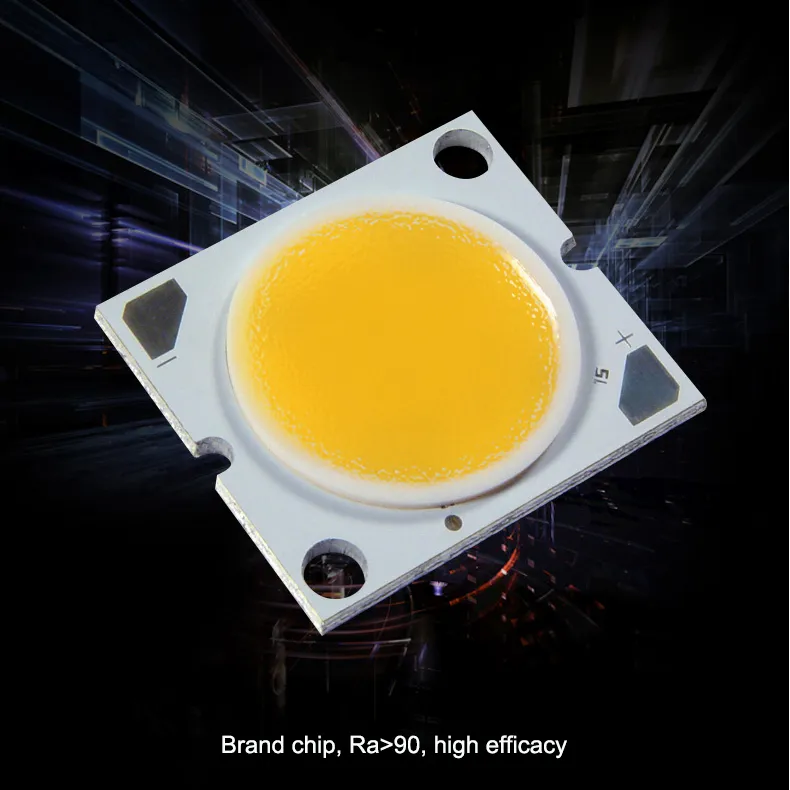

Bridgelux COB led chip, high CRI and brightness
Opitics lens or reflector with diffusor, tender, no UV
Constant current driver, Triac, 0~10V or DALI dimmable option
Instant start, no flickering, no humming

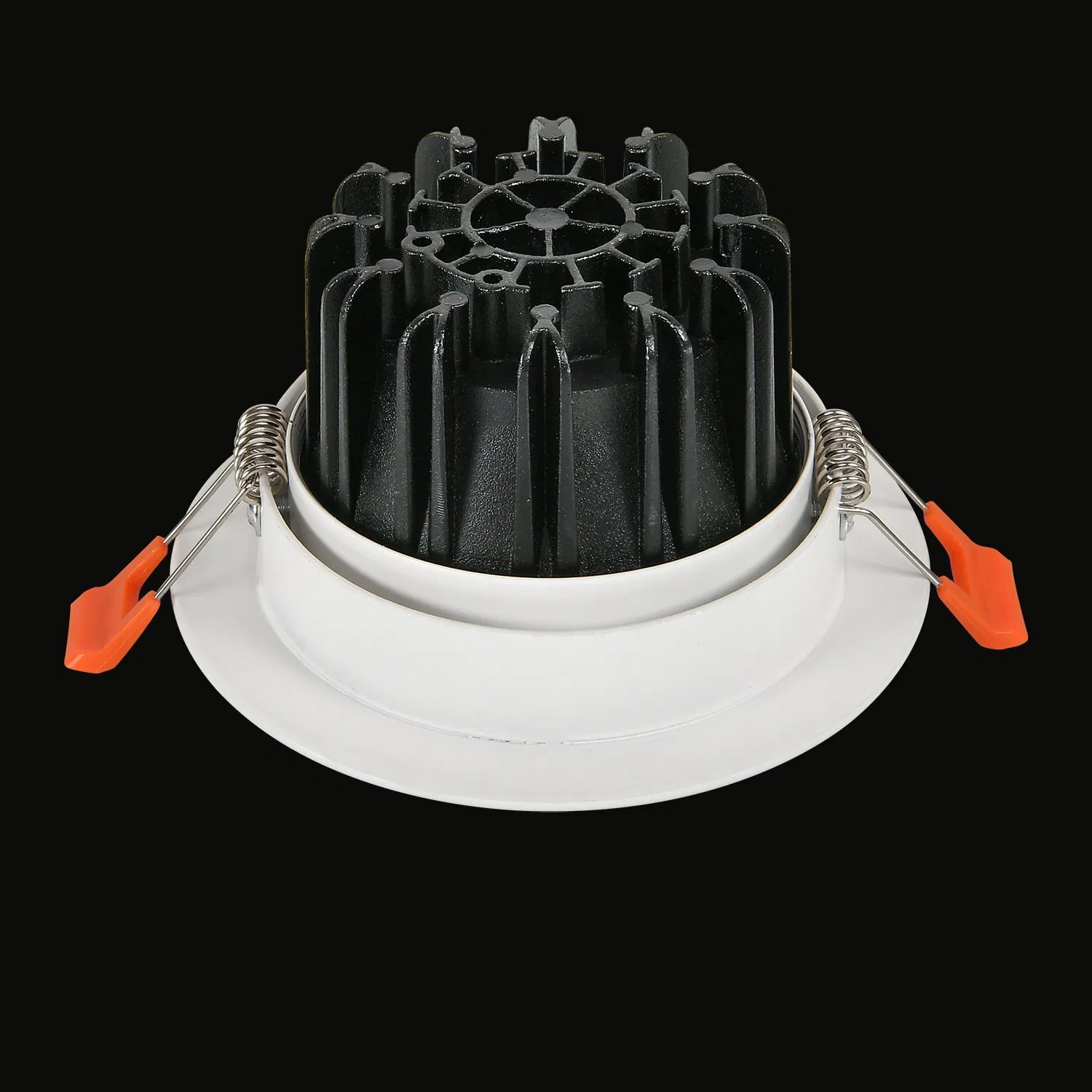

PC or aluminum trim + aluminum-alloy heat sink
Long Life span up to 50,000 hours
Energy saving up to 85% comparing to halogen lamp

🖼️ Product Showcase

❓ FAQ

Q1: Are you a professional manufacturer? A1: Yes, we are a purely professional original manufacturer with our own factory facilities.

Q2: Can you develop OEM new products? A2: Yes, our structure engineers can provide CAD and 3D drawings to develop new products based on client requirements using our own mould workshops.

Q3: What is the lead time for orders? A3: Usually 3-5 days for samples and 2-4 weeks for bulk batch orders.

Q4: What is the quality process and warranty? A4: We are ISO9001 certified. 100% of finished products undergo aging tests before packing. We offer a 2-5 year guarantee on all products.

Q5: How do you handle product failures under warranty? A5: We provide free replacements with new orders for small quantities or negotiate repair solutions for batch failures.

Q6: Can you provide test reports? A6: Yes, we have our own lab and can offer IES, Photometric, and LM80 reports.
