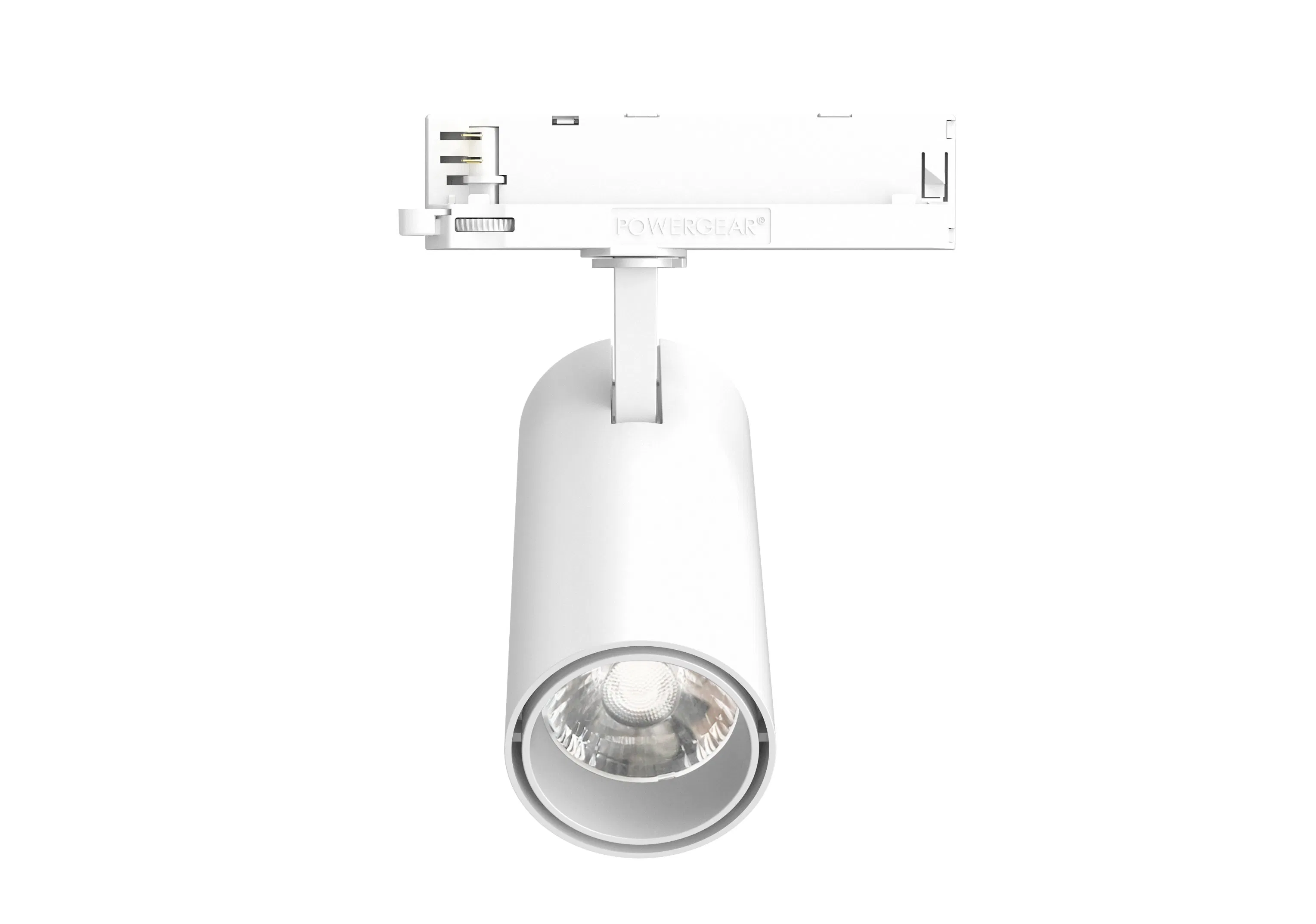

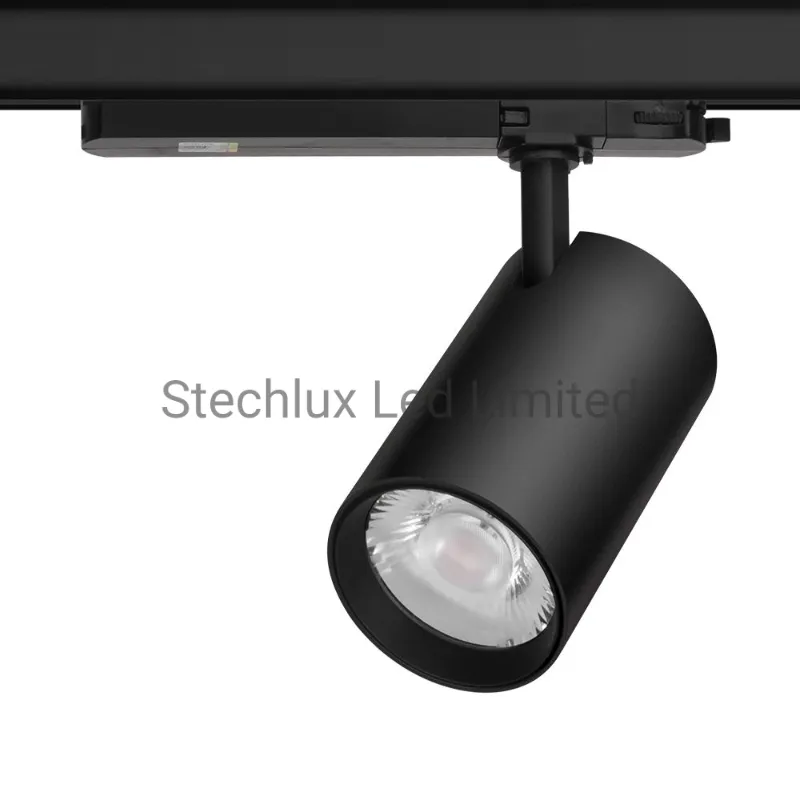

This series of track lights is the new favorite on the market, especially in indoor commercial lighting applications. Because the driver is integrated with track adapter (in-track driver), it not only ensures excellent heat dissipation performance but also makes it looks very compact. Though the drivers are in the track adapter, it can be also high PF and flicker-free.

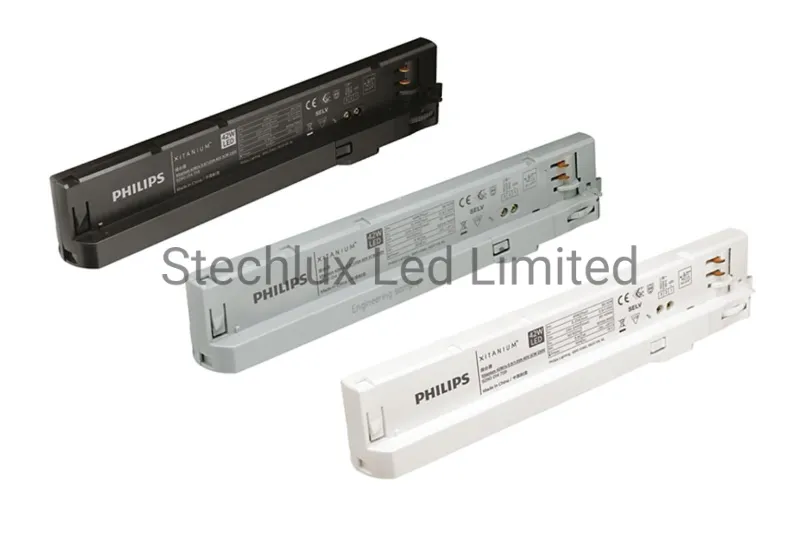

The drivers are available with brands of Osram, Philips, TCI, etc. Optional dimming on/off, Triac-dim, 0/1-10V dim, and DALI dim.
| Model | ST-T1503 | ST-T2503 | ST-T3503 |
|---|---|---|---|
| Power (W) | 15W | 25W | 35W |
| Lumen Output | 1400-1700lm | 3000-3200lm | 4000-4400lm |
| Beam Angle | 15° / 24° / 36° / 50° | ||
| Size | 65*150mm | 75*160mm | 85*170mm |
| LED Brand | Bridgelux / Luminus / CREE | ||
| CRI | Ra>90 / Ra>95 / Ra>97 | ||
| Driver Brand | Philips / Osram / TCI / Powergear | ||
| Flicker-free | Yes | ||
* DALI dimming, Zoomable beam angle (15-60°), and Turnable CCT by DIP switch are available upon request.

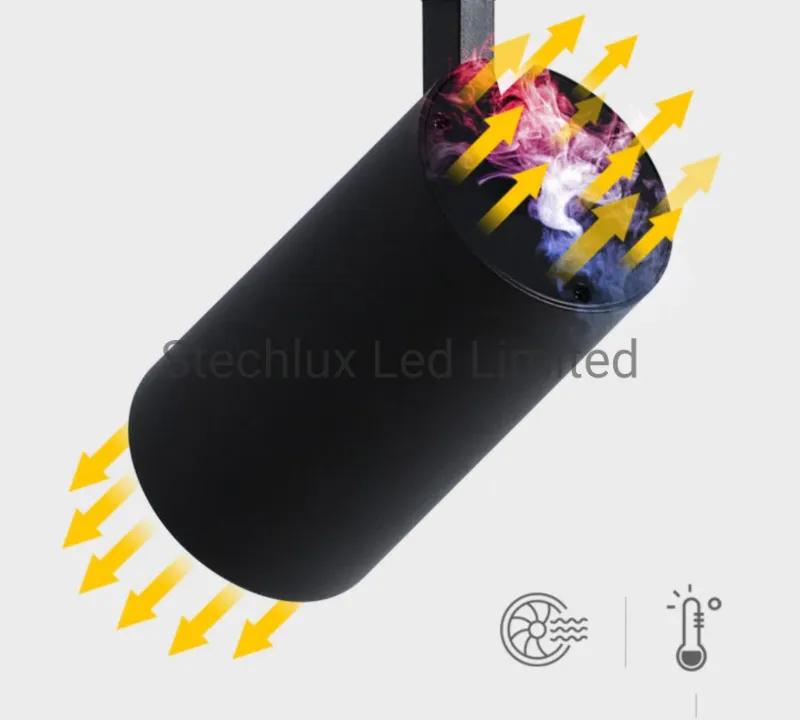

The lamp body uses purer aluminum #1070 by technology of cold forging. The cooling effect is 30% higher than #6063 profile aluminum and 2 times better than die-casting aluminum ADC12.

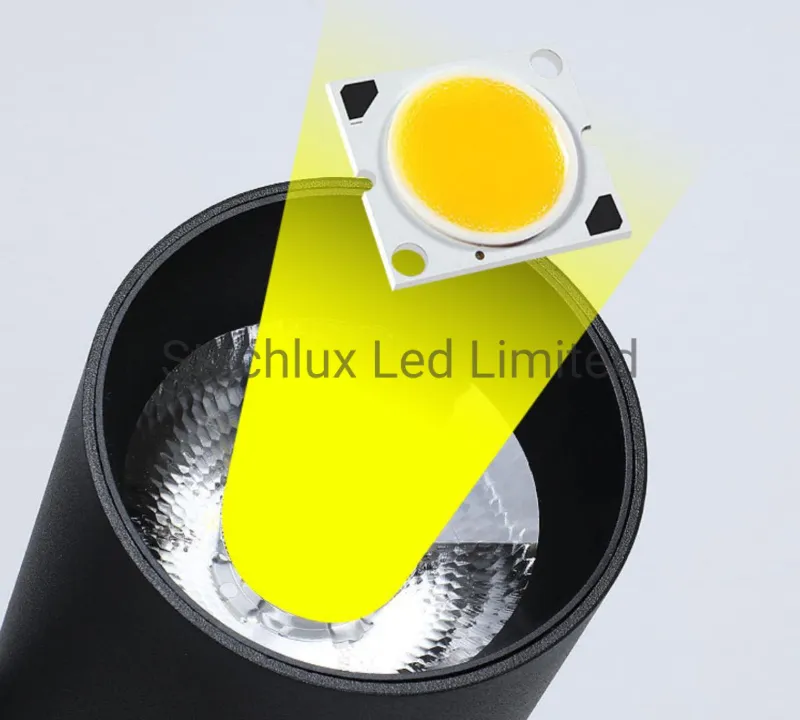

Original Citizen or Luminus COB chips provide CRI90/95. Higher CRI restores true colors, while high efficiency (up to 137lm/W at 3000K CRI90) ensures energy saving.

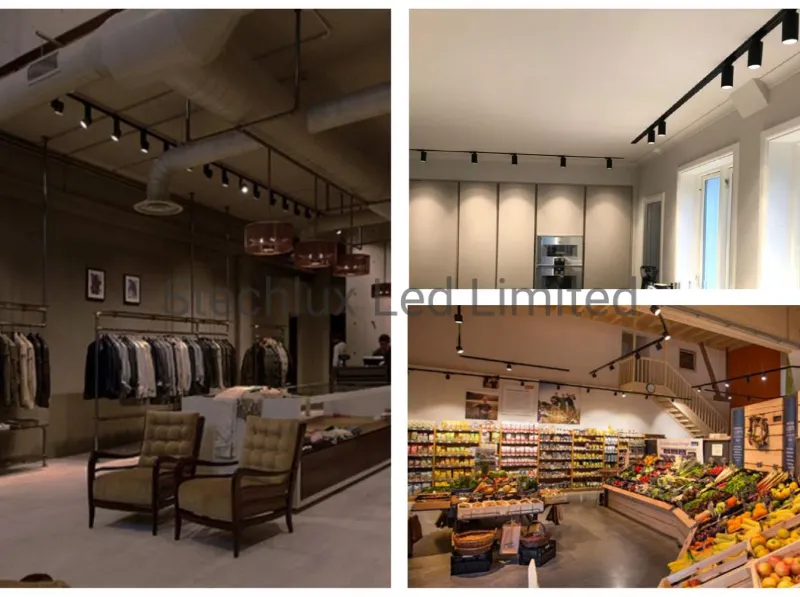

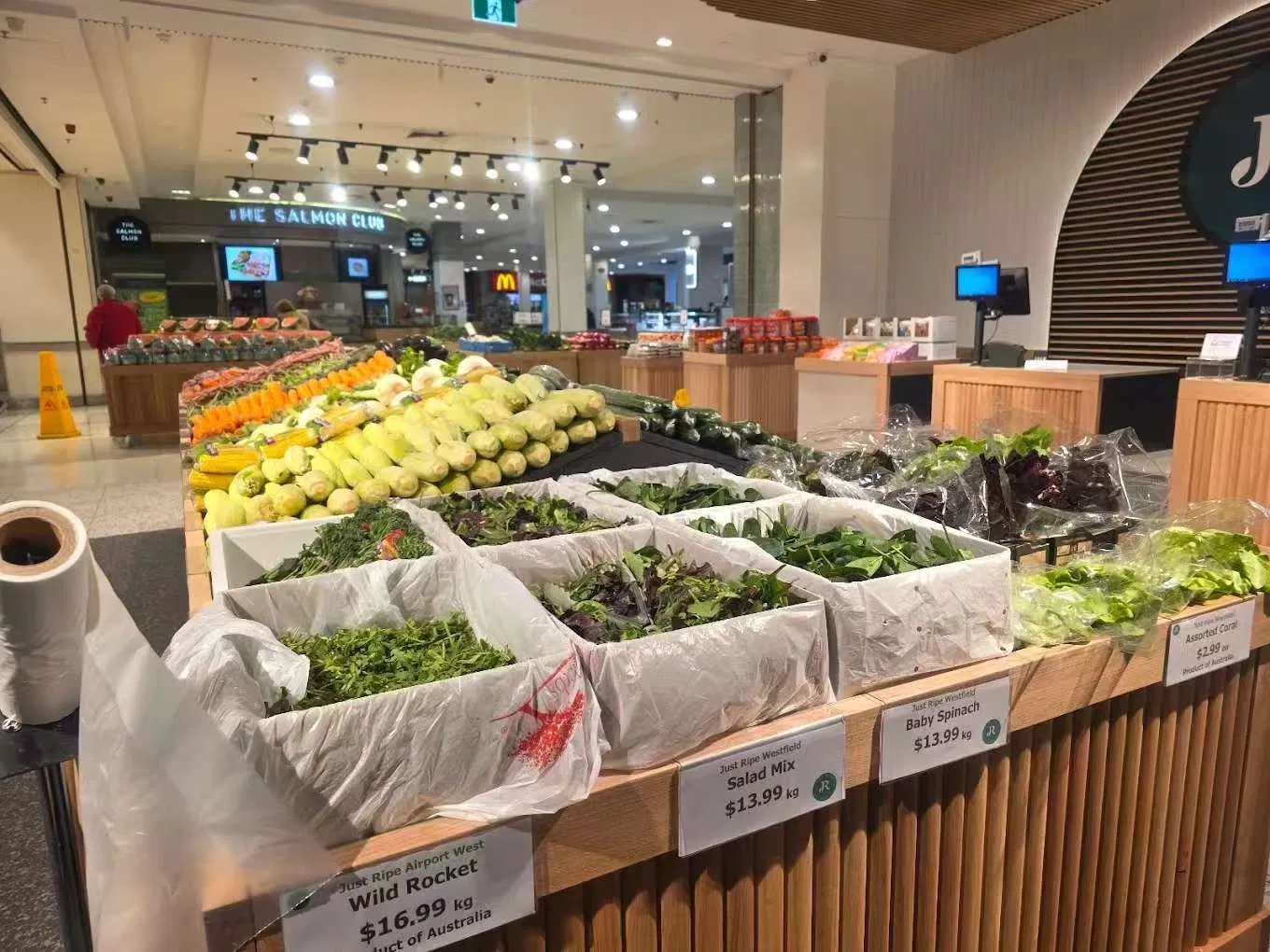

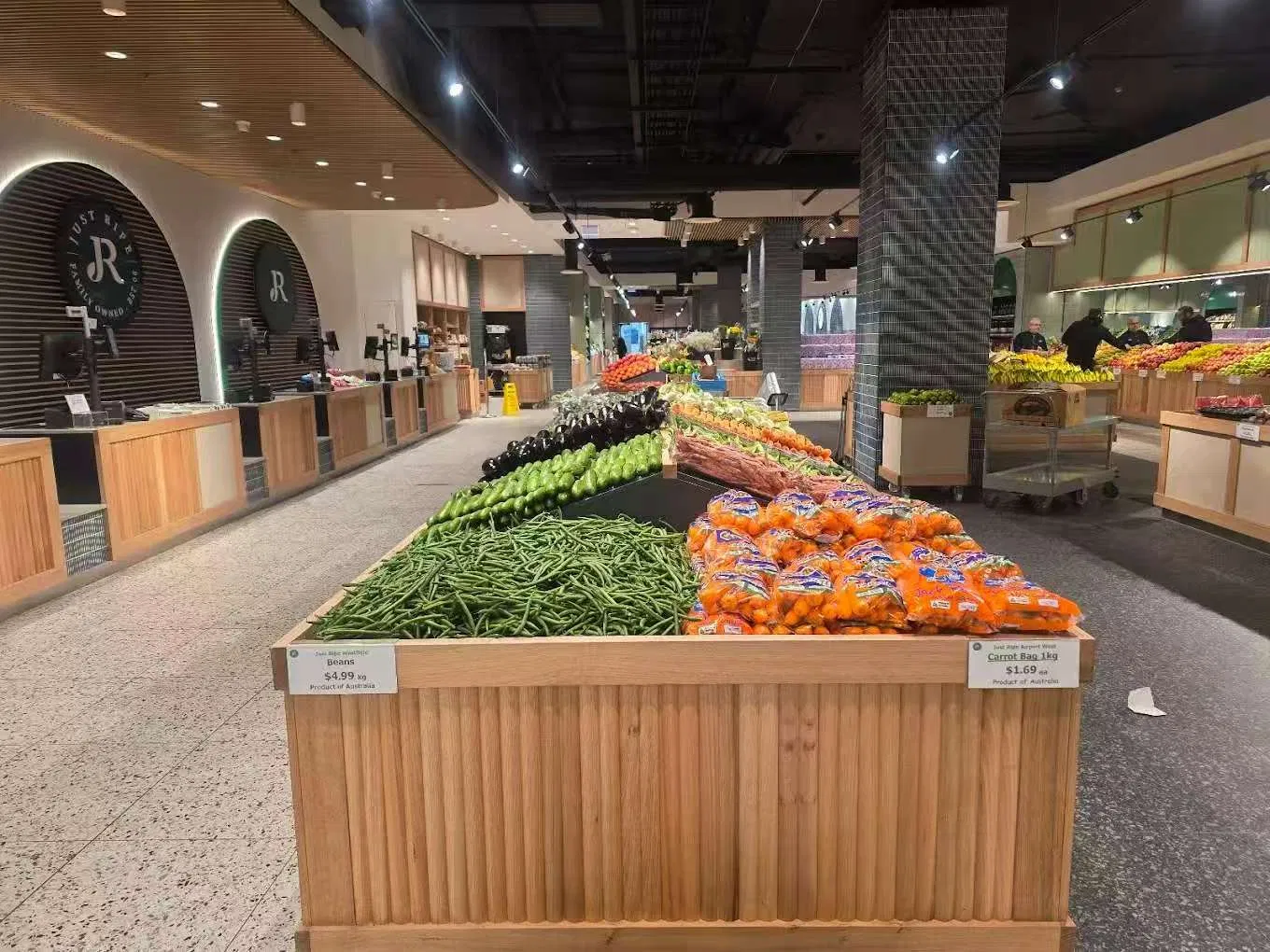

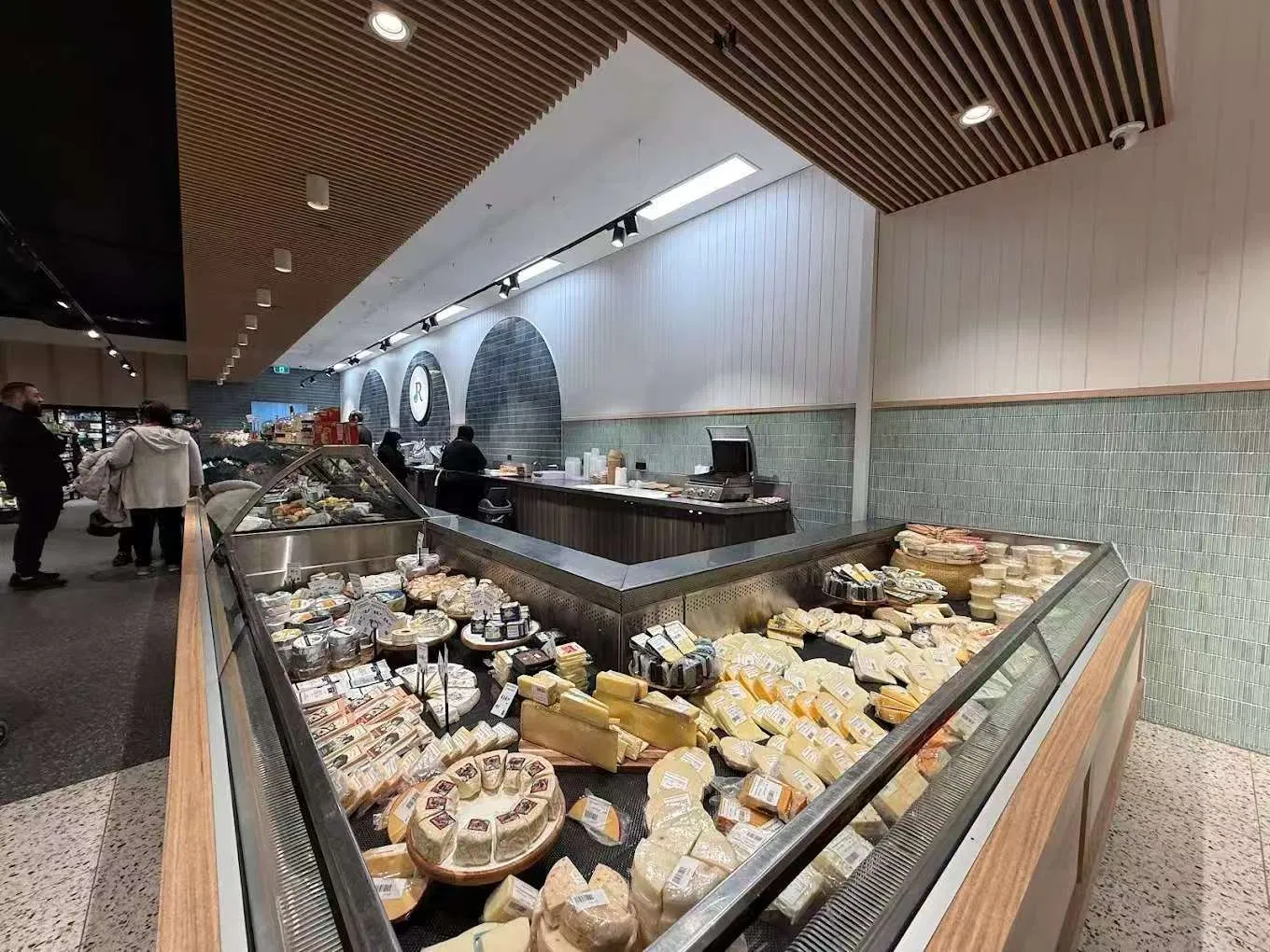

Perfectly suitable for use in high-end hotels, villas, mansions, and commercial showrooms, providing a comfortable and healthy lighting space.
