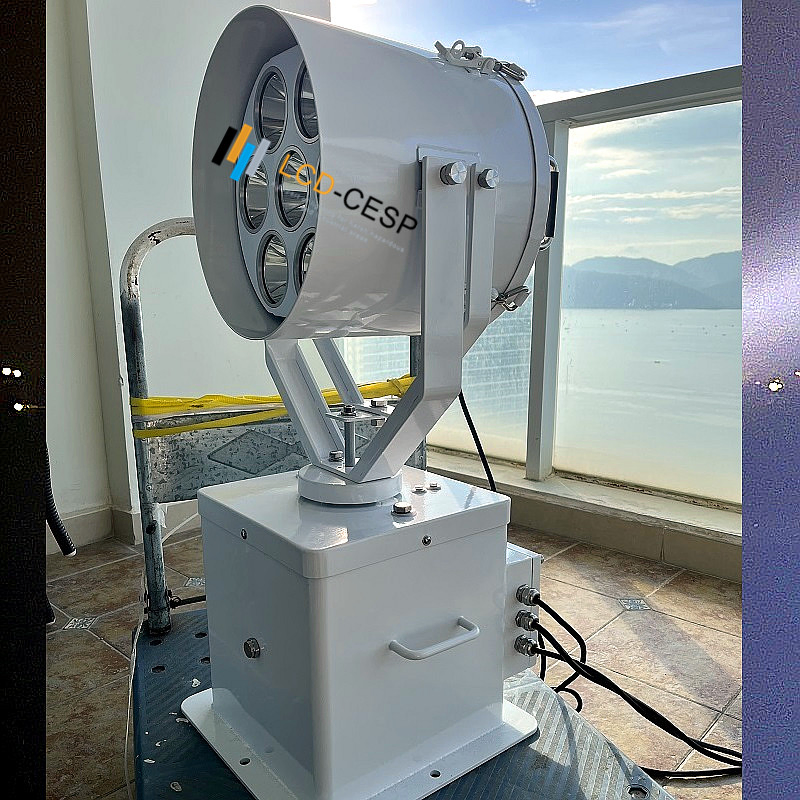

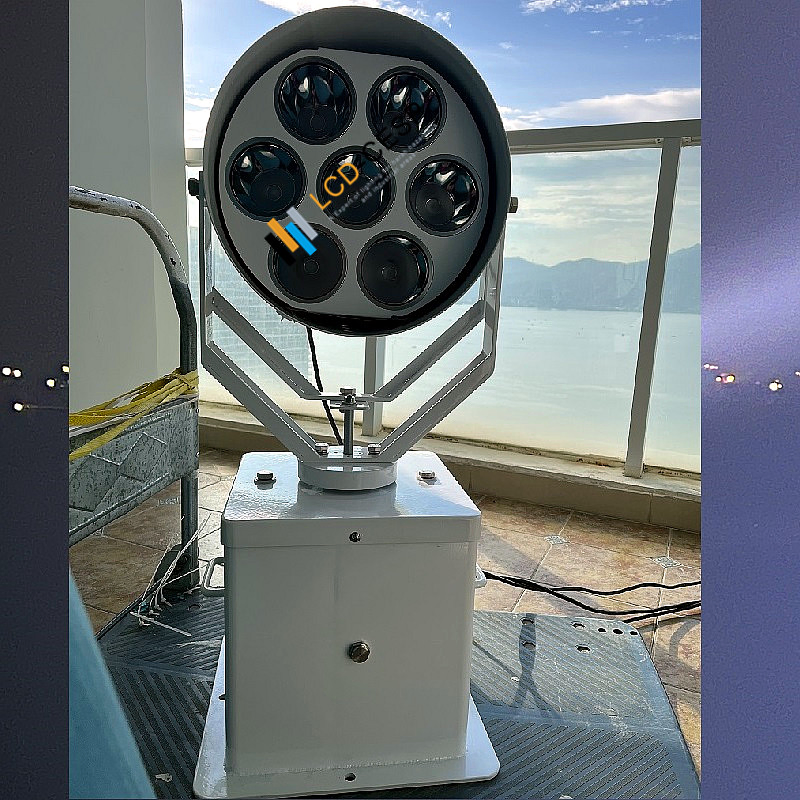

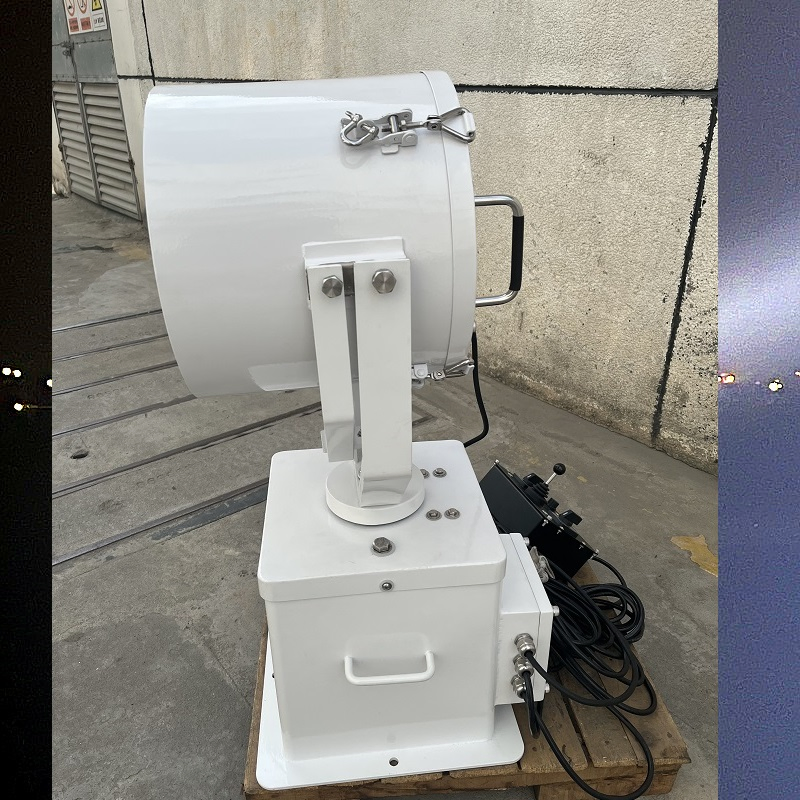

80W 100W 150W 200W 300W 350W LED Marine Searchlight 230V 24V 1500-6000 Meters 5 Years Warranty for Emergency Search & Rescue (SAR) Port & Harbor Lighting
80W 100W 150W 200W 300W 350W LED Marine Searchlight 230V 24V 1500-6000 Meters 5 Years Warranty for Emergency Search & Rescue (SAR) Port & Harbor Lighting
80W 100W 150W 200W 300W 350W LED Marine Searchlight 230V 24V 1500-6000 Meters 5 Years Warranty for Emergency Search & Rescue (SAR) Port & Harbor Lighting
80W 100W 150W 200W 300W 350W LED Marine Searchlight 230V 24V 1500-6000 Meters 5 Years Warranty for Emergency Search & Rescue (SAR) Port & Harbor Lighting
80W 100W 150W 200W 300W 350W LED Marine Searchlight 230V 24V 1500-6000 Meters 5 Years Warranty for Emergency Search & Rescue (SAR) Port & Harbor Lighting
1 / 5
80W 100W 150W 200W 300W 350W LED Marine Searchlight 230V 24V 1500-6000 Meters 5 Years Warranty for Emergency Search & Rescue (SAR) Port & Harbor Lighting
80W 100W 150W 200W 300W 350W LED Marine Searchlight 230V 24V 1500-6000 Meters 5 Years Warranty for Emergency Search & Rescue (SAR) Port & Harbor Lighting
80W 100W 150W 200W 300W 350W LED Marine Searchlight 230V 24V 1500-6000 Meters 5 Years Warranty for Emergency Search & Rescue (SAR) Port & Harbor Lighting
80W 100W 150W 200W 300W 350W LED Marine Searchlight 230V 24V 1500-6000 Meters 5 Years Warranty for Emergency Search & Rescue (SAR) Port & Harbor Lighting
80W 100W 150W 200W 300W 350W LED Marine Searchlight 230V 24V 1500-6000 Meters 5 Years Warranty for Emergency Search & Rescue (SAR) Port & Harbor Lighting

80W 100W 150W 200W 300W 350W LED Marine Searchlight 230V 24V 1500-6000 Meters 5 Years Warranty for Emergency Search & Rescue (SAR) Port & Harbor Lighting

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
LCD-SST-100-LN2-65K
Color Temperature
Cool White
IP Rating
IP67 / IP68
Light Intensity
> 5,000 Lumens
Light Source
LED
Power
80W-350W
Input Voltage
AC100-277V / DC 12V 24V 32V
Total Lumen Output
11250 Lm-33560 Lm
Peak CD
6.25 Mcd
Divergence
2deg Fwhm
Illuminance
105 Lux @ 8 M
Beam Range
Approx. 2500m-3500m (Max 5000m)
IK Rating
IK10
Material
Stainless Steel + Aluminum
Product Description

Advanced LED technology (80W-350W) serves as a superior replacement for traditional 1000W-5000W Halogen and Xenon lamps. These searchlights deliver powerful, energy-efficient illumination for demanding marine environments.

🎯
Narrow 2° Beam: Provides extreme long-distance visibility up to 5000 meters.
🌊
Marine Grade: Corrosion-resistant Pure Aluminum 1070 and stainless steel housing.
💡
Efficiency: Significant power savings compared to Xenon and Halogen alternatives.
🛡️
Durable: UV-resistant toughened glass, IK08-IK09 impact resistance, and 5-6G vibration resistance.

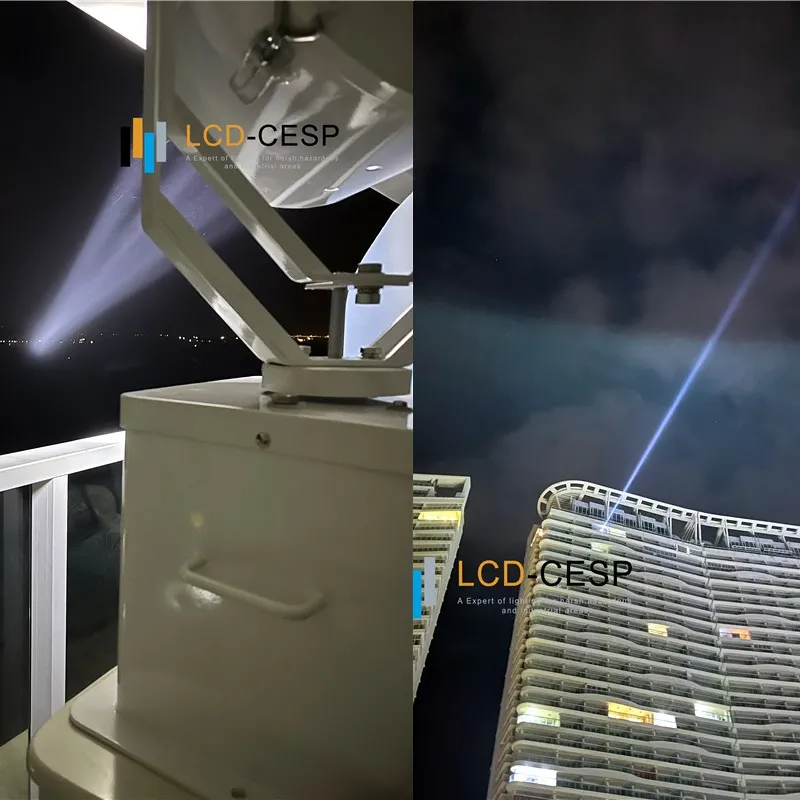

LED Marine Searchlight Overview
Marine Driving Spotlight Range
Technical Specifications
Feature Specification Details
Typical ModelsLN2 Series (4M / 5M / 7M / 9M / 12M modules)
Lumen OutputUp to 16,080 LM (Standard Test)
Color Temp6500K (Cool White)
Beam Angle2.5° Parallel Light Rays
Candlepower3,673,851 cd
Operating Temp-30°C to +50°C
Pan/Tilt RangePan 0°~ 350° , Tilt -30°~ +30° (Remote Types)
CertificationCE, RoHs, TUV, SAA, CB, ETL
Warranty5 years for marine applications

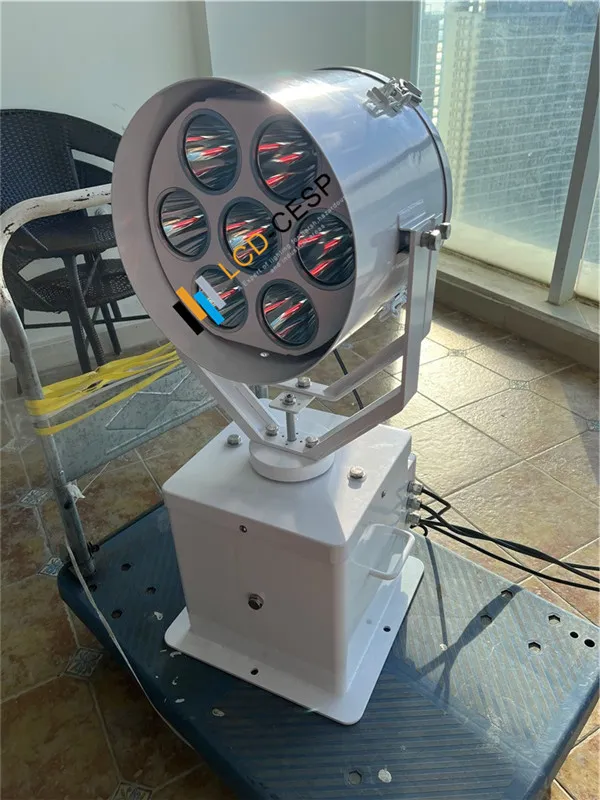

Searchlight Optics Diffuser

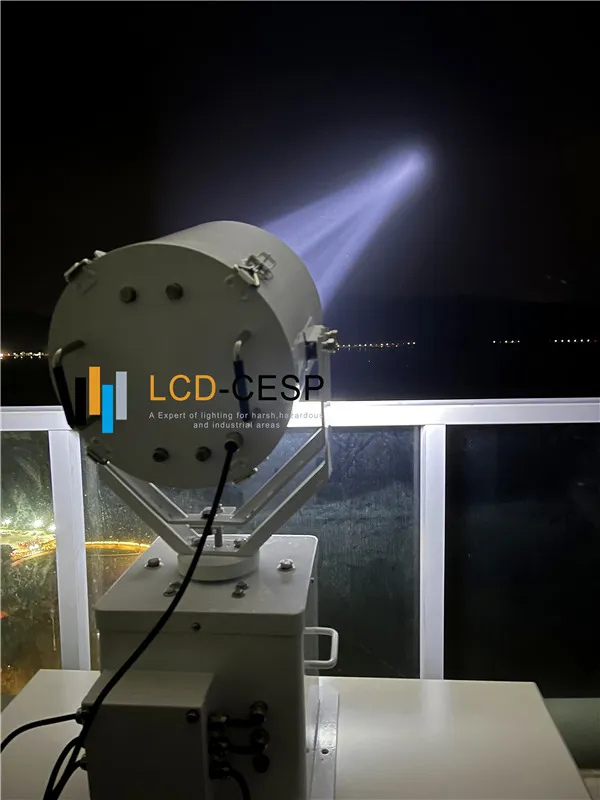

Marine Searchlight Module Design

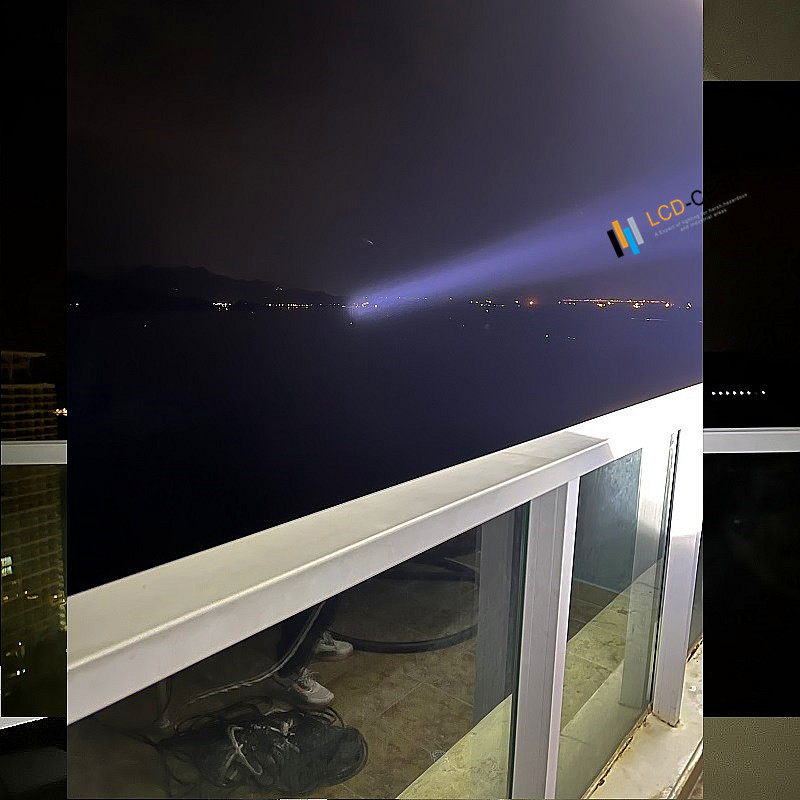

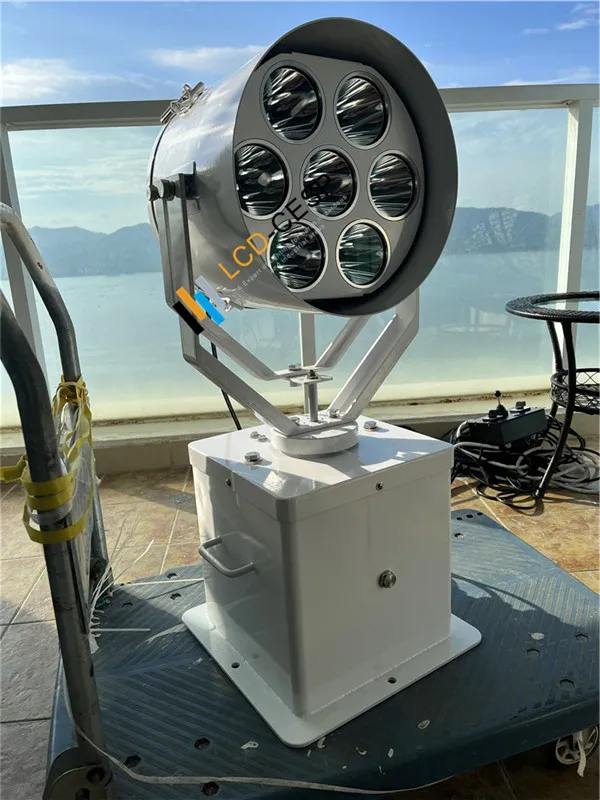

Long Range Marine Illumination
Frequently Asked Questions
❓ What is the effective range of these LED searchlights?
Under optimal conditions, the 2° narrow beam models can reach distances between 2500m and 5000m. Please note that distance decreases in heavy fog, smoke, or smog.
❓ How does LED compare to traditional Xenon or Halogen searchlights?
Our 80W-350W LED units replace 1000W-5000W traditional lamps. They offer a much longer lifespan, lower energy consumption, and minimal maintenance costs while providing a stronger blue spectrum ideal for high visibility.
❓ Are these searchlights waterproof and corrosion-resistant?
Yes, they are rated IP67/IP68 and built with Marine Grade 1070 Pure Aluminum and stainless steel hardware, making them specifically designed for salt water and harsh marine weather.
❓ Can they be used on patrol boats and rescue vessels?
Absolutely. These are widely used on patrol boats, SAR (Search and Rescue) vessels, workboats, superyachts, and windfarm support vessels due to their reliability and powerful beam.
❓ What is the warranty for marine applications?
We provide a 5-year warranty for marine applications, reflecting the high quality and durability of our manufacturing standards.
❓ What power inputs are compatible with the lights?
The searchlights support AC100-277V for most types, and DC options including 12V, 24V, 28V, and 32V are available to fit various vessel electrical systems.
