Photocell Integrated Public Lighting Waterproof Wall Aluminum LED Street Light with Pole
Photocell Integrated Public Lighting Waterproof Wall Aluminum LED Street Light with Pole
Photocell Integrated Public Lighting Waterproof Wall Aluminum LED Street Light with Pole
Photocell Integrated Public Lighting Waterproof Wall Aluminum LED Street Light with Pole
Photocell Integrated Public Lighting Waterproof Wall Aluminum LED Street Light with Pole
1 / 5
Photocell Integrated Public Lighting Waterproof Wall Aluminum LED Street Light with Pole
Photocell Integrated Public Lighting Waterproof Wall Aluminum LED Street Light with Pole
Photocell Integrated Public Lighting Waterproof Wall Aluminum LED Street Light with Pole
Photocell Integrated Public Lighting Waterproof Wall Aluminum LED Street Light with Pole
Photocell Integrated Public Lighting Waterproof Wall Aluminum LED Street Light with Pole

Photocell Integrated Public Lighting Waterproof Wall Aluminum LED Street Light with Pole

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋 Basic Specifications
Model NO.
DLA013
Material
Dia Cast Aluminum
Power Options
60W / 100W / 150W / 200W / 240W / 300W
Application
Square, Highway, Garden, Parking Lot
IP Rating
IP67
Certification
CCC, CE, EMC, FCC, GS, LVD, RoHS, SASO, VDE
Input Voltage
100-240V
LED Chips
CREE (SMD3030)
Driver
Meanwell
Lumen Efficiency
140lm/W
Warranty
5 Years
IK Class
IK10
📦 Packaging & Delivery
Package Size
60.00cm * 30.00cm * 20.00cm
Gross Weight
4.000kg
Capacity
In Stock
Transport
Pallet with Carton
💡 Product Description

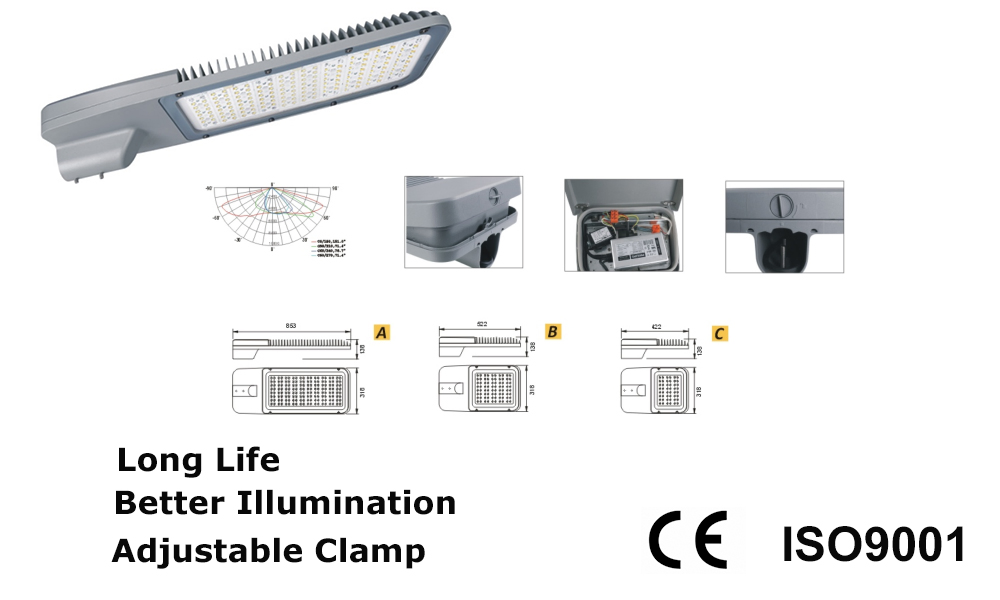

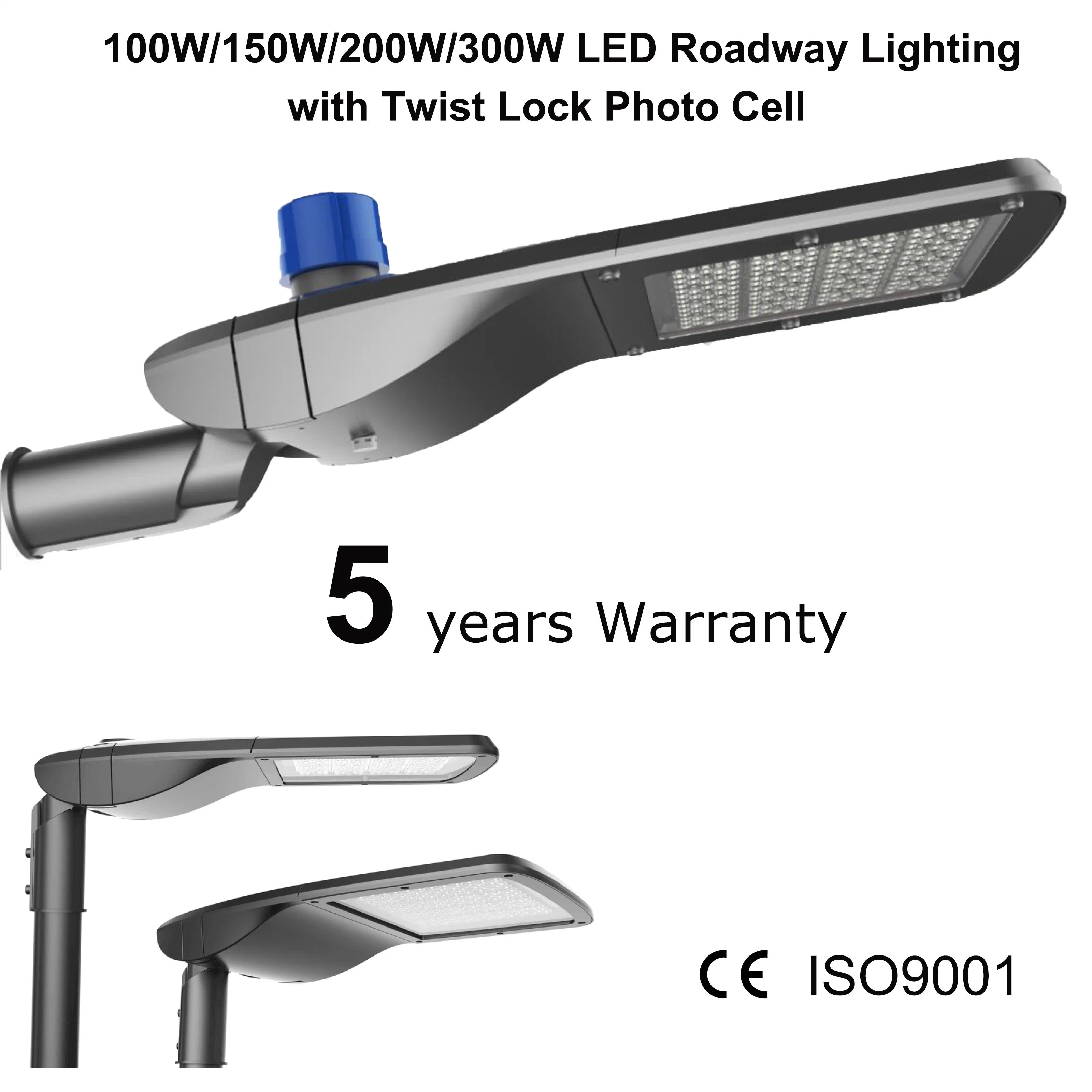

100w-300w LED Roadway Lighting Fixture with Twist Lock Photo Cell

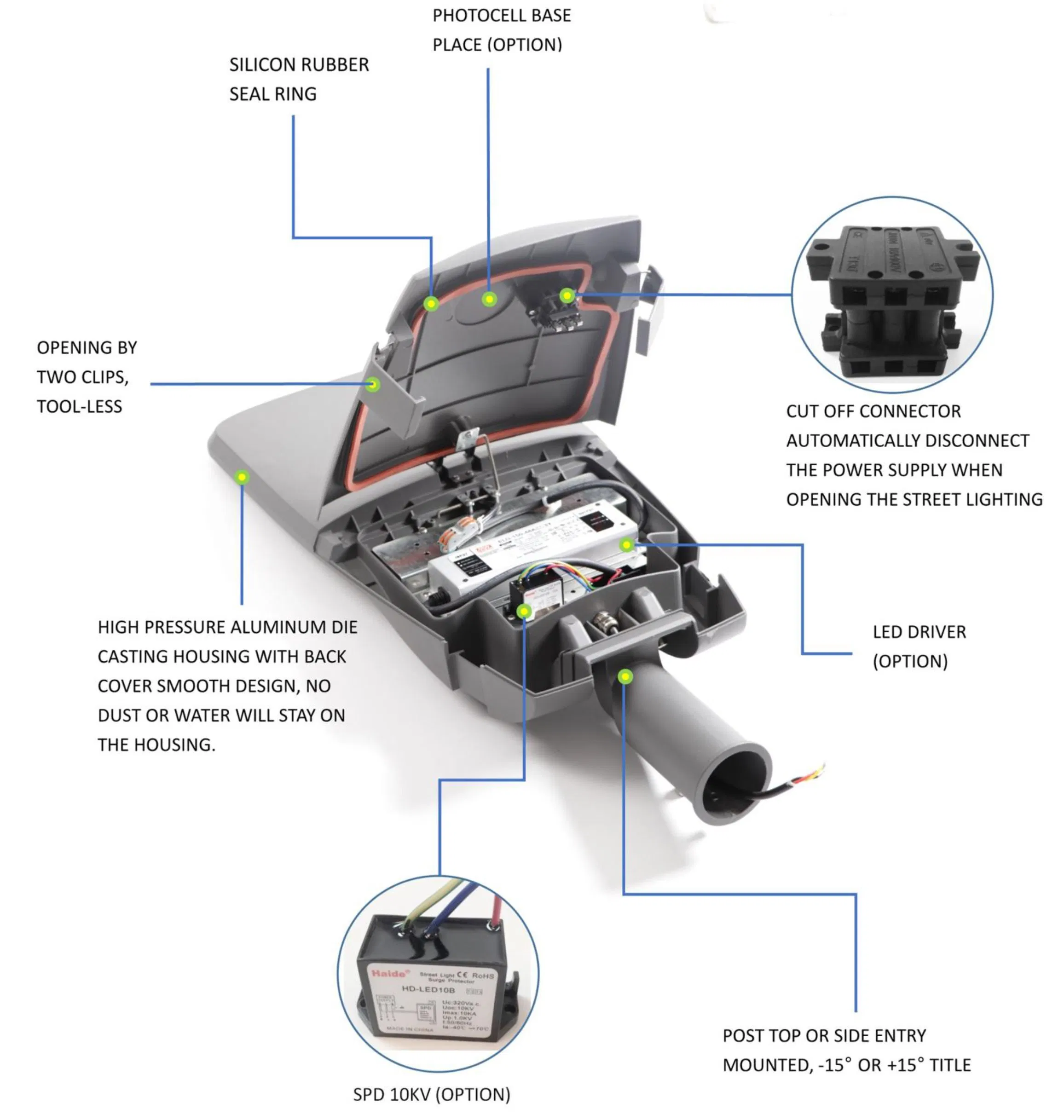

  • Heavy duty cast aluminum housing and removable door 3G vibration rated to ensure strength of construction and longevity.
  • Housing is completely sealed against moisture and environmental contaminants.
  • Available in IES Type 2 and Type 3 distributions (Type 3 standard).
  • Optics precisely designed to shape the distribution, maximizing efficiency and application spacing.
  • Standard drivers feature electronic universal voltage; suitable for operation in -40ºC to 45ºC ambient environments.
  • Greater than 0.9 power factor and less than 20% harmonic distortion.
  • LED drivers mount to die-cast aluminum back housing for optimal heat sinking and prolonged life.
  • Adjustable clamp for use with 48 and 60mm diameter pipe.
📊 Technical Parameters

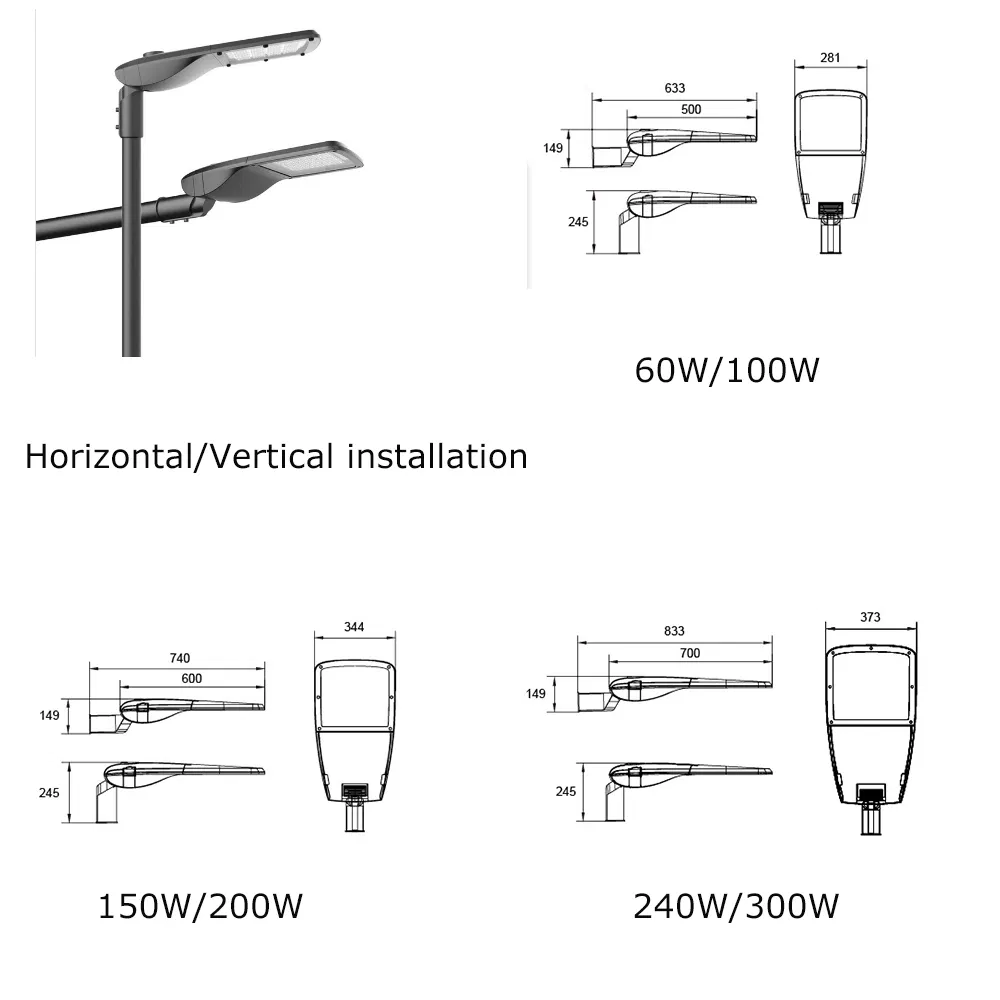

Type LED Power IP Class Dimensions Install Height Photocell Mounting
SLA100WIP66490*330*193mm6M-8MWithout42/48/60mm
SLA150WIP66576*330*193mm8M-10MWithout42/48/60mm
SLA200WIP66661*330*193mm8M-10MWithout42/48/60mm
SLA300WIP66831*330*193mm8M-10MWithout42/48/60mm
DLA120WIP66740*340*150mm8M-10MWith42/48/60mm
DLA150WIP66740*340*150mm8M-10MWith42/48/60mm
HLA60WIP66638*270*80mm6M-8MWithout42/48/60mm
HLA120WIP66780*300*85mm8M-10MWithout42/48/60mm
🖼️ Image Gallery

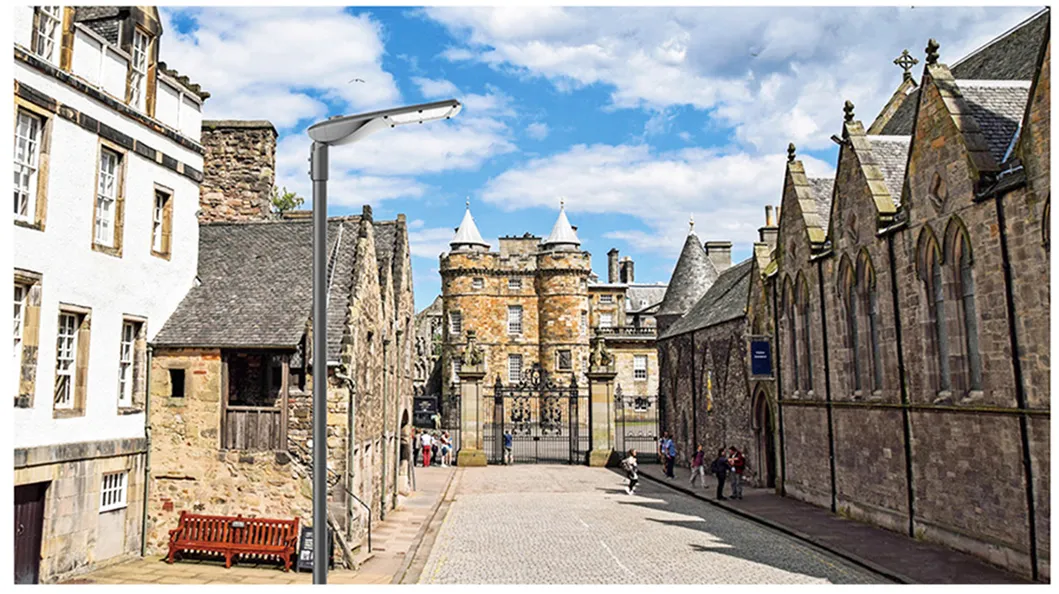

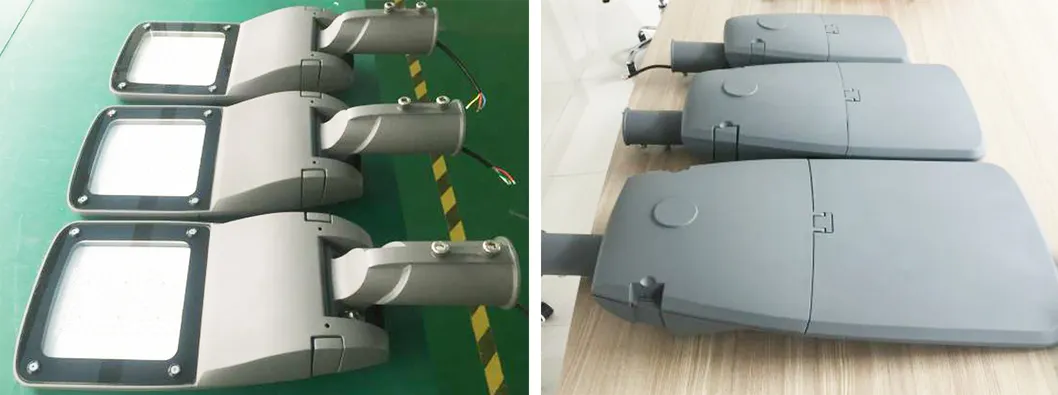

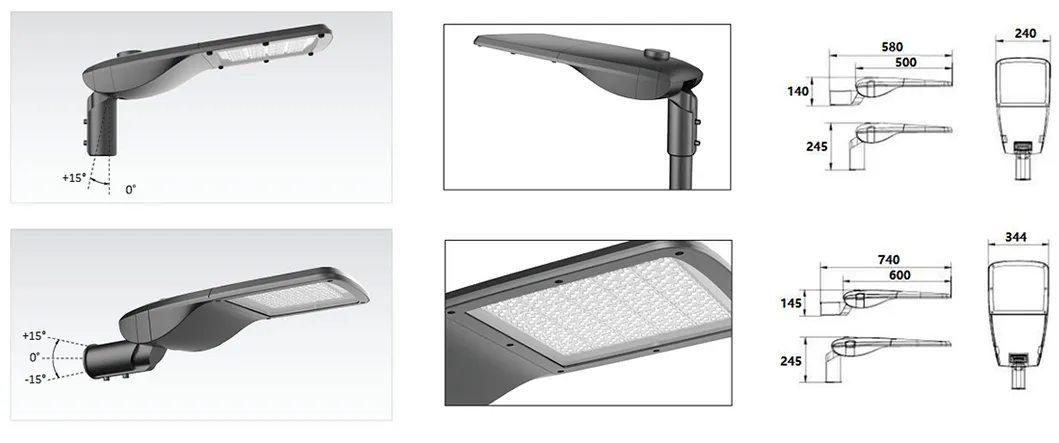

LED Street Light Photocell LED Street Light Installation Aluminum LED Street Light Waterproof Wall LED Street Light LED Roadway Lighting Public Lighting Solutions LED Light Technical Diagram LED Street Light Components Outdoor Lighting Application
❓ Frequently Asked Questions
What is the IP rating and environmental protection of this light?
The fixture is rated IP67 (some models IP66), meaning it is completely sealed against moisture and environmental contaminants, making it ideal for outdoor roadway and highway use.
What brand of LED chips and drivers are used?
We utilize high-performance CREE LED chips (SMD3030) and industry-leading Meanwell or Inventronics drivers to ensure maximum efficiency and longevity.
Is this street light dimmable?
Yes, the fixture supports 0-10V dimming, allowing for flexible light intensity control and further energy savings.
What is the warranty period for the LED roadway lighting?
This product comes with a standard 5-year warranty, covering performance and electronic components under normal operation.
What are the available beam angle distributions?
The light is available in IES Type II and Type III light distributions to optimize coverage and minimize glare depending on the road width and mounting height.
Can a photocell sensor be added to the fixture?
Yes, a twist-lock photo controller sensor is available as an option for automatic dusk-to-dawn operation.
