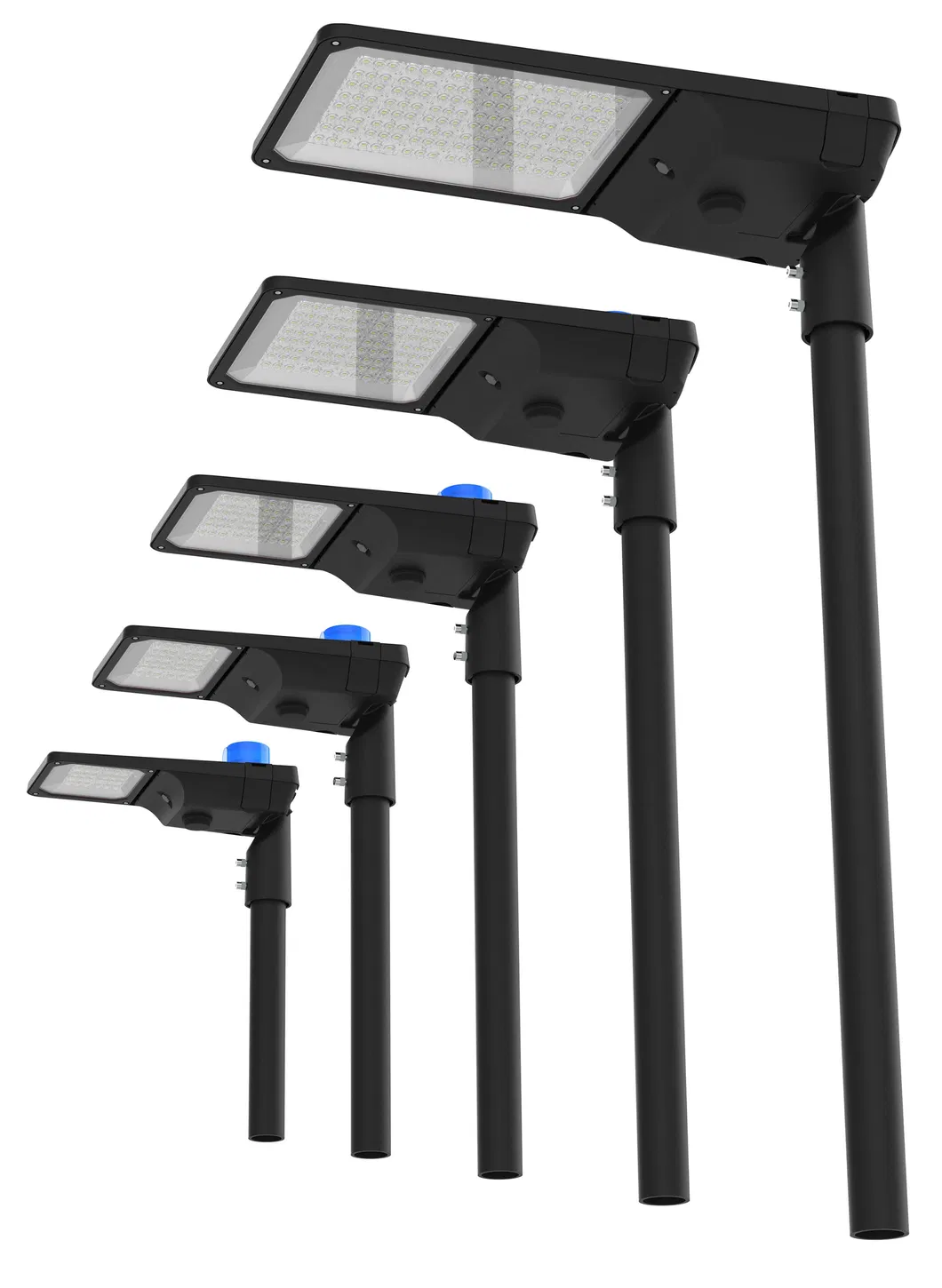

| Model NO. | Power(W) | Light Source | LED QTY | Lens | CCT(K) | Lumen(lm/W) | CRI |
|---|---|---|---|---|---|---|---|
| R29-13-30W | 30 | 3030/5050 | 64/24 | 4 | 4000k | 130/160 | >70 |
| R29-13-40W | 40 | 3030/5050 | 64/24 | 4 | 4000k | 130/150 | >70 |
| R29-15-50W | 50 | 3030/5050 | 96/36 | 6 | 4000k | 130/160 | >70 |
| R29-15-60W | 60 | 3030/5050 | 96/36 | 6 | 4000k | 130/150 | >70 |
| R29-110-80W | 80 | 3030/5050 | 144/54 | 9 | 4000k | 130/160 | >70 |
| R29-110-100W | 100 | 3030/5050 | 144/54 | 9 | 4000k | 130/160 | >70 |
| R29-115-150W | 150 | 3030/5050 | 256/96 | 16 | 4000k | 130/160 | >70 |
| R29-125-240W | 240 | 3030/5050 | 384/144 | 24 | 4000k | 130/160 | >70 |
• Read the instruction manual carefully before installation.
• Installation must be performed by a certified electrician based on local regulations.
• Ensure power is off and the lamp is cooled down before revamping or cleaning.
• Use a soft cloth and PH neutral detergent for cleaning; maintain stainless steel regularly.
• Do not cover the fixtures with flammable materials.
