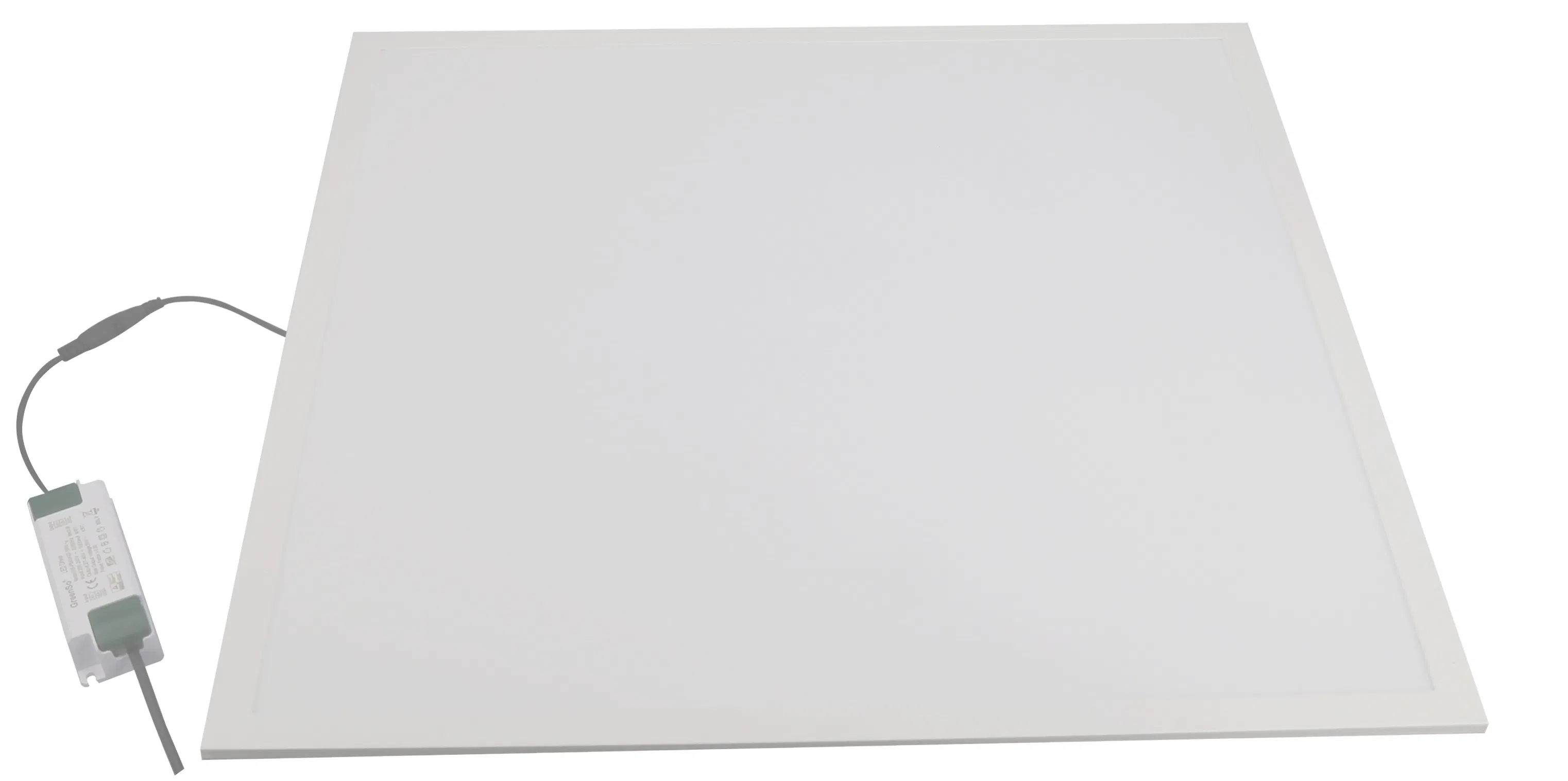

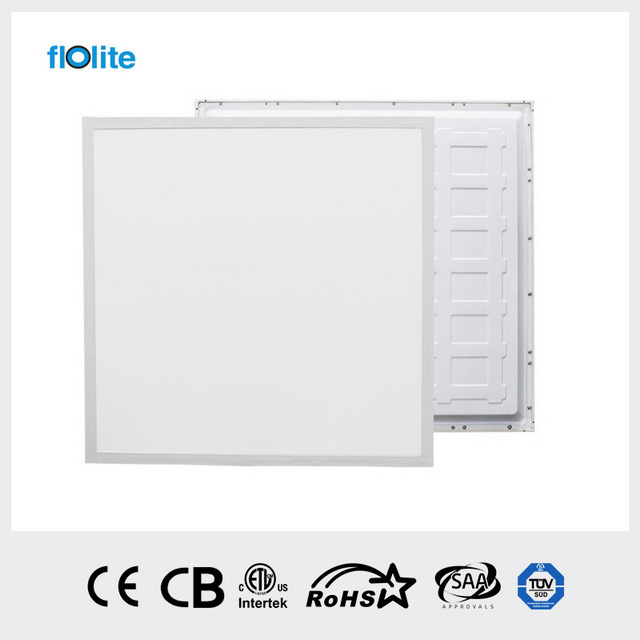

TUV/CE/CB Approved IP20 LED Slim Back Light, LED Backlit Panel Light, Recessed Panel Light

Basic Specifications

Model NO.	FT-BLS66-W40	Emitting Color	2700-6500K
Dimmable	Without Dimmable	Appearance	Square
Type	Recessed	Certification	CE, RoHS, SAA, CB
Voltage	100-240V	Beam Angle	120°
Power Factor	>0.9	CRI	>80
Warranty	5 Years	Flicker Free	Yes
Specification	595*595mm	Origin	China

Professional LED Backlit Panel Light

High-performance TUV/CE/CB/SAA Approved lighting solution designed for modern commercial and office environments.

Key Product Features

✔
Energy Efficiency: Saves more than 67% energy compared to traditional lamps.
✔
Stable Performance: Wide input voltage (200-240V) and Flicker-free technology.
✔
Long Lifespan: Semiconductor chip source ensures over 50,000 hours of use.
✔
Eco-Friendly: No UV, IR, Hg, or Xe; fully recyclable and EMI-free.
✔

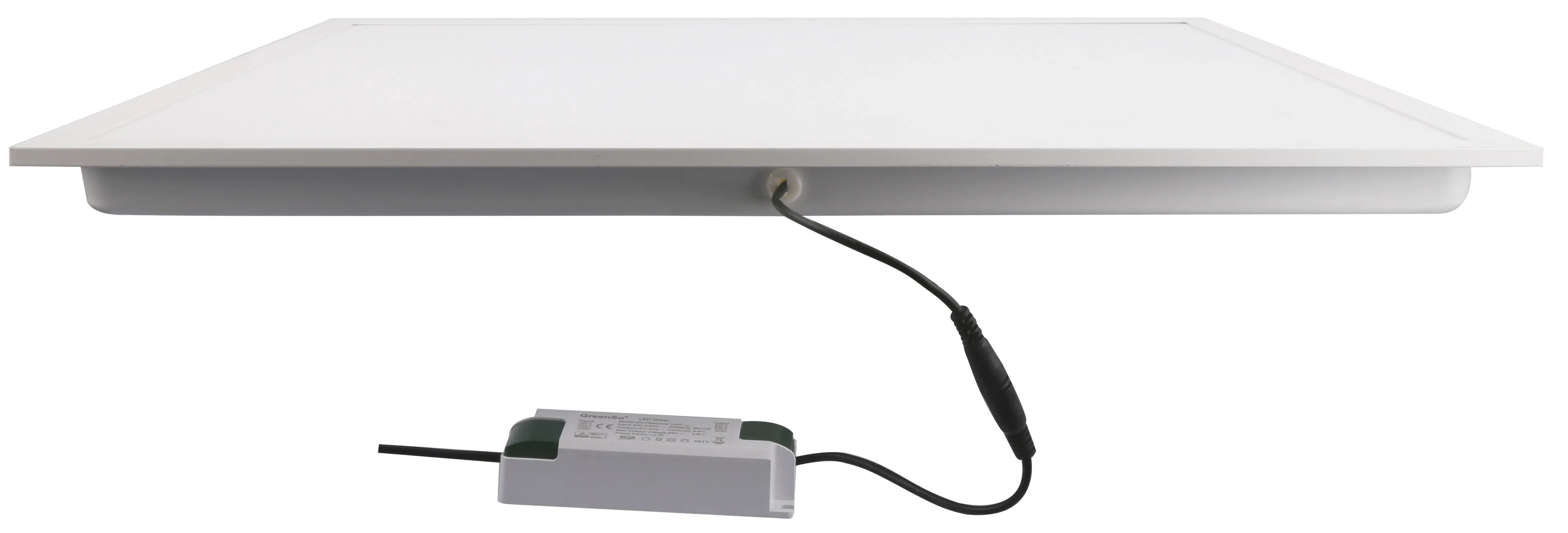

Premium Build: External constant current driver with a smooth, easy-to-clean frame.

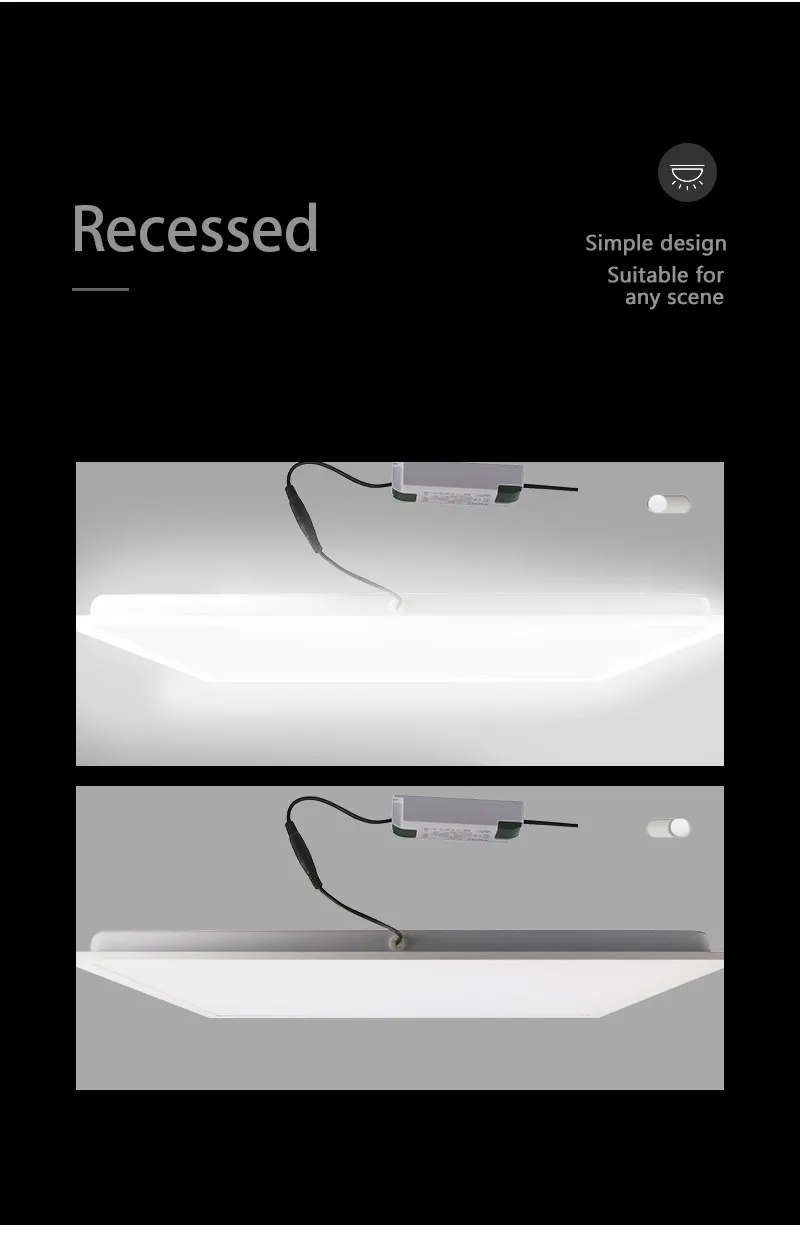

Product Display

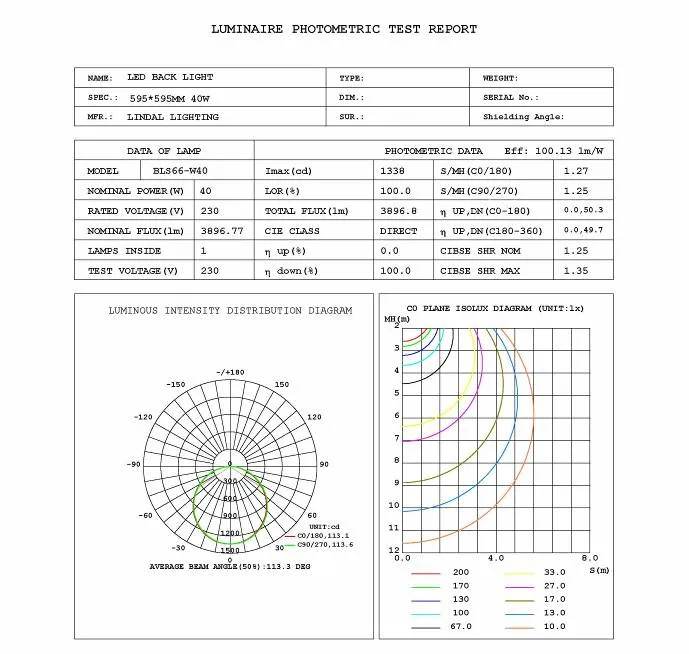

Technical Parameters

Power Parameters

Power	40W
Input Voltage	AC200-240V 50/60Hz
Output Voltage	DC27-40V
Output Current	1000mA
Power Factor	PF>0.9

Lighting Parameters

Lumen	>4000LM

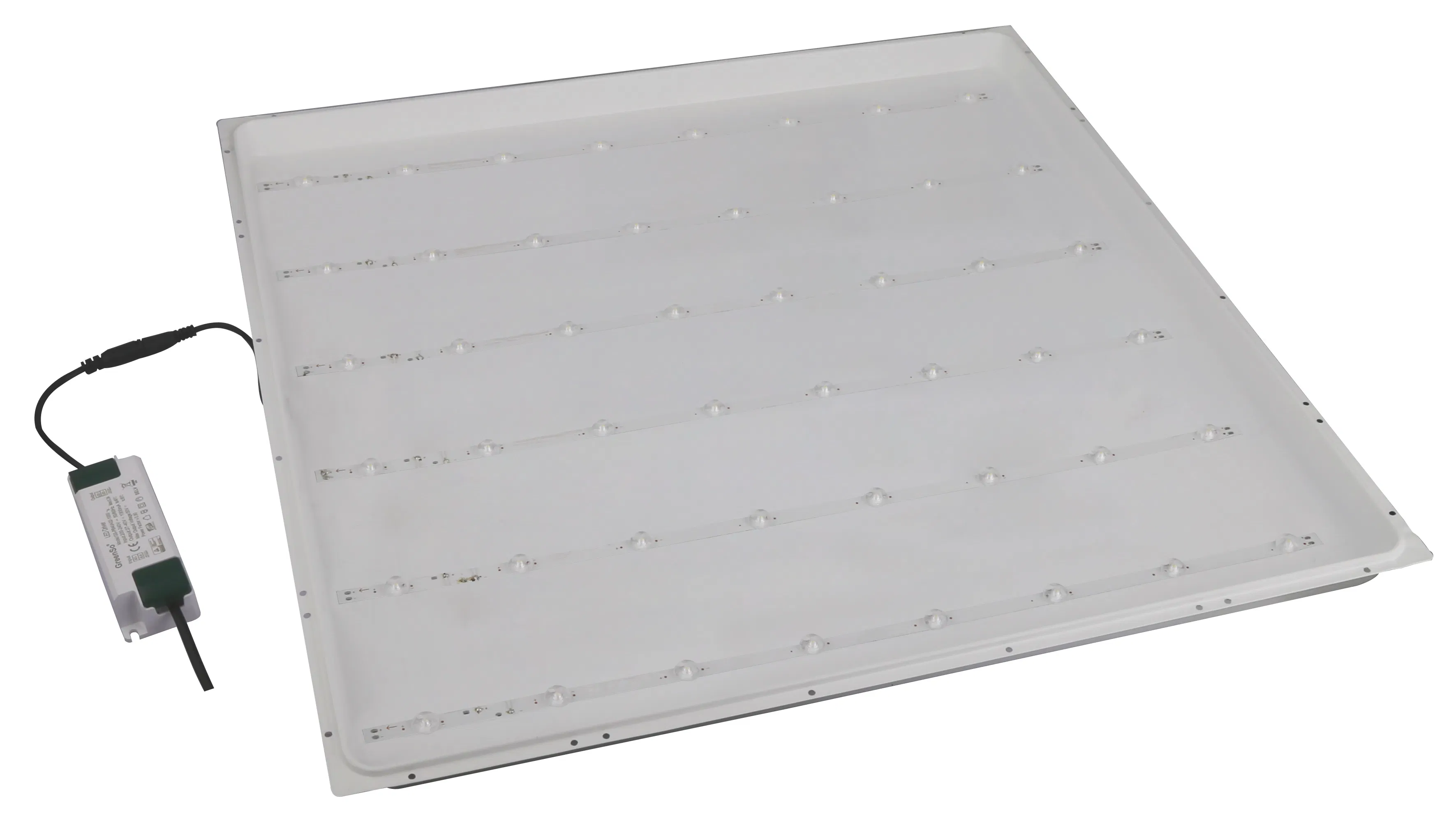

LED Type	SMD 2835 (San'an)

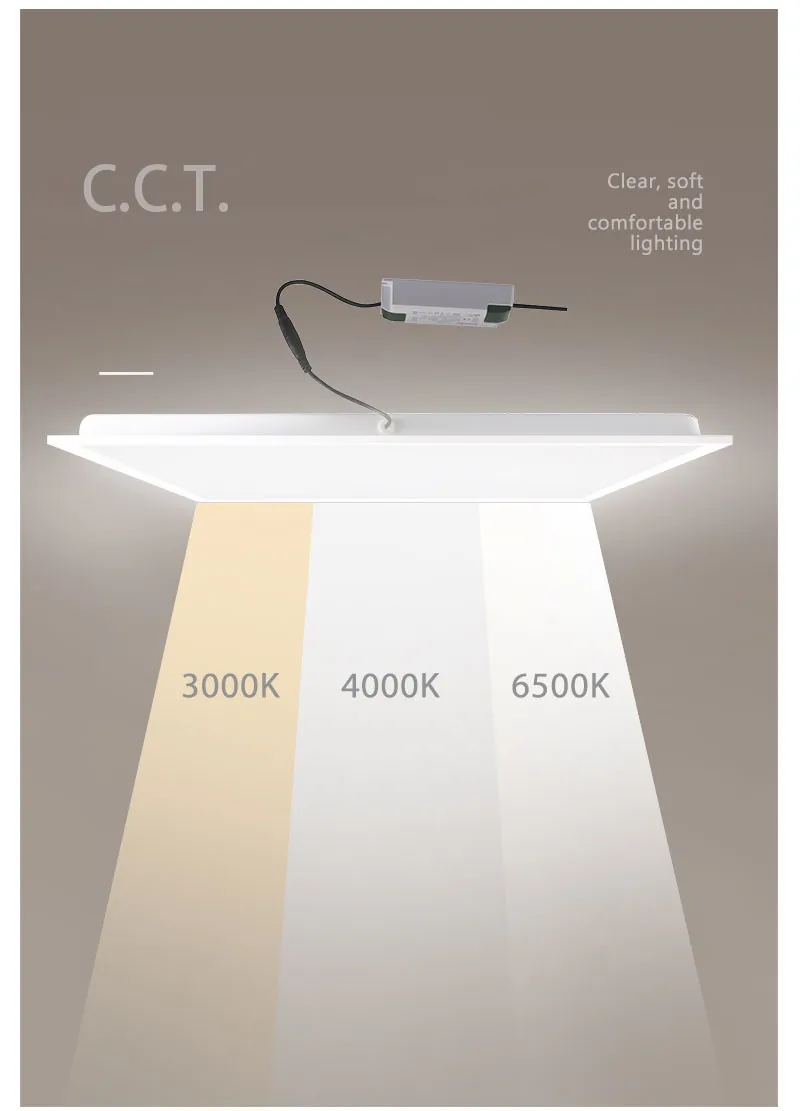

Color Temp	3000/4000/6000K
IP Grade	IP40

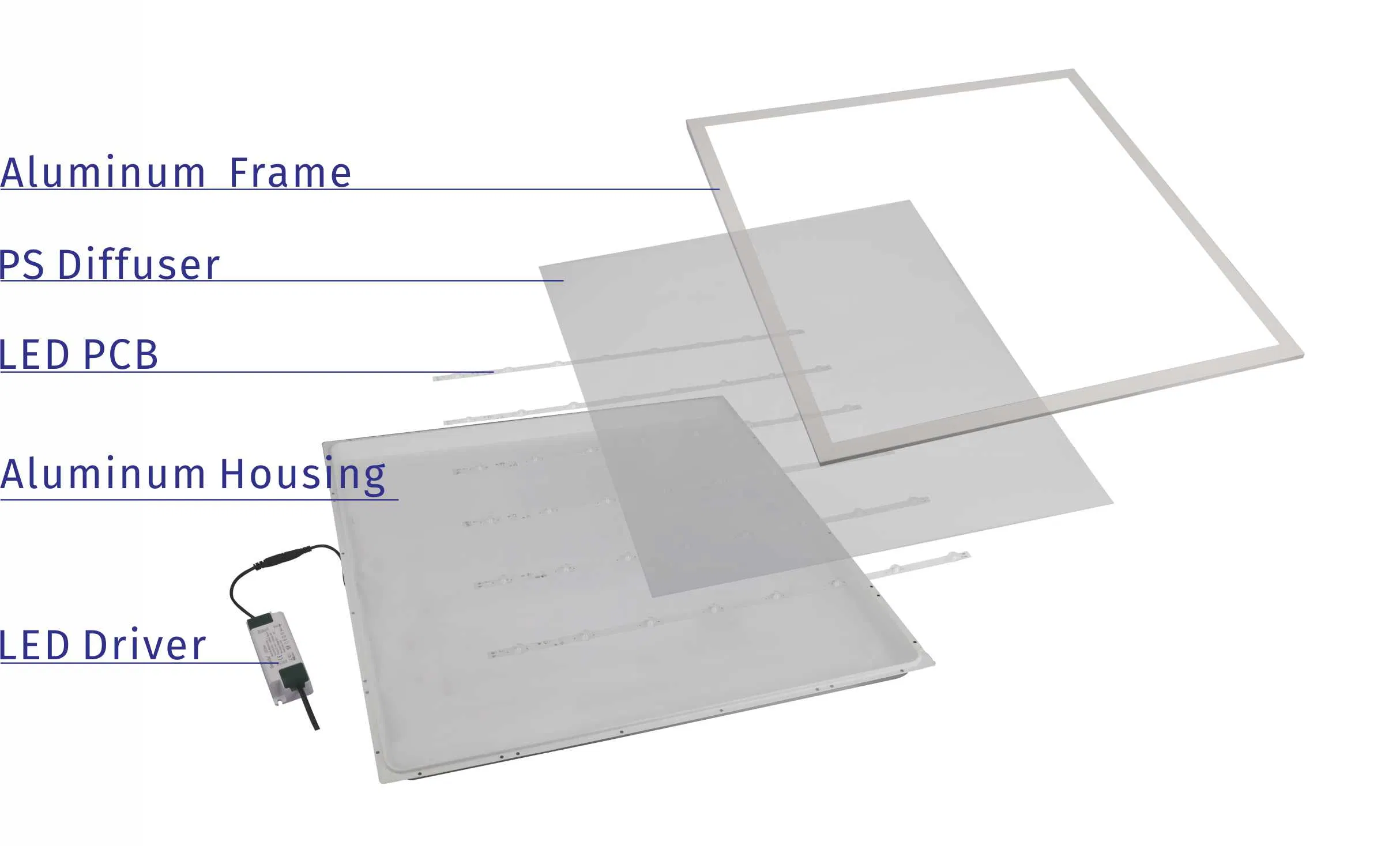

Materials	PS+Aluminum

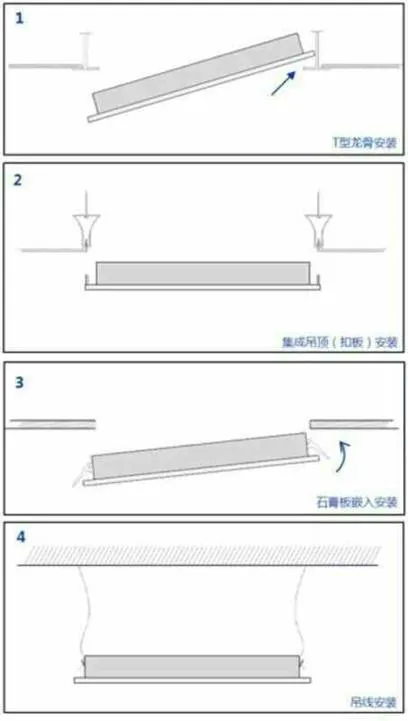

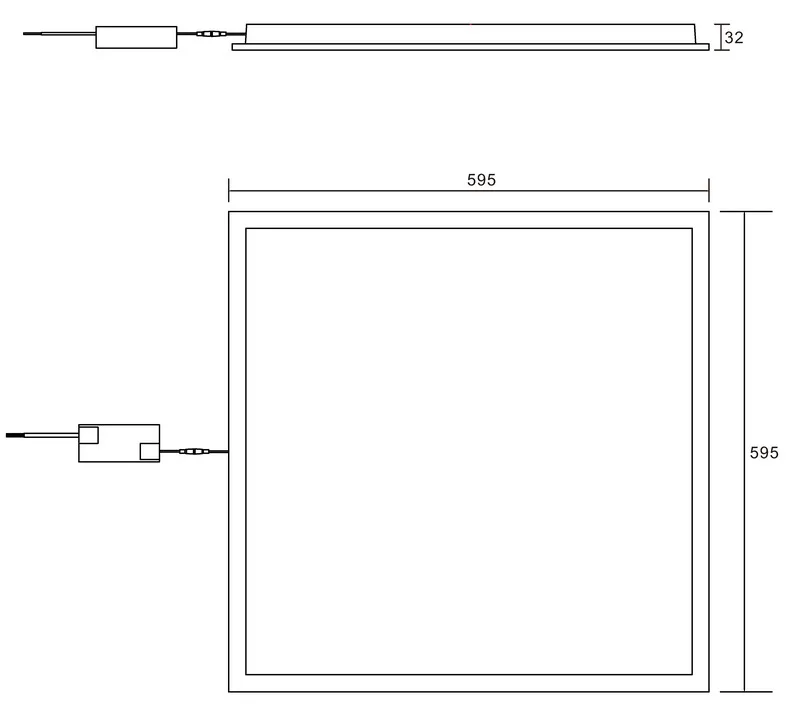

Dimensions & Installation

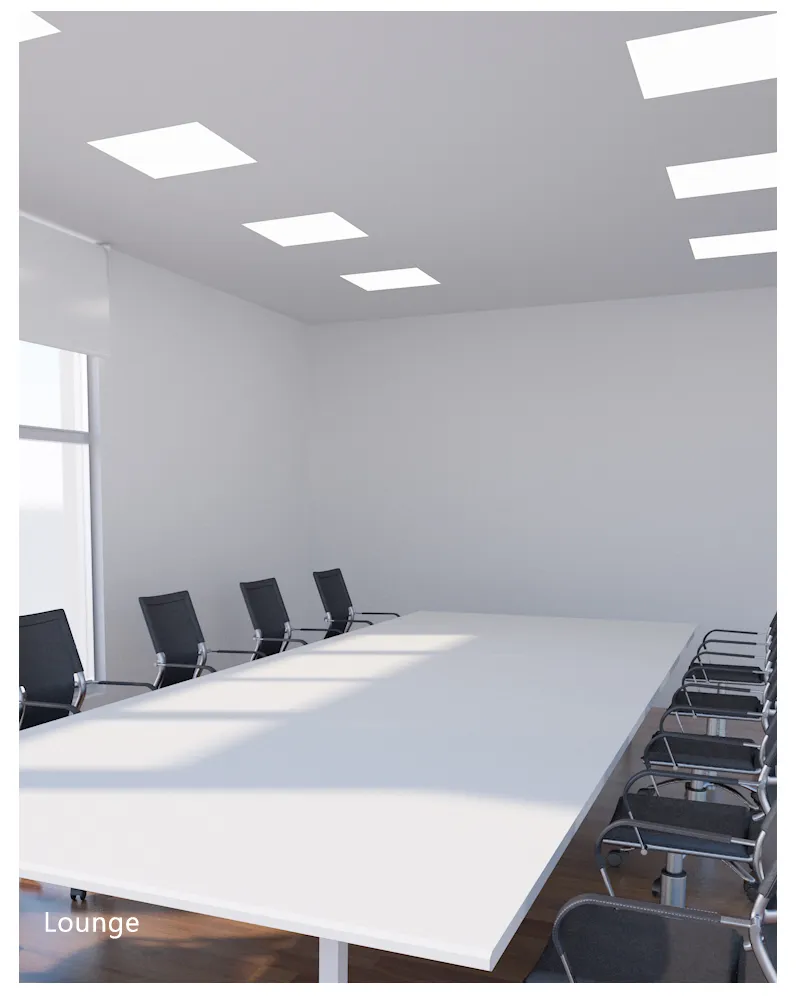

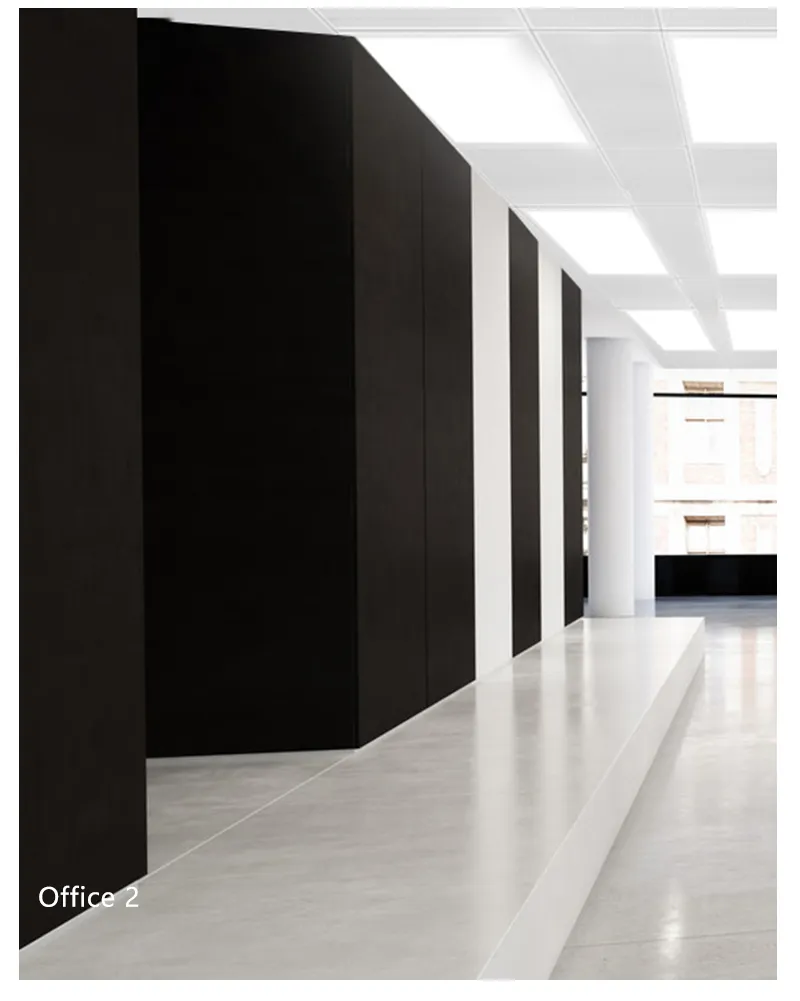

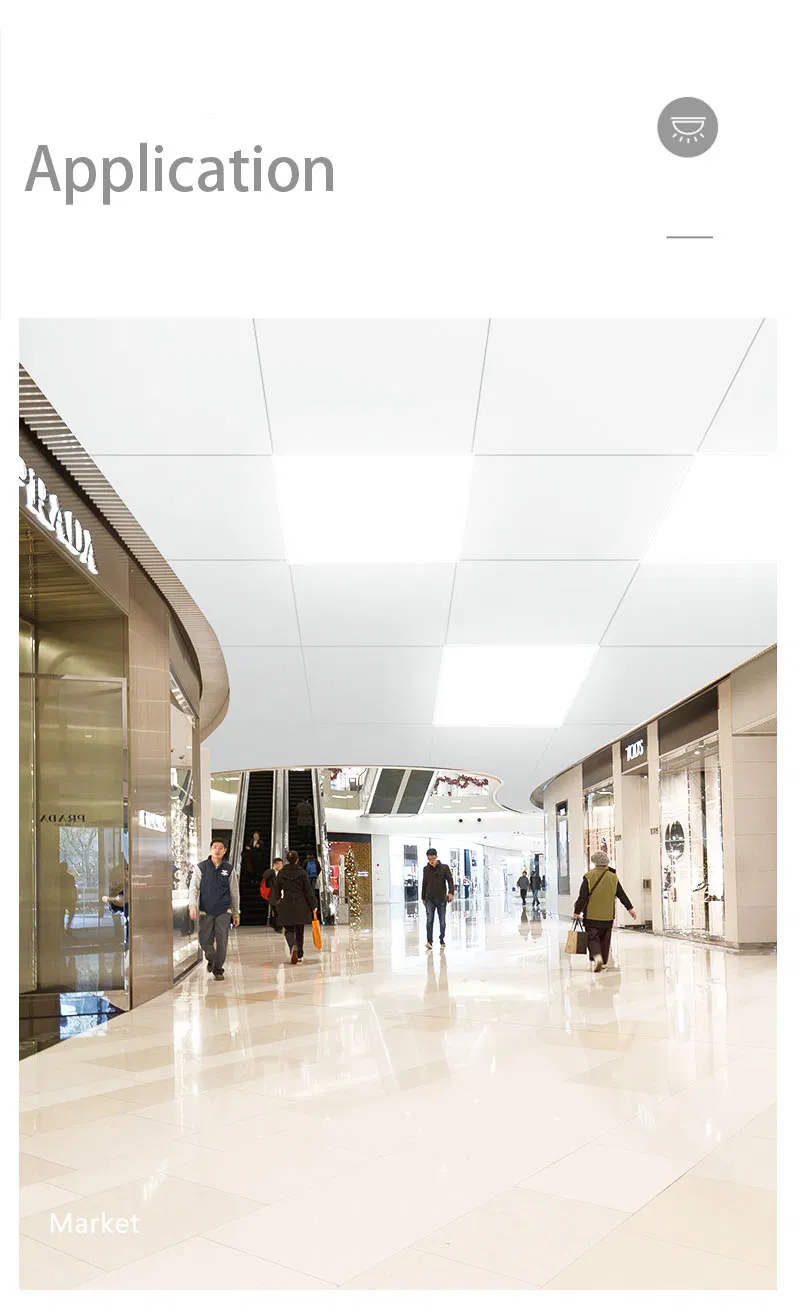

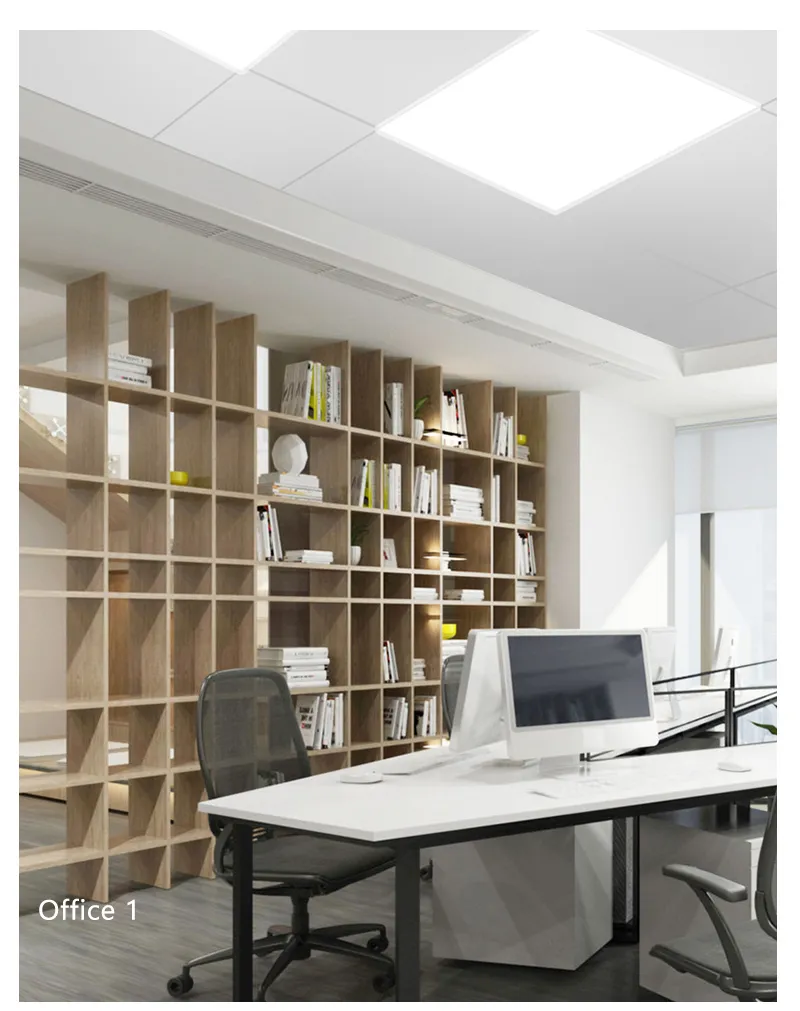

Ideal For: Offices, Conference Rooms, Corridors, Reception Areas, Foyers, and Elevators. Suitable for standard 595x595mm grid ceilings.

Quality Control & Packing

Item No.	Net Weight	Package Size	QTY/Carton	Gross Weight
BLS66-W40	1.75kg	63068650mm	6 pcs	10.5kg

Usage & Warranty

Warranty: 5 years based on proper storage, installation, and maintenance. During this period, we provide repair or replacement services for qualifying issues.

Important Attention:

Always turn off power before installation to prevent electric shock.
Designed for indoor use only (IP40). Avoid high-temperature environments.
Features over-temperature control; output may cut off temporarily if the device overheats.

Frequently Asked Questions

What is the lifespan of this LED panel?

The FT-BLS66-W40 uses high-quality semiconductor chips ensuring a lifespan of over 50,000 hours.

Is the light flicker-free?

Yes, the panel is designed to be flicker-free under an input voltage of AC200-240V for eye comfort.

What certifications does the product have?

This product is fully certified with TUV, CE, CB, SAA, and RoHS standards.

Can this be used in bathrooms or outdoors?

No, this panel has an IP40 rating, which is intended for indoor use only in dry environments like offices or corridors.

How much energy does it save compared to fluorescent lamps?

It provides a direct replacement for 4 x 18W or 4 x 14W fluorescent lamps, saving more than 67% in energy costs.

What is the warranty period?

We provide a comprehensive 5-year warranty covering proper installation and usage.
