📋 Basic Information
Model NO.
AR-LCL-UT-230-2.4G
Style
Modern simplism style
Certification
CE, RoHS, ISO9001
Applicable Places
Living Room
Package Size
120.00cm * 50.00cm * 5.00cm
💡 Product Description

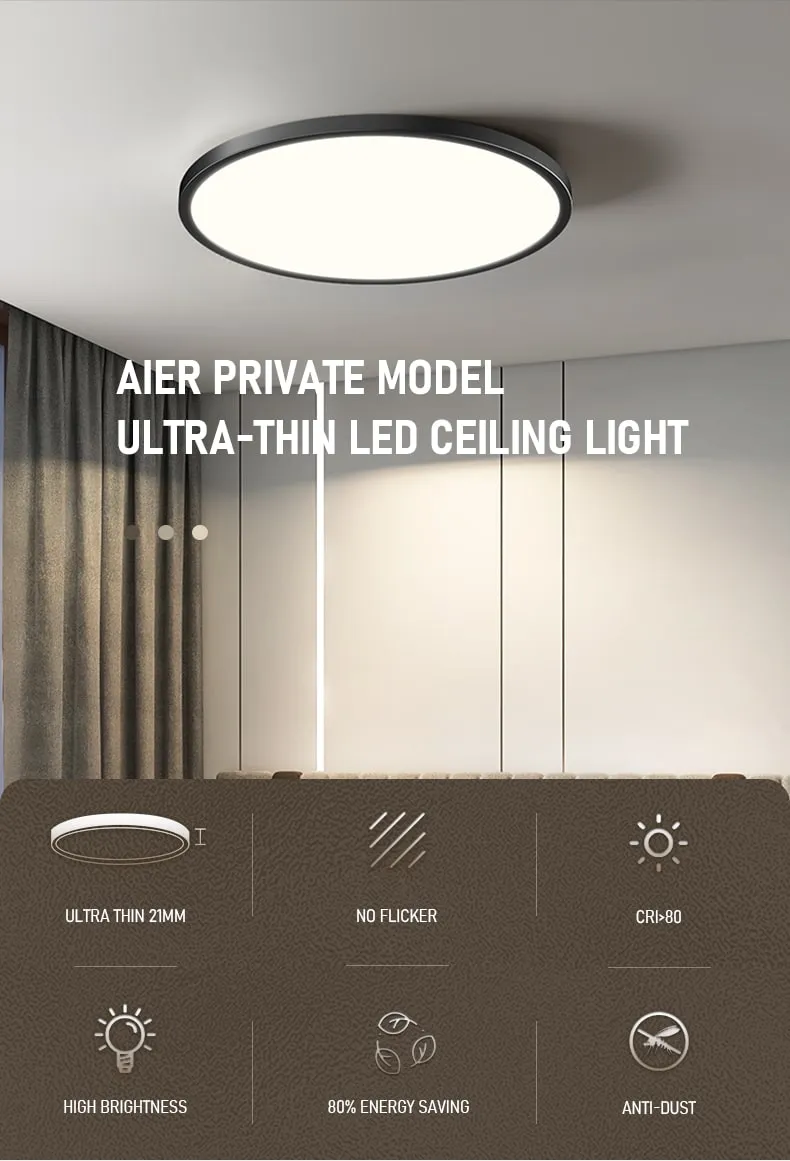

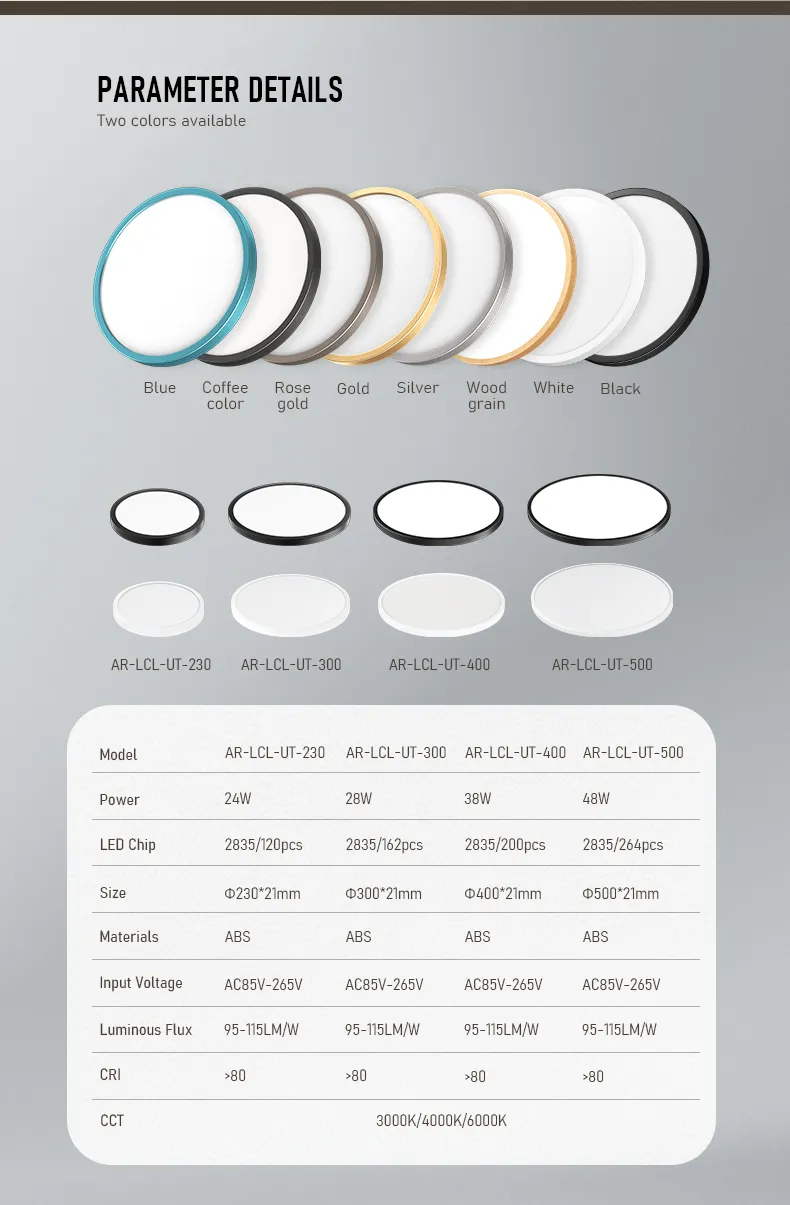

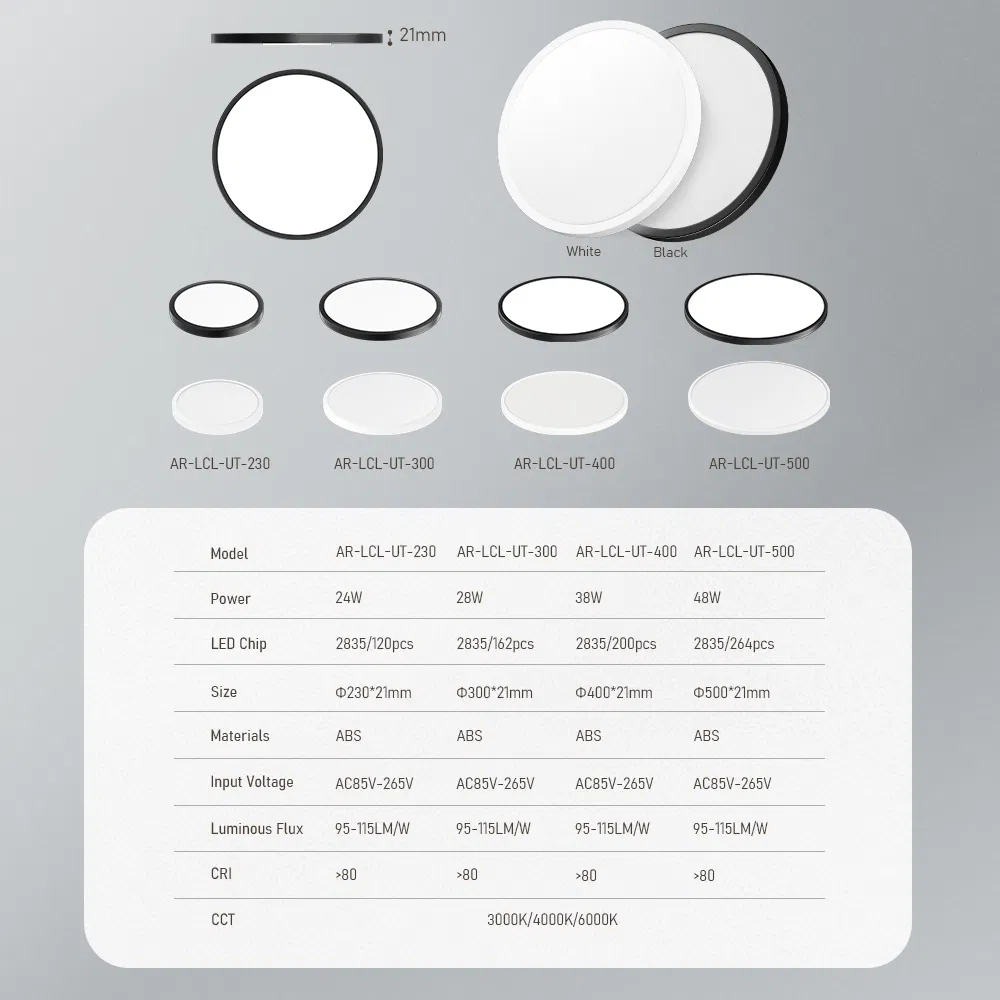

Ultra Thin LED Ceiling light - Patented Private Mold
| Item No. |
Size |
Power |
LED Chip |
Input Voltage |
Luminous Flux |
CRI |
CCT |
Material |
| AR-LCL-UT-230 |
Φ230*21mm |
24W |
2835/120pcs |
AC85-265V |
95-115LM/W |
>80 |
3000K/4000K/6000K |
ABS |
| AR-LCL-UT-300 |
Φ300*21mm |
28W |
2835/162pcs |
AC85-265V |
95-115LM/W |
>80 |
3000K/4000K/6000K |
ABS |
| AR-LCL-UT-400 |
Φ400*21mm |
38W |
2835/200pcs |
AC85-265V |
95-115LM/W |
>80 |
3000K/4000K/6000K |
ABS |
| AR-LCL-UT-500 |
Φ500*21mm |
48W |
2835/264pcs |
AC85-265V |
95-115LM/W |
>80 |
3000K/4000K/6000K |
ABS |
⭐ Key Features

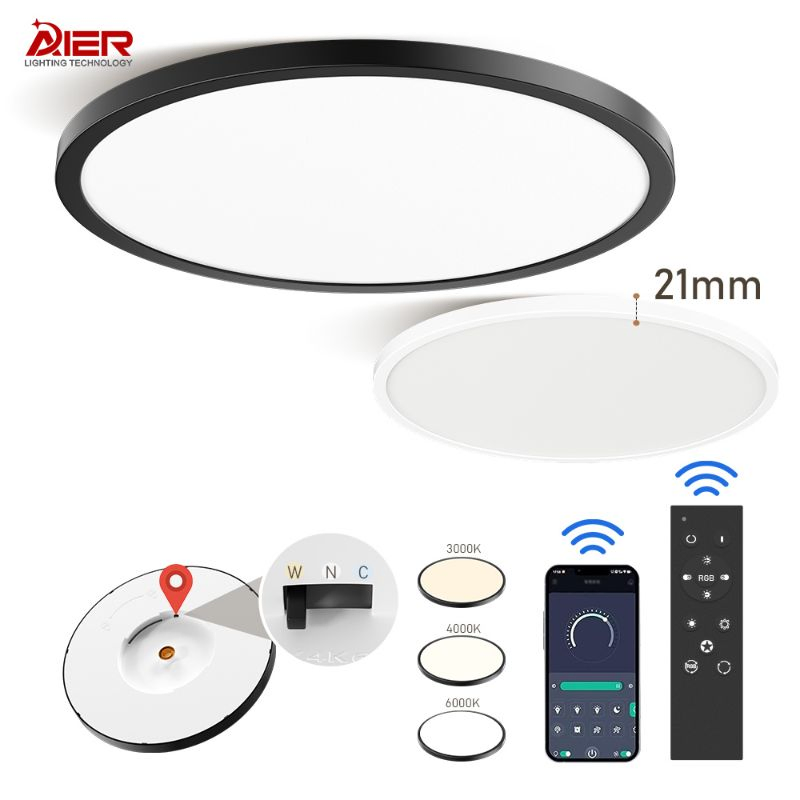

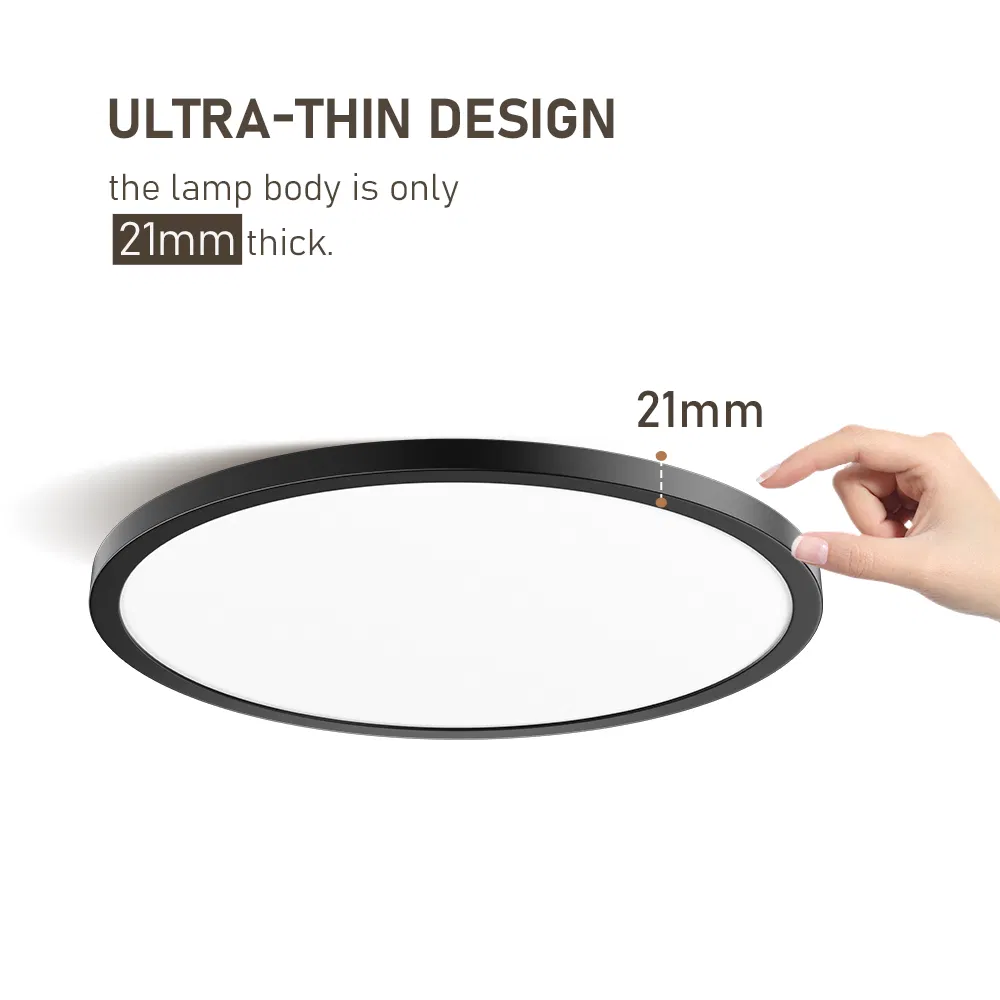

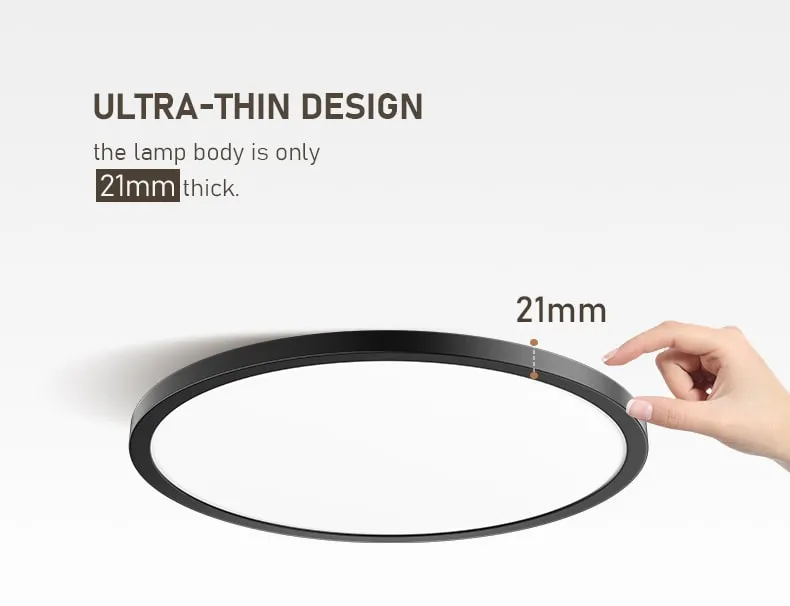

Ultra-Thin Design: Lamp body thickness is only 21mm.

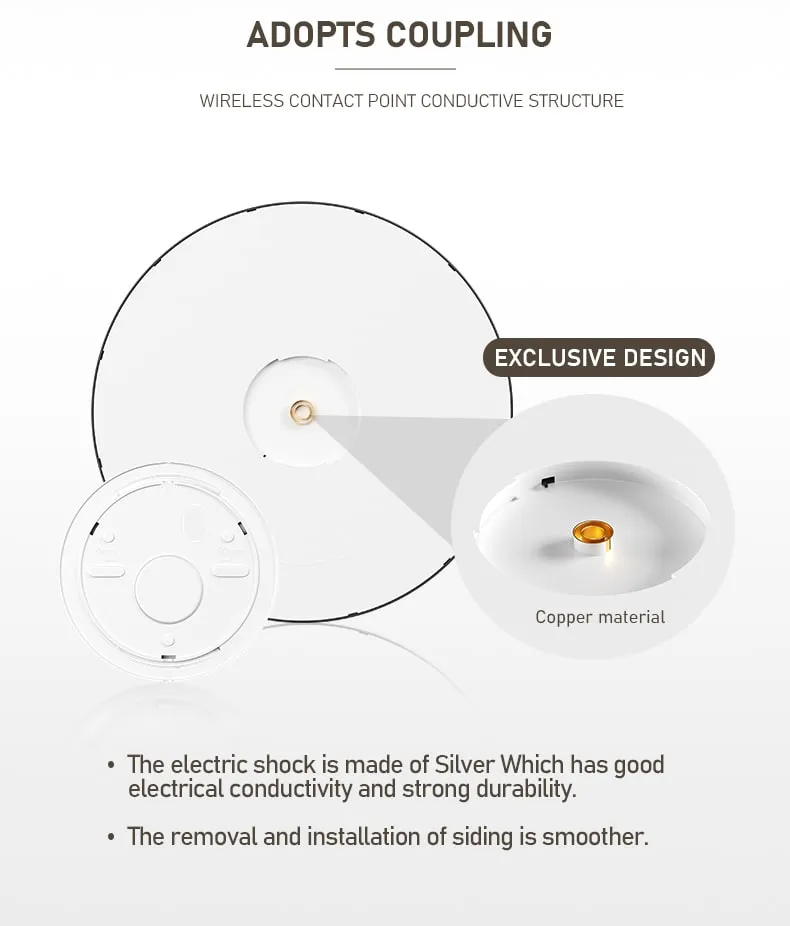

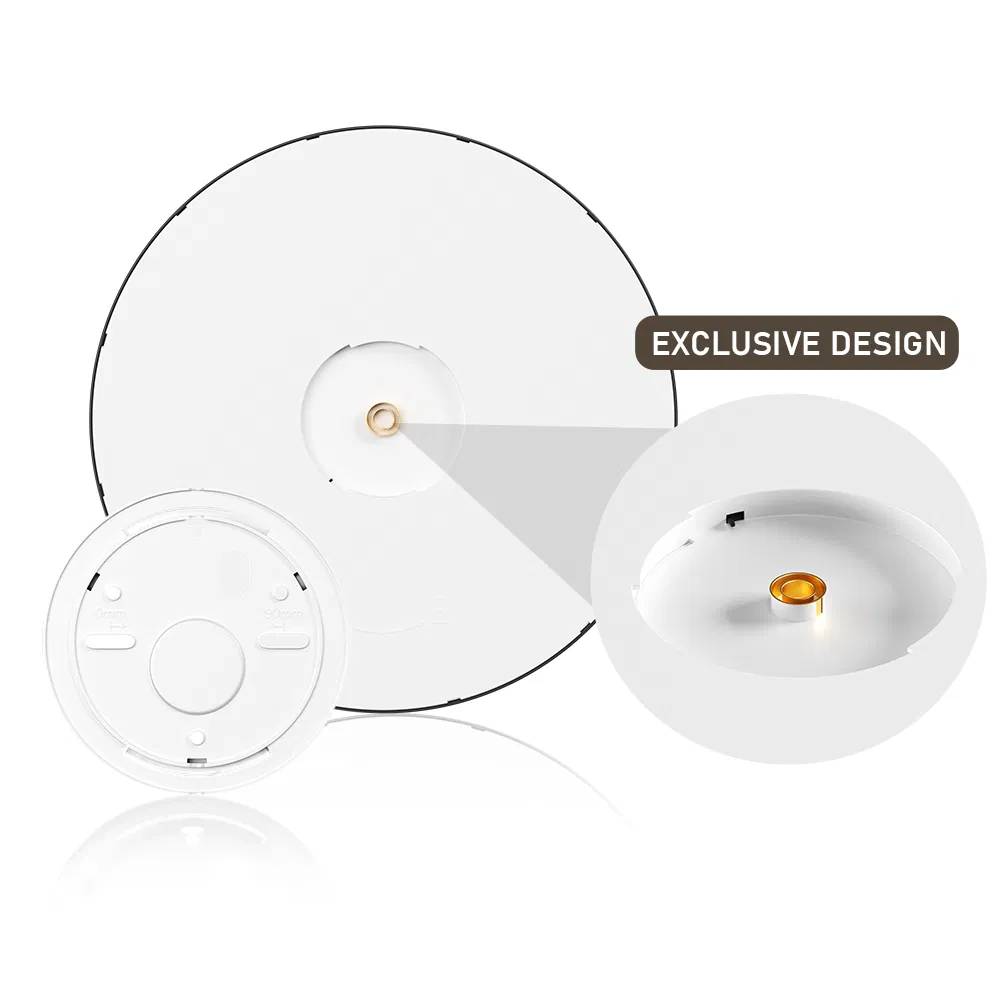

Patented Structure: Adopts coupling wireless contact point conductive structure with silver electric shock for durability.
Versatile Configurations: Supports single color, 3-color changeable, stepless dimming, and 3CCT dial dimming.

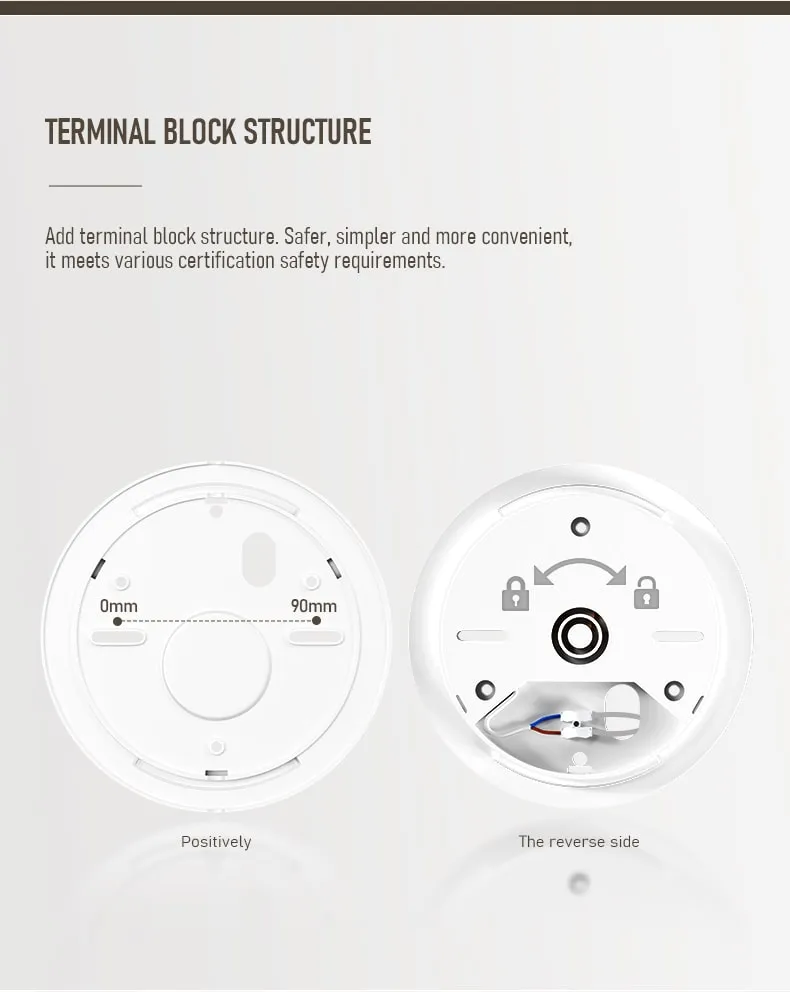

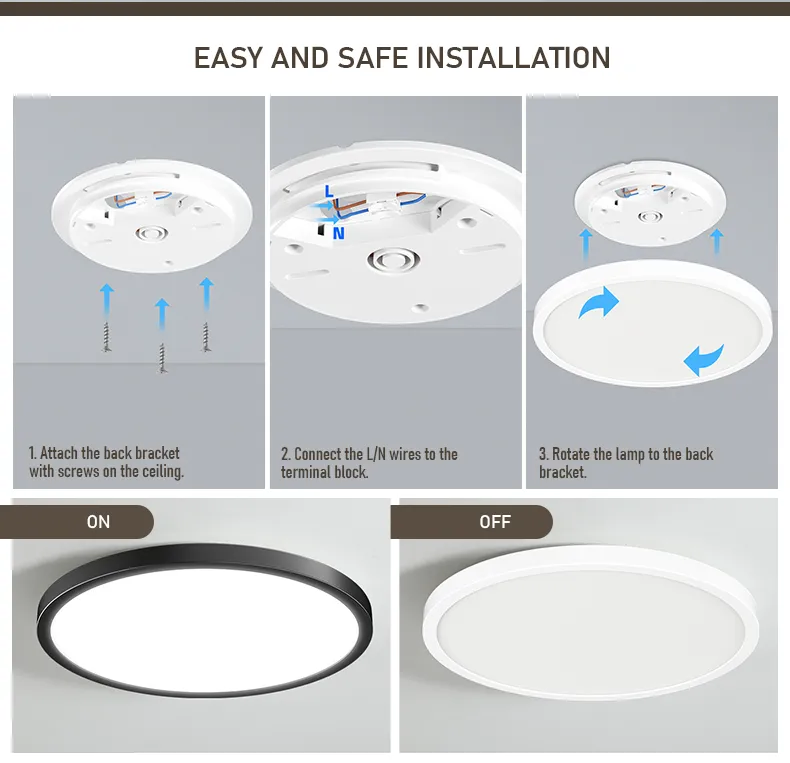

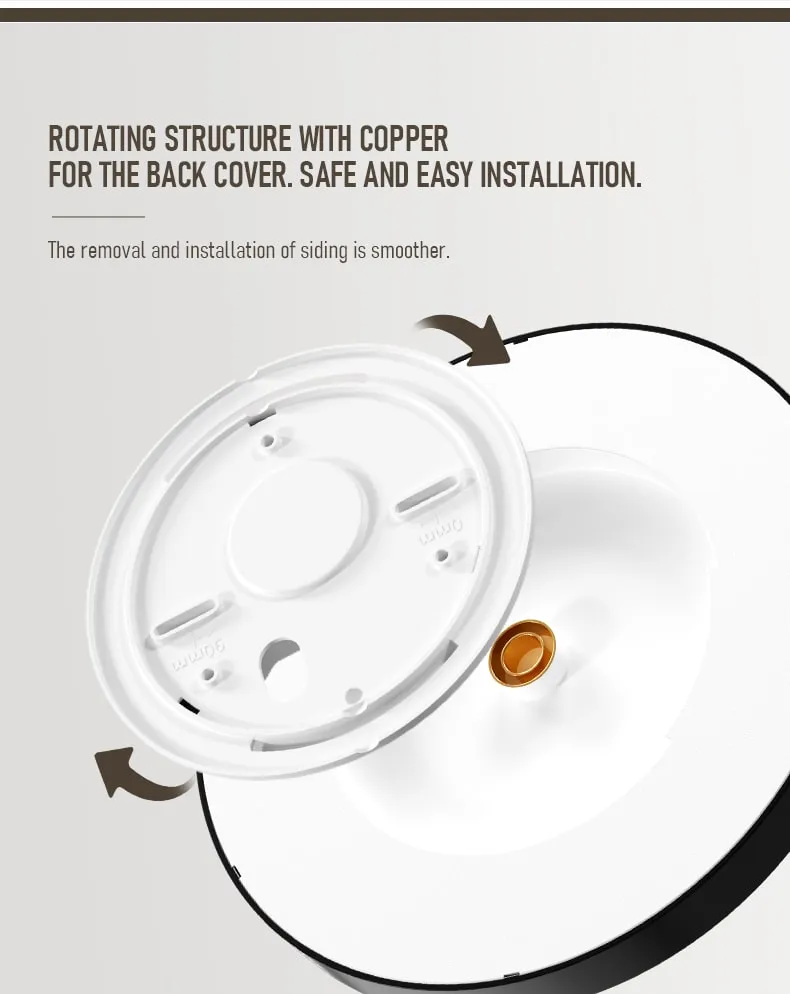

Enhanced Safety: Built-in terminal block structure for simpler and safer installation.

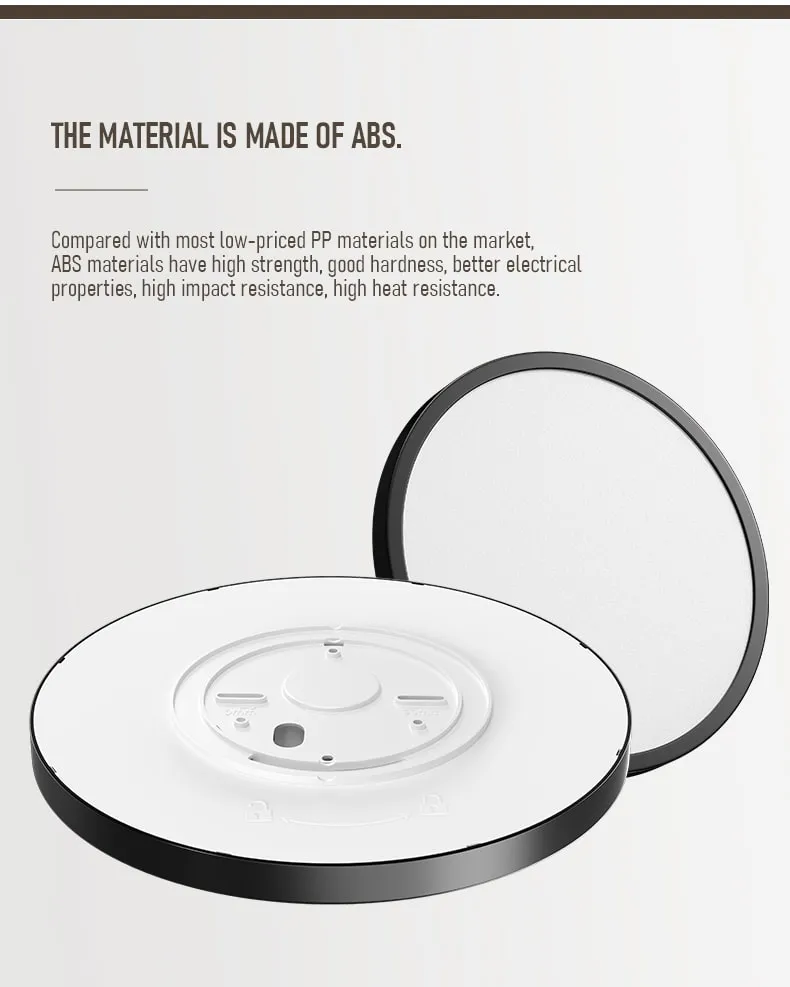

Premium ABS Material: Higher strength, heat resistance, and impact resistance compared to standard PP materials.
Exclusive Patents: Owns structural technology and appearance patents.
⚙️ Optional Versions
- 1CCT: Single light color (Warm/Natural/Cold White).
- 3CCT Changeable: Switch color by cycling power.

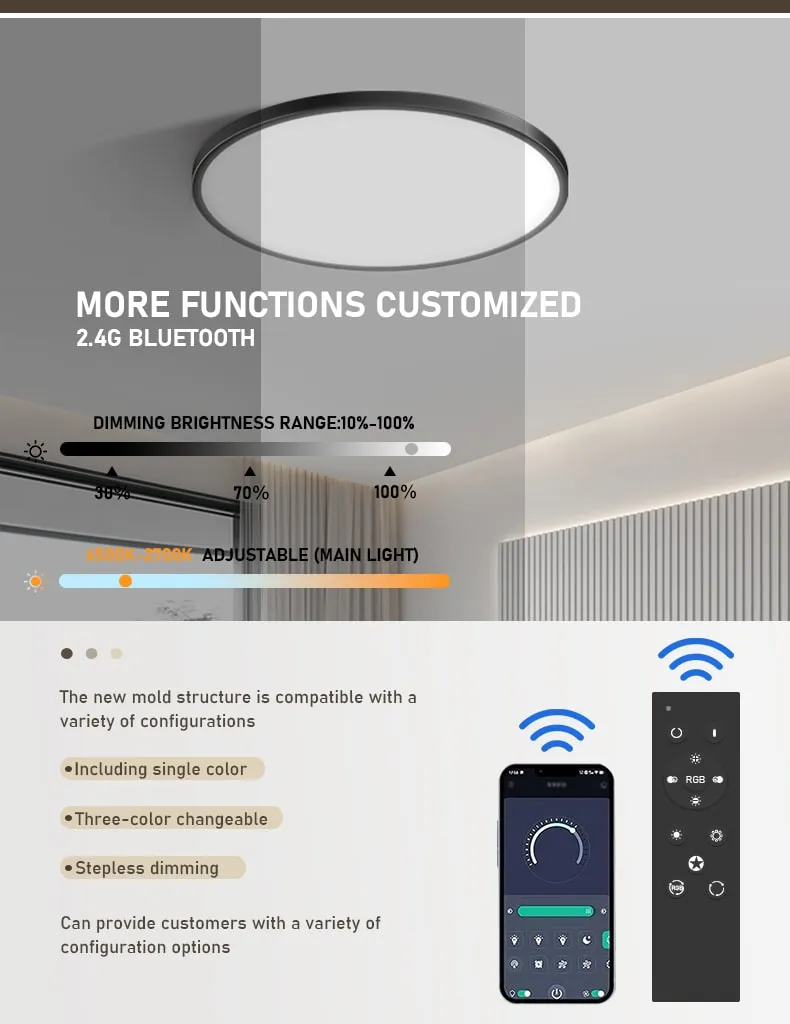

- 2.4G Stepless Dimming: Control via remote or Bluetooth APP.

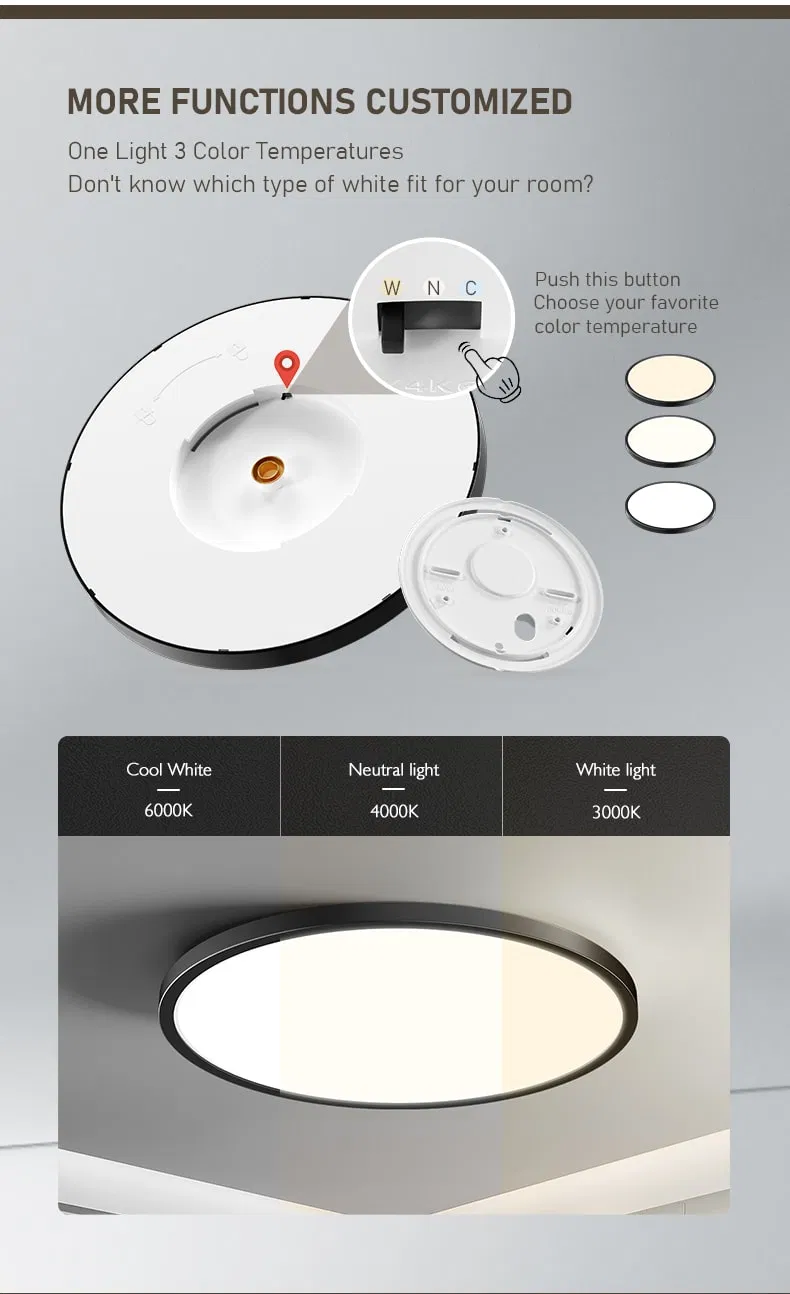

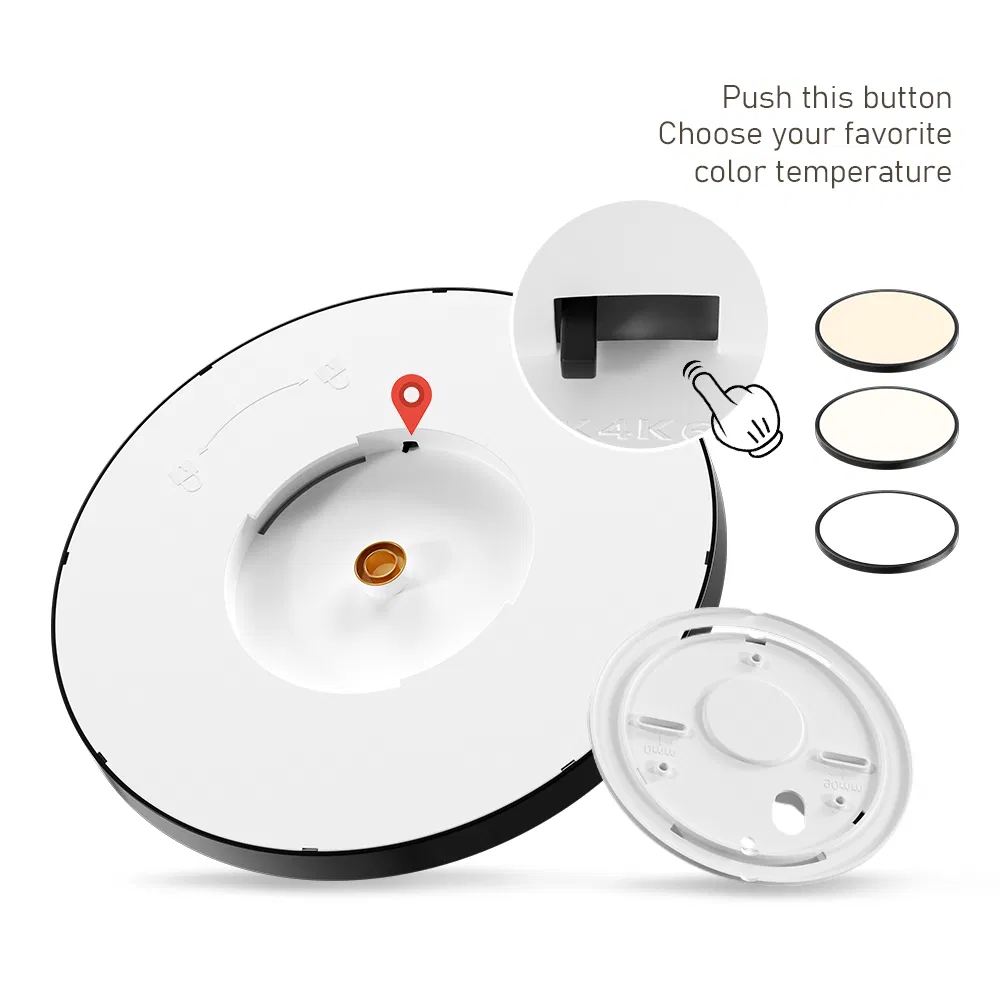

- 3CCT Dial Switch: Change colors via a manual dial switch.
❓ Frequently Asked Questions
Q1: How thin is this ceiling light?
The lamp body features an ultra-thin patented design with a thickness of only 21mm.
Q2: What is the benefit of ABS material over PP?
ABS material provides higher strength, better impact resistance, and superior heat resistance compared to common PP materials.
Q3: Does the light support smart controls?
Yes, the 2.4G version supports stepless dimming and color adjustment via remote control or a mobile Bluetooth APP.
Q4: Are there different size and power options available?
Yes, we offer sizes from Φ230mm to Φ500mm with power ratings ranging from 24W to 48W.
Q5: Is the installation process difficult?
No, the light includes a new terminal block structure and wireless contact conductive design, making installation safer and simpler.
Q6: What certifications does this product have?
This product is certified with CE, RoHS, and ISO9001 standards.
Guangyao Lighting
