Basic Information
| Model NO. |
LM-GSL01C |
Lamp Body Material |
Die-Casting Aluminum |
| Power |
20-120W |
Warranty |
5 Years |
| IP Rating |
IP66 |
Certification |
CE, EMC, LVD, RoHS, SAA |
| Voltage |
85-265V |
Light Source |
Customization |
| Beam Angle |
150*75° |
Lifespan |
50,000 Hours |
| Dimming |
Support (1-10V / PWM / DALI) |
Working Temp |
-30 to 65℃ |
Packaging & Delivery
| Package Size |
62.00cm * 52.00cm * 53.00cm |
| Gross Weight |
11.500kg |
| Transport Package |
1PC/CTN with Styrofoam Protection |
Product Description

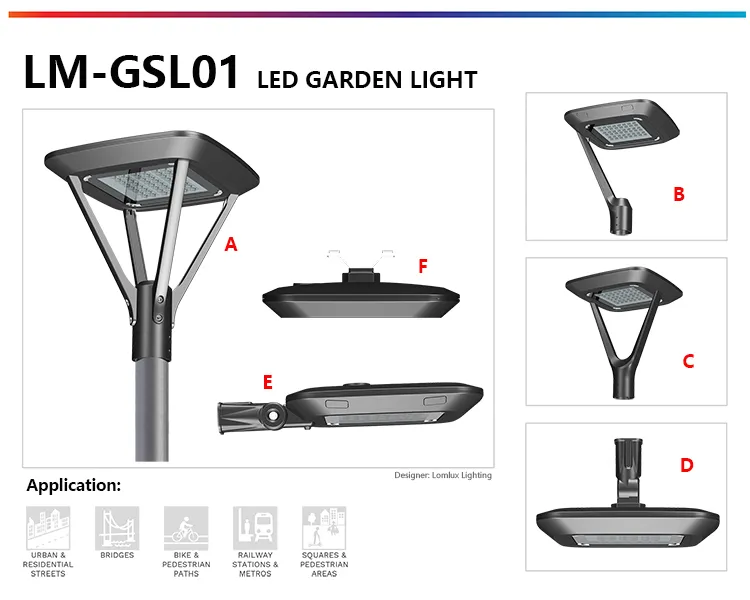

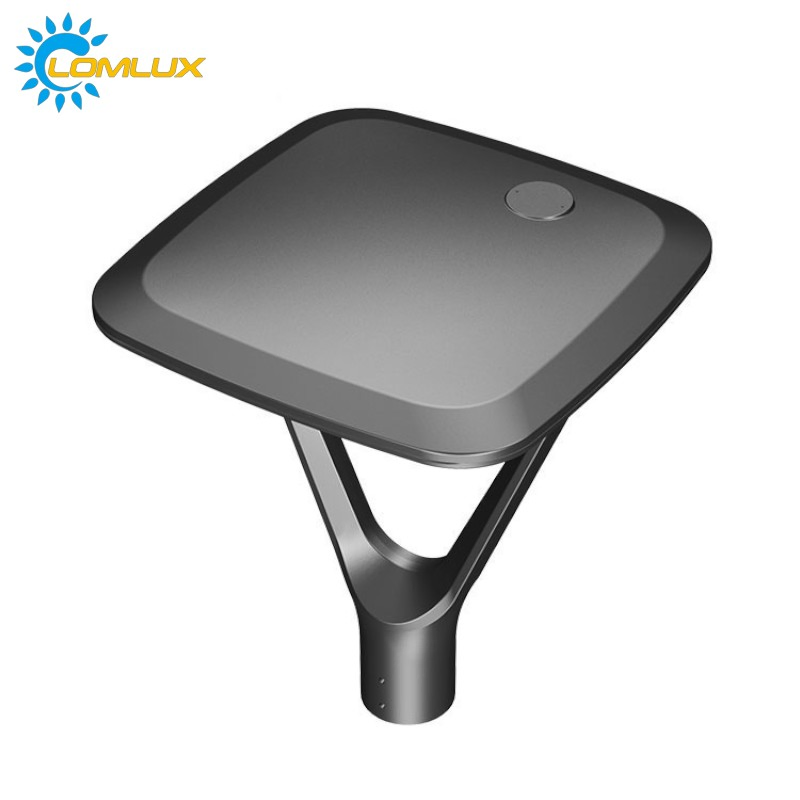

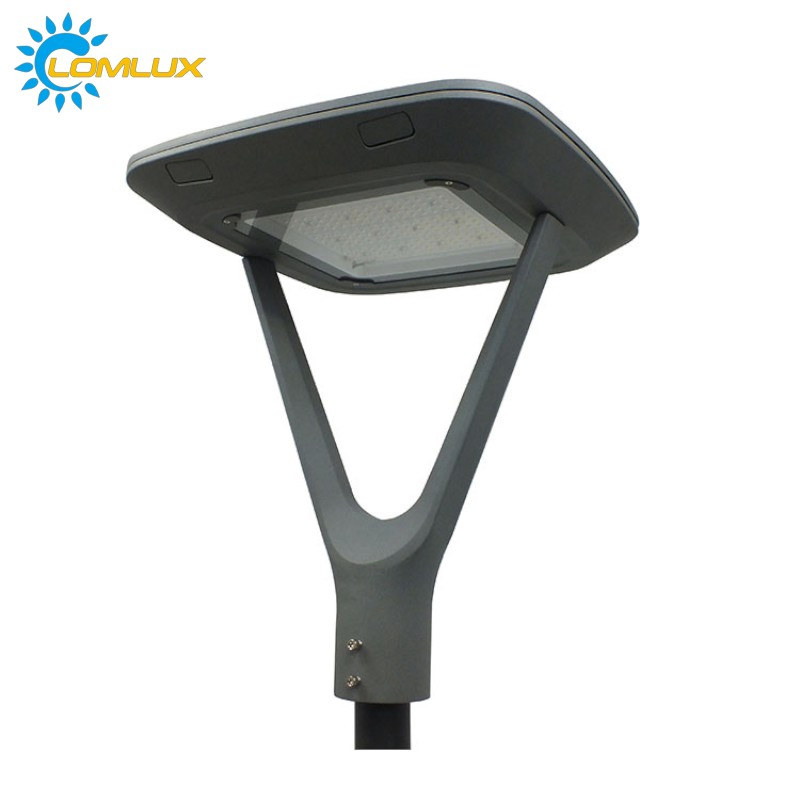

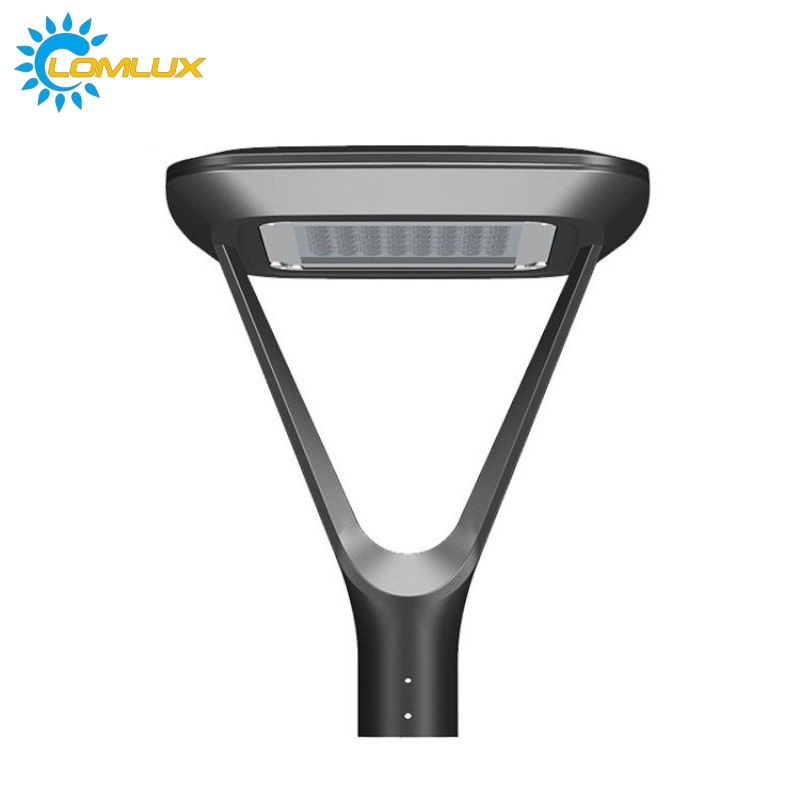

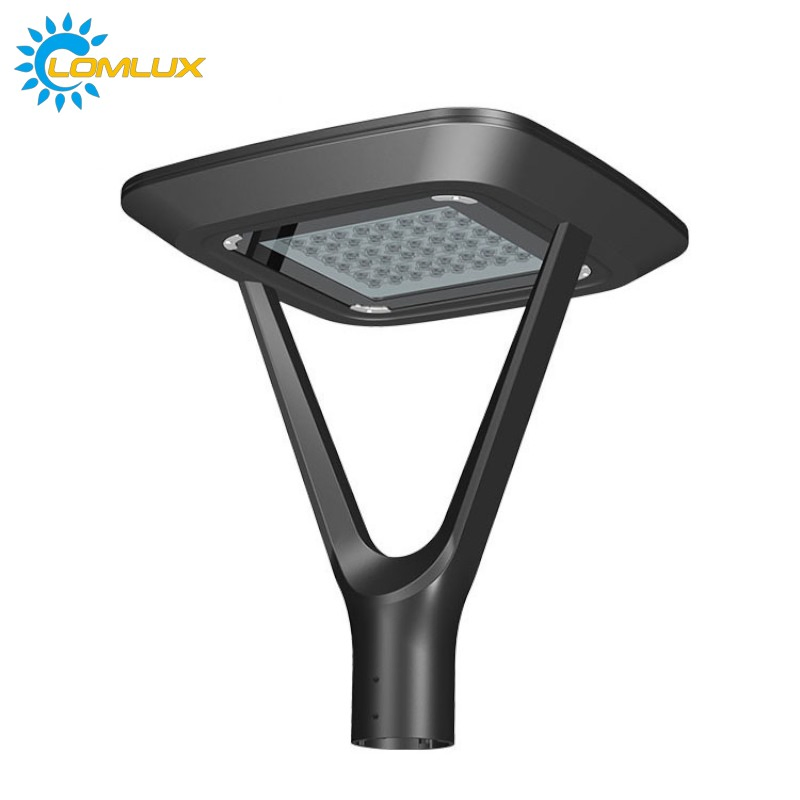

SQUARE LED GARDEN LIGHT LM-GSL01 20-120W
Durability & Heat Dissipation
The die-cast aluminum ensures effective heat dissipation while maintaining high durability of the luminaire.
Corrosion Protection
Power-coated body with a self-cleaning coating (Standard RAL9007) provides ideal protection against corrosion.
High Efficiency
High efficacy LED luminaire (150lm/W) reduces electricity costs by over 50%.
Surge Protection
Built-in over voltage protection (10KV/20KV SPD) as an optional configuration for safety.
Smart Lighting Support
3/5/7Pin NEMA to support Photocell, 1-10V / PMW / DALI Dimming and smart city lighting systems.
Optic Lens Variety
A wide range of lenses (Type I, II, III, IV, V) to suit different road classes and applications.

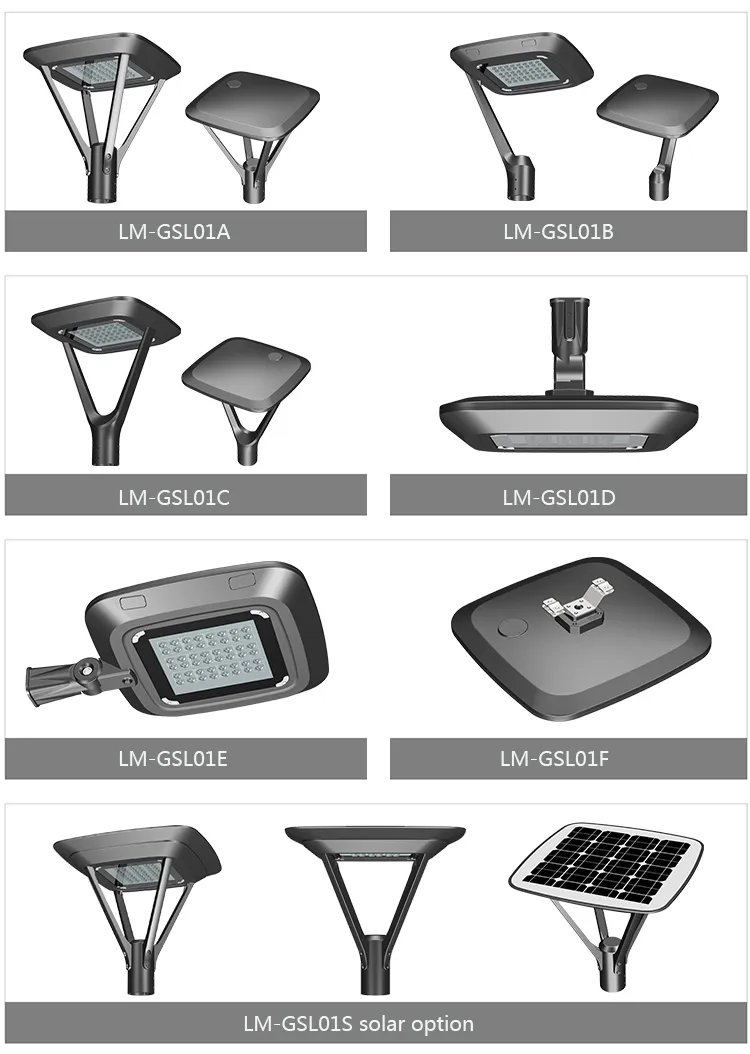

| Model |
Size |
Power |
Flux |
| LM-GSL01A/B/C |
D480*H538-567mm |
20-120W |
135-155lm/W |
| LM-GSL01D |
D480*H275mm |
| LM-GSL01E |
647*480*99mm |
| LM-GSL01F |
D480*H147mm |

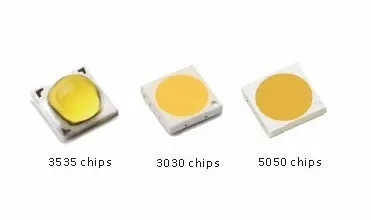

High Efficacy LED Source
Luminous source providing excellent lumen output, long-lasting stability, and splendid sight. The efficiency of 5050 chips is more than 175 lm/W.

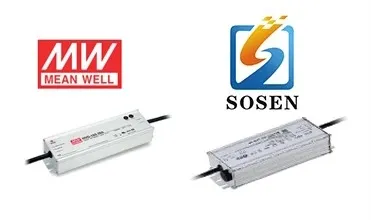

High-End LED Driver
High-end programmable LED driver with 4KV/6KV surge protection, offering optimal stability, performance, and lifespan.
Main Products
LM-SL18
LM-GSL68
LM-GSL01A
LM-FL59
LM-GSL09A
LM-SL27
Frequently Asked Questions
What is the luminous efficiency of the LM-GSL01 series?
The LM-GSL01 series offers high luminous efficacy ranging from 135lm/W to 155lm/W, using premium LED chips to maximize energy savings.
Is this garden light suitable for extreme weather conditions?
Yes, it features an IP66 waterproof rating and an IK09 impact resistance rating, with a working temperature range of -30°C to +65°C.
What types of dimming controls are supported?
The luminaire supports multiple dimming protocols, including 1-10V, PWM, and DALI, and can be integrated with smart city lighting systems via NEMA sockets.
Does the light come with surge protection?
Standard configurations include a TUV-approved 10KV surge protection device, with an optional upgrade to 20KV for enhanced safety against voltage spikes.
What is the warranty period for this product?
The LM-GSL01 series comes with a standard 5 to 7-year warranty covering the luminaire and post-warranty service support.
What materials are used for the lamp body?
The body is made of high-quality die-casting aluminum with a power-coated self-cleaning finish to ensure excellent heat dissipation and corrosion resistance.
