Basic Information
Certification
CE, EMC, LVD, RoHS
Voltage
100-277VAC 50/60Hz
Light Source
SMD3030/5050 LED
Product Description

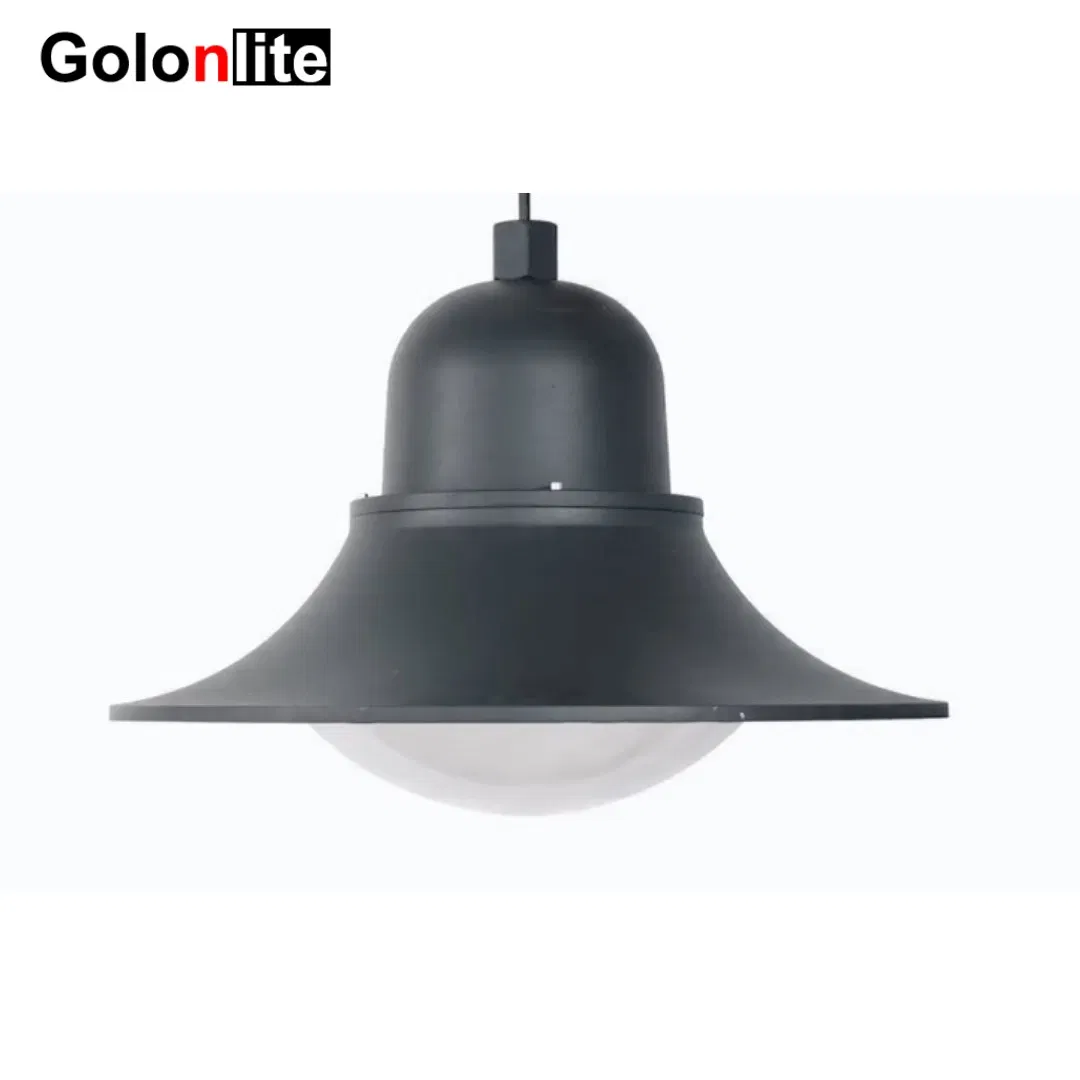

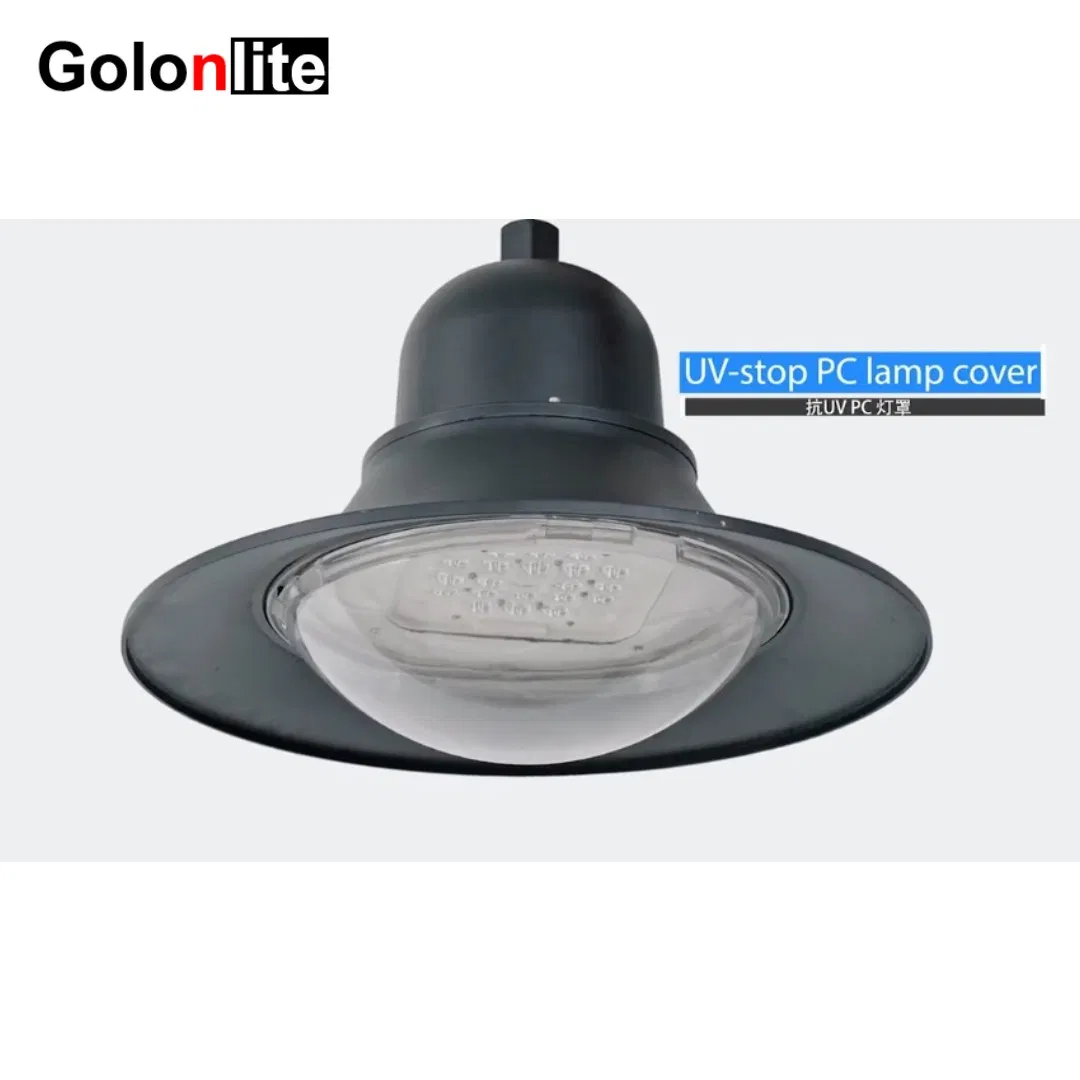

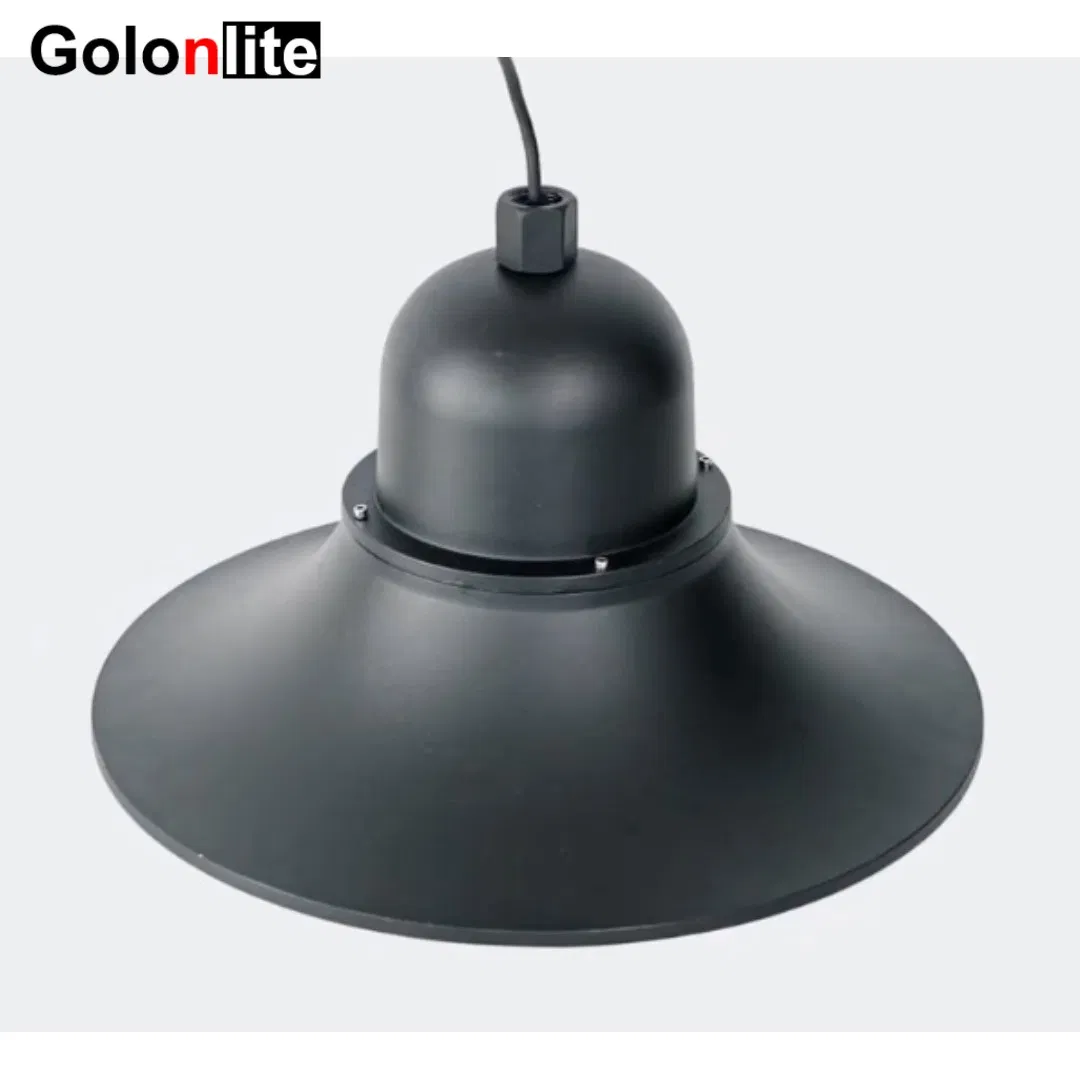

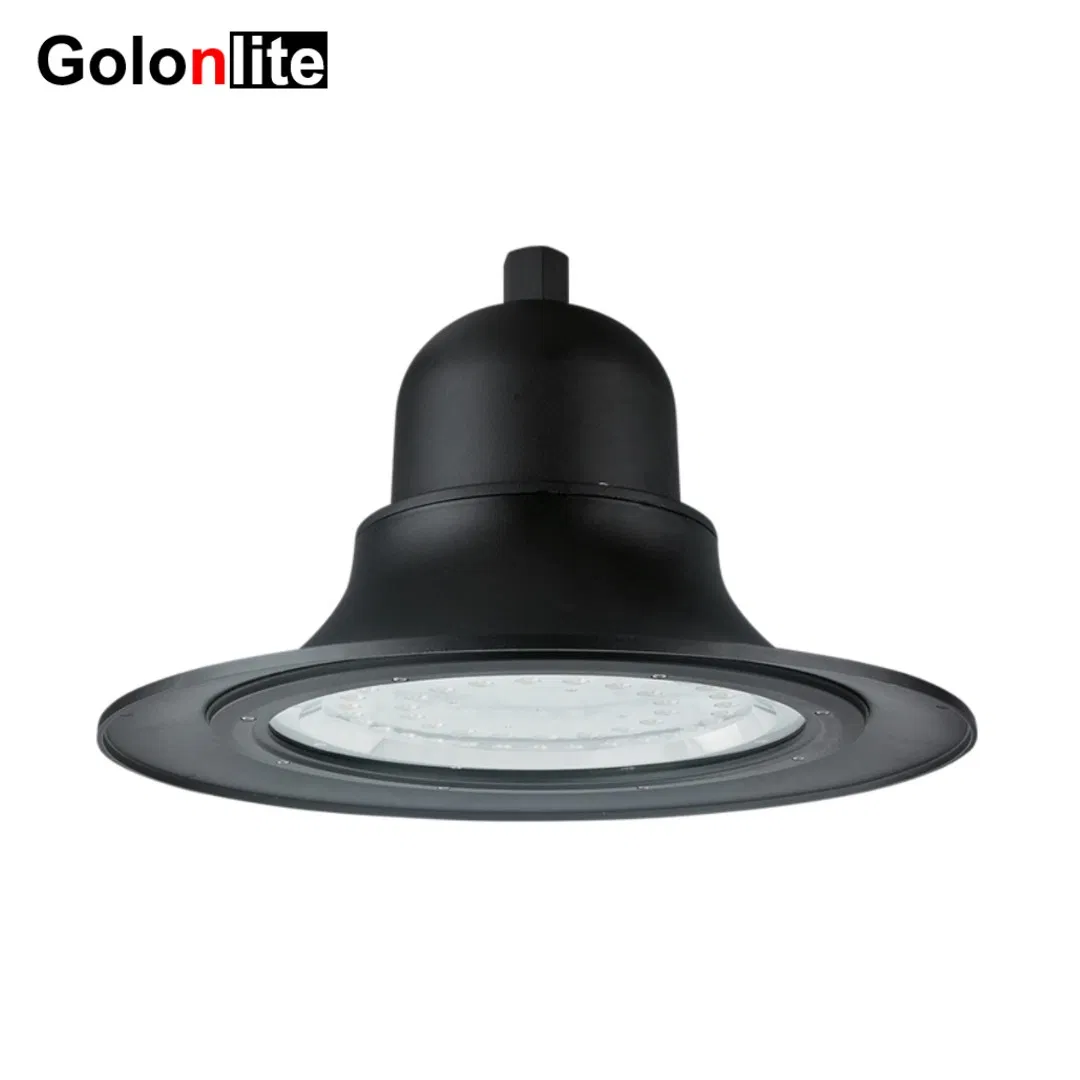

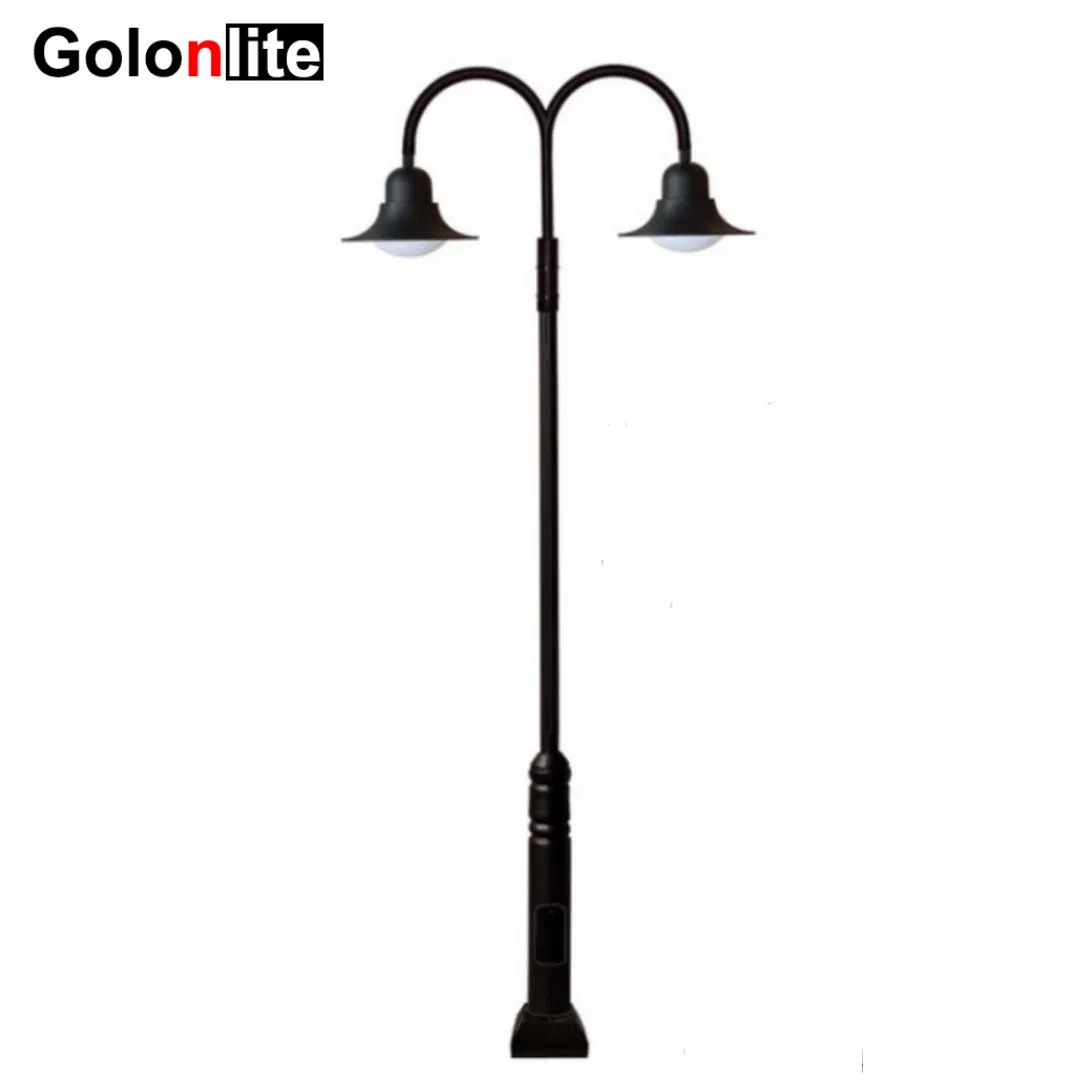

Outdoor Post Top Lantern LED Public Area Street Lighting - 60W Classic Garden Light
| Product |
150W 120W 100W 90W 60W 30W LED garden light fixture |
| Light Specs |
LED Type / Efficiency |
SMD3030 / 150Lm/W; 170Lm/W; 180Lm/W |
| CCT / CRI |
3000K - 5700K / > Ra80 |
| Power Supply |
Meanwell / Sosen / Inventronics Driver |
| Beam Angle |
60°/ 90°/ 120°/ 80*145° / T2 / T3 |

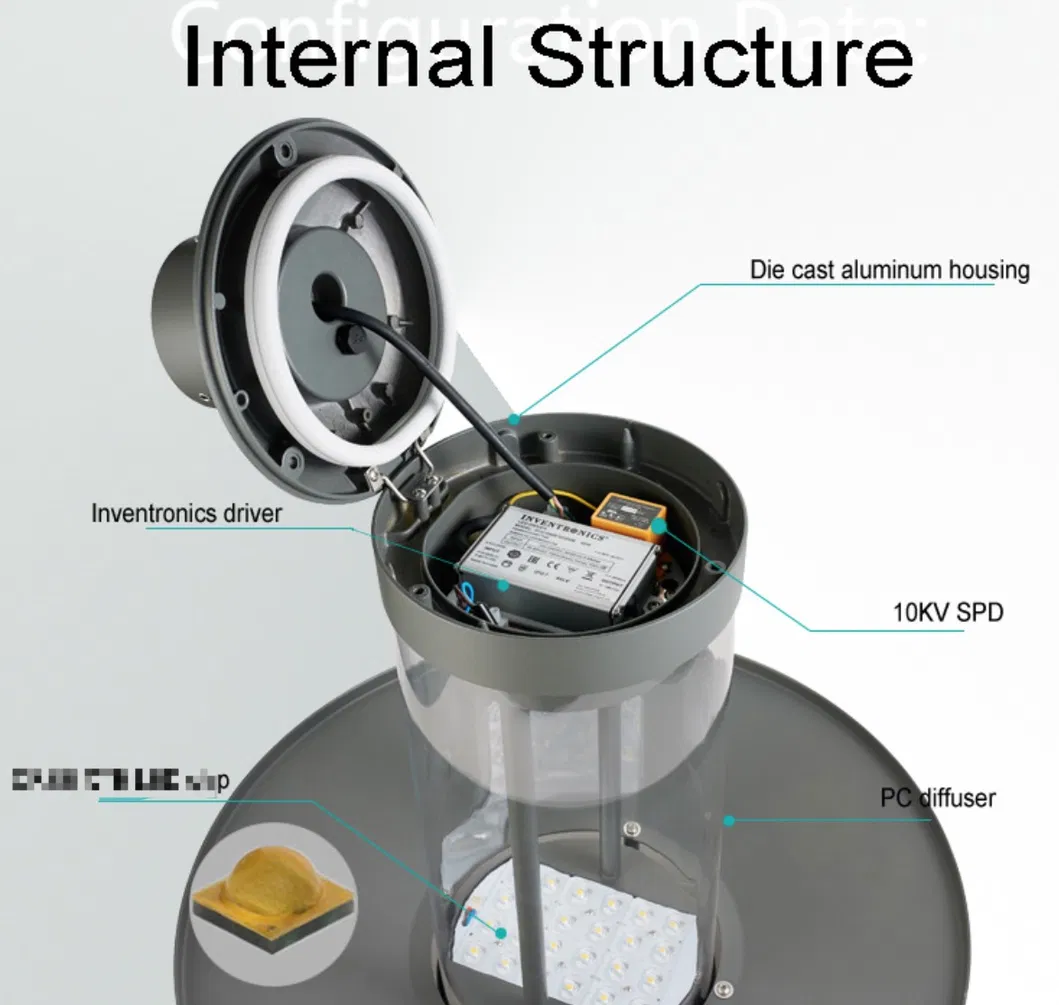

| Structure |
Materials |
Die casting Aluminum housing + Tempered glass |
| Protection |
IP66 waterproof ; IK08 |
| Control Options |
0-10V/Dali dimmable; Photocell/Motion sensor |
Key Features
✓Energy saving, no UV or IP radiation.
✓Anti-shock, anti-moisture, and no glare/strobe.
✓Super bright 170Lm/W high efficiency.
✓100% Die-cast aluminum heat sink.
✓Protective powder coating for durability.
✓Available with Photocell & Microwave motion sensors.

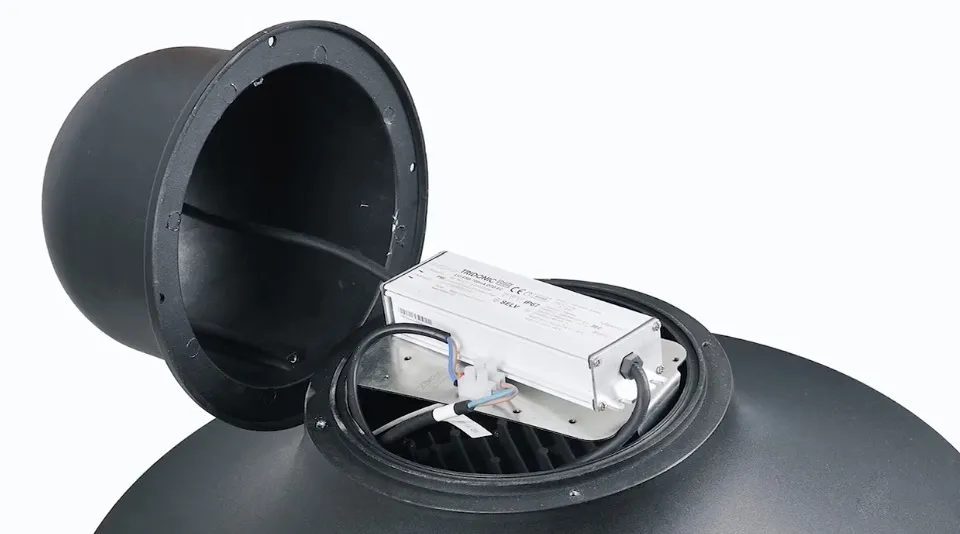

Product Visuals

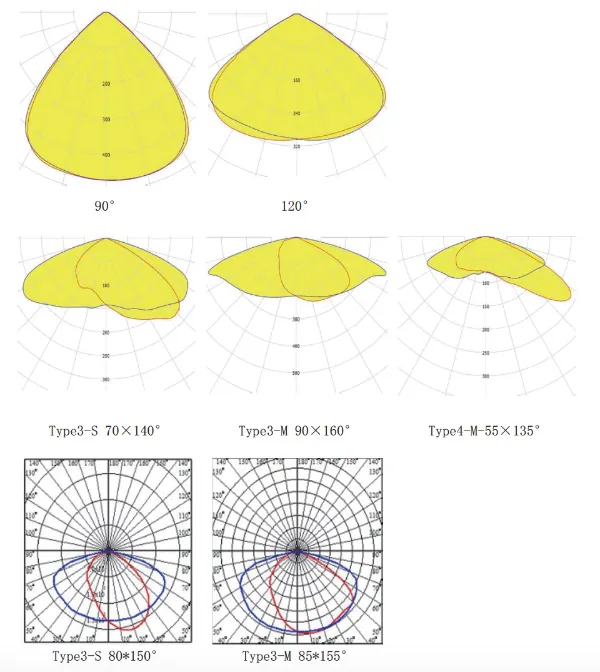

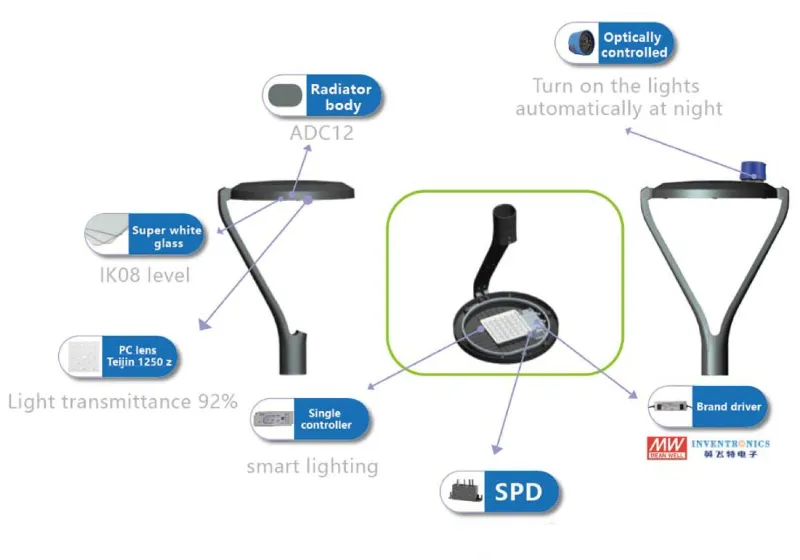

Beam Angle & Sensor Options

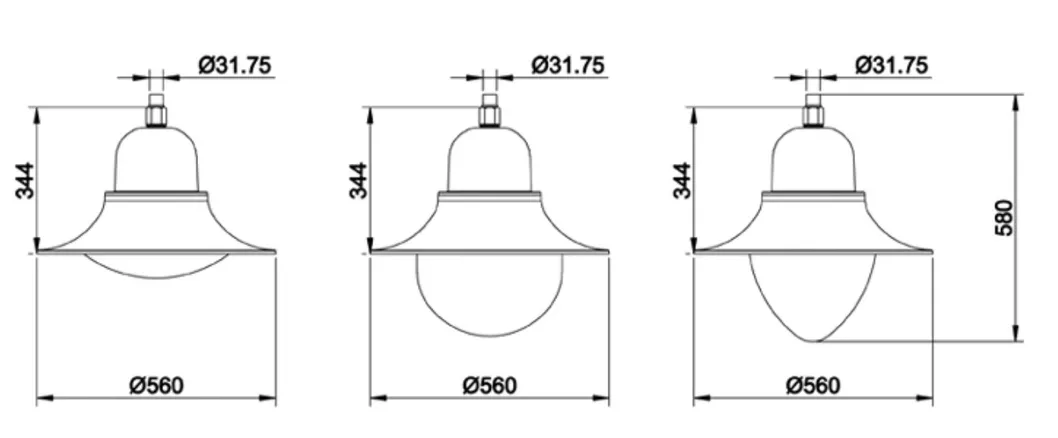

Size Information
Our Services
●24-hour inquiry response.
●Free Dialux lighting design & IES files.
●Full OEM/ODM support for unique designs.
●5-10 years quality warranty.
Frequently Asked Questions
1. What is the lumen efficiency of these LED garden lights?
Our LED garden light fixtures offer high efficiency options of 150Lm/W, 170Lm/W, and up to 180Lm/W using SMD3030/5050 LEDs.
2. Can these lights be dimmed or used with sensors?
Yes, they support 0-10V, PWM, and Dali dimming. We also offer optional Photocell and Microwave motion sensors with 3/5/7 pin base sockets.
3. What kind of warranty is provided?
We provide a standard 5-year warranty, with options for up to 10 years depending on the project requirements.
4. Are these lights suitable for extreme outdoor weather?
Absolutely. The fixtures are IP66 waterproof rated and IK08 impact resistant, featuring a 100% die-cast aluminum heat sink and protective powder coating.
5. Do you provide lighting simulation services?
Yes, we provide free lighting design services including Dialux studies and IES files to help you plan your public area lighting.
6. What traditional lamps can these LEDs replace?
These units are designed to replace 400W to 1000W Metal Halide (MH), HPS, HID, or Halogen lamps while significantly reducing energy consumption.
