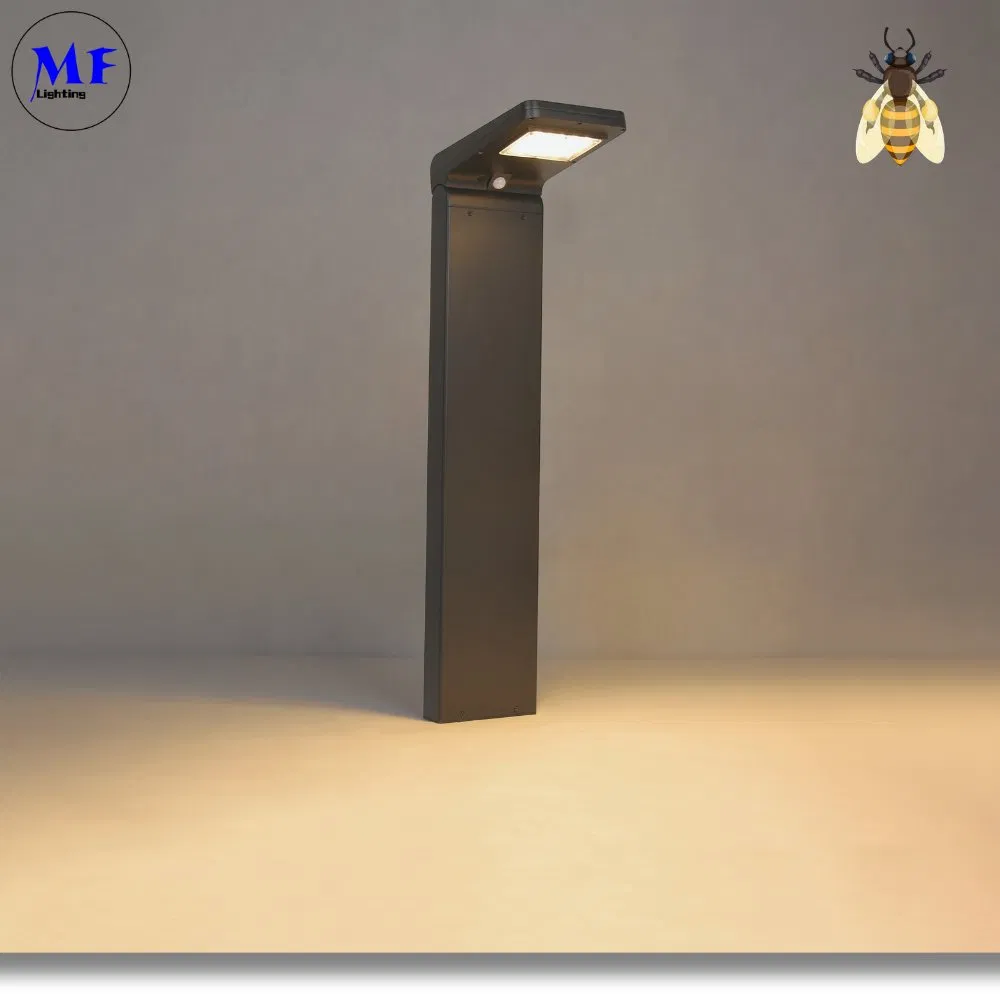

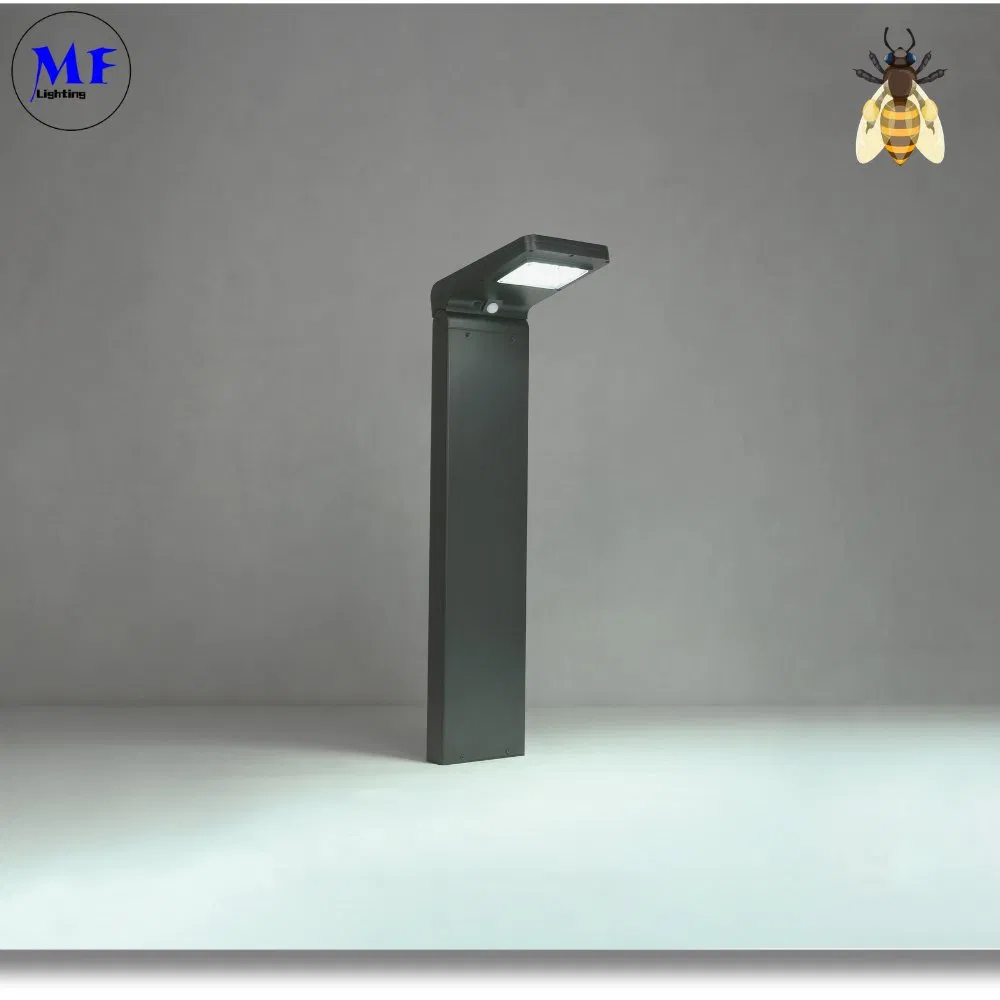

5W Solar Silicon Battery IP65 Outdoor Landscape Lighting
5W Solar silicon Battery IP65 Outdoor Waterproof Landscape Lighting LED Solar Garden Yard Lawn Light With Motion PIR Sensor Smart Control For Pathway Driveway
Overview & Basic Info
Lamp Body Material
Aluminium+PC

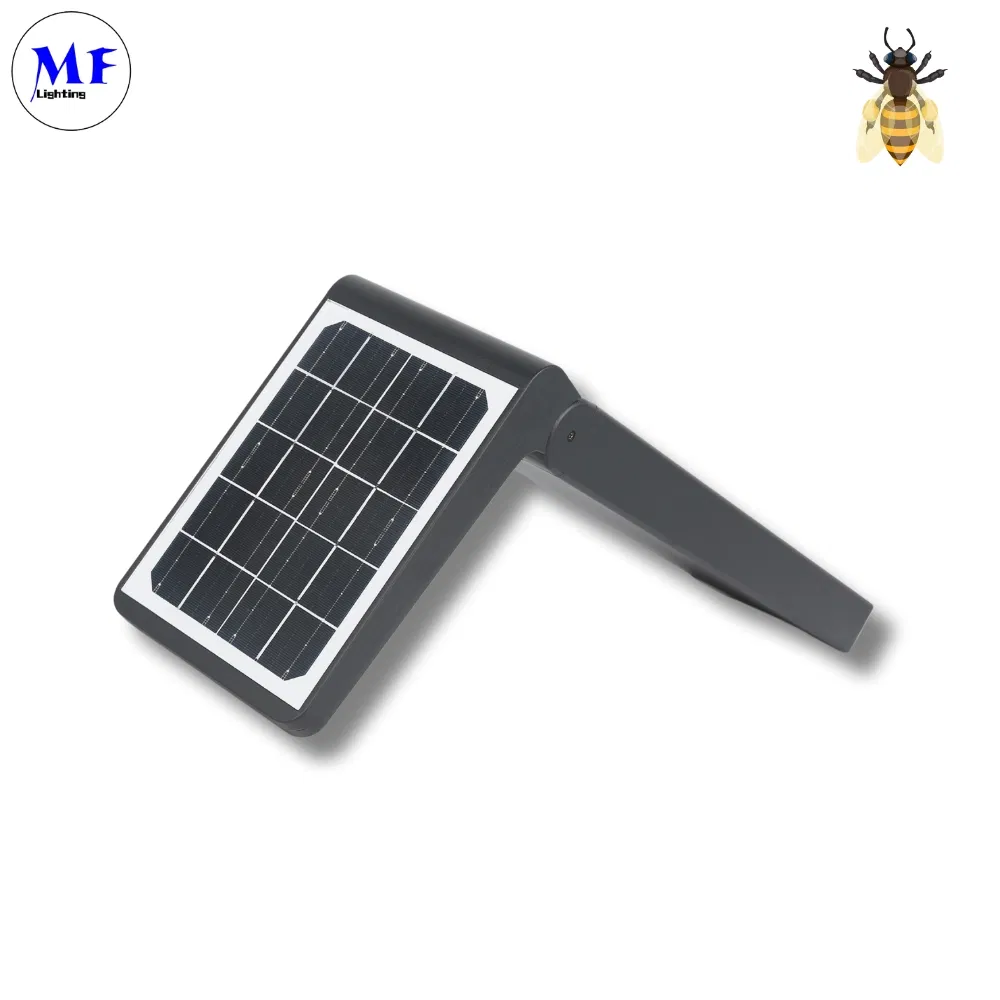

Solar Panel
Mono Silicon 5V/5W

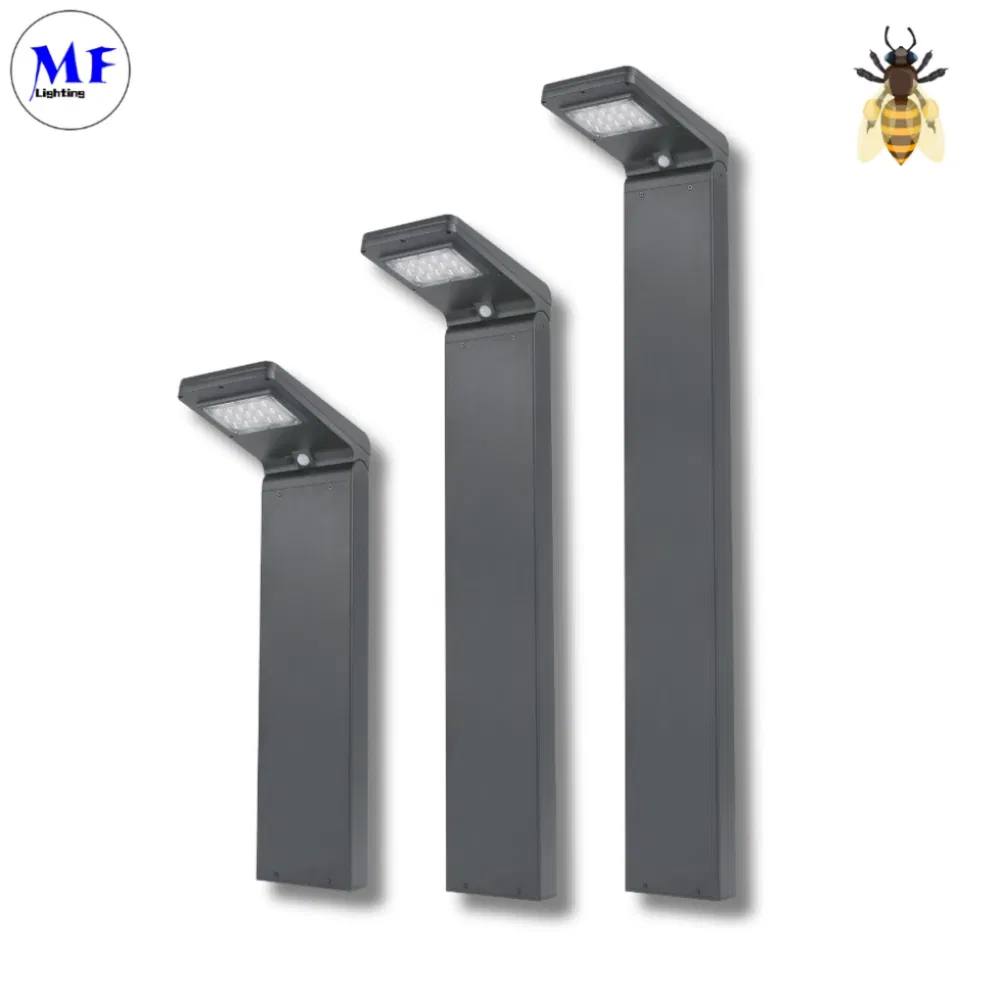

Height Options
60cm / 80cm / 100cm
Operating Temp
-35°c to +55°c
Key Features
- Unique design for modern landscape aesthetics
- Multiple installation options available
- Zero electricity bill & high energy saving performance
- Multiple smart sensors optional (including PIR)
- Reliable 2-years Warranty
Technical Specifications
| Model |
MF-CPD3008-60 |
MF-CPD3008-80 |
MF-CPD3008-100 |
| Solar Panel |
Mono Silicon 5V/5W |
| Battery |
3.2V/8AH |
| Height |
60cm |
80cm |
100cm |
| CCT |
3000K/4000K/5000K/5700K/6500K |
| Lifespan |
20,000 hours |
Installation Guide
1. Identify the installation position and use two expansion screws to fix the base securely.
2. Insert the lamp into the base and tighten the 4 side screws with a Phillips screwdriver.
3. Assemble the lamp holder and tube, securing with the provided side screws.

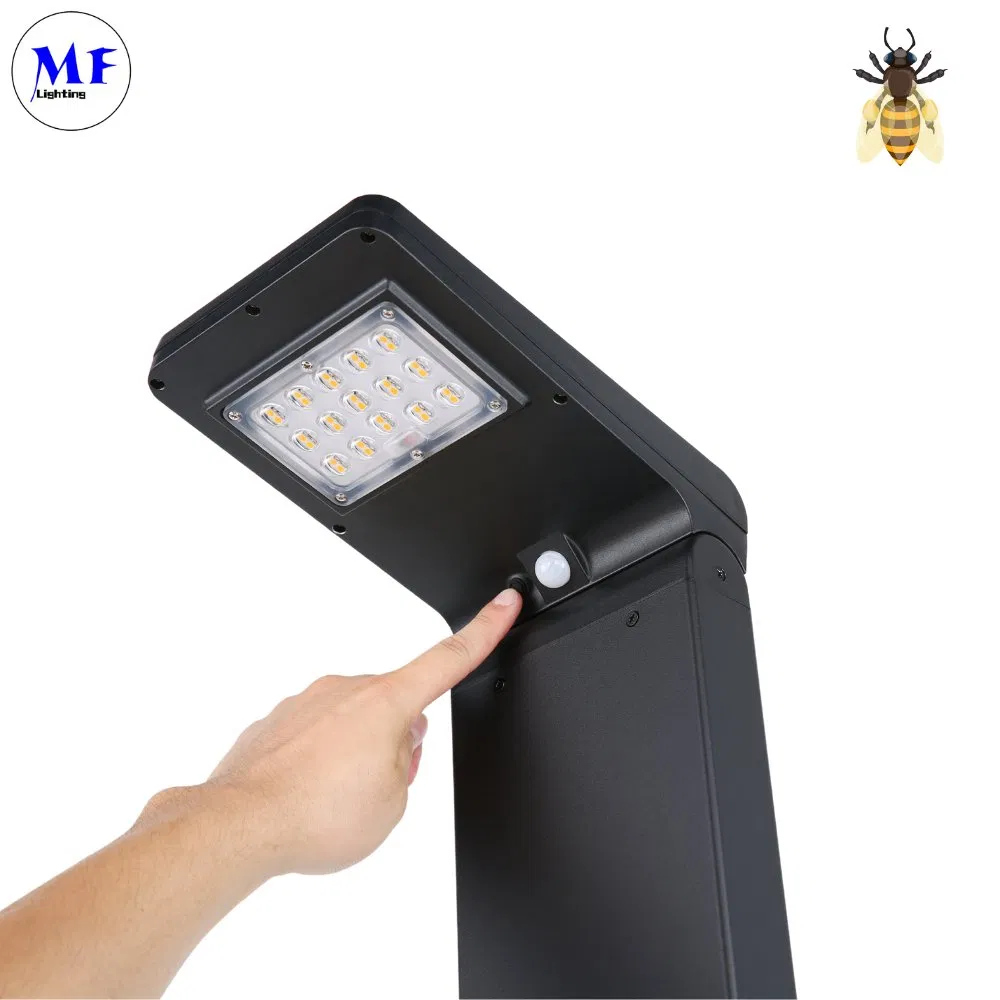

4. Smart Switch Operation: Click once for PIR sensor mode; Click twice for Constant Bright mode; Click thrice to Turn Off. (Works automatically at night).

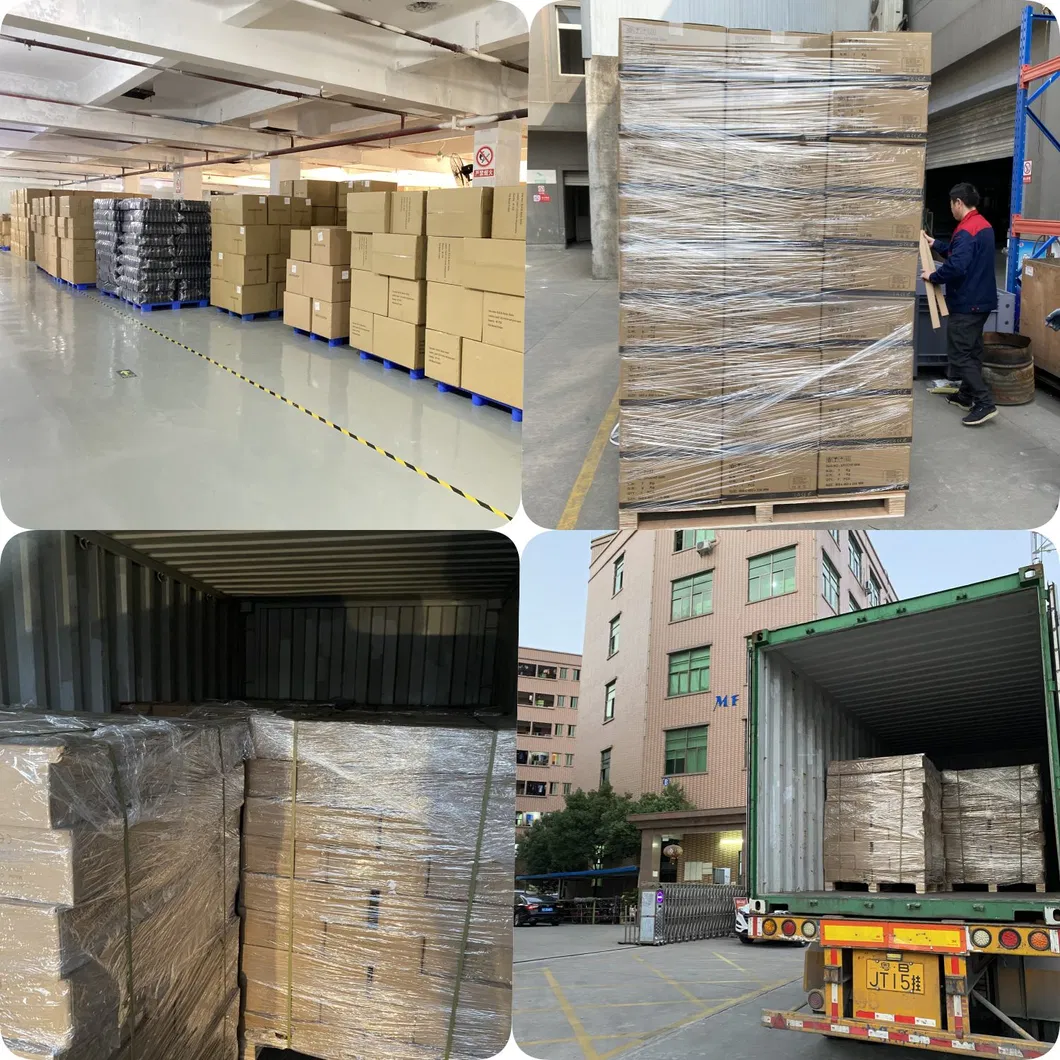

Packaging & Logistics
| Model |
PCS/CTN |
Net Weight |
Gross Weight |
Dimensions |
| CPD3008-60 |
8 |
8.8kg |
22.1kg |
L680×W560×H330mm |
| CPD3008-80 |
8 |
10.68kg |
26.3kg |
L760×W680×H330mm |
| CPD3008-100 |
8 |
11.88kg |
30.7kg |
L960×W680×H330mm |
Wide Applications
- Backyards, Gardens & Lawns
- Driveways & Pedestrian Pathways
- Patios, Balconies & Decks
- Porches & Building Entrances
- Security Perimeter Lighting
- Poolside & Water Features
- Outdoor Events & Weddings
- Parks & Recreational Areas
Product Showcase & Advantages
Frequently Asked Questions
Q1: How does the PIR motion sensor work?
A: The sensor detects movement within its range. You can activate it by clicking the black switch once. It will automatically brighten when motion is detected and dim when the area is clear to save energy.
Q2: Is this light completely waterproof for heavy rain?
A: Yes, it features an IP65 rating, which means it is protected against dust ingress and low-pressure water jets from any direction, making it ideal for outdoor rain and snow conditions.
Q3: How long does the battery last on a full charge?
A: With a high-capacity 3.2V/8ah battery and Mono Silicon panel, it can support multiple nights of operation depending on the selected sensor mode and sunlight availability during the day.
Q4: Can I choose different heights for my project?
A: Yes, we offer three standard heights: 60cm, 80cm, and 100cm to fit various landscape design requirements.
Q5: What is the warranty period for this solar light?
A: We provide a 2-year warranty covering the lighting system, ensuring long-term reliability for your outdoor installations.
Q6: Does it require any external wiring?
A: No, it is a 100% solar-powered solution with zero electricity costs and no wiring required, allowing for easy installation in remote locations.
