| Model NO. | MF-TT-563 | Lamp Body Material | Die Cast Aluminum+PC Cover |
| Lighting Area | 10-15m^2 | Power | 5.5V/6.5W |
| Technics | Electroplating | Warranty | 2 YEARS |
| IP Rating | IP66 | Certification | CCC, CE, RoHS |
| Voltage | <6V | Light Source | With Light Source |
| Lumens | 2000lm in Full Brightness | Application | Square, Highway, Garden, Parking Lot |
| Battery | 18650lithium Battery 3.7V/8000mAh | Lighting Time | 9-12 Hours |
| Charging Time | 7-8h | Function | Double PIR Motion Sensors |

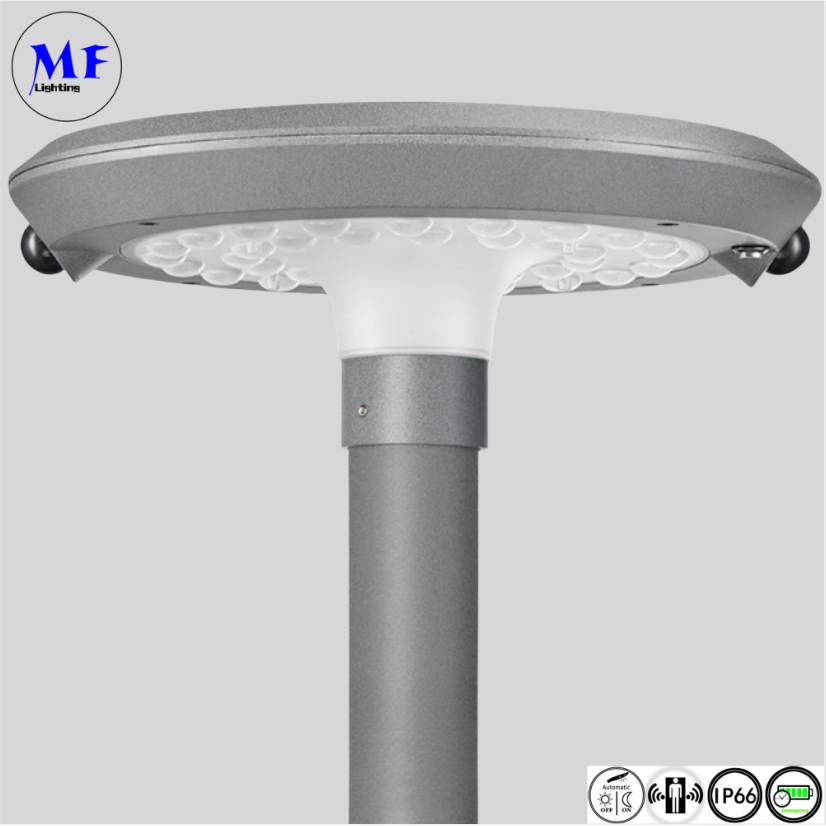

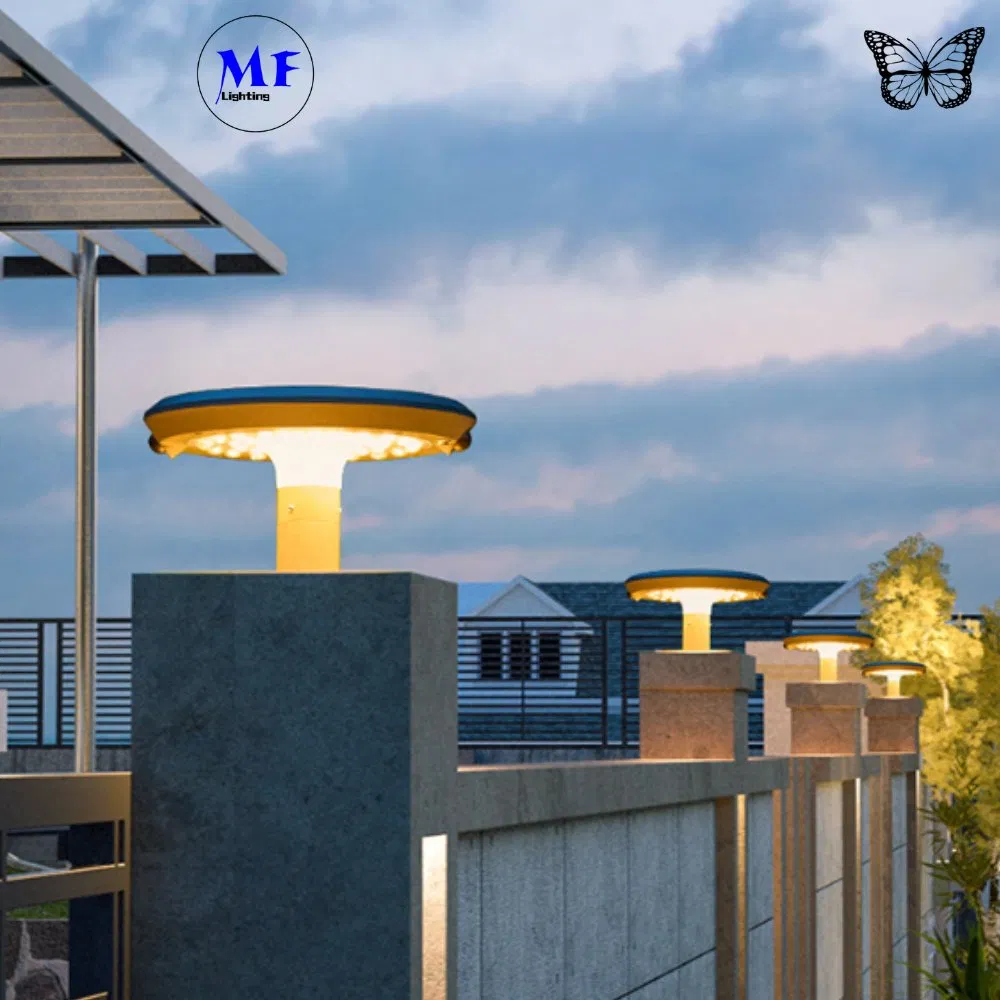

Factory IP66 Waterproof Wall Outdoor LED Solar Garden Light
High-quality solar post-top light with motion sensor for sidewalks and gardens. Features a 2-year warranty and superior durability.
Premium Construction: Made of high-quality die-casting aluminum. The unique segmented rod design significantly aids in reducing shipping expenses.
Advanced Control: Packed with features like a 360° dual PIR sensor control, 3-speed adjustable bright light sensor mode, and state-of-the-art infrared sensor technology.
| Parameter | Value |
|---|---|
| Solar Panel | Monocrystalline silicon glass plate Φ280*3.2mm, 5.5V/6.5W |
| Battery | 18650 lithium battery 3.7V/8000mAh |
| Light Source | SMD2835 155PCS |
| CCT | Cold light (6000-6500K) / Warm light (2900-3200K) |
| Material | Die cast aluminum + PC cover |

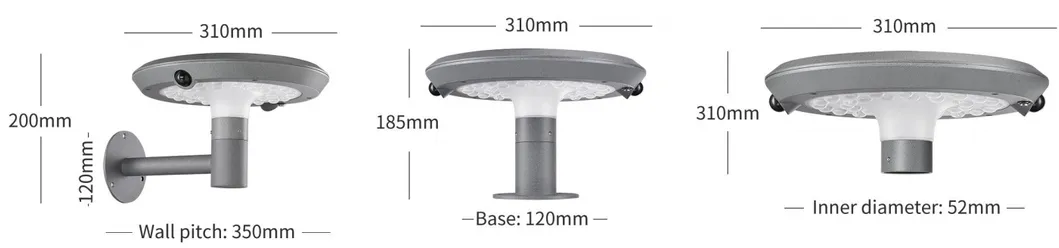

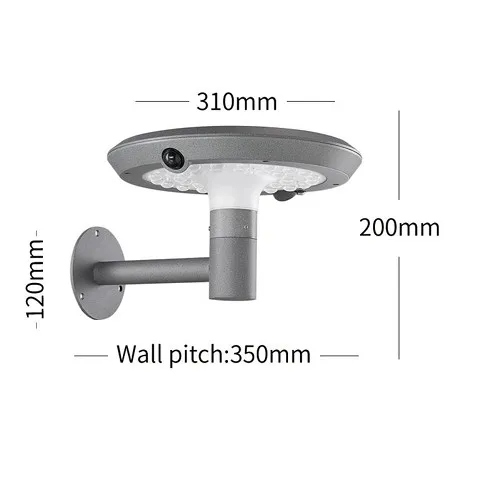

| Size | 350*310*200mm, base 120mm |

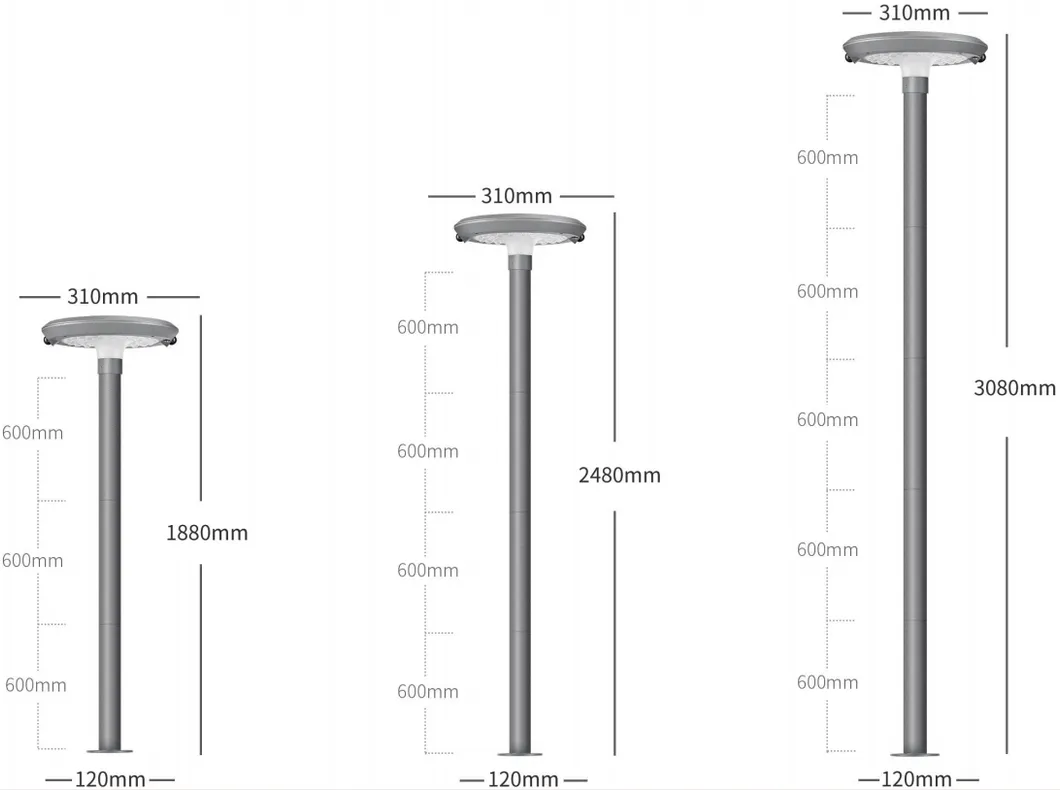

| Model | Height | Model | Height |
|---|---|---|---|
| MF-TB-564 | 400mm | MF-TT-564-270 | 2700mm |
| MF-TZ-564 | 385mm | MF-TT-564-200 | 2100mm |
| MF-TT-564 | 310mm | MF-TT-564-150 | 1500mm |

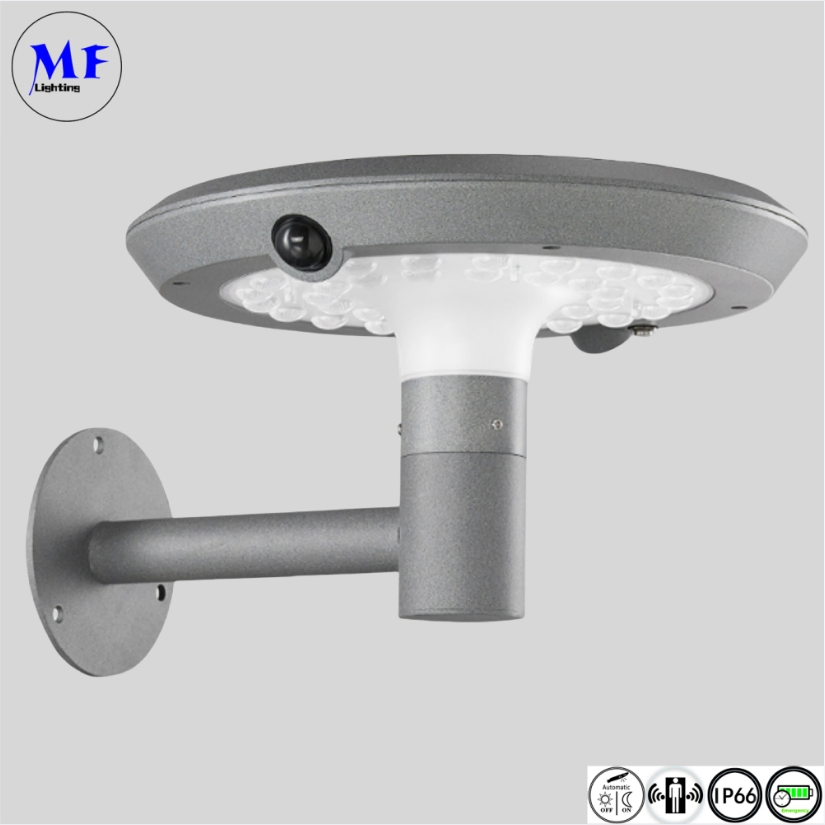

Wall Lamp List: Head, Wall mount, Screws, Allen key.

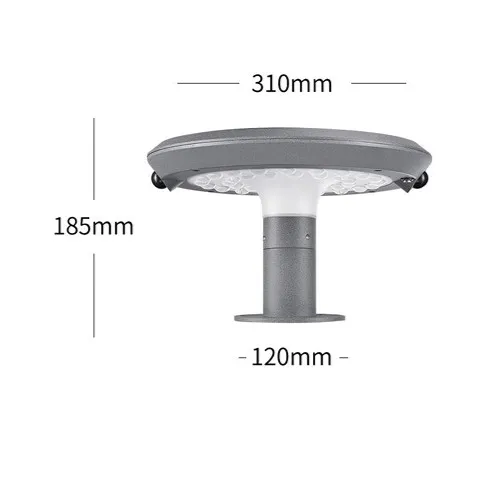

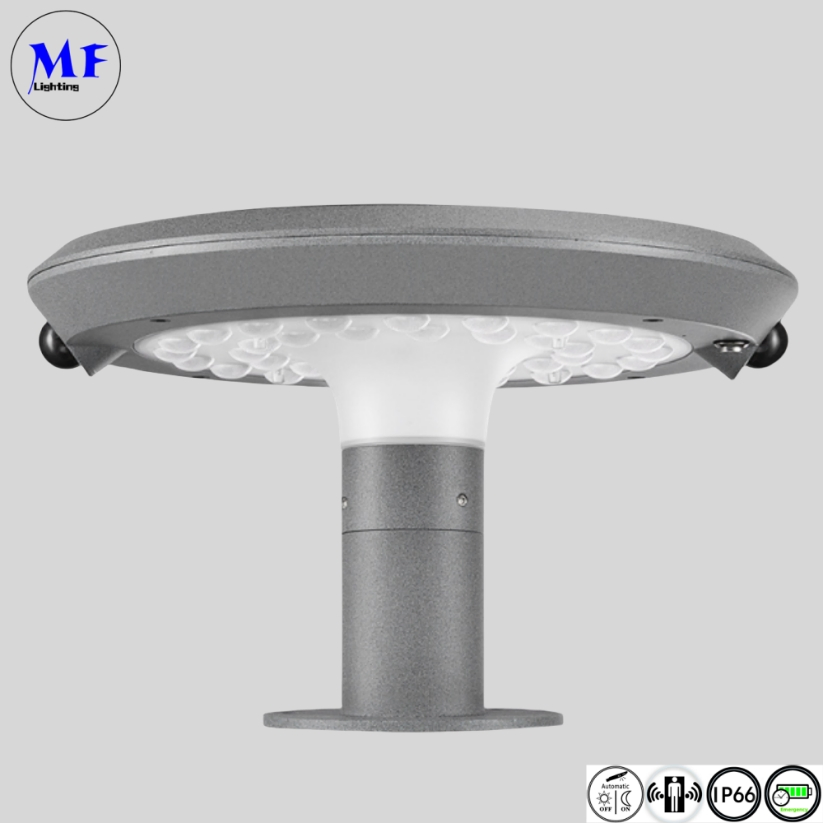

Pillar Light List: Head, Base, Screws, Allen key.

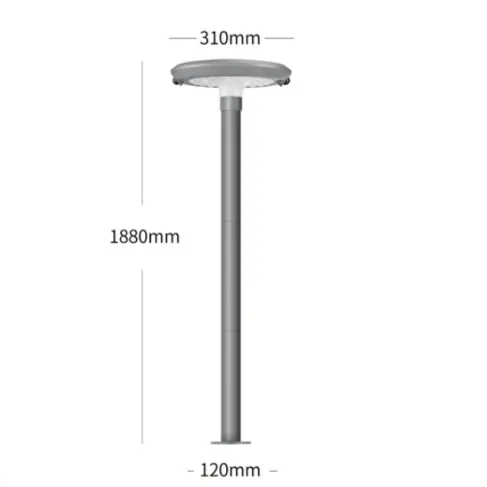

Garden Light List: Head, Aluminium rods, Screws, Allen key.

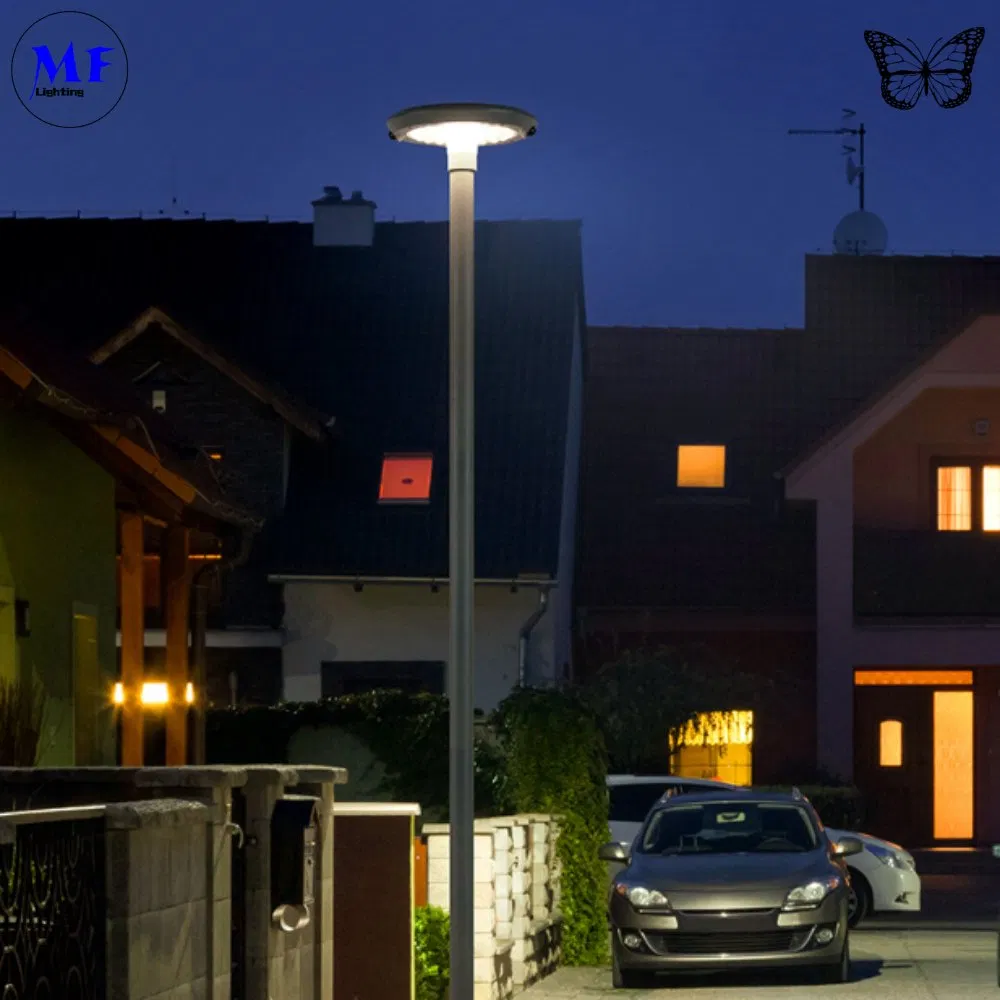

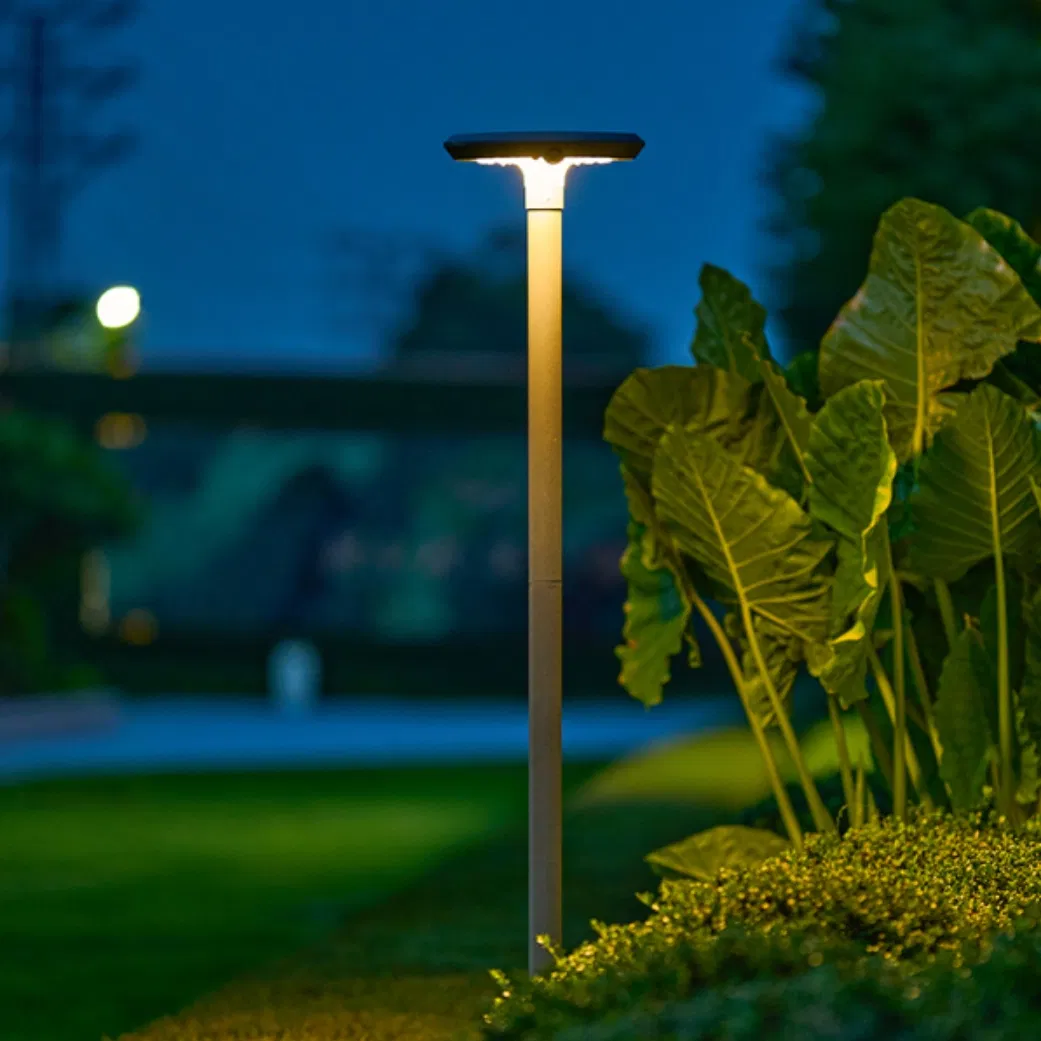

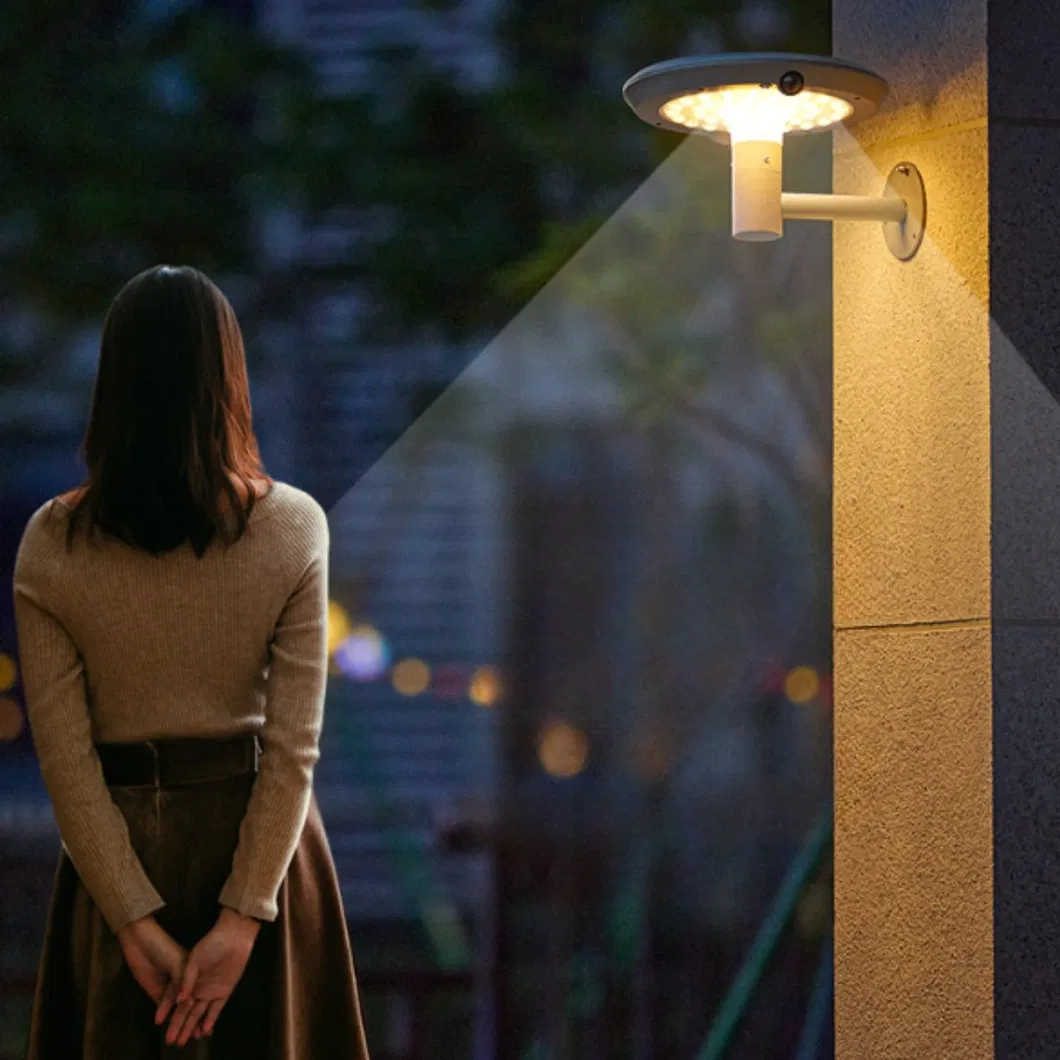

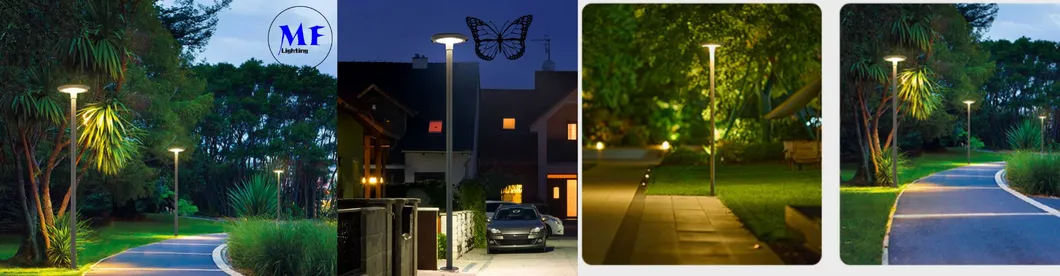

Versatile for villa courtyards, gardens, and streets. The IP66 waterproof rating ensures reliable performance in harsh environments, enhancing security and aesthetics.
| Model | Package Type | Size (cm) | Qty/pcs | N.W./G.W. (KG) |
|---|---|---|---|---|
| MF-TZ-563 | Inner | 38*38*15 | 1 | 1.83 / 2.63 |
| MF-TZ-563 | Outer | 62.5*39.5*40 | 4 | 10.5 / 11.7 |
