This design combines the best energy-saving components: high-efficiency solar panels, LED lamps, and specialized lithium batteries. Equipped with a PIR sensor and intelligent controller, it achieves high brightness with low energy consumption and a long maintenance-free lifespan.
| Solar Panel | 18V45W (High efficiency Monocrystalline) | Battery Type | Lithium 12V 18AH |
| LED Source | Bridgelux Chip (USA) 20W | Color Temp | Cool White |
| Install Height | 5m | Space Between | 15-18m |
| Material | Aluminium Alloy | Dimensions | 920*295*44mm |

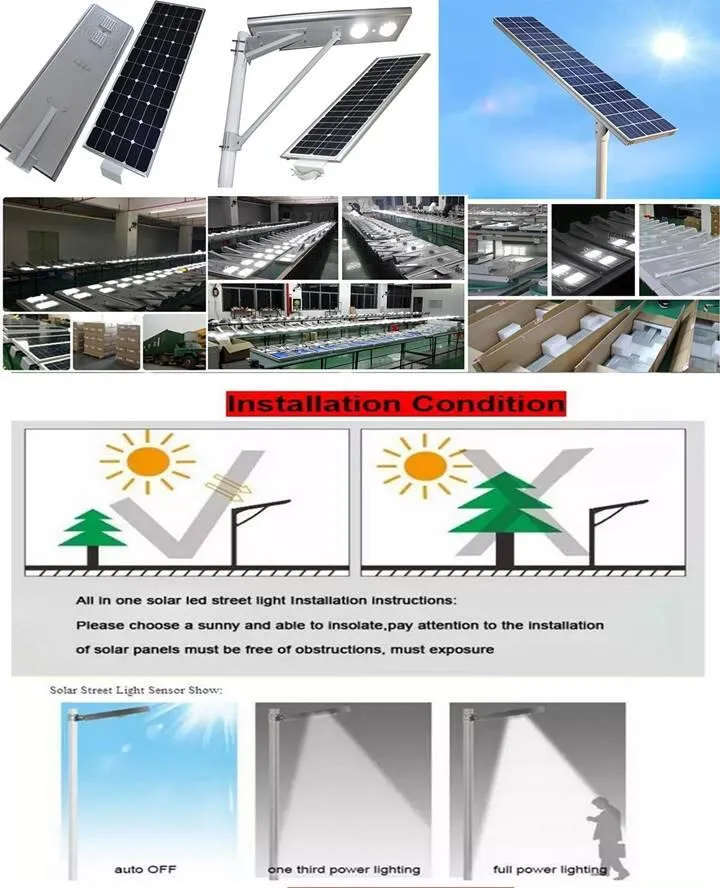

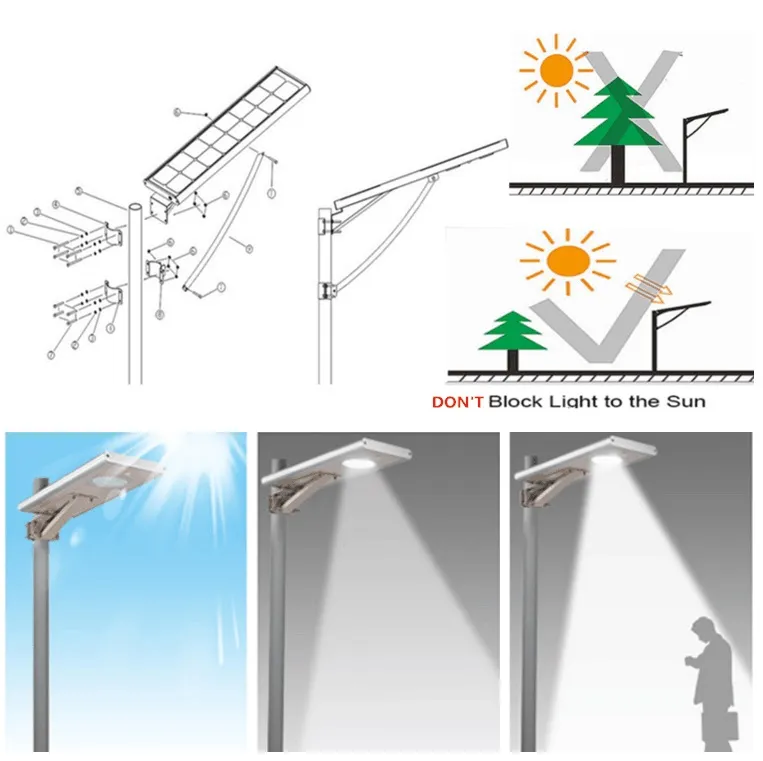

✔ Select spots with maximum sunshine exposure; avoid shadows from trees or buildings.
✔ Working temperature range: Charging 0°C~+60°C; Discharging -20°C~+60°C.
✔ Clean the solar panel surface regularly to ensure maximum power generation.
✔ Recommended pole: Height 3-5m, Diameter 40-100mm.
