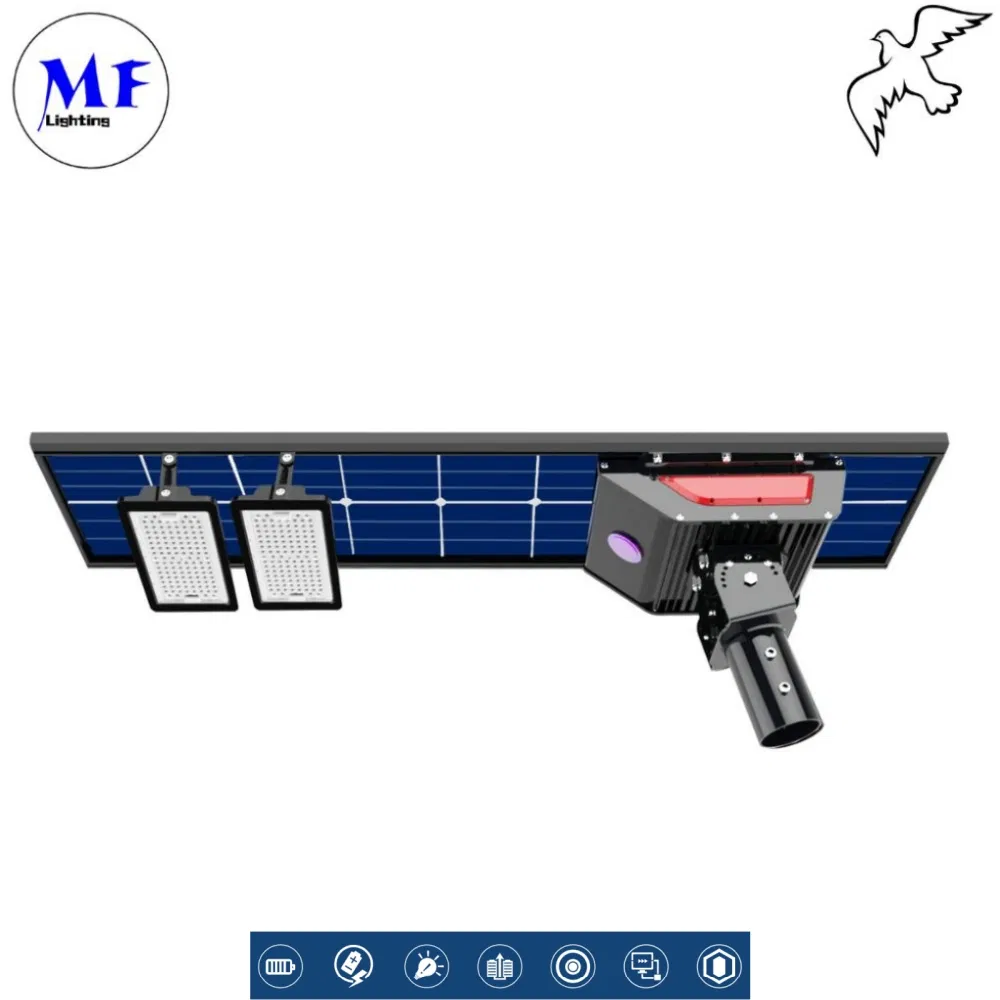

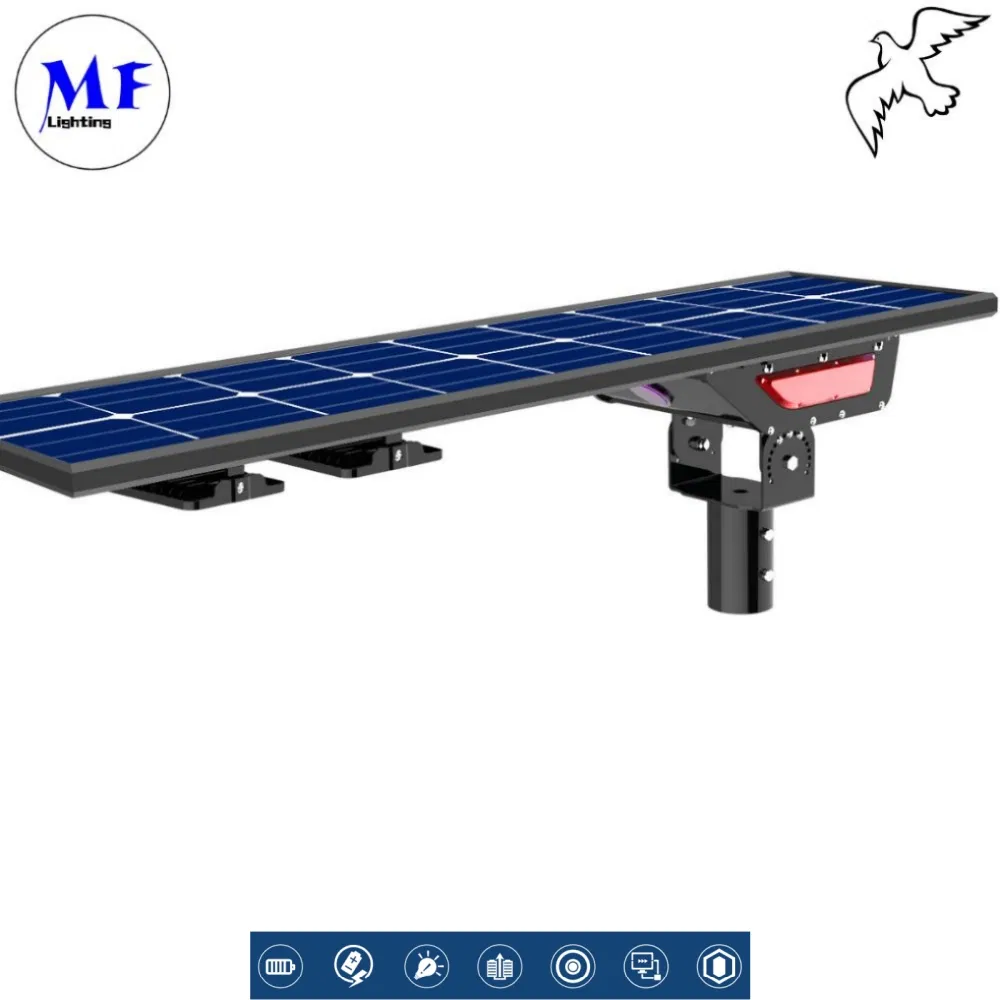

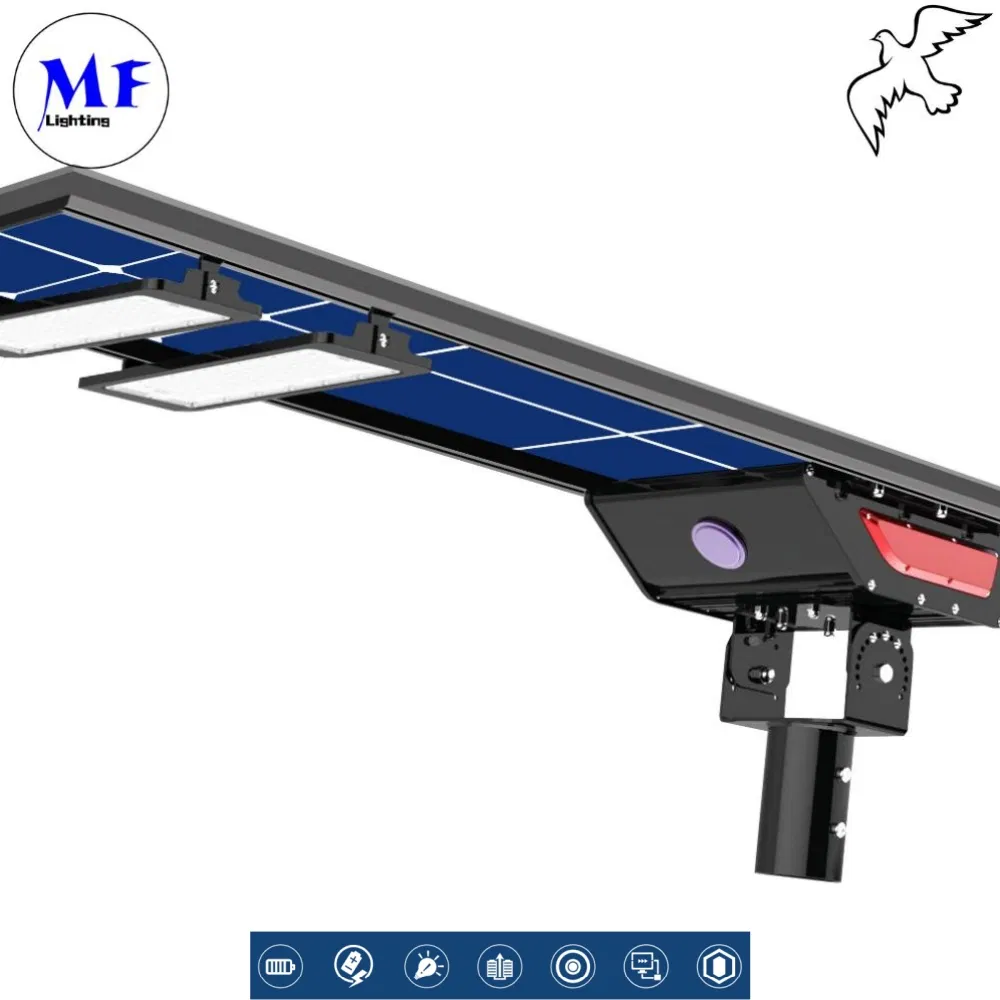

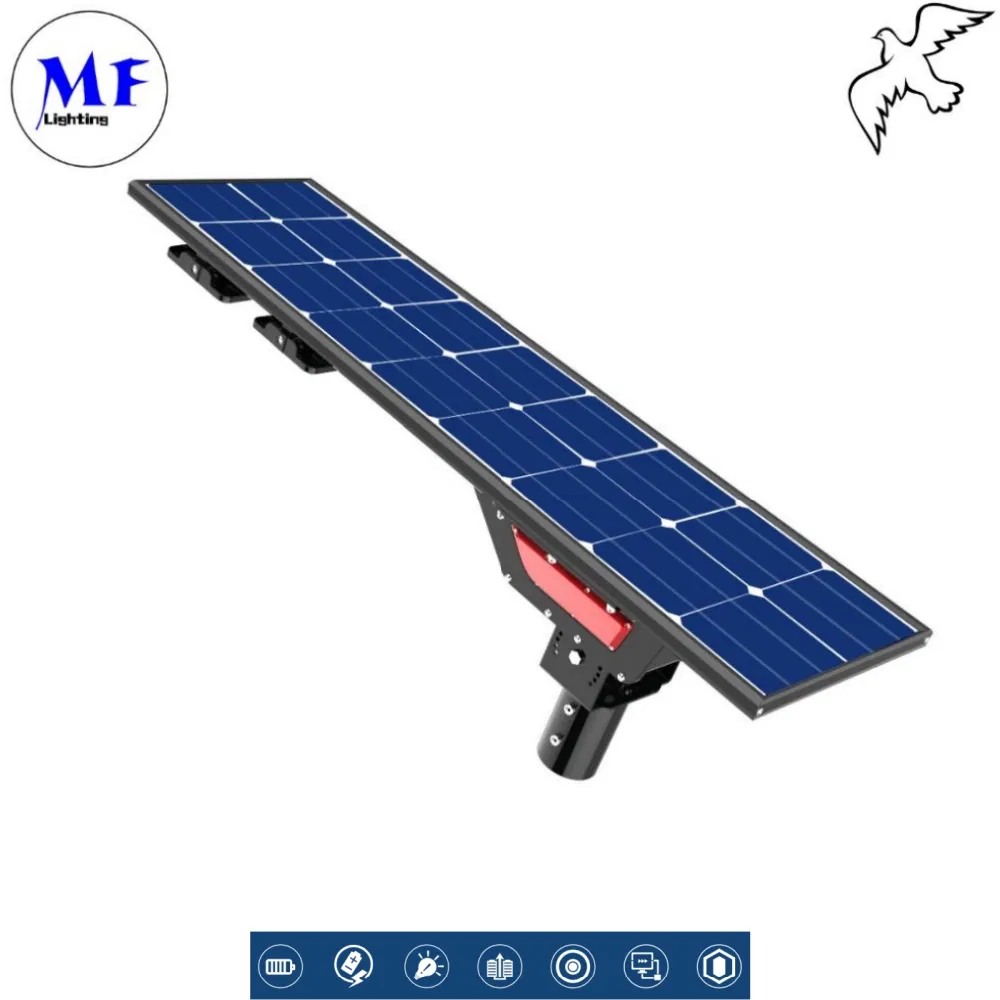

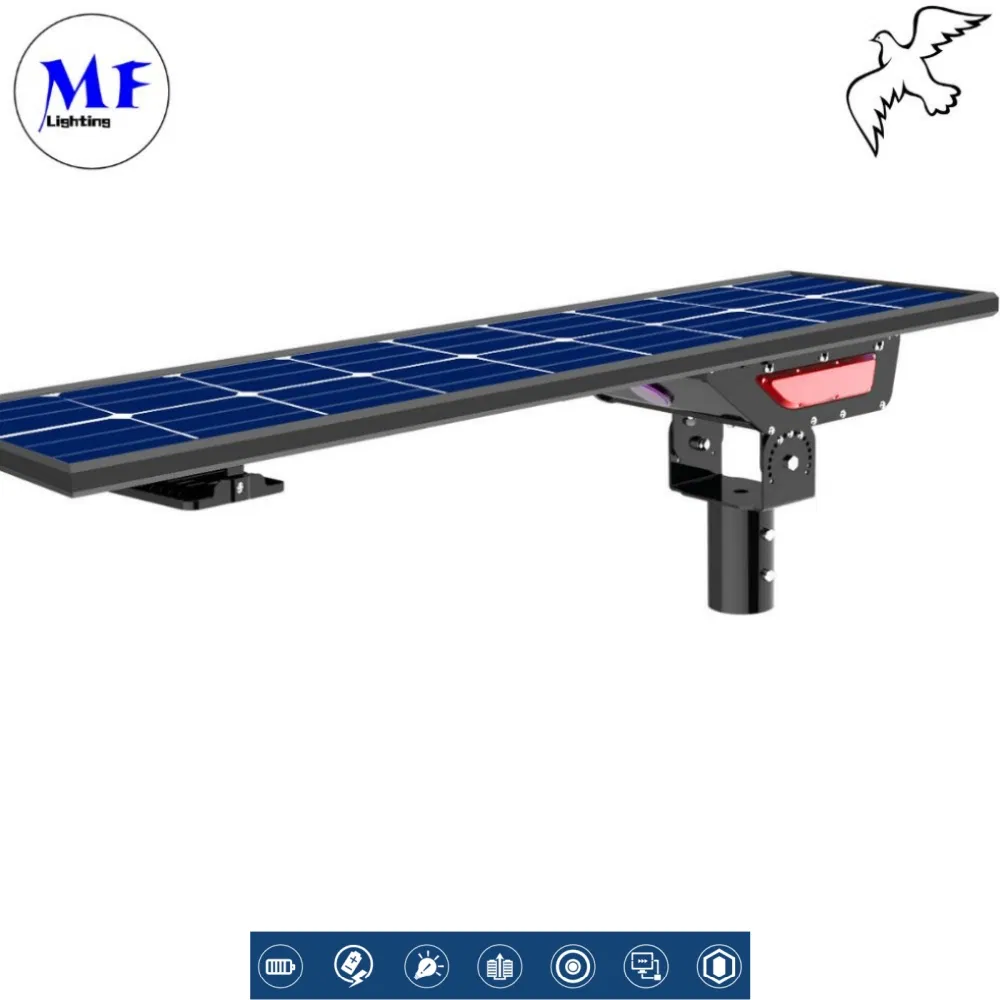

IP66 Waterproof 5Years Warranty Solar Street Lamp (30W-150W)
Basic Specifications
Light Source
LED Lamp (Osram Chips)
Material
ADC12 Aluminum+Al6063+PC
Battery Type
LiFePO4 32700
Certification
CE, RoHS, TUV

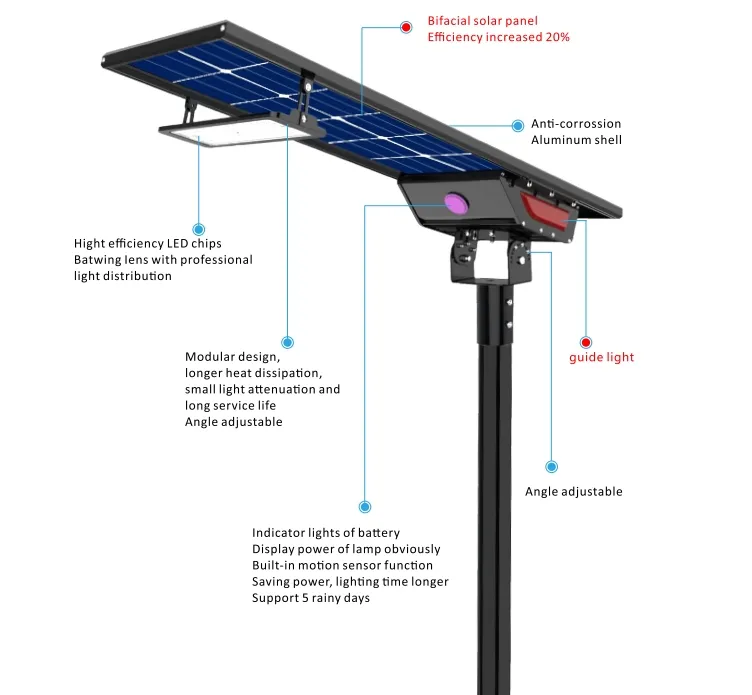

Key Features
1. Patented AppearanceIntegrated design of solar panel, controller, lithium battery and high-efficiency LED source.
2. Modular DesignModular battery and LED chip for economical transportation and easy maintenance.
3. Proprietary Control SystemSelf-developed controller with adjustable working modes and microwave induction options.
4. Intelligent Power Control4th gen tech regulates discharge based on weather, supporting more rainy days.
5. Battery ManagementCycle life of over 2000 times with intelligent equalization technology.
6. Professional Light DistributionPatented lens ensures uniform irradiation area.
Technical Data Table
| Type |
30W |
60W |
100W |
150W |
| Battery Capacity | 192WH | 460WH | 614WH | 830WH |
| Luminous Flux | 180lm/W |
| LED Qty | 120pcs | 240pcs | 360pcs | 480pcs |
| Mounting Height | 7-10M |
| Lighting Time | 5-7 Rainy Days |

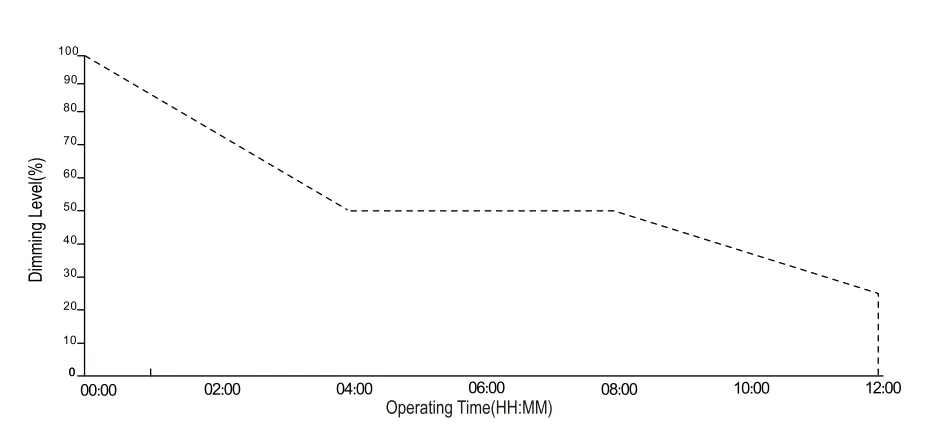

Working Modes
Provides adaptive proportion dimming for up to 12 consecutive hours. First 4 hours: gradual decrease; Second 4 hours: 50% power; Third 4 hours: 25% power.

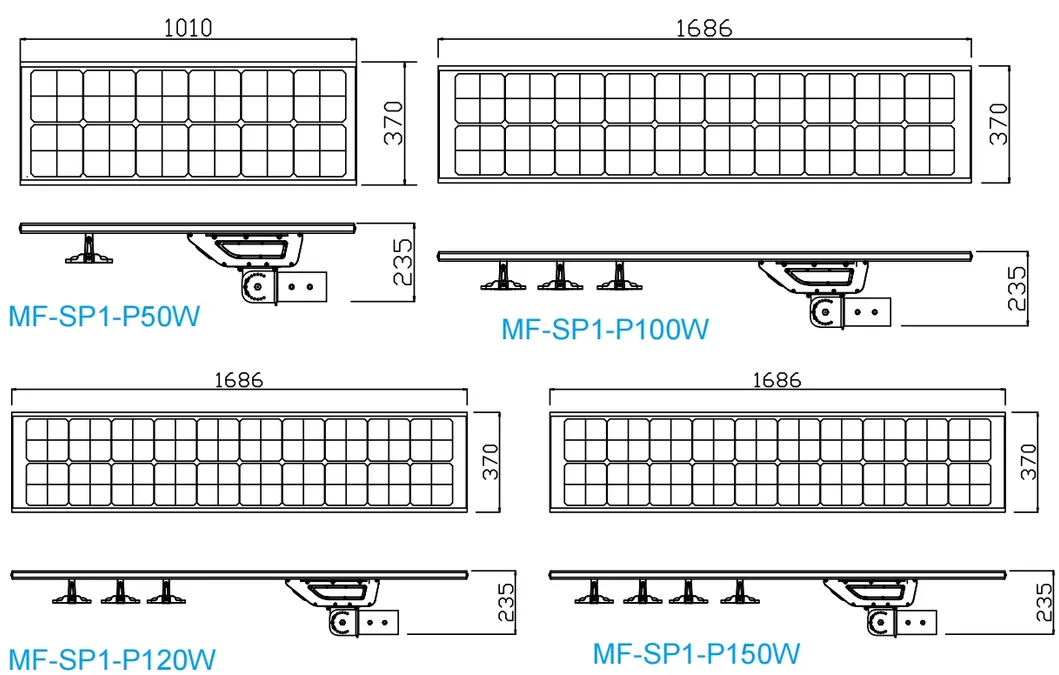

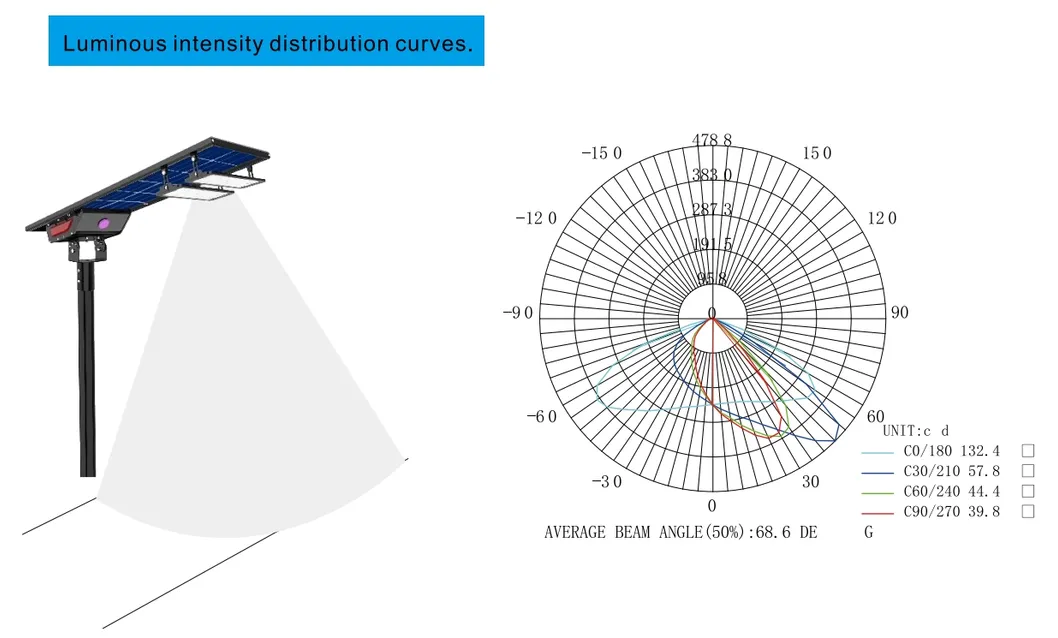

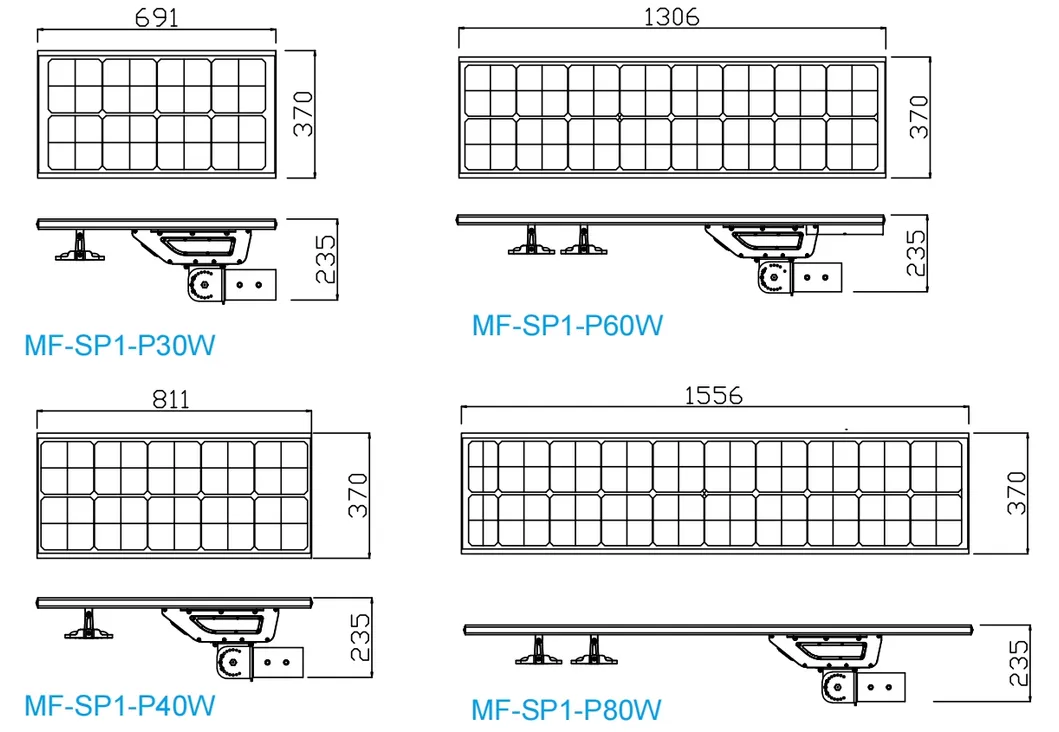

Dimensions & Photometry

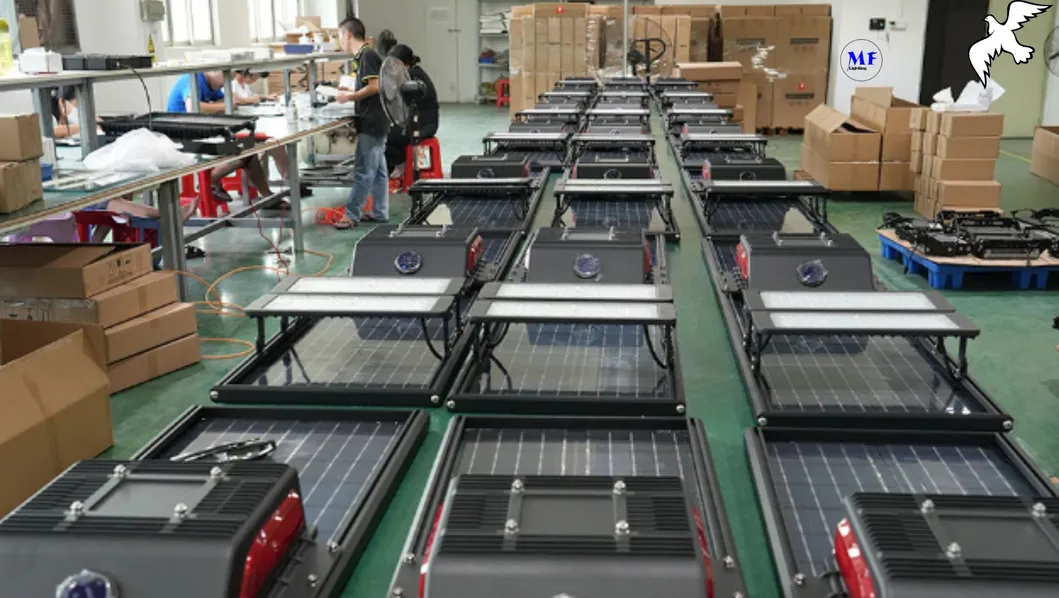

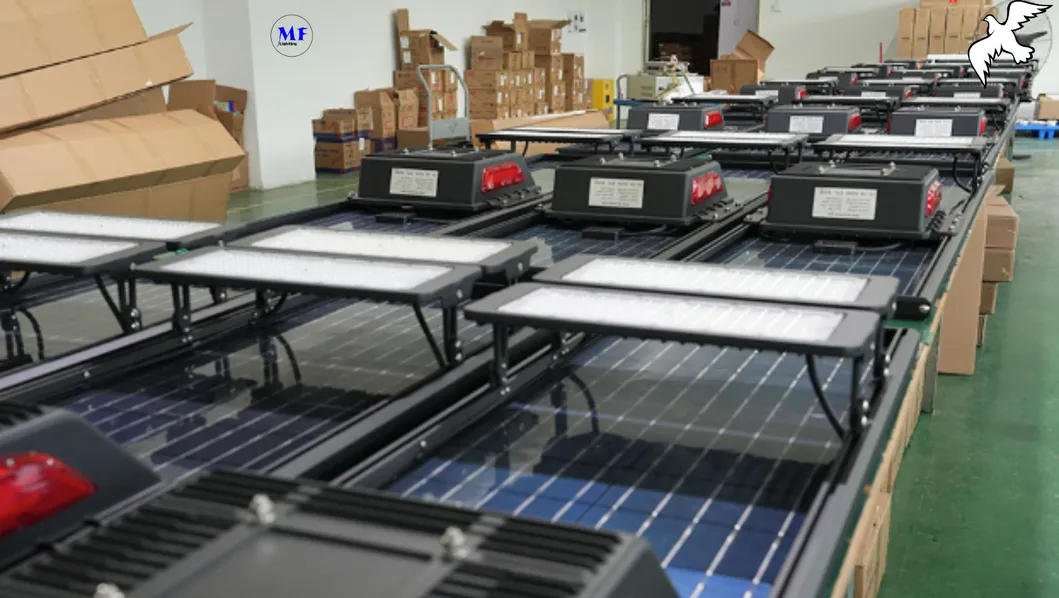

Rigorous Testing

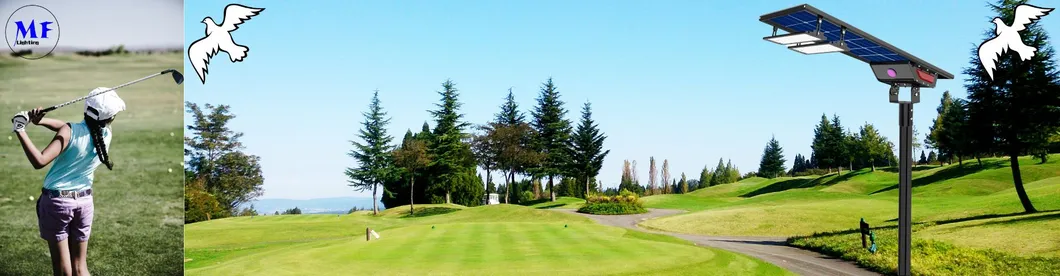

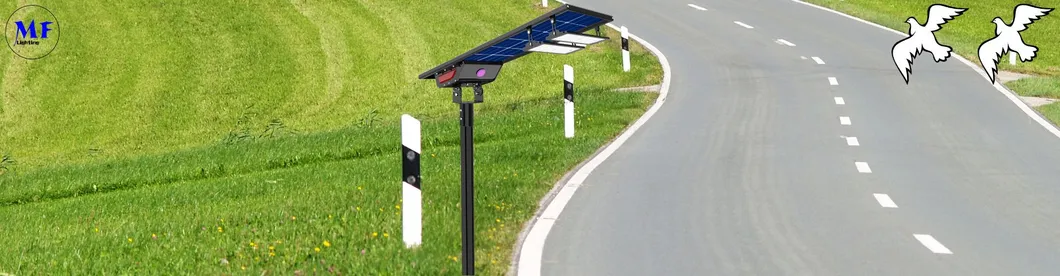

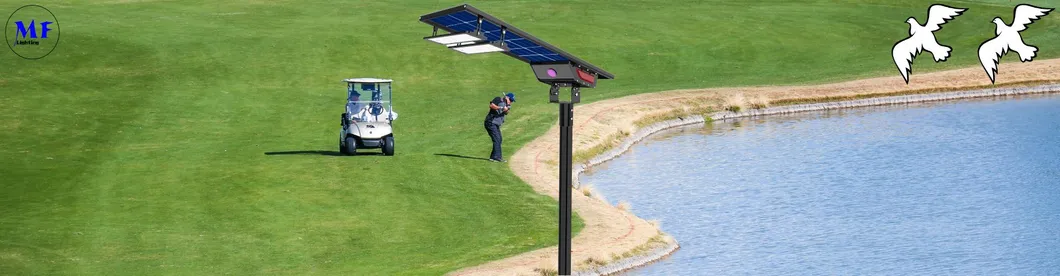

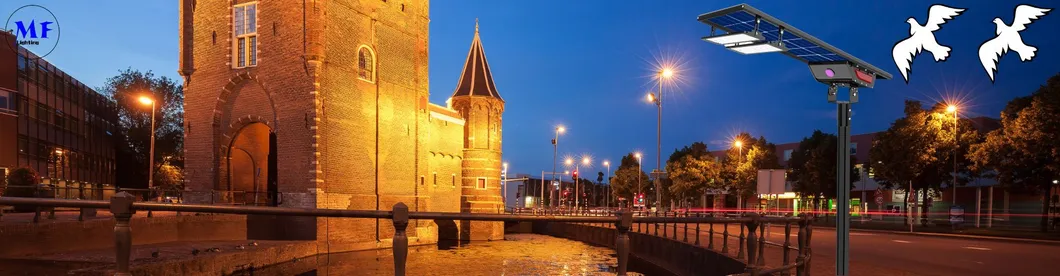

Applications
Highways | Urban Streets | Parking Lots | Parks | Industrial Zones | Schools
Packaging & Logistics
FAQ
Q1: How many years of warranty are provided for this solar street light?
A1: We provide a 5-year warranty for this IP66 waterproof solar street lighting system.
Q2: What is the maximum luminous efficiency of the LEDs?
A2: The light uses high-quality Osram LED chips with a lumen efficiency of up to 180lm/W.
Q3: Can the light operate during continuous rainy days?
A3: Yes, thanks to the intelligent power control and high-capacity LiFePO4 battery, it can support 5-7 rainy or cloudy days.
Q4: What is the recommended mounting height?
A4: The recommended installation height is between 7 to 10 meters, depending on the power wattage chosen.
Q5: Is the angle of the solar panel adjustable?
A5: Yes, both the PV panel and the lamp angle are adjustable to maximize solar absorption and optimize road illumination.
Q6: What type of batteries are used in these lights?
A6: We use high-performance LiFePO4 (Lithium Iron Phosphate) 32700 batteries, which offer more than 2000 charging cycles.
