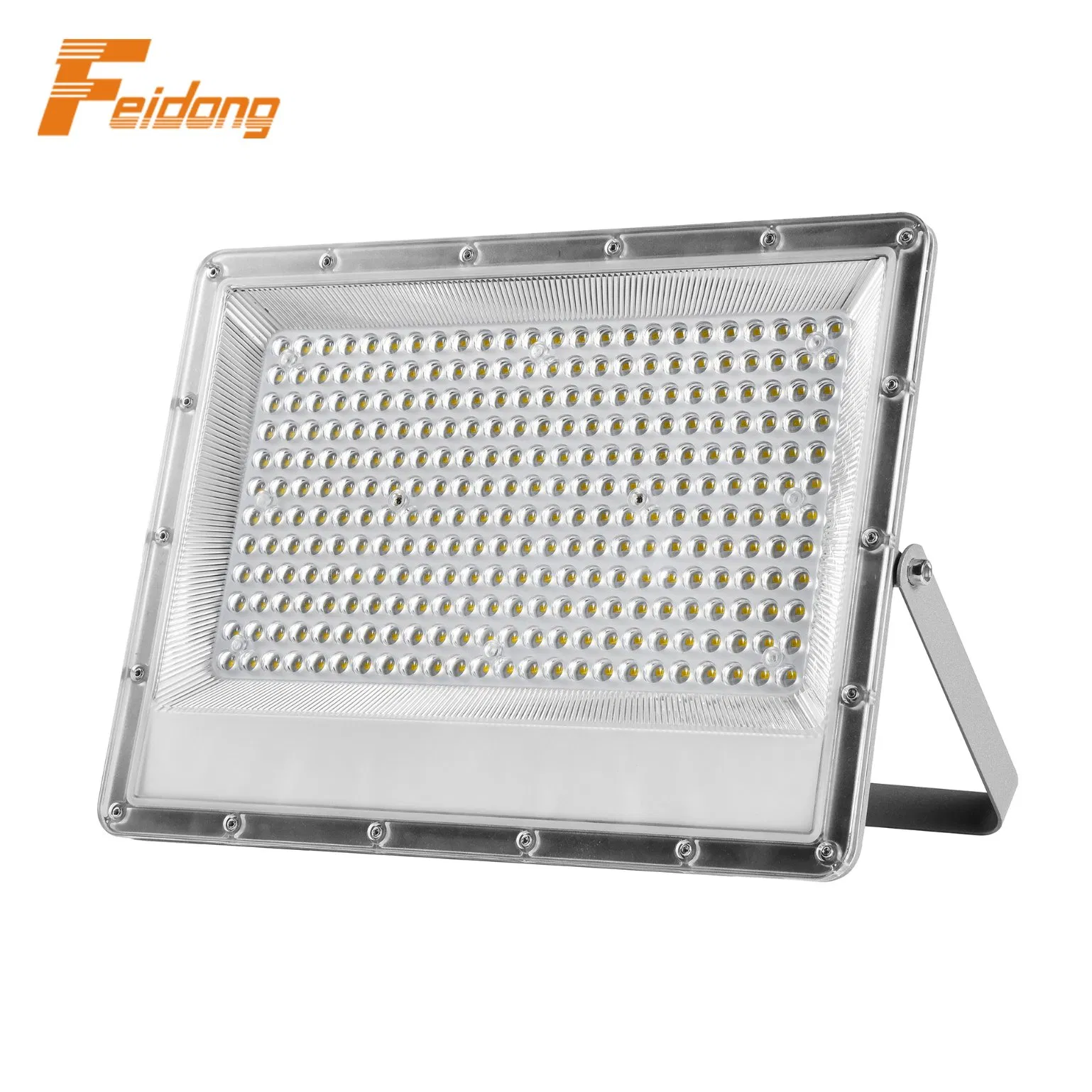

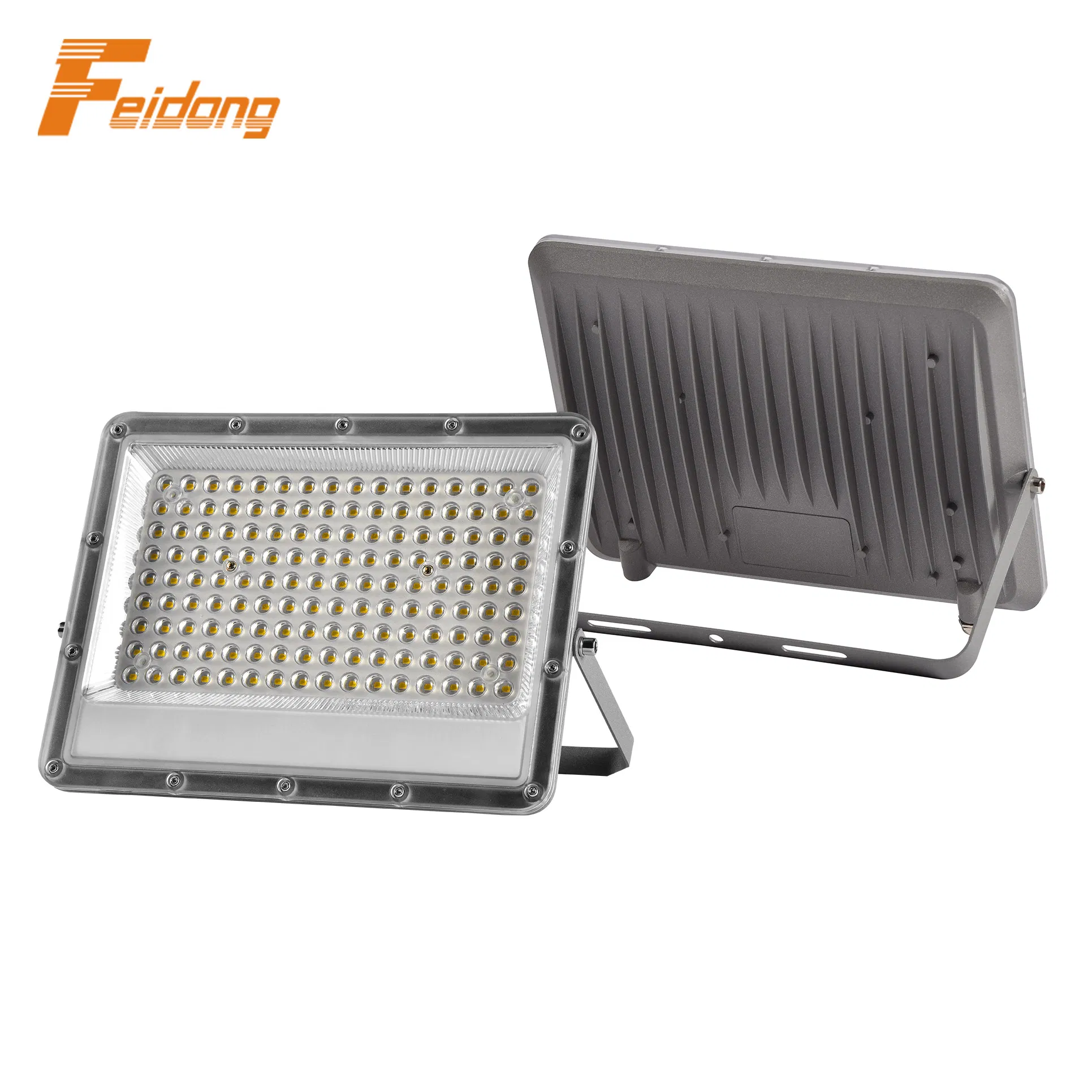

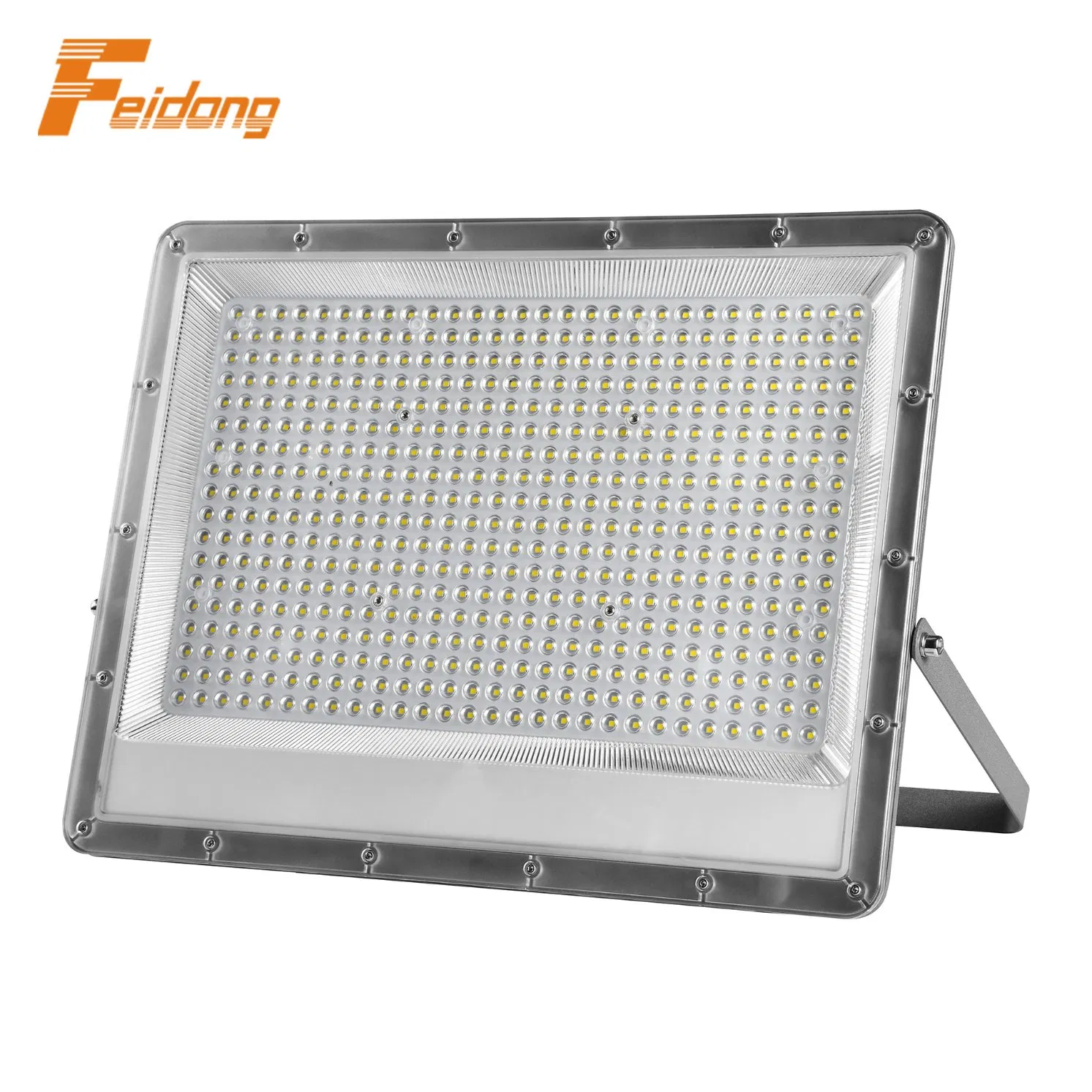

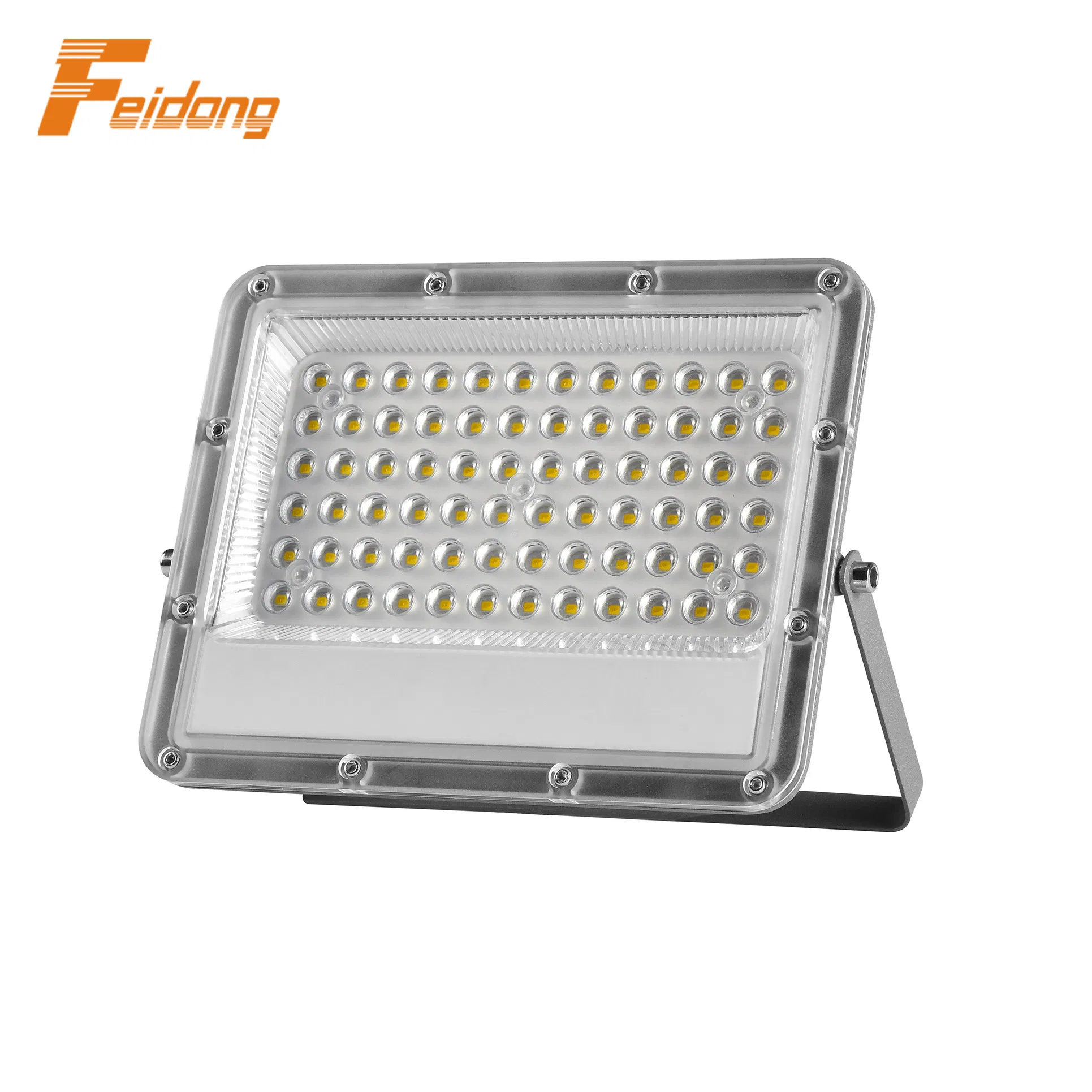

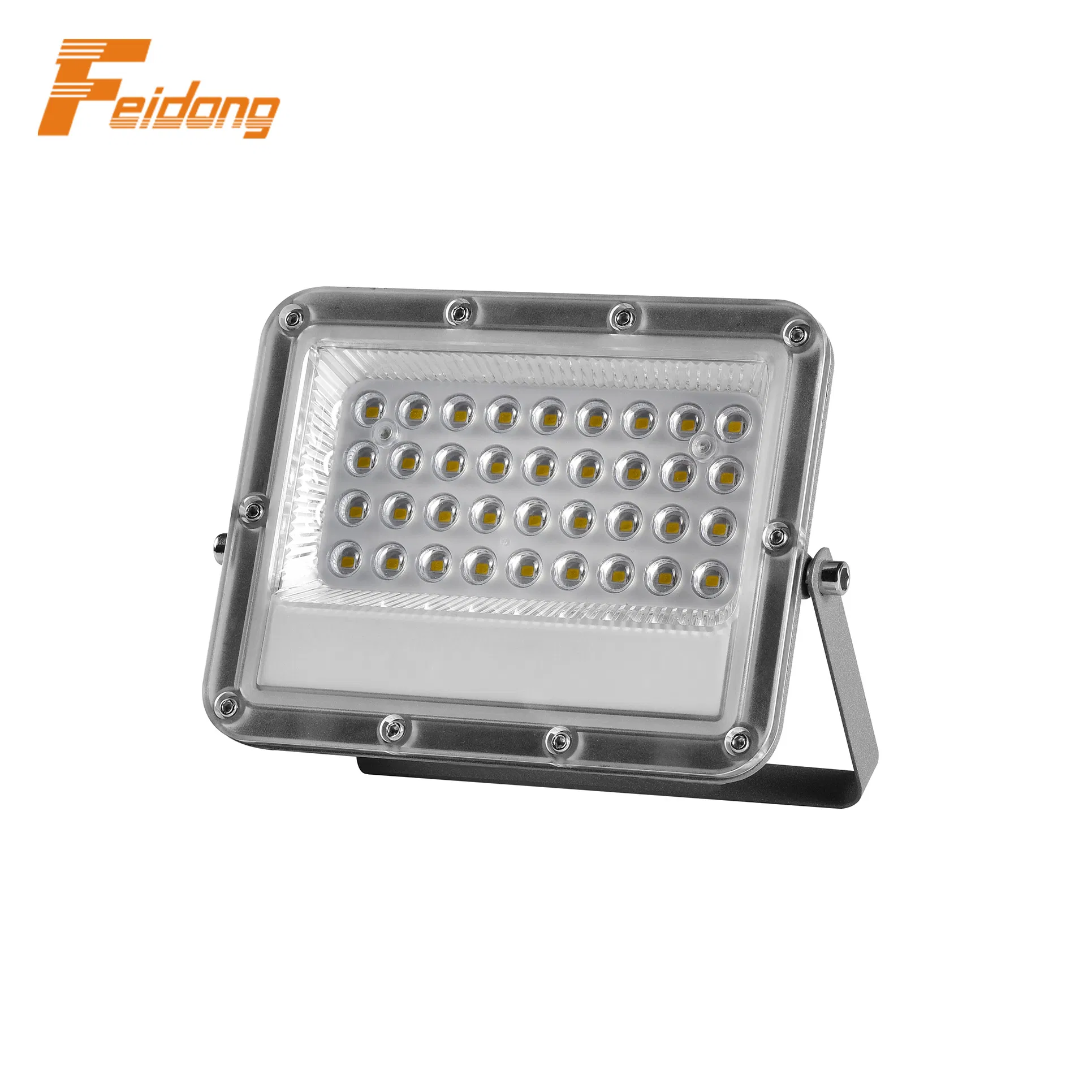

AC100-265V 30W-400W High Lumen Outdoor LED Floodlight
AC100-265V 30W-400W High Lumen Outdoor LED Floodlight
AC100-265V 30W-400W High Lumen Outdoor LED Floodlight
AC100-265V 30W-400W High Lumen Outdoor LED Floodlight
AC100-265V 30W-400W High Lumen Outdoor LED Floodlight
1 / 5
AC100-265V 30W-400W High Lumen Outdoor LED Floodlight
AC100-265V 30W-400W High Lumen Outdoor LED Floodlight
AC100-265V 30W-400W High Lumen Outdoor LED Floodlight
AC100-265V 30W-400W High Lumen Outdoor LED Floodlight
AC100-265V 30W-400W High Lumen Outdoor LED Floodlight

AC100-265V 30W-400W High Lumen Outdoor LED Floodlight

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
TG003
Power
30W-400W
Application
Park, Square, Factory, Garden
IP Rating
IP66
Certification
CE, RoHS
Operating Voltage
AC100-265V
LED Chips Brand
Sanan
Lumen
100-110lm/W
Housing Color
Black or Grey
Power Factor
>0.5/0.9
CRI
>80
Origin
Guangdong

Product Description

AC100-265V 30W-400W Outdoor LED Floodlight with Optical Lens 90 Degree Beam Angle 100-110lm/W High Lumen

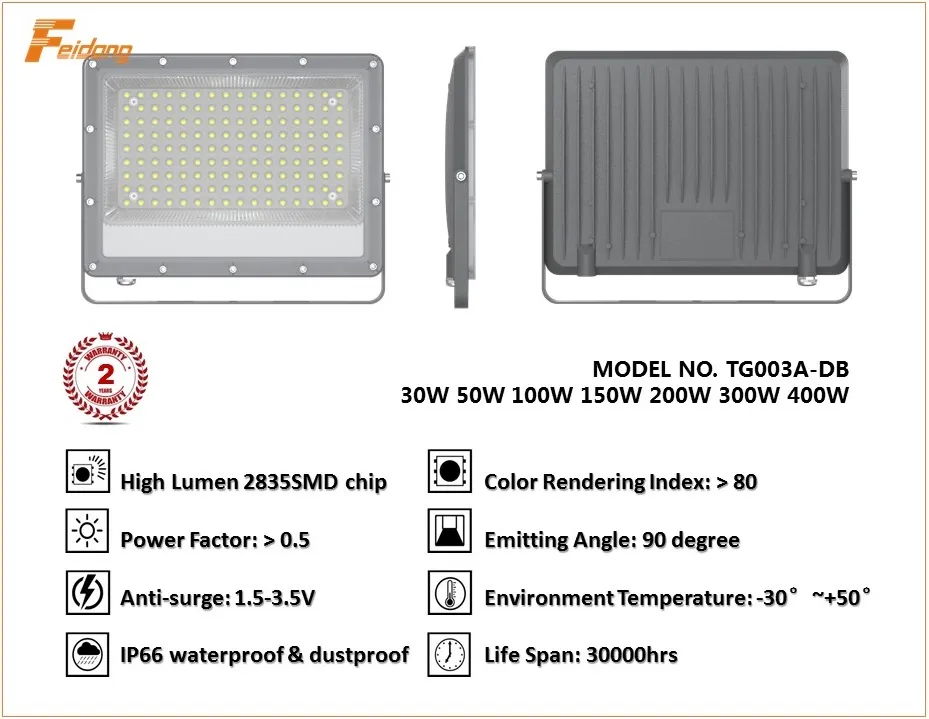

Outdoor LED Floodlight

Technical Parameters

MODEL TG003A-30W TG003A-50W TG003A-100W TG003A-150W TG003A-200W TG003A-300W TG003A-400W
POWER 30W 50W 100W 150W 200W 300W 400W
LED QTY 36PCS 72PCS 144PCS 216PCS 288PCS 360PCS 504PCS
Luminous Flux 100-110LM/W
Input Voltage DOB AC100-265V
Anti-surge 1.5KV 3.5KV
IP Rating IP66
Dimension(mm) 155*125*25 210*160*25 270*208*25 335*250*33 380*282*33 455*328*35 485*368*35
Net Weight(kg) 0.3 0.48 0.8 1.4 1.8 2.5 3.2

Product Gallery

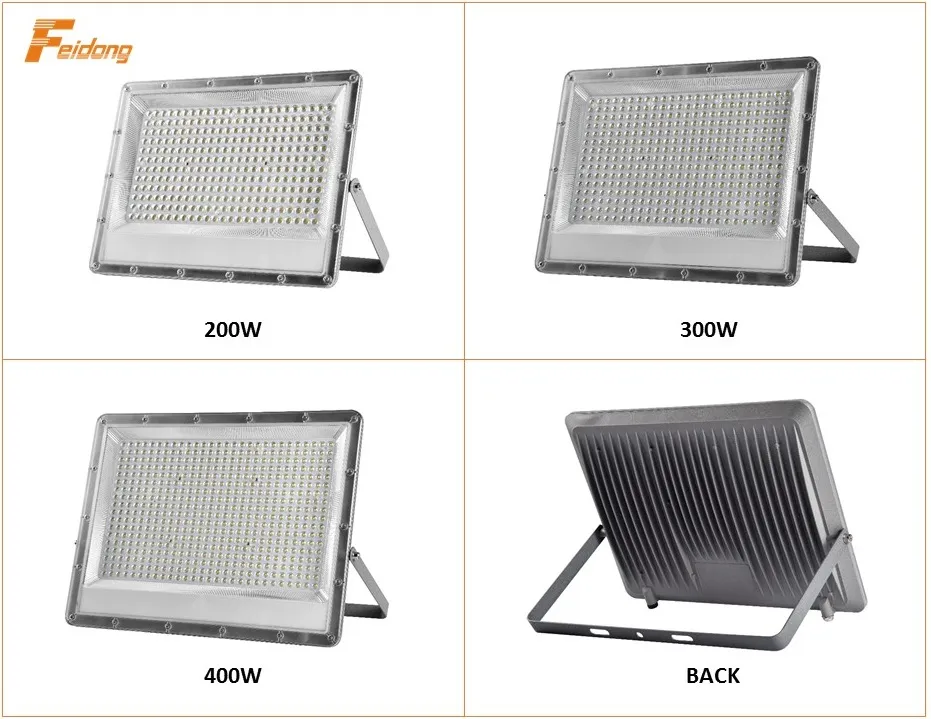

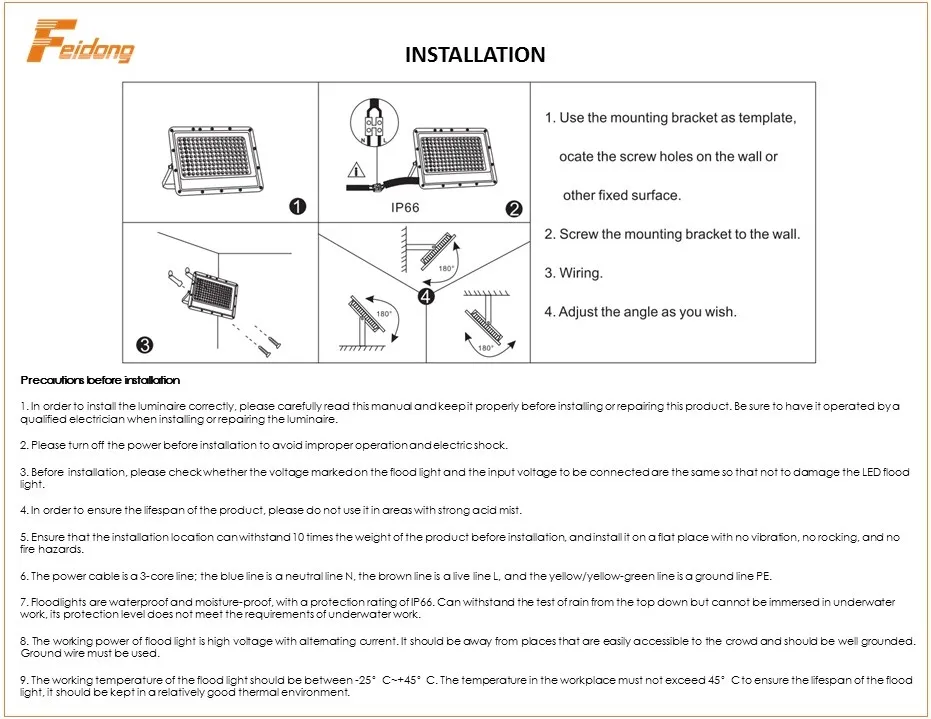

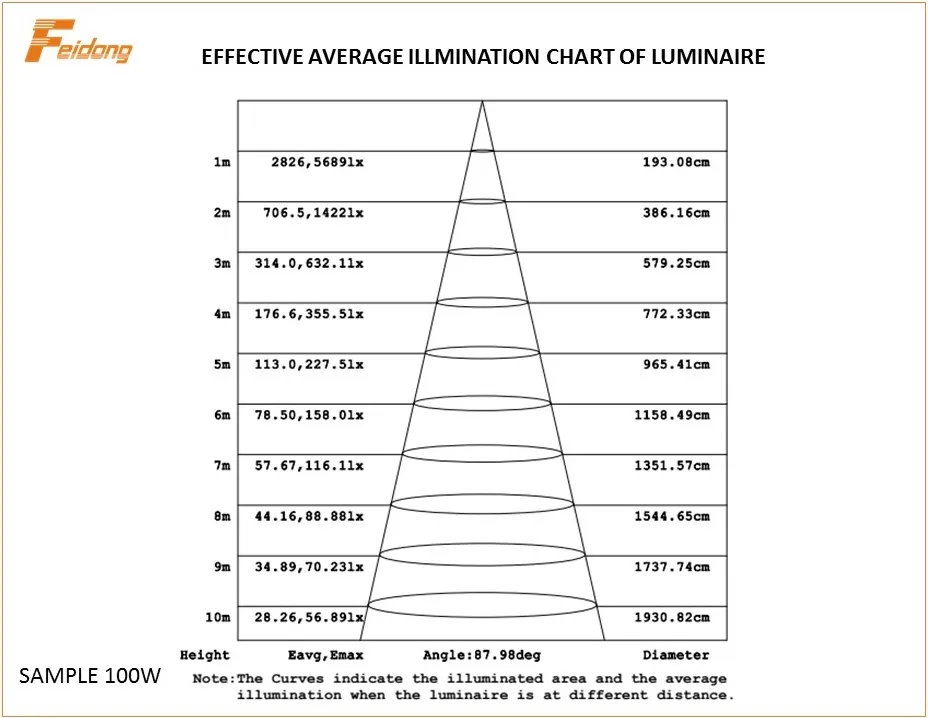

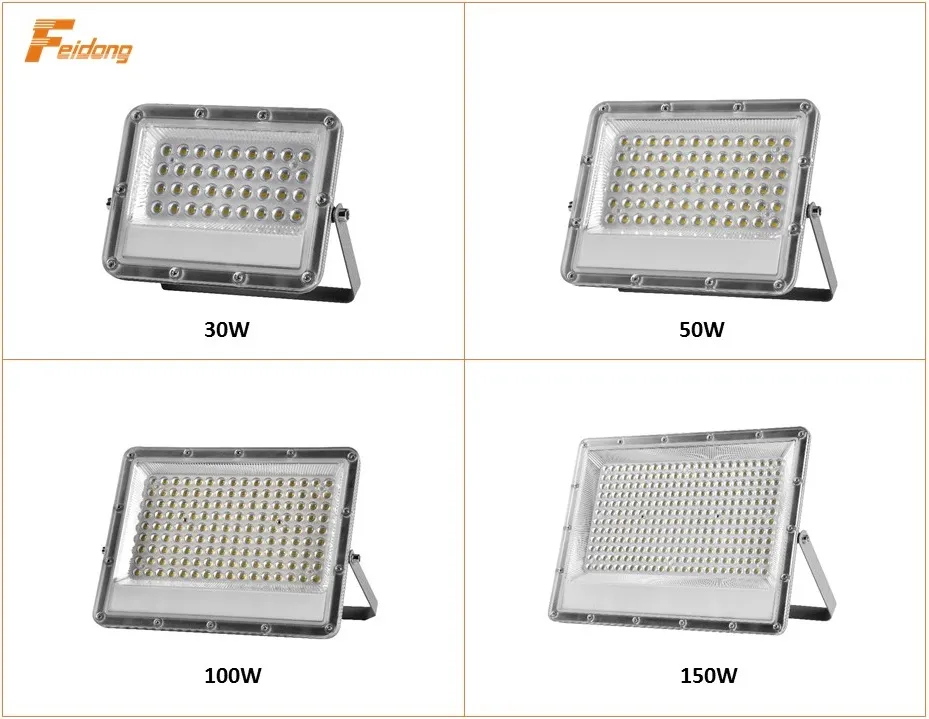

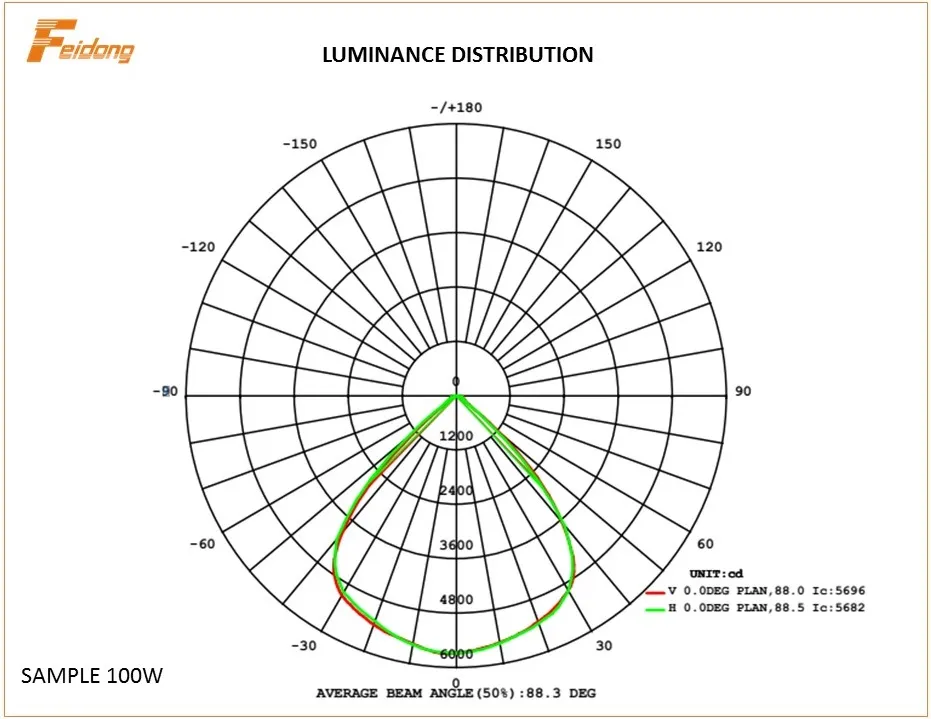

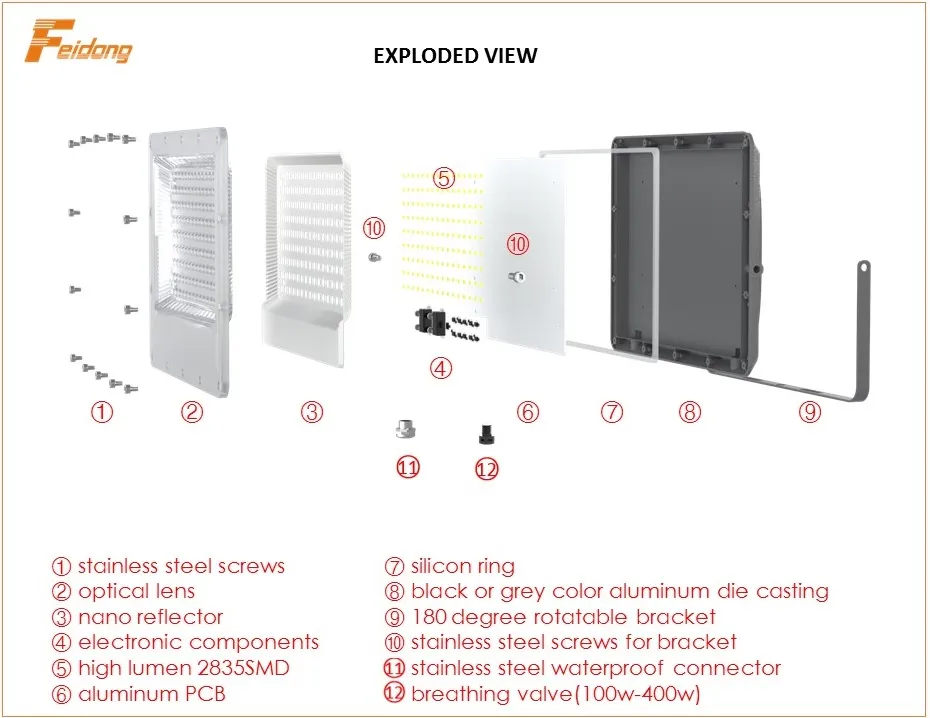

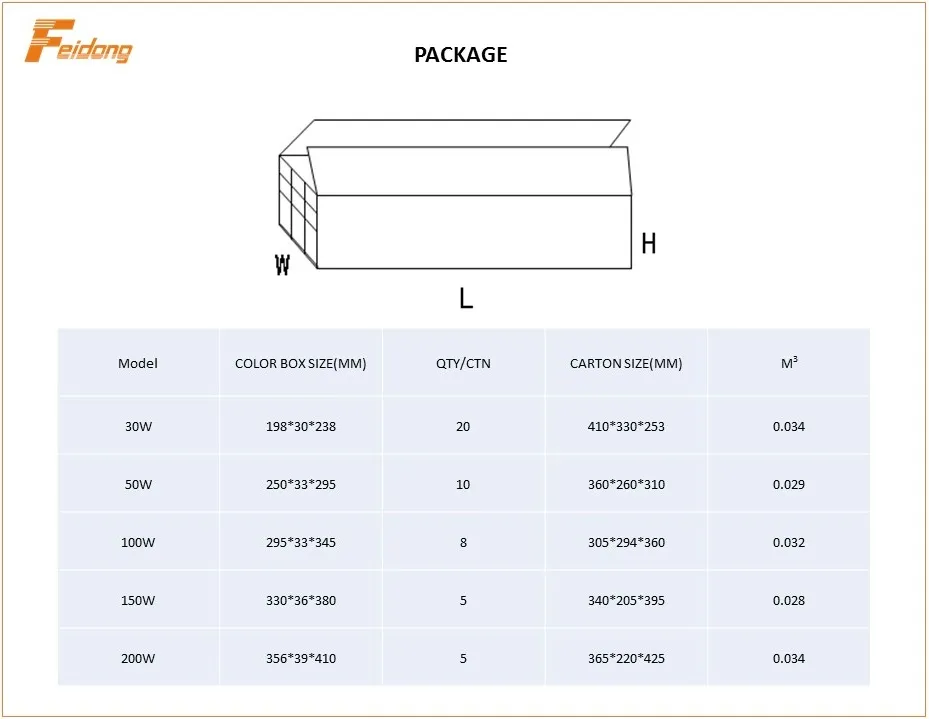

LED Floodlight View 1 LED Floodlight View 2 LED Floodlight View 3 LED Floodlight View 4 LED Floodlight View 5 LED Floodlight View 6 LED Floodlight View 7 LED Floodlight View 8 LED Floodlight View 9

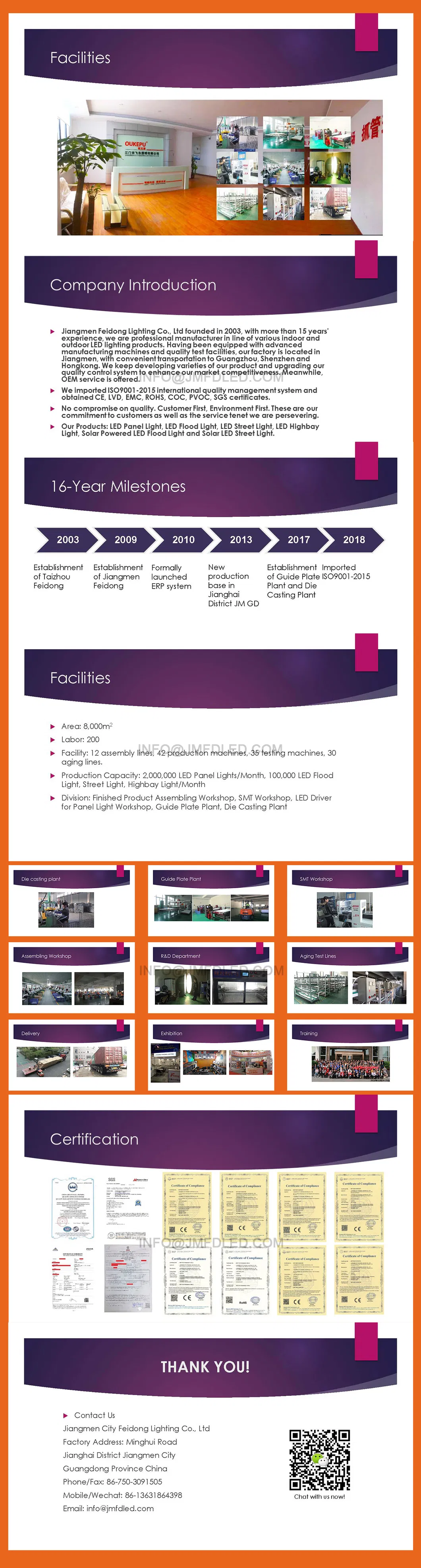

Production Process

Frequently Asked Questions

What is the waterproof rating of this floodlight?
The product features an IP66 rating, making it completely protected against dust and powerful water jets, ideal for outdoor use in parks and gardens.
Does the floodlight support different input voltages?
Yes, it operates on a wide range of AC100-265V, making it compatible with various global power standards.
What is the expected lifespan of the LED chips?
Using high-quality Sanan LED chips, the floodlight has a rated life time of over 30,000 hours.
What material is the housing made of?
The housing is constructed from high-grade aluminum alloy, which provides excellent heat dissipation and durability.
What is the beam angle for this specific model?
This model is designed with an optical lens that provides a 90-degree spot light emitting angle for concentrated lighting.
Is there a warranty period provided?
Yes, we provide a 2-year warranty for this product to ensure reliability and customer satisfaction.
