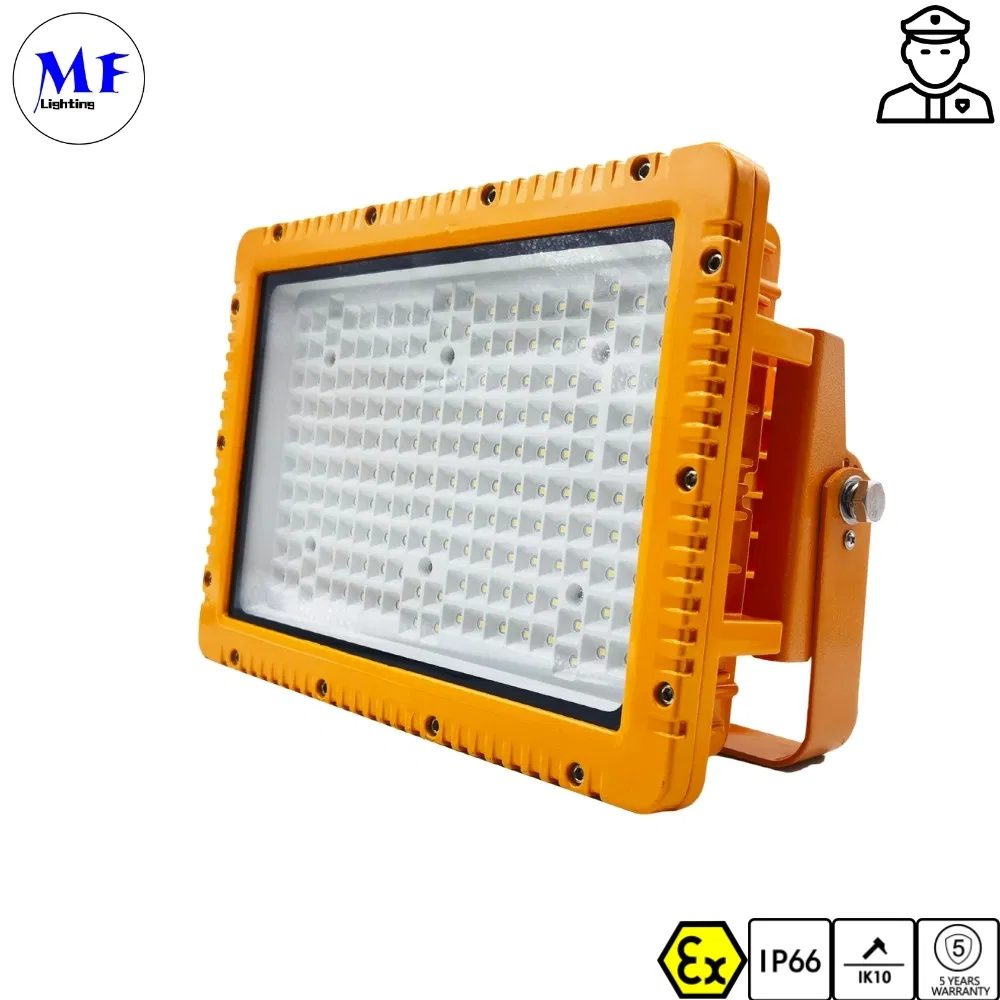

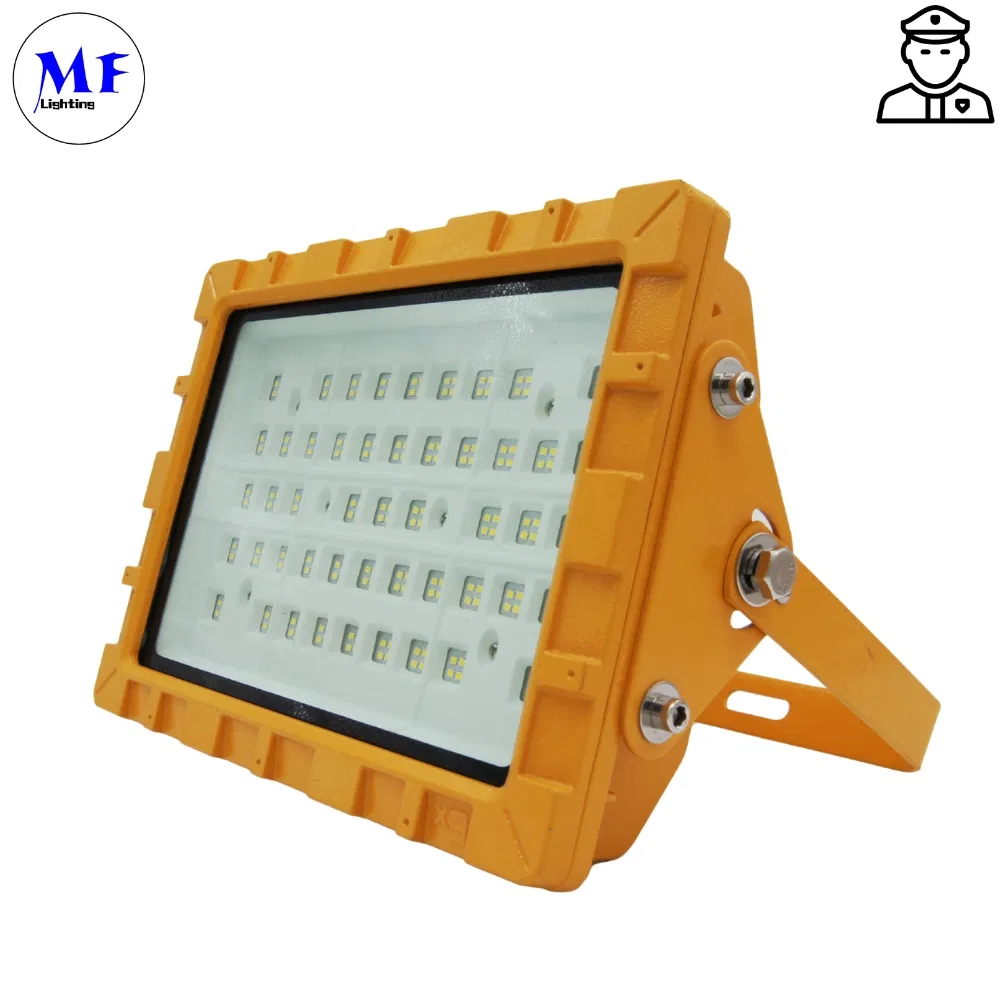

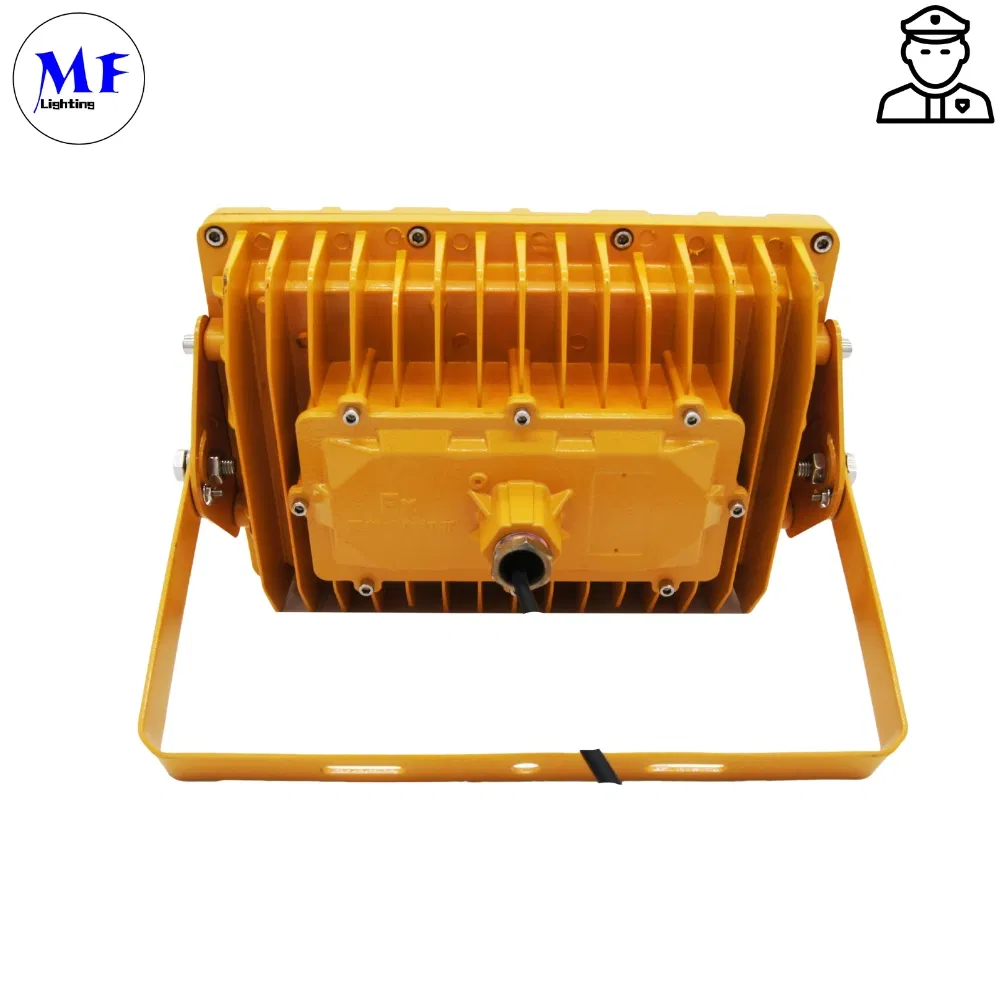

Atex Ex Iecex Ik10 IP66 Dustproof Explosion Explosive Proof 50W 80W 100W 150W 200W 240W LED Flood Light for Marine Offshore and Storage Yard
Atex Ex Iecex Ik10 IP66 Dustproof Explosion Explosive Proof 50W 80W 100W 150W 200W 240W LED Flood Light for Marine Offshore and Storage Yard
Atex Ex Iecex Ik10 IP66 Dustproof Explosion Explosive Proof 50W 80W 100W 150W 200W 240W LED Flood Light for Marine Offshore and Storage Yard
Atex Ex Iecex Ik10 IP66 Dustproof Explosion Explosive Proof 50W 80W 100W 150W 200W 240W LED Flood Light for Marine Offshore and Storage Yard
Atex Ex Iecex Ik10 IP66 Dustproof Explosion Explosive Proof 50W 80W 100W 150W 200W 240W LED Flood Light for Marine Offshore and Storage Yard
1 / 5
Atex Ex Iecex Ik10 IP66 Dustproof Explosion Explosive Proof 50W 80W 100W 150W 200W 240W LED Flood Light for Marine Offshore and Storage Yard
Atex Ex Iecex Ik10 IP66 Dustproof Explosion Explosive Proof 50W 80W 100W 150W 200W 240W LED Flood Light for Marine Offshore and Storage Yard
Atex Ex Iecex Ik10 IP66 Dustproof Explosion Explosive Proof 50W 80W 100W 150W 200W 240W LED Flood Light for Marine Offshore and Storage Yard
Atex Ex Iecex Ik10 IP66 Dustproof Explosion Explosive Proof 50W 80W 100W 150W 200W 240W LED Flood Light for Marine Offshore and Storage Yard
Atex Ex Iecex Ik10 IP66 Dustproof Explosion Explosive Proof 50W 80W 100W 150W 200W 240W LED Flood Light for Marine Offshore and Storage Yard

Atex Ex Iecex Ik10 IP66 Dustproof Explosion Explosive Proof 50W 80W 100W 150W 200W 240W LED Flood Light for Marine Offshore and Storage Yard

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

OverviewFeatureCharacteristicSpecificationLight DistributionDimensionMountingApplicationPackaging

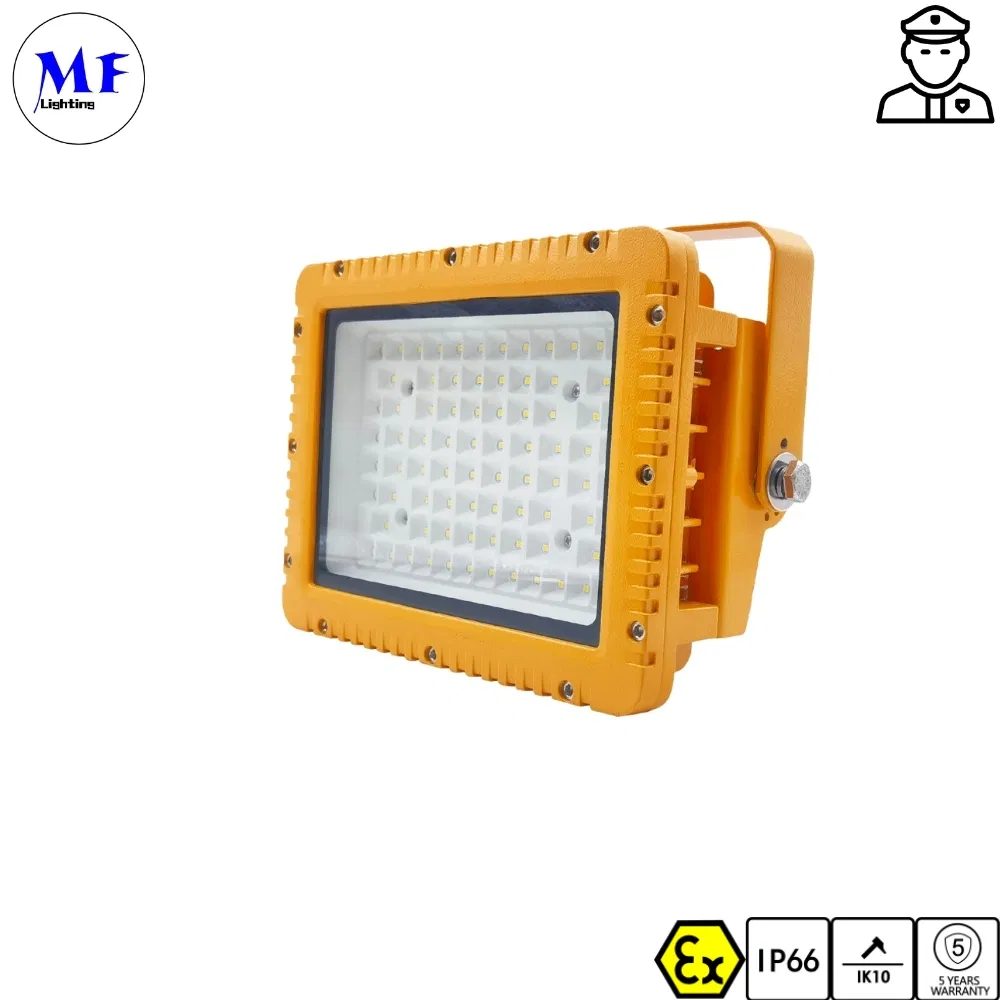

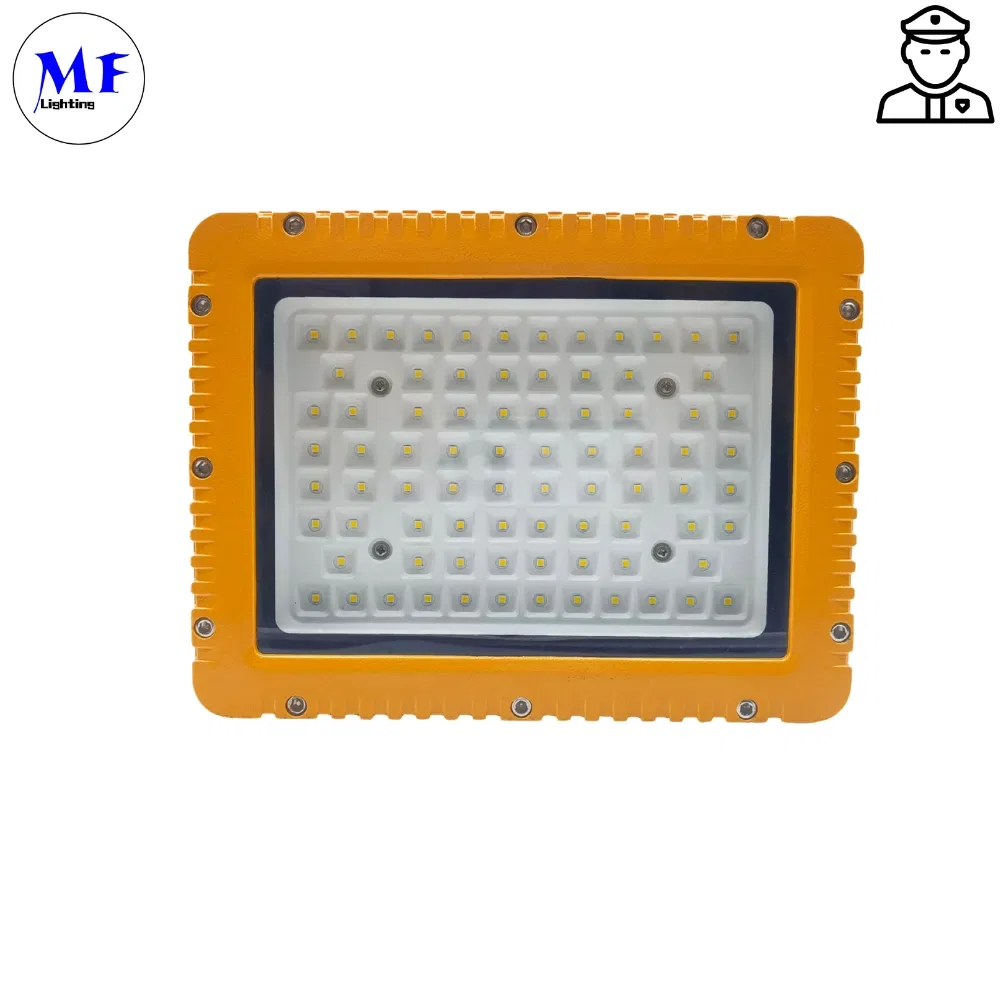

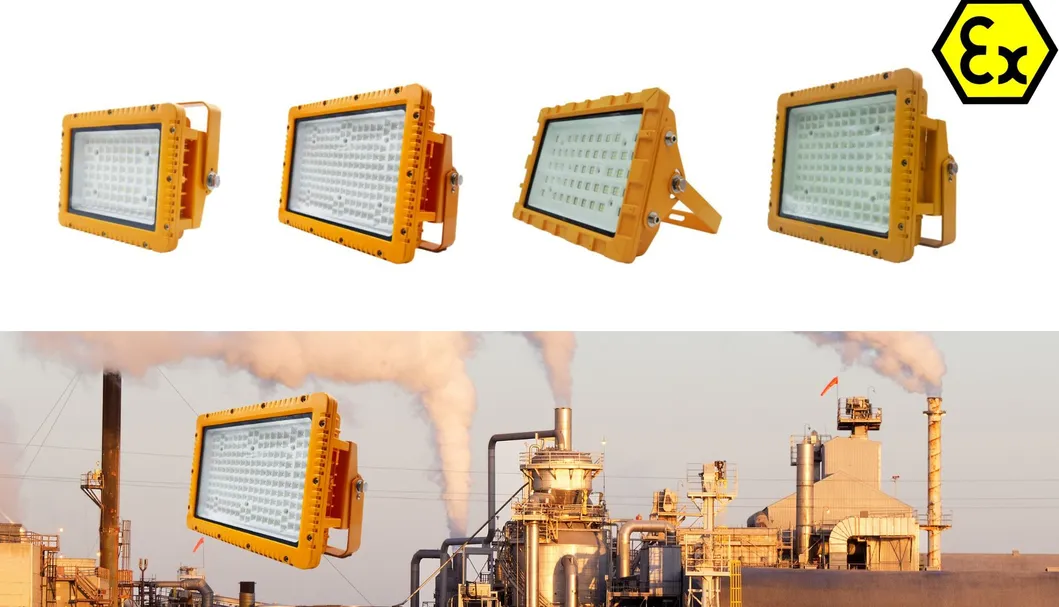

Explosion Proof LED Flood Light

Atex EX IECEx IK10 IP66 Dustproof Explosion Explosive Proof 50W 80W 100W 150W 200W 240W LED Flood Light for Marine Offshore and storage yard

Basic Info.

Model NO.
MF Security Man 5
Base Type
E26
Irradiated Area
≥30m²
Input Voltage
AC200-250V/DC12-48V
Power
30W-240W
Color Temperature
2000K-7000K
LED Chips Brand
CREE/Lumen/Atmospherics
Certification
CCC, CE, ETL, RoHS, SAA, Ex/Atex/TUV/GS/Iecex/IEC
CRI
>80ra
Material
Aluminum+Stainless Steel+Tempered Glass
Luminous Flux
140lm/W
IP Rate
IP66
Warranty
5 Years
Lifespan
>50,000hours
Working Temp
-40°~+60°
PF
0.95
Driver
IEC Certified
Ik Rate
Ik10

Features

  • Working Temperature: -40°C ~ +55°C.
  • High quality SMT LED, heavy-duty and high impact resistance.
  • Replaceable LED board and drivers.
  • Integrated junction box for driver.
  • Dimmable and battery back up function available.
  • Marine rating powder coated finish treatment.
  • Up to 5 years warranty.
  • Various installation ways for different applications.
  • Glass lens or polycarbonate lens to make different beam angles.

Characteristic

Marking ATEX:
II 2 G Ex eb mb IIC T6...T4 Gb
II 2 D Ex tb IIIC T80°C...T100°C Db IP66

Marking IECEx:
Ex eb mb IIC T6...T4 Gb
Ex tb IIIC T80°C...T100°C Db IP66

Marking UL844 (North American):
Class I, Division 2, Groups A, B, C, D; Class II, Division 1, Groups E, F, G; Class III

Marine Marking:
UL 1598, UL1598A, ABS; Rating IP66

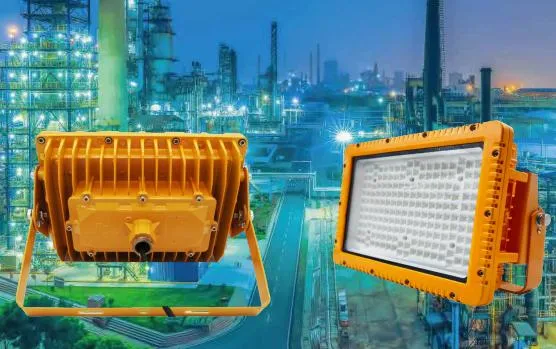

Marking Info
Structural Details

Specification

Product Number Wattage Color Temp Voltage Lumens Warranty CRI Emergency Time
EX-30W/50W/60W FL3 30W/50W/60W 2200K-7000K AC200-250V/DC12-48V 4200/6000/8400 5 Years 70 3 Hours
EX-80W/100W FL3 80W/100W 2200K-7000K AC200-250V/DC12-48V 11200/14000 3 Hours
EX-150W/180W/200W FL3 150W/180W/200W 2200K-7000K AC200-250V/DC12-48V 21000/25200/28000 3 Hours
EX-240W FL3 240W 2200K-7000K AC200-250V/DC12-48V 33600 3 Hours
Light Distribution & Dimension

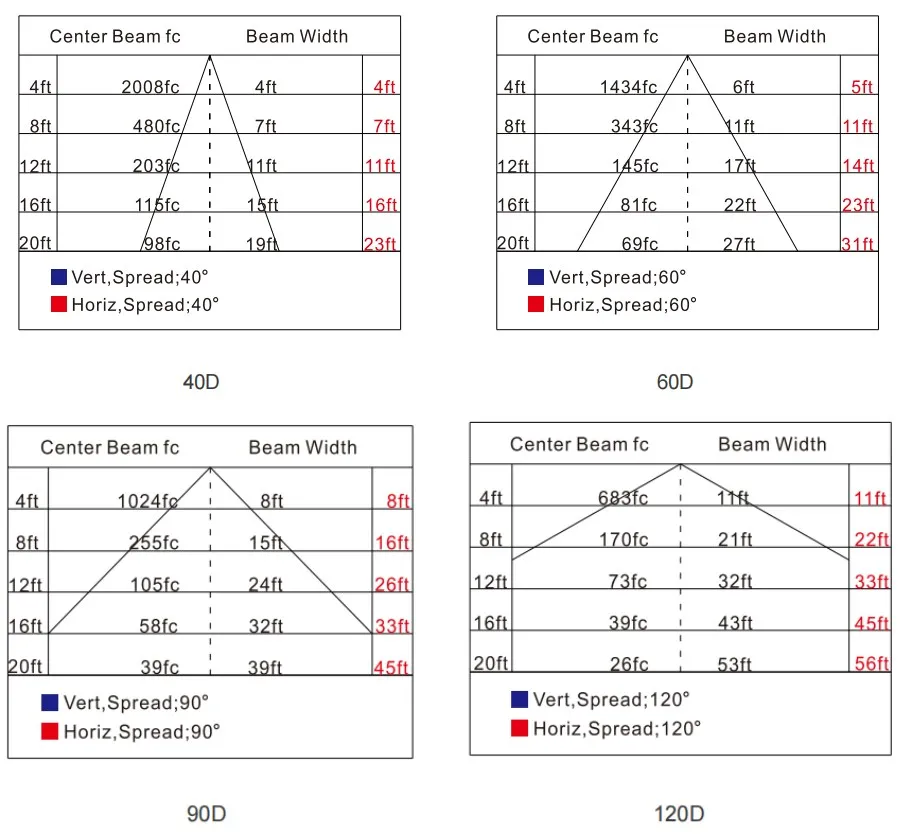

Light Distribution

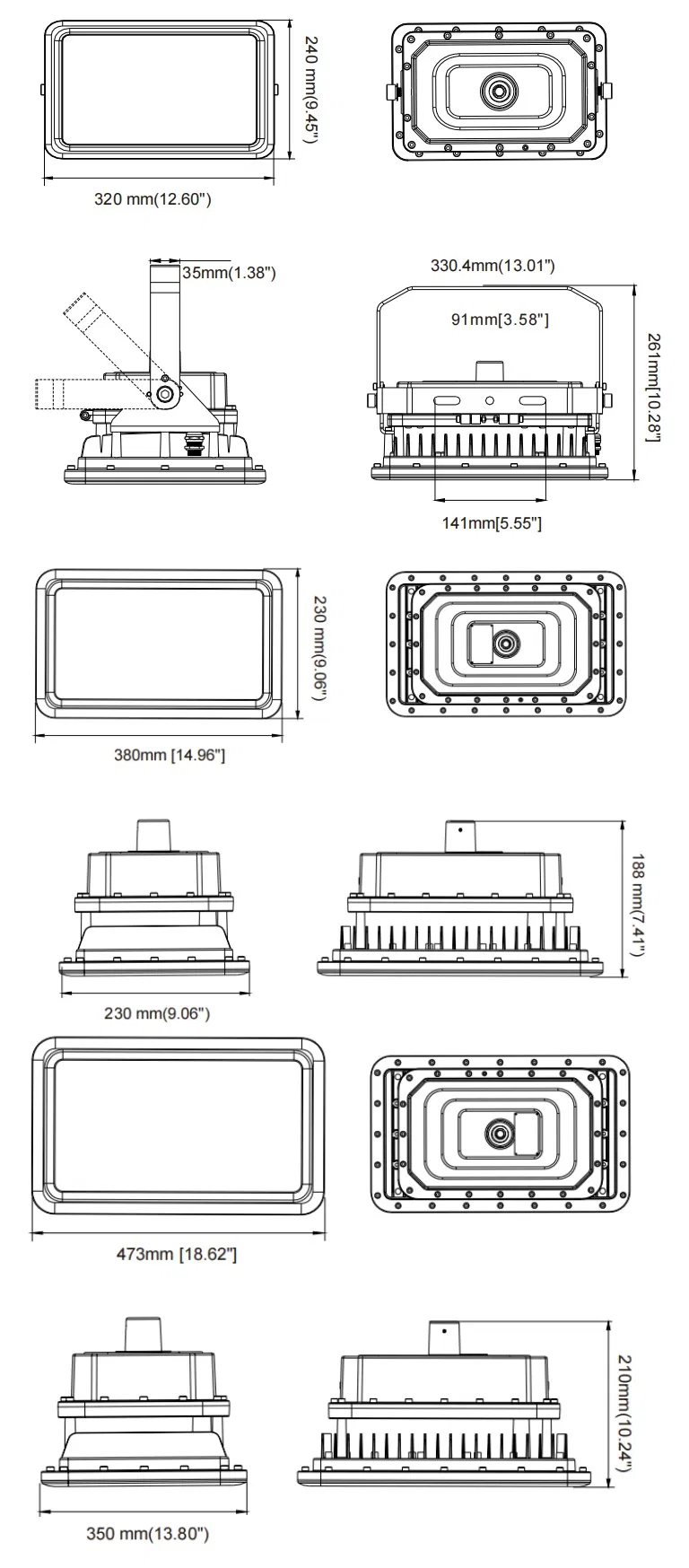

Dimension

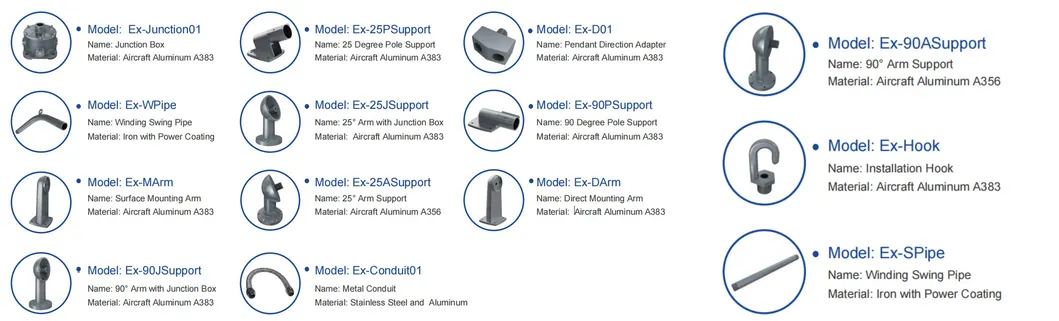

Mounting Options

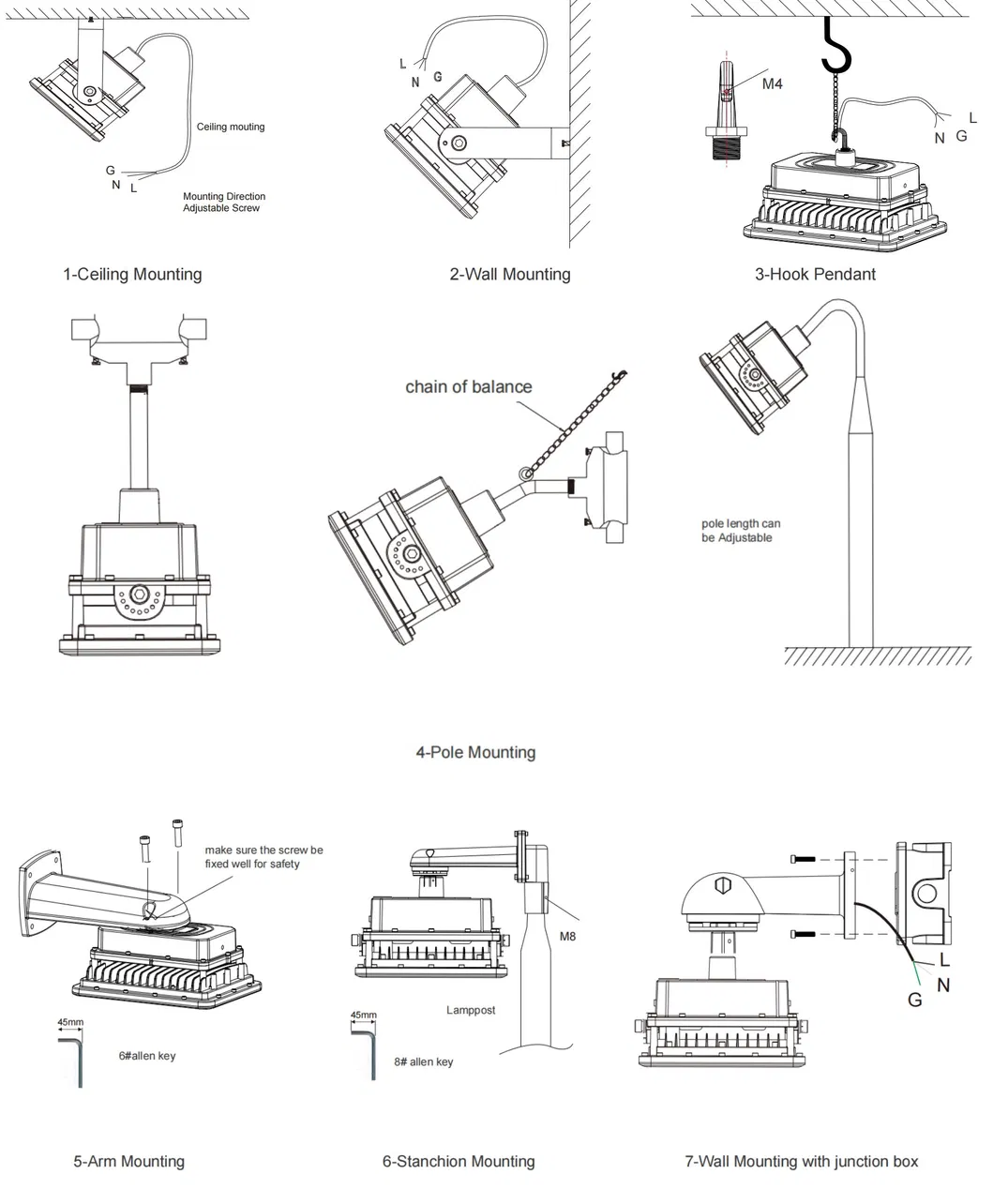

Mounting Methods

Applications

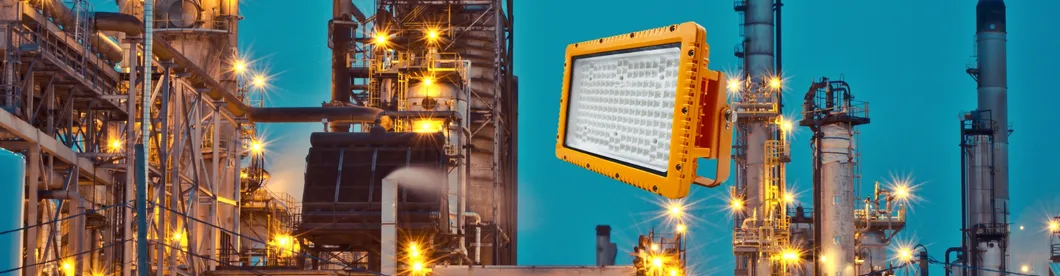

Application Banner
Oil and Gas Industry
Petroleum production, refining, loading, transportation, storage, retail, and LNG industry.
Chemical Industry
Paint facilities, chemical production, and storage.
Ocean & Aerospace
Ocean platforms, structures, aerospace clean rooms, and vessel operations.
Food & Alcohol
Flour and fine particle production, food distilling, and alcohol industry.

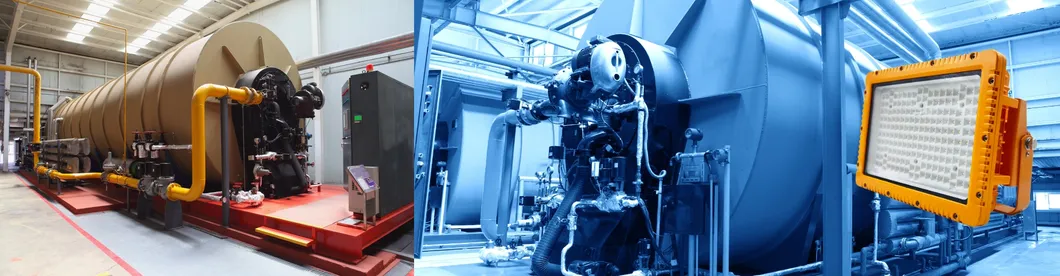

Industrial Application

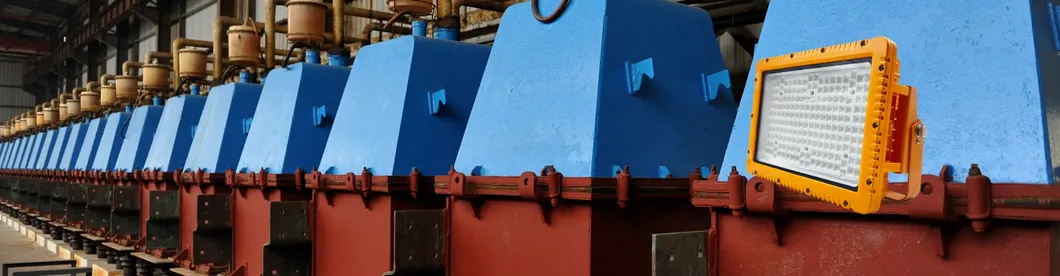

Marine Application
Application Example

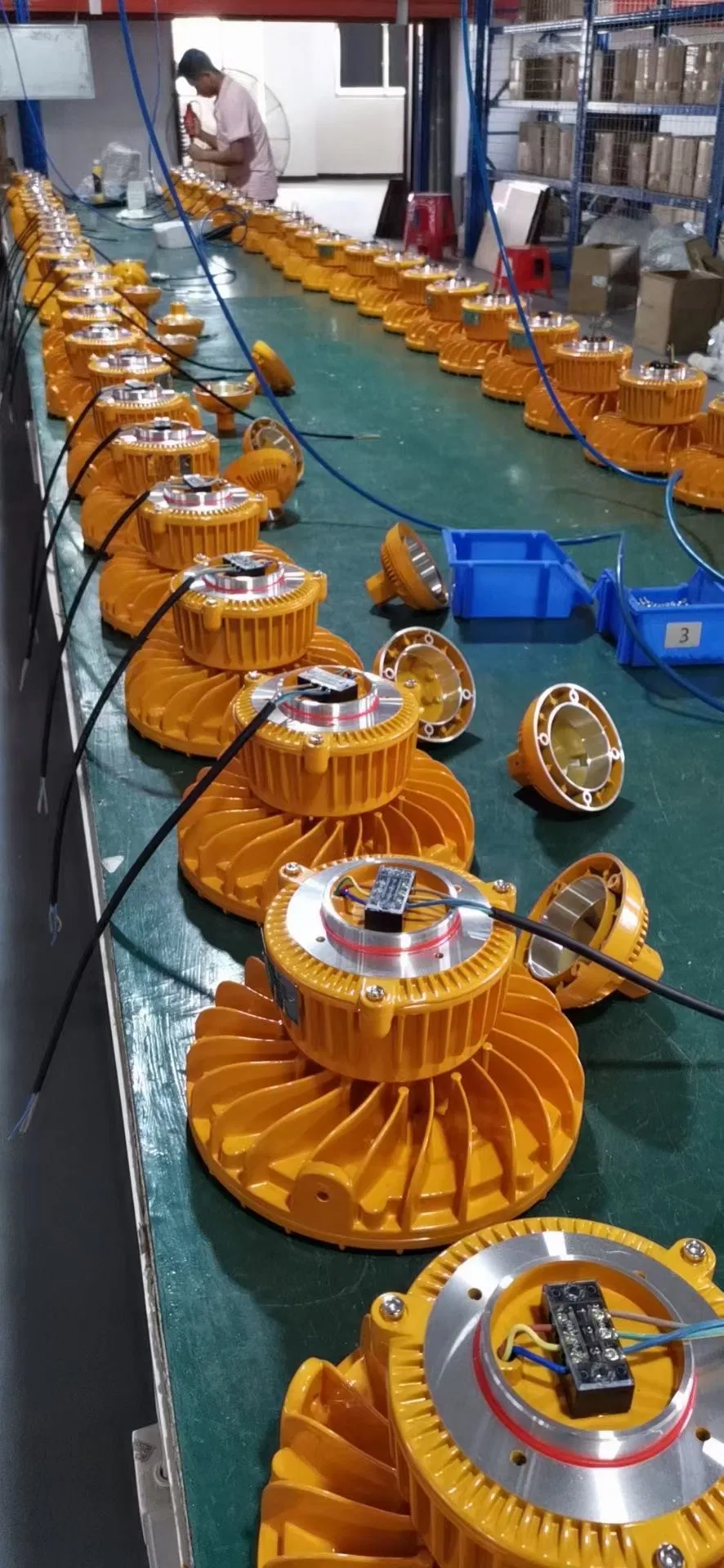

Site Demo 1

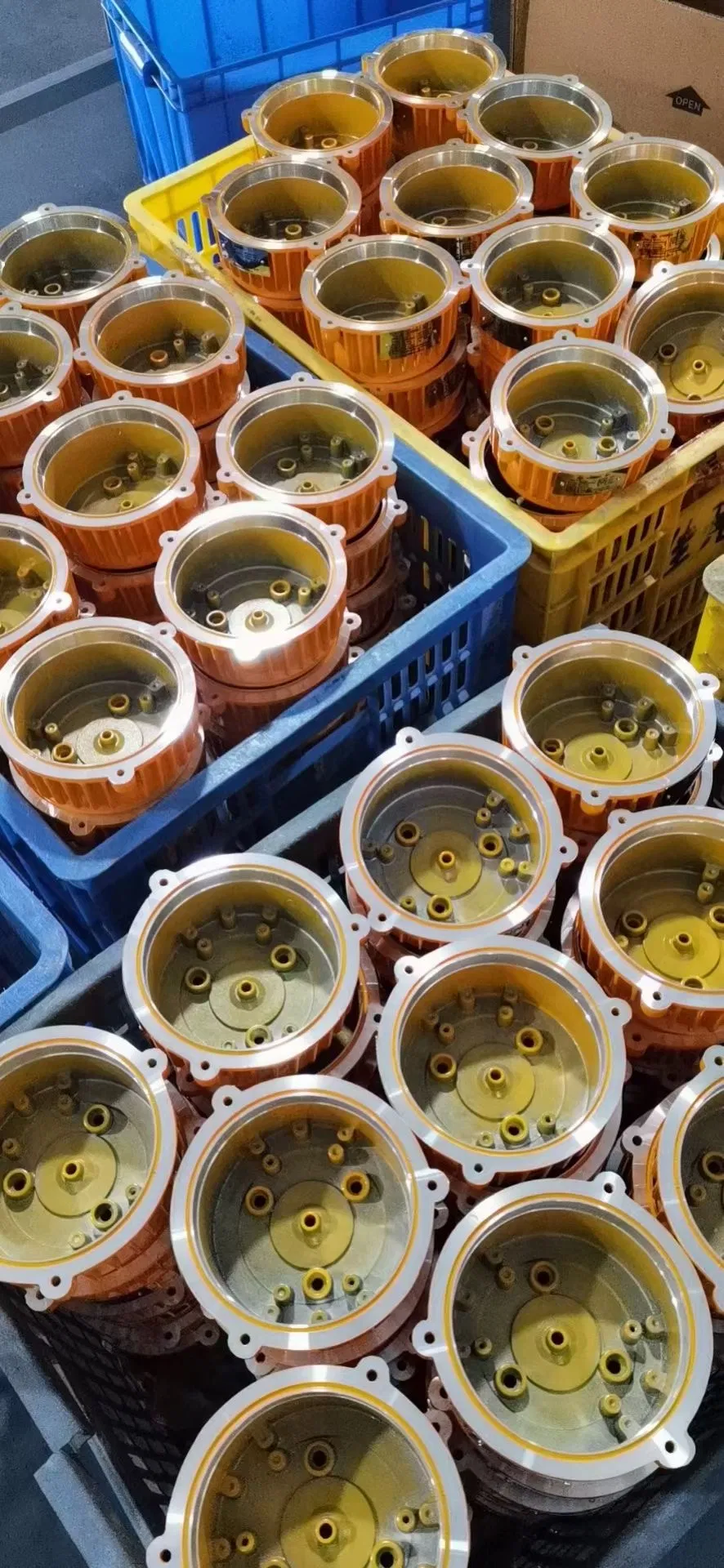

Site Demo 2

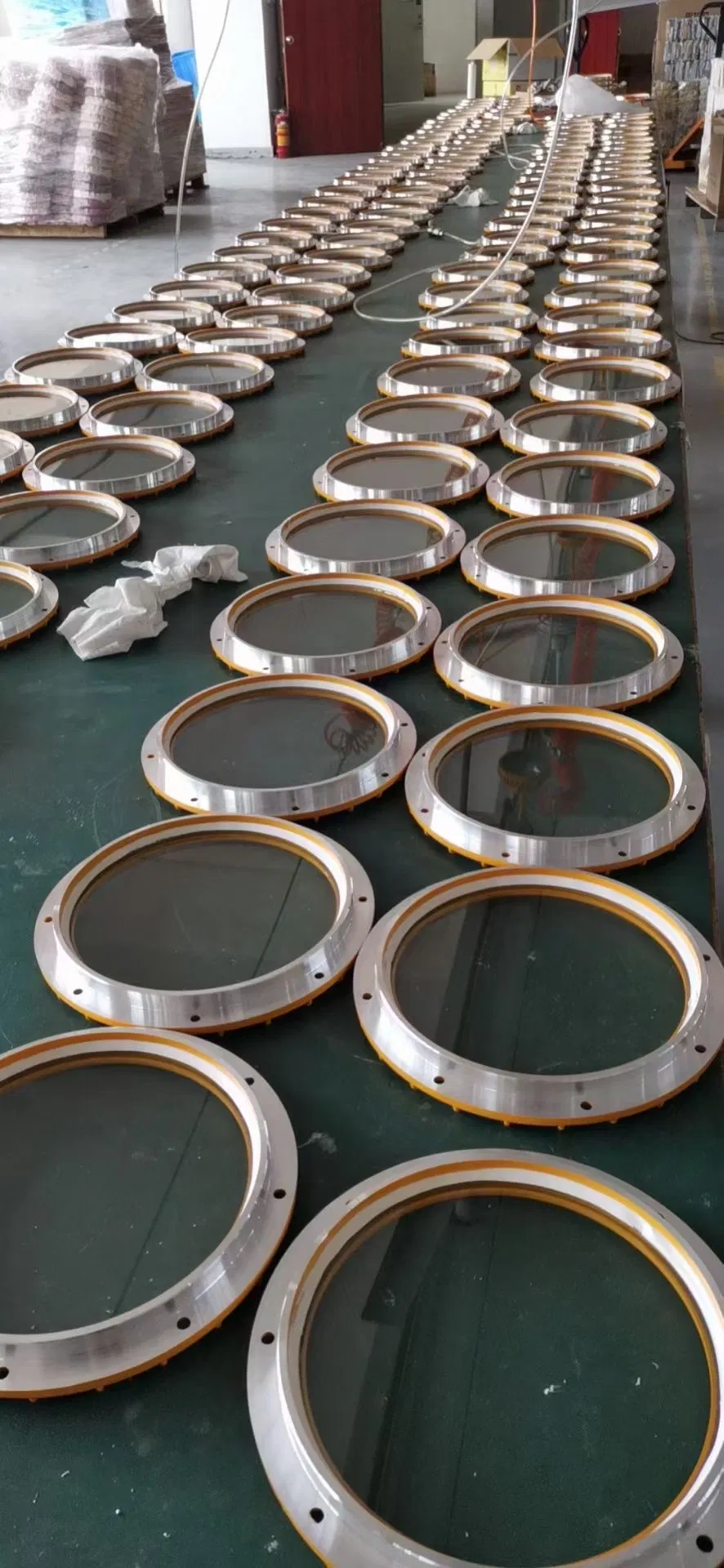

Site Demo 3

Packaging

Model Quantity/Carton Packing Size (mm) N.W (KG) G.W (KG)
Explosion Proof LED Series 1 pc 460*490*290 12.5 15
Packaging 1
Packaging 2

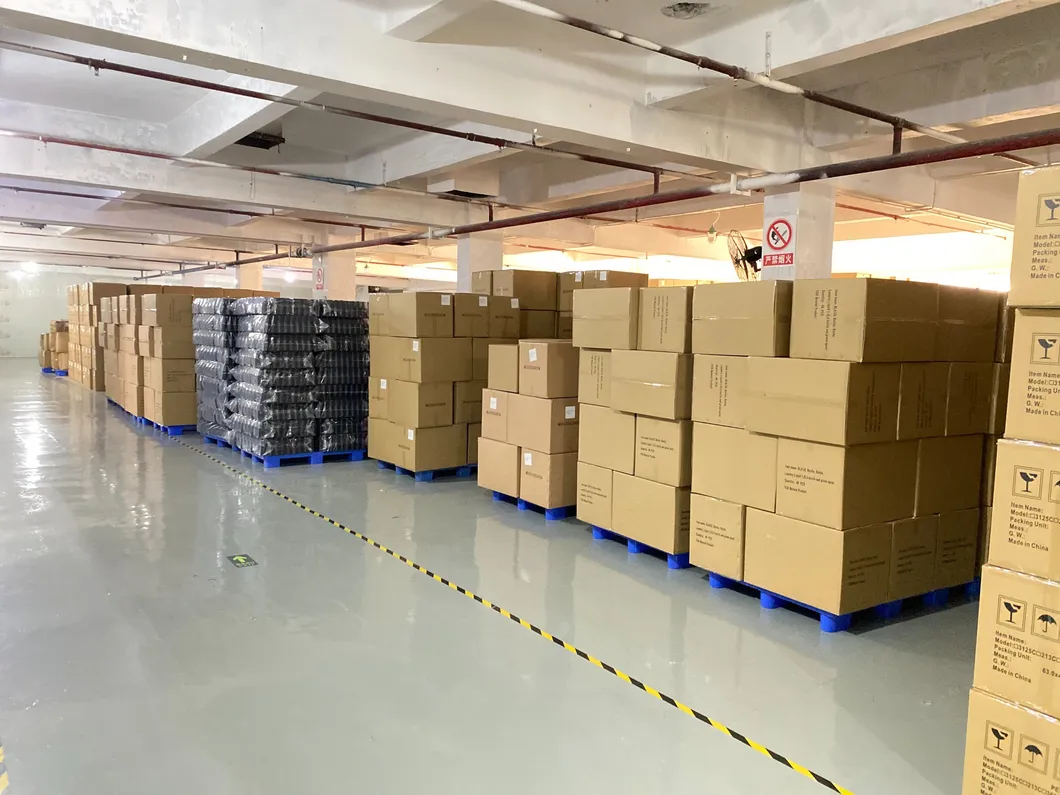

Logistics 1
Logistics 2
Logistics 3
Testing Quality Control

Frequently Asked Questions

What hazardous zone ratings does this light carry?
This light is certified for ATEX/IECEx Zone 1 & 2 (gas) and Zone 21 & 22 (dust), as well as UL844 Class I Division 2 and Class II Division 1 & 2.
Is the LED light suitable for marine and offshore use?
Yes, it features a marine-rated powder-coated finish and is ABS certified, making it ideal for saltwater environments and offshore platforms.
What is the warranty period for this explosion-proof light?
We provide a 5-year warranty on the entire fixture, including the replaceable LED boards and drivers.
Can this light operate in extreme temperature conditions?
Absolutely. The fixture is designed to operate reliably in ambient temperatures ranging from -40°C to +60°C.
Does the light include emergency backup features?
Yes, emergency battery backup functions are available, providing up to 3 hours of illumination during power failures.
What is the IK and IP rating of the fixture?
The light is rated IP66 for dust and water protection and IK10 for high impact resistance, ensuring durability in harsh industrial settings.
